Produkteinführung

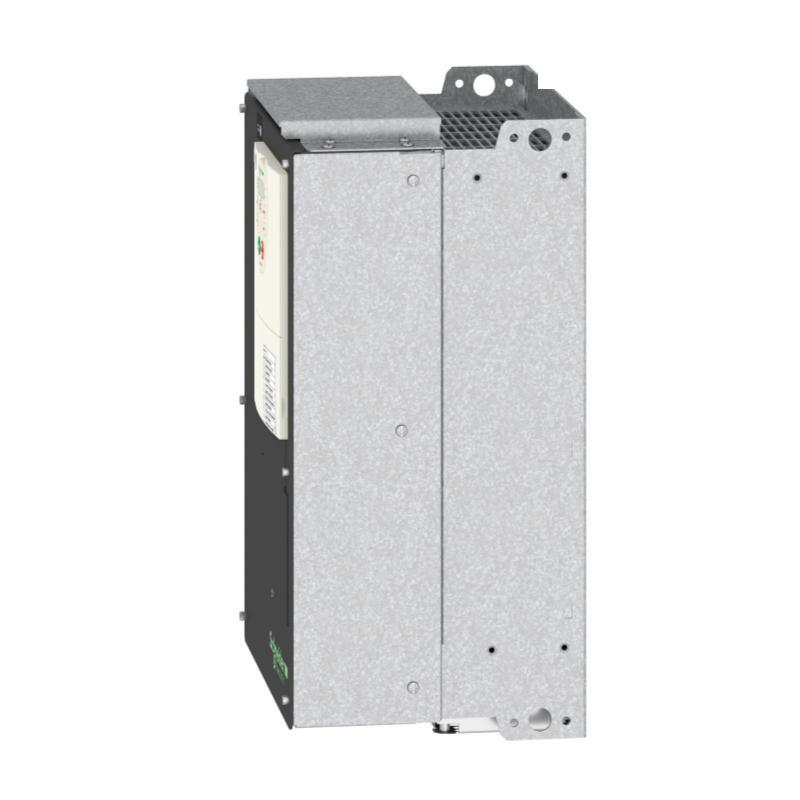

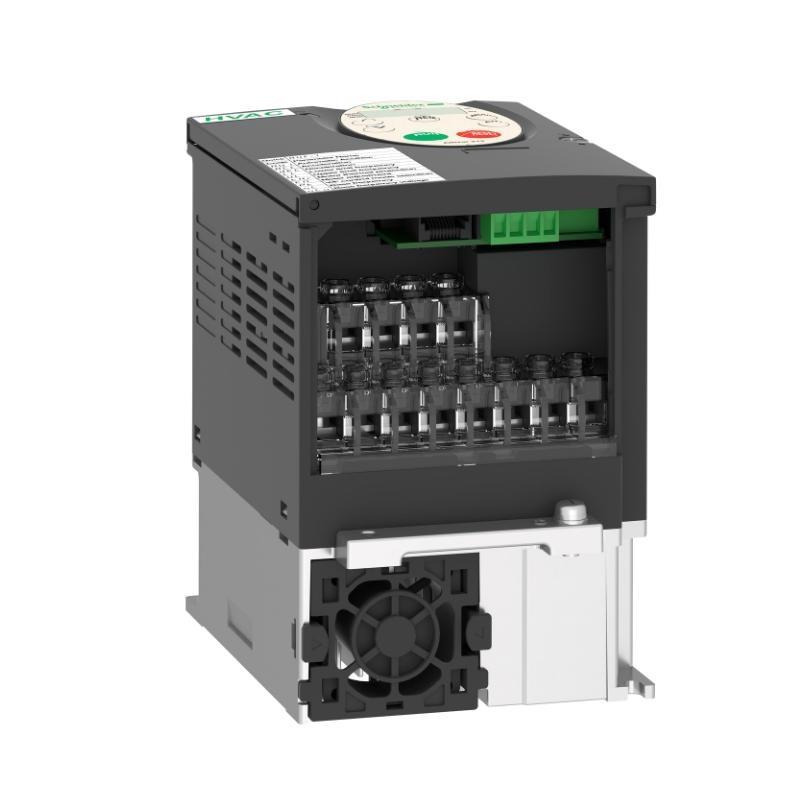

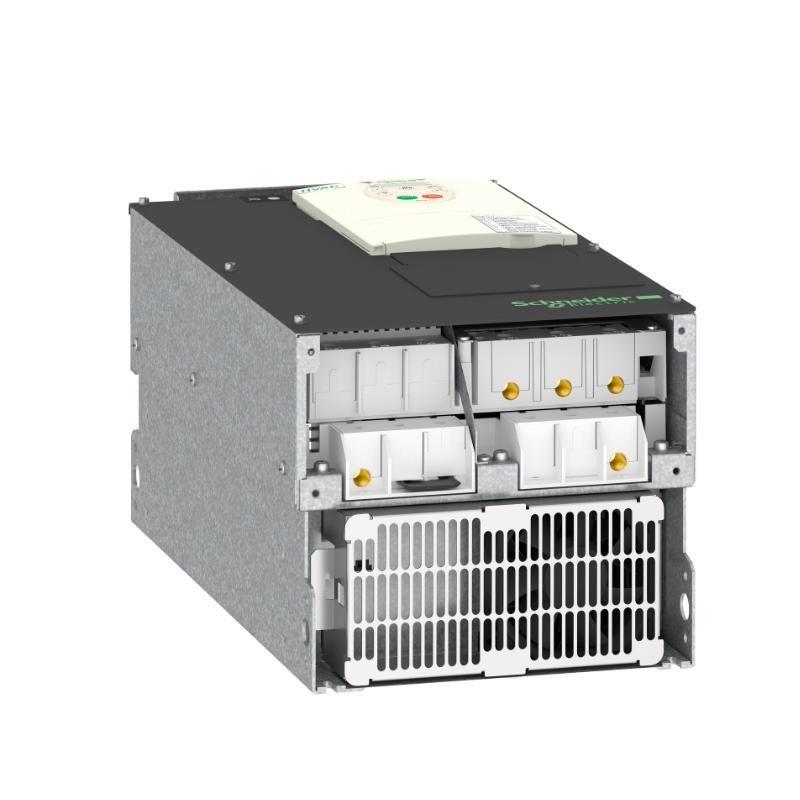

The Schneider Electric ATV212HD30N4 is a high-efficiency variable speed drive (VFD) designed to control three-phase asynchronous motors in commercial and light industrial fluid management applications. As part von the Altivar 212 series, it is optimized for energy-saving operation, particularly in HVAC systems where variable torque loads are dominant.
This drive operates on a rated supply voltage von 380–480 V AC and supports motors up to 30 kW (40 hp). It integrates an EMC filter and advanced harmonic mitigation technology, enabling smooth and interference-free operation without the need for additional line reactors or DC chokes.
The ATV212HD30N4 is engineered for vertical panel mounting and complies with major international standards, making it a reliable and environmentally responsible solution for modern building automation systems.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | ATV212HD30N4 |
| Product Type | Variable Speed Drive (VFD) |
| Series | Altivar 212 |
| Motor Type | Three-phase asynchronous motor |
| Rated Motor Power | 30 kW / 40 hp |
| Rated Supply Voltage | 380–480 V AC |
| Control Mode | Variable frequency control |
| Protection Rating | IP21 |
| EMC Filter | Integrated |
| Energy Saving Capability | Up to 70% energy reduction compared to traditional control |
| Harmonic Control | No external line or DC reactor required |
| Installation Orientation | Vertical mounting (±10°) |
| Mounting Method | Panel mounting, 4 fixing points |
| Applicable Standards | IEC/EN 61800-5-1, IEC/EN 61800-3 |
| Certifications | CE, UL, CSA, C-Tick, NOM |
| Umweltkonformität | RoHS, WEEE |
| Dimensions (H × W × D) | 420 × 240 × 214 mm |
| Gewicht | 26.4 kg |
Applications
-
HVAC Systems: Speed control von fans and air handling Stücks.
-
Pumping Systems: Energy-efficient control von water and fluid pumps.
-
Commercial Buildings: Centralized motor control for heating and ventilation.
-
Water Treatment Facilities: Flow regulation and pressure control.
-
Infrastructure Utilities: Reliable operation in continuous-duty fluid applications.
Advantages
-
Optimized for HVAC Applications: Designed specifically for variable torque loads such as fans and pumps.
-
High Energy Efficiency: Can reduce energy consumption by up to 70% compared with fixed-speed systems.
-
Integrated EMC Filtering: Minimizes electromagnetic interference without external components.
-
Advanced Harmonic Mitigation: Eliminates the need for additional line or DC reactors.
-
Cable Temperature Rise Suppression: Ensures stable operation with reduced electrical stress.
-
Robust Compliance: Meets international safety, EMC, and environmental standards.
-
Flexible Motor Cabling: Optional motor inductors allow extended cable length and reduced motor-side disturbance.
