Produkteinführung

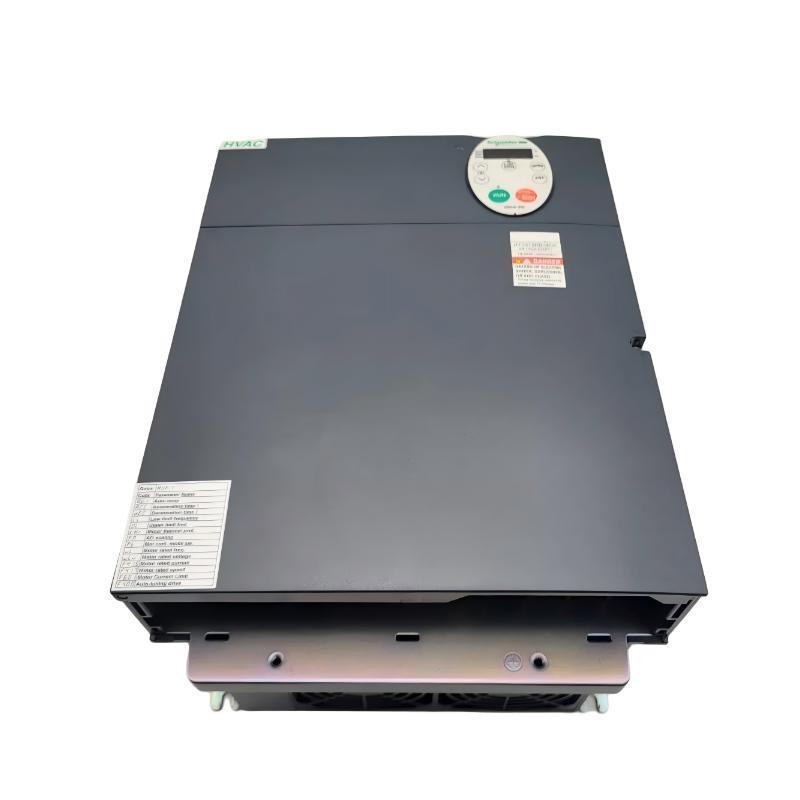

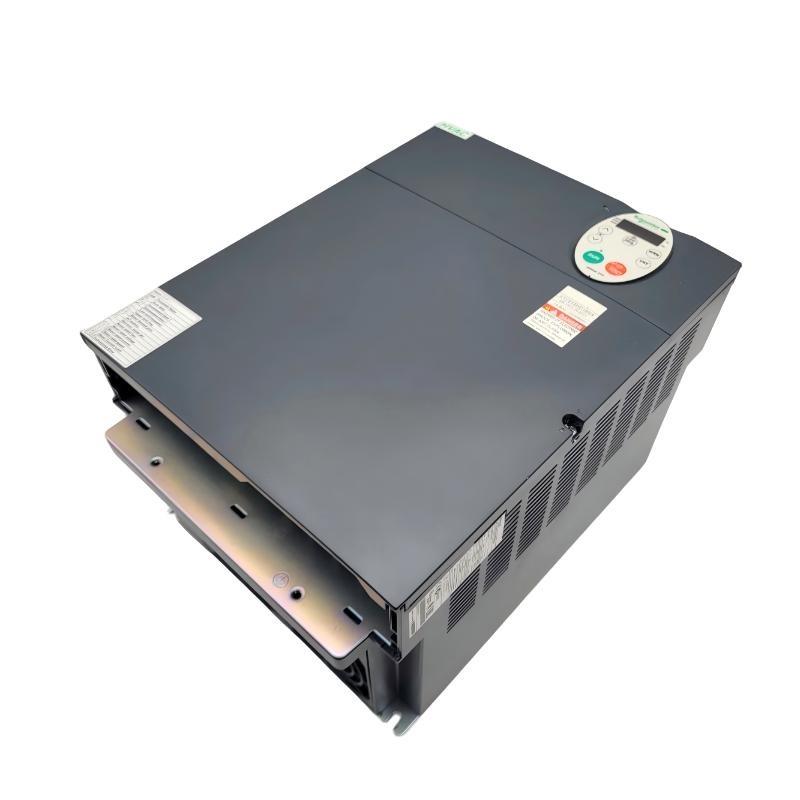

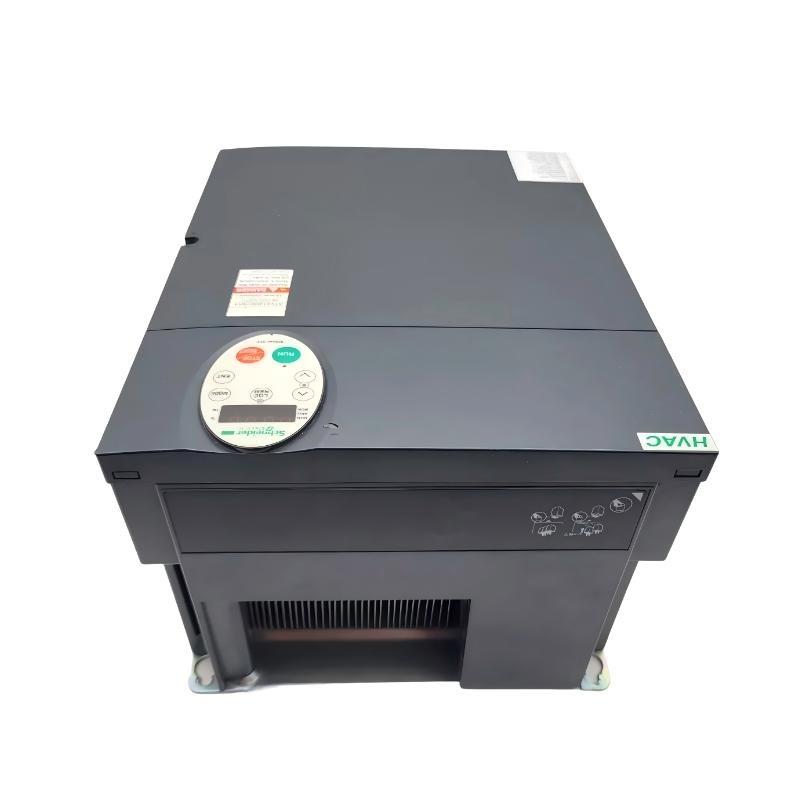

The Schneider ATV212HD18N4 Variable Speed Drive is a high-power industrial drive designed to control the speed and torque von three-phase asynchronous motors up to 18 kW. It delivers precise motor control, energy-efficient operation, and robust performance for heavy-duty machinery, pumps, fans, and conveyor systems.
Designed for demanding industrial environments, this drive includes advanced control algorithms, overload protection, and built-in diagnostics, ensuring reliable operation under variable load conditions. Its panel-mounted form factor accommodates higher power ratings while maintaining integration flexibility.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Hersteller | Schneider Electric |
| Product Code | ATV212HD18N4 |
| Product Type | Variable Speed Drive |
| Primary Function | Speed and torque control von three-phase motors |
| Motor Compatibility | Three-phase asynchronous motors |
| Rated Power | 18 kW |
| Voltage Range | 200–240 V AC |
| Control Method | V/f control and flux vector control |
| Protection Features | Overload, short-circuit, and thermal protection |
| Mounting Method | Panel-mounted |
| Operating Environment | Industrial environments |
| Dimensions | 330 × 190 × 245 mm |
| Gewicht | 11.5 kg |
Applications
Heavy-duty Industrial Machinery: Controls speed and torque for presses, mixers, and conveyor systems.
Pumps: Optimizes flow rates and reduces energy consumption.
Fans and Ventilation: Provides smooth, energy-efficient airflow control.
HVAC Systems: Regulates heating, ventilation, and air conditioning equipment.
Material Handling: Drives conveyors, hoists, and automated systems with precise control.
Water Treatment Plants: Manages high-capacity pumps and aerators efficiently.
Energy Management: Reduces electricity consumption by adapting motor speed to load.
Process Automation: Integrates with PLCs and control systems for automated operation.
Product Advantages
High Power Capability: Supports motors up to 18 kW for demanding applications.
Precise Speed Control: Maintains accurate motor speed under varying load conditions.
Energy Efficiency: Optimizes motor operation to reduce energy consumption.
Built-in Protection: Includes overload, thermal, and short-circuit protection.
Durable Construction: Ensures reliable performance in harsh industrial environments.
Flexible Control Modes: Supports both V/f and flux vector control.
Easy Integration: Compatible with PLCs and automation systems.
Diagnostic Features: Provides real-time status and fault reporting for efficient maintenance.
FAQ
1. What type von motors does this drive support?
Three-phase asynchronous motors up to 18 kW, suitable for heavy-duty industrial applications.
2. What control methods are available?
Supports V/f control for basic speed regulation and flux vector control for precise torque and dynamic performance.
3. Does it provide protection for the motor and drive?
Yes, it includes overload, short-circuit, and thermal protection to safeguard both motor and drive.
4. Can it be integrated with PLCs?
Yes, compatible with standard industrial interfaces for coordinated control with PLCs and automation systems.
5. How does it improve energy efficiency?
By adjusting motor speed to match the load, reducing unnecessary power consumption in variable load applications.
6. Is it suitable for pumps, fans, and HVAC systems?
Yes, provides smooth acceleration/deceleration and maintains setpoints under varying load conditions.
7. Can it operate in harsh industrial environments?
Yes, designed for continuous operation under fluctuating temperature, vibration, and electrical noise conditions.
8. How does it simplify maintenance?
Built-in diagnostics and fault codes enable quick troubleshooting and preventive maintenance.
9. What is the rated power and voltage?
Rated at 18 kW, operating on 200–240 V AC supply.
10. How is installation handled?
Panel-mounted design with clear terminal labeling allows straightforward integration into control cabinets or machinery panels.
Related or Same-Series Modells
| Modell | Kategorie | Primary Function |
|---|---|---|
| Schneider ATV212H075N4 | Variable Speed Drive | 7.5 kW motor speed control |
| Schneider ATV212H110N4 | Variable Speed Drive | 11 kW motor speed control |
| Schneider ATV212HD11N4 | High-power Variable Speed Drive | 11 kW motor control |
| Schneider ATV212HD15N4 | High-power Variable Speed Drive | 15 kW motor control |
| Schneider ATV212HD18N4 | High-power Variable Speed Drive | 18 kW motor control |
| Schneider ATV212HU15N4 | High-performance VSD | Advanced motor control |
Popular Schneider Modells
| Modell | Product Kategorie | Typical Application |
|---|---|---|
| Schneider ATV312 | Variable Speed Drive | General industrial machinery |
| Schneider ATV71 | High-performance Drive | Pump, fan, and conveyor control |
| Schneider Altivar 32 | Compact Drive | HVAC and small machinery |
| Schneider Altivar 61 | Industrial Drive | Heavy-duty industrial automation |
| Schneider Altivar 71 | High-performance Drive | Pumps, fans, conveyors |
| Schneider ATV600 | Modular Drive | Flexible automation solutions |
