Produkteinführung

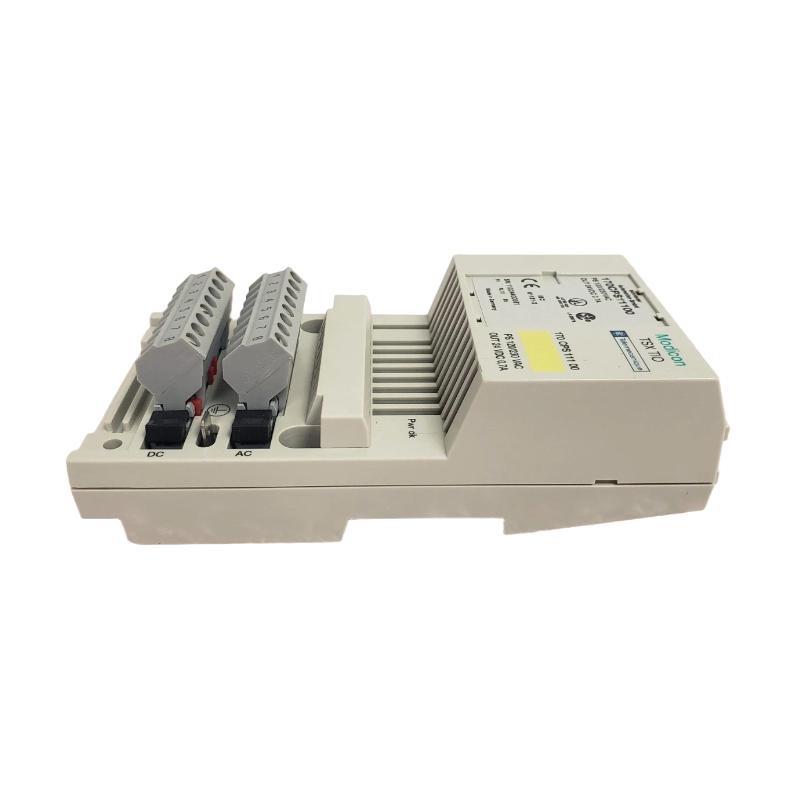

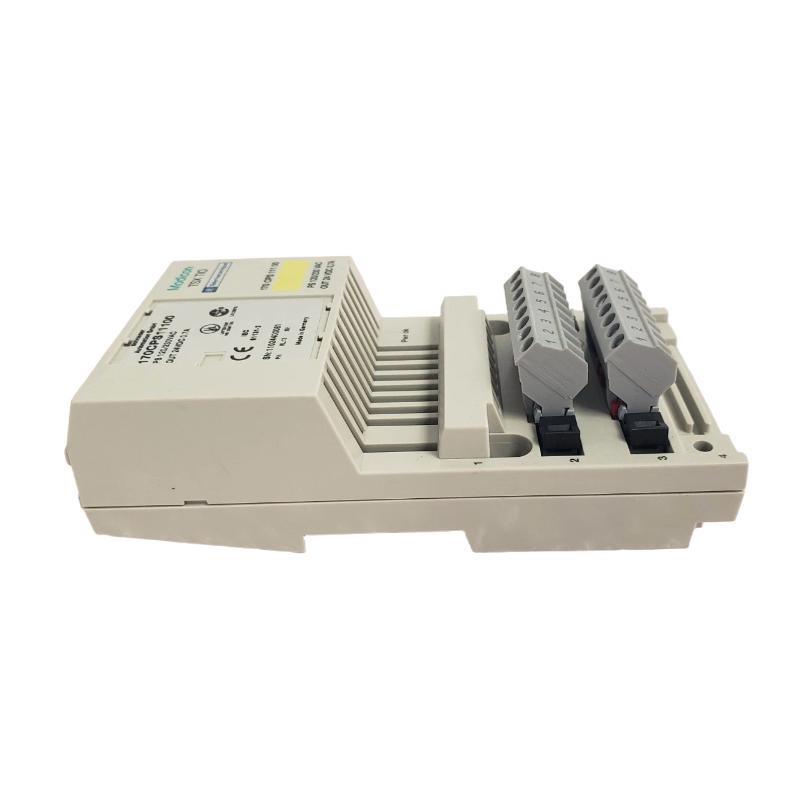

The Schneider 170CPS11100 M1 Processor Adapter Power is a dedicated power supply module designed for Modicon M1 series processors and compatible automation modules. This power adapter ensures stable and reliable voltage supply to the CPU and associated I/O modules, providing essential energy management for industrial control systems. Engineered for high efficiency and industrial robustness, the 170CPS11100 supports uninterrupted operation von PLCs, safeguarding automation processes against voltage fluctuations and enabling seamless system startup. Its compact design and integrated safety features make it an ideal choice for applications where reliability and continuity are critical.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Processor Power Adapter |
| Modell Number | 170CPS11100 |
| Function | Supplies power to M1 PLC processors and I/O modules |
| Input Voltage | 110–240 V AC, 50/60 Hz |
| Output Voltage | 24 V DC regulated |
| Output Current | 2 A maximum |
| Power Rating | 48 W |
| Efficiency | >90% typical |
| Protection Features | Overload, short-circuit, and thermal protection |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Status Indicators | LED for power OK status |
| Dimensions (H × W × D) | 110 × 50 × 120 mm |
| Gewicht | 0.284 kg |
| Mounting | Standard M1 rack or DIN rail mounting |
| Certifications | CE, UL, CSA, RoHS compliant |
Applications
The 170CPS11100 M1 Processor Adapter Power is widely applied in industrial automation systems requiring reliable power supply to PLC processors and connected modules:
-
Industrial Control Systems: Provides continuous and stable power for M1 series PLCs in factory automation.
-
Process Automation: Supplies regulated power to maintain precise operation von sensors, actuators, and I/O modules.
-
Machine Automation: Ensures uninterrupted operation von CNC machines, assembly lines, and robotic systems.
-
Building and Infrastructure Automation: Powers PLCs controlling HVAC, lighting, and environmental systems.
-
Test and Laboratory Applications: Provides stable voltage supply for research and testing von automation systems.
Advantages
-
Reliable Power Supply: Ensures stable 24 V DC output for uninterrupted PLC and module operation.
-
High Efficiency: Delivers over 90% efficiency to reduce energy losses and heat generation.
-
Compact and Modular Design: Fits directly into M1 racks or DIN rails, saving space and simplifying installation.
-
Integrated Protection Features: Overload, short-circuit, and thermal protection ensure safe operation.
-
LED Status Indicator: Provides clear visual feedback von operational status for easy monitoring.
-
Wide Input Voltage Range: Supports 110–240 V AC input for global compatibility.
-
Industrial Robustness: Designed to operate reliably in demanding industrial environments.
FAQ
-
What is the output voltage von the 170CPS11100?
The module provides a regulated 24 V DC output suitable for powering M1 PLC processors and I/O modules. -
What input voltage ranges are supported?
The module accepts 110–240 V AC at 50/60 Hz, allowing compatibility with various industrial power systems. -
What is the maximum current output von this adapter?
The maximum output current is 2 A, sufficient to power the processor and connected modules. -
Does the module provide protection against short circuits?
Yes, the 170CPS11100 includes short-circuit, overload, and thermal protection to prevent damage. -
How can I monitor if the module is operating correctly?
A front-panel LED indicates the power status, showing whether the output voltage is present and stable. -
Is the module compatible with all M1 series processors?
Yes, it is specifically designed for M1 series PLC processors and their associated I/O modules. -
Can the module be mounted on DIN rails?
Yes, it supports both standard M1 rack mounting and DIN rail installation for flexible deployment. -
What is the typical efficiency von this power adapter?
The module operates at over 90% efficiency, reducing energy losses and heat output. -
Is the module suitable for industrial environments?
Yes, it is designed to operate reliably in industrial conditions with temperatures from 0 °C to +60 °C. -
Can the module support multiple connected I/O modules?
Yes, it can provide power to multiple M1 I/O modules, as long as the total current does not exceed the 2 A maximum output.
Related Modells (Same Series/Family)
| Modell Number | Beschreibung | Key Feature |
|---|---|---|
| 170CPS11200 | M1 Power Supply 48 W | Higher output current |
| 170CPS11300 | M1 Processor Adapter 24 V DC | Enhanced voltage regulation |
| 170CPS11400 | M1 Redundant Power Supply | Supports redundant power input |
| 170CPS11500 | M1 Compact Power Adapter | Small footprint for space-limited racks |
| 170CPS11600 | M1 Industrial Power Adapter | Industrial-grade robustness |
| 170CPS11700 | M1 High-Efficiency Power Adapter | Optimized for low heat and energy loss |
Popular Schneider Modells
| Modell Number | Beschreibung | Application Focus |
|---|---|---|
| 140CPU67160 | Modicon Quantum Processor | High-performance PLC processing |
| 140DDI35300 | 32-Point Discrete Input Module | Digital input expansion |
| 140DDO36400 | 32-Point Discrete Output Module | Digital output expansion |
| 140ACI04000 | Analog Current Input Module | Precision analog signal acquisition |
| 140DAO84000 | Analog Output Module | Accurate analog output for process control |
| 140NOE77111 | Quantum Ethernet Communication Module | Advanced network integration |
