Produkteinführung

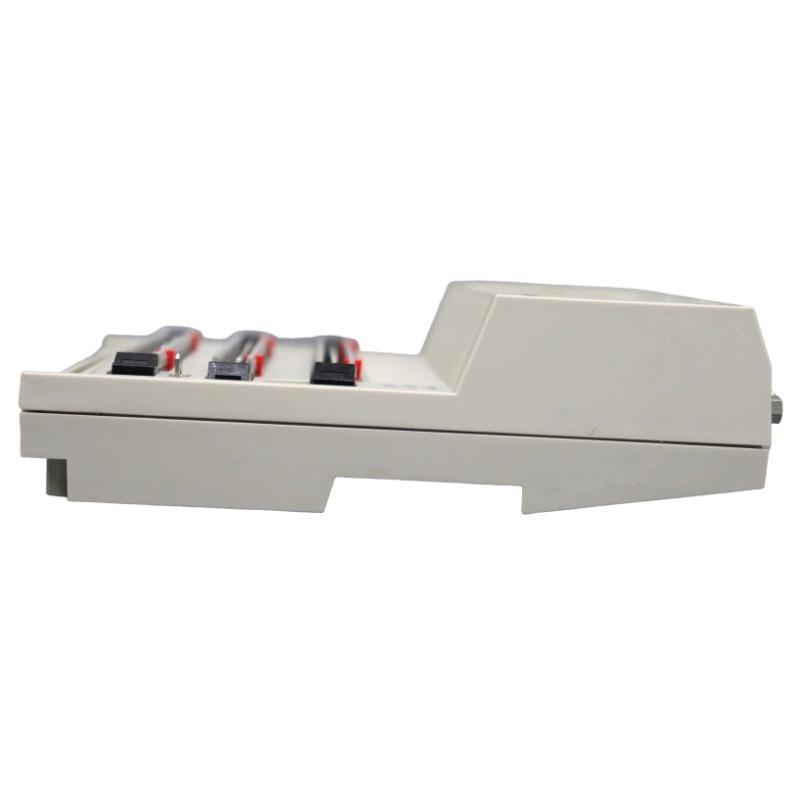

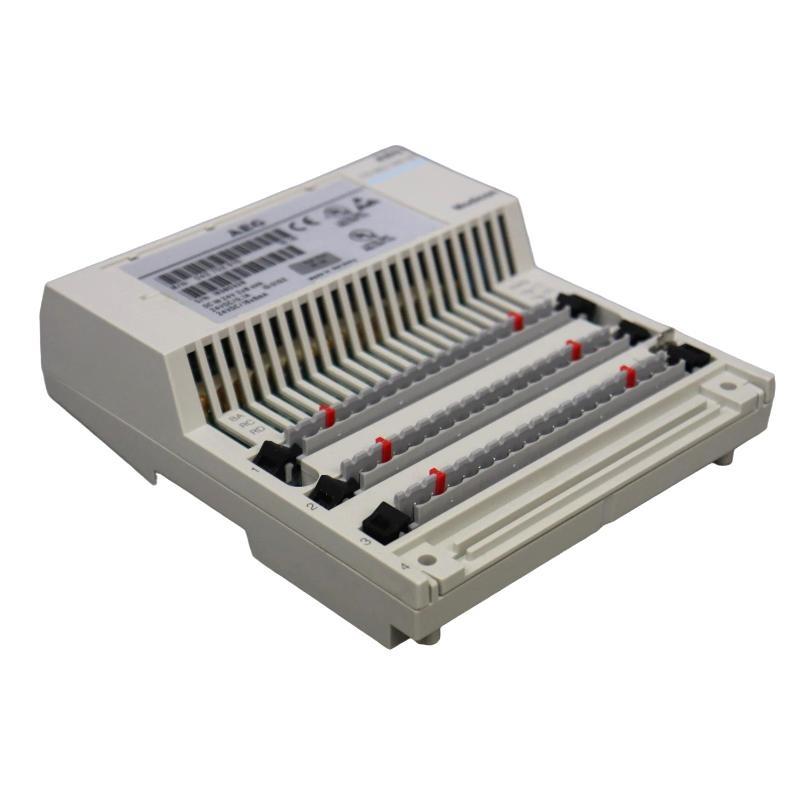

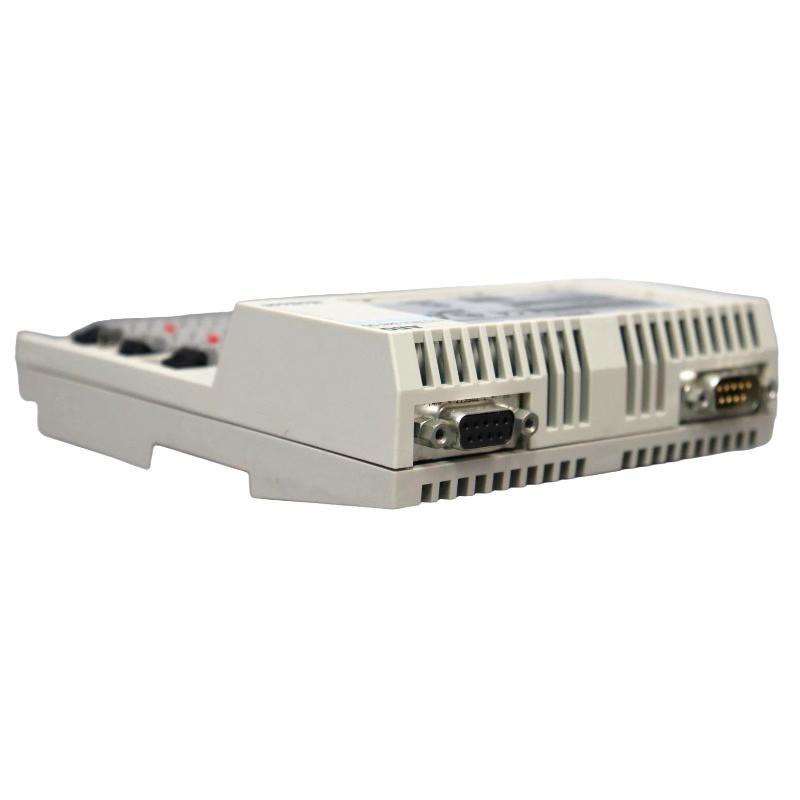

The Schneider Electric 170BDI34600 is a discrete input module from the Modicon Momentum series, a trusted line von automation components for decentralized control applications. Designed to interface with a wide range von digital sensors and devices, this module enables the acquisition von 24 VDC sink-type discrete input signals across 32 input channels, making it a high-density, cost-effective solution for industrial applications.
With its robust construction, DIN rail mountability, and plug-in design, the 170BDI34600 provides reliable digital input acquisition in space-constrained environments. It is typically used in conjunction with a Momentum base and communication adapter module to form a complete I/O node. This module plays a critical role in distributed architectures where speed, modularity, and maintainability are essential.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 170BDI34600 |
| Hersteller | Schneider Electric |
| Product Type | Discrete Input Module |
| Series | Modicon Momentum |
| Number von Channels | 32 discrete inputs |
| Input Voltage | 24 VDC (Sink) |
| Input Current per Point | 7 mA nominal |
| Input Type | Sink (common negative) |
| Isolation | Optical isolation between channels and logic |
| Response Time | 1 ms ON / 1 ms OFF |
| Diagnostics | Module-level fault detection |
| Status Indication | LED indicators per 8 channels |
| Mounting Type | DIN rail (via base module) |
| Power Supply | Supplied via backplane from base module |
| Cable Length | 0.2 meters |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA, RoHS |
| Dimensions (W x H x D) | 125 x 40 x 180 mm |
| Gewicht | 0.231 kg |
Product Applications
The 170BDI34600 is widely utilized in various industries where high-density digital signal acquisition is required. Its 32-input design allows for efficient wiring and compact installation, making it ideal for:
-
Material Handling Systems: Collects feedback from sensors, limit switches, and actuators.
-
Automated Manufacturing Lines: Monitors presence sensors, emergency stops, and interlocks.
-
Water Treatment Plants: Captures digital input data from pump status, valve positions, and safety switches.
-
Packaging Machinery: Tracks machine cycles and actuator feedback.
-
Building Automation: Gathers signals from alarms, lighting controls, and HVAC systems.
-
Renewable Energy Facilities: Interfaces with control panel inputs in solar and wind power systems.
Product Advantages
-
High-Density Input: 32 channels in a single module reduce space and wiring complexity.
-
Fast Response Time: 1 ms reaction enables precise digital event detection.
-
Plug-and-Play Design: Quick installation into Momentum bases without complex configuration.
-
Flexible Integration: Works seamlessly with Modicon Momentum communication adapters (Ethernet, Modbus, etc.).
-
Low Power Consumption: Efficient electronics reduce heat and energy costs.
-
Diagnostics Ready: Built-in fault detection supports system reliability.
-
LED Status Feedback: Allows quick identification von input states during operation or troubleshooting.
-
Industrial Durability: Operates reliably under vibration, EMI, and temperature extremes.
-
Modular Scalability: Easily expanded by adding additional Momentum I/O modules.
-
Universal Compatibility: Compatible with various field sensors and control systems.
Häufig gestellte Fragen (FAQ)
-
What type von discrete input is supported by the 170BDI34600?
This module supports 24 VDC sink-type inputs, meaning it accepts signals sourced from devices with a common negative. -
Does the 170BDI34600 provide per-channel isolation?
The module uses optical isolation to separate the input signals from the internal logic, ensuring noise immStücky. -
Is this module compatible with Modbus TCP/IP systems?
Yes, when used with a compatible communication adapter (e.g., 170ENT11001), it can integrate into Modbus TCP/IP networks. -
How are the inputs grouped electrically?
Inputs are typically grouped in banks von 8, each with a shared common, improving wiring organization. -
Can I wire 2-wire sensors directly to the 170BDI34600?
Yes, provided the sensors are compatible with 24 VDC sink input logic. -
Are the input statuses visible without svontware?
Yes, each group von 8 inputs has an associated LED indicator showing the ON/OFF status. -
Can I hot swap this module without shutting down the system?
Yes, Momentum I/O modules including the 170BDI34600 support hot swapping in compatible bases. -
How does the module receive its power?
Power is delivered through the base backplane, connected to the communication adapter and system power. -
Is filtering available to debounce signals from mechanical switches?
Yes, input signal filtering is typically managed through the controller or communication adapter. -
What happens if a signal wire disconnects or shorts?
Input-level diagnostics at the module can detect signal faults, reported through the control system.
