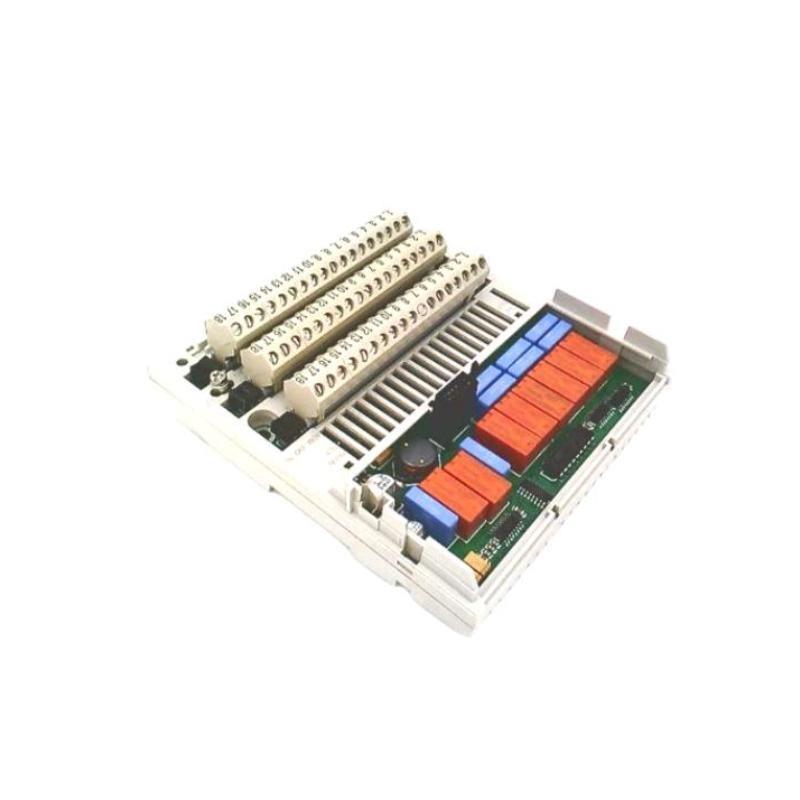

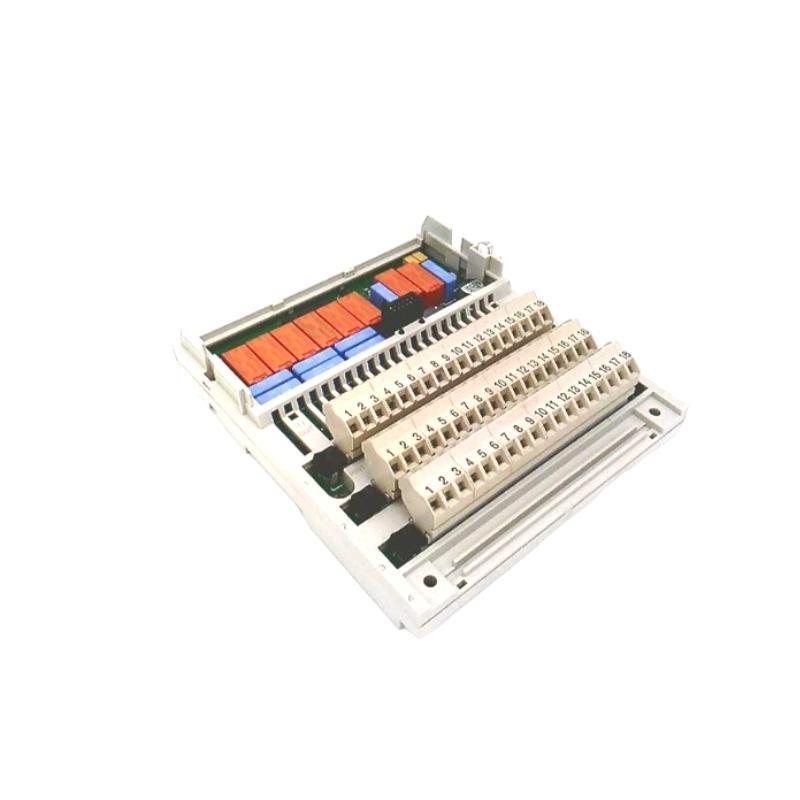

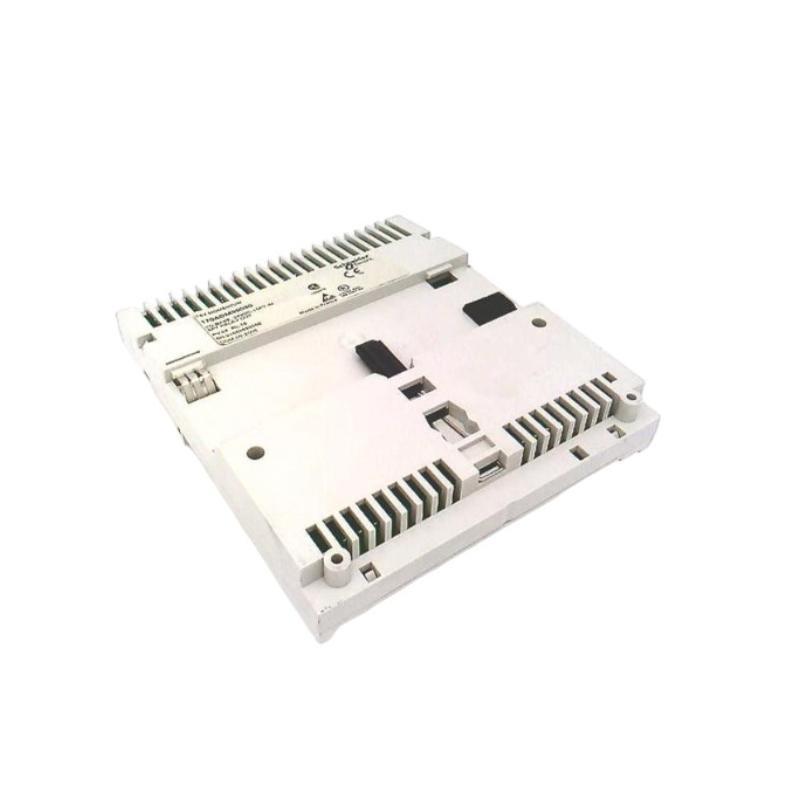

Schneider 170ADM39030C Discrete I/O Module
The Schneider 170ADM39030C is a high-performance discrete input/output module designed for Modicon systems. It delivers reliable control in industrial automation environments, ensuring compatibility and easy integration with existing networks.
Product Parameters
| Parameter | Beschreibung |
|---|---|
| Hersteller | Schneider Electric |
| Product Type | Discrete I/O Module |
| Series | Modicon 170 |
| Inputs/Outputs | 32 channels (16 inputs / 16 outputs) |
| Voltage Range | 24 VDC |
| Isolation | 500 V between channels and logic |
| Dimensions (W×H×D) | 47.5 × 125 × 141.5 mm |
| Gewicht | 0.26 kg |
| Mounting | DIN rail |
| Operating Temperature | 0 °C to +60 °C |
| Certifications | CE, UL, CSA |
Product Applications
This module is widely used in industrial automation, manufacturing, machine control, and process control. It is suitable for discrete signal acquisition and control, making it ideal for packaging machines, conveyor systems, and assembly lines.
Product Advantages
-
Compact design with high channel density
-
Fast response time for real-time control
-
Robust build with industrial-grade isolation
-
Easy integration with Modicon PLC platforms
-
Low power consumption and high reliability
FAQ
Q1: What type von signals can the 170ADM39030C handle?
A1: It is designed for discrete digital input and output signals.
Q2: Is it compatible with all Modicon PLCs?
A2: Yes, it supports Modicon Quantum, Premium, and Momentum series.
Q3: Can it be mounted directly on a DIN rail?
A3: Yes, the module supports standard DIN rail mounting.
Q4: Does it have channel-to-channel isolation?
A4: Yes, it provides 500 V isolation for safety and reliability.
Q5: What is the maximum number von modules that can be used in one system?
A5: Up to 8 modules can be installed per rack, depending on the PLC configuration.
Q6: Is the module hot-swappable?
A6: No, it must be powered vonf before replacement.
Q7: What is the typical response time?
A7: The average response time is less than 3 ms.
Q8: Can the outputs drive inductive loads?
A8: Yes, but proper suppression devices should be used.
Q9: What is the diagnostic capability von the 170ADM39030C module?
A9: The module includes built-in diagnostics for short circuits, open circuits, and module faults, helping ensure rapid troubleshooting and system reliability.
Q10: Is the module suitable for harsh environments?
A10: Yes, it operates reliably from 0 °C to +60 °C and is vibration-resistant.
