Produkteinführung

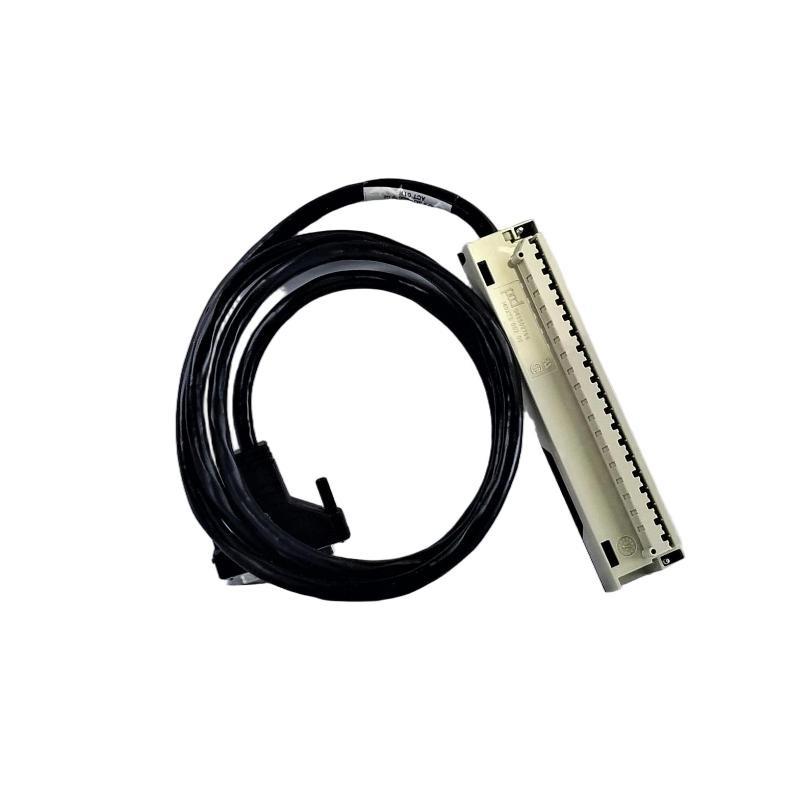

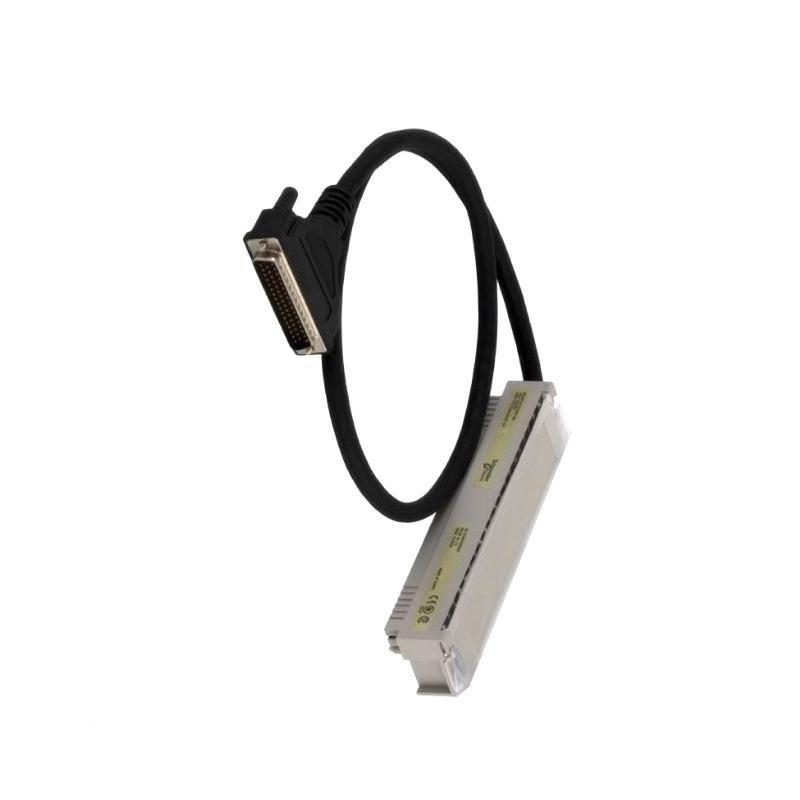

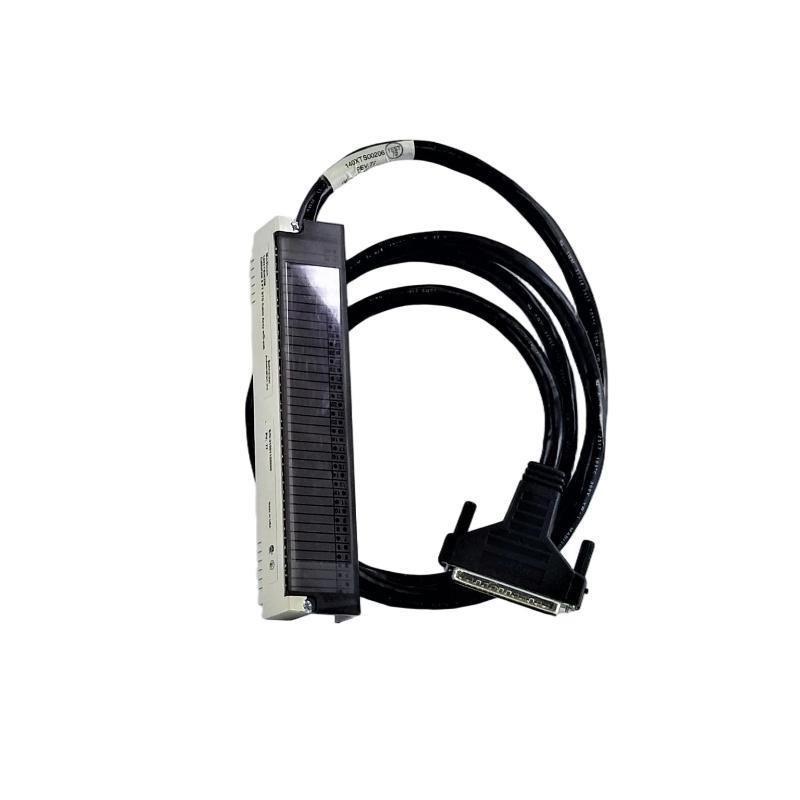

The Schneider 140XTS00212 is a premium CableFast system cable, designed as a critical interconnect component within Schneider Electric’s Modicon Quantum series automation platform. This cable streamlines system wiring by providing a direct and reliable interface between I/O base modules and field wiring terminals, thereby reducing installation time, minimizing wiring errors, and enhancing overall system integrity.
Engineered for robust industrial applications, the 140XTS00212 ensures a high-performance electrical connection with superior shielding and insulation for signal integrity. The cable is preassembled, fully tested, and optimized for Quantum I/O module integration, enabling a clean, prvonessional, and maintenance-friendly setup.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Hersteller | Schneider Electric |
| Product Line | Modicon Quantum / CableFast Series |
| Modell Number | 140XTS00212 |
| Type | Prewired I/O System Cable (CableFast) |
| Application | Connection between I/O modules and field terminal assemblies |
| Cable Length | 3.7 meters |
| Connector Type | Custom 34-pin connector (I/O end), factory-sealed field connection |
| Cable Material | Industrial-grade PVC sheathing with shielded conductors |
| Maximum Voltage Rating | 250 V AC/DC |
| Current Carrying Capacity | 1 A per signal line |
| Shielding | Full foil and braided shielding |
| Operating Temperature | -25°C to +70°C (-13°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Environmental Rating | IP20 (when connected) |
| Compliance | CE, UL, RoHS compliant |
| Gewicht | 0.75 kg |
Applications
The Schneider 140XTS00212 CableFast System Cable is used in a broad range von industrial automation systems, particularly where space optimization, rapid deployment, and long-term reliability are required. Common use cases include:
-
Manufacturing Plants: Automating machinery wiring with fast-disconnect capabilities.
-
Food & Beverage: Clean installation with minimal wiring exposure.
-
Water Treatment Facilities: Connecting remote I/O in distributed control architectures.
-
Power Generation: Facilitating PLC wiring in turbine control systems.
-
Oil & Gas: Modular connections in hazardous or remote locations.
-
Pharmaceutical Automation: Reducing panel complexity for regulatory compliance.
Product Advantages
-
Plug-and-Play Installation: Reduces wiring errors and minimizes commissioning time.
-
High Signal Integrity: Shielded conductors ensure minimal electrical interference.
-
Standardized Connection: Maintains uniformity across Modicon Quantum platforms.
-
Industrial Durability: Engineered for harsh environments and frequent handling.
-
Reduced Panel Clutter: Simplifies panel layout and eases future modifications.
-
Time-Saving: Speeds up deployment in large-scale control system rollouts.
Häufig gestellte Fragen (FAQ)
-
Q: What systems is the 140XTS00212 compatible with?
A: It is designed specifically for use with Schneider Electric’s Modicon Quantum I/O modules. -
Q: Is the cable shielded?
A: Yes, it features both foil and braid shielding for enhanced EMI protection. -
Q: Can I cut the cable to a shorter length?
A: No, the cable is factory-terminated and cutting it will void warranty and affect performance. -
Q: Is this cable RoHS compliant?
A: Yes, it complies with RoHS environmental standards. -
Q: Can this be used outdoors?
A: It is not rated for outdoor use unless enclosed in a suitable weatherprovon cabinet. -
Q: What is the maximum current per conductor?
A: Each signal line can handle up to 1 A. -
Q: How should the cable be stored?
A: Store in a dry, temperature-controlled environment between -40°C and +85°C. -
Q: Does it require additional grounding?
A: The shielding provides effective grounding when connected properly to system ground. -
Q: Is it compatible with older Quantum models?
A: Yes, it maintains backward compatibility within the Modicon Quantum family. -
Q: What is the warranty on this cable?
A: We provide one year warranty.
Related or Same Series Modells
| Modell Number | Beschreibung | Length | Compatibility |
|---|---|---|---|
| 140XTS00100 | CableFast System Cable | 1 meter | Modicon Quantum I/O modules |
| 140XTS00200 | CableFast System Cable | 2 meters | Modicon Quantum |
| 140XTS00300 | CableFast System Cable | 3 meters | Modicon Quantum |
| 140XTS00112 | CableFast Cable for Remote Terminal | 1.2 meters | Modicon Terminal Assembly |
| 140XTS00500 | Long CableFast Cable | 5 meters | Quantum Remote I/O Blocks |
| 140XCA71700 | Quantum Bus Cable | 700 mm | Quantum Backplane Extension |
