Product Beschreibung

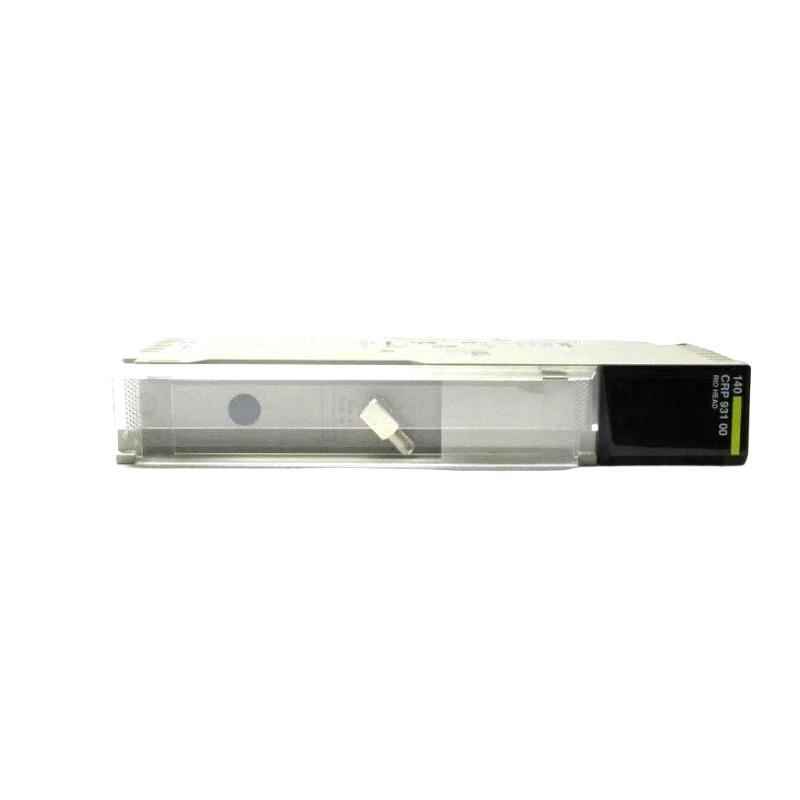

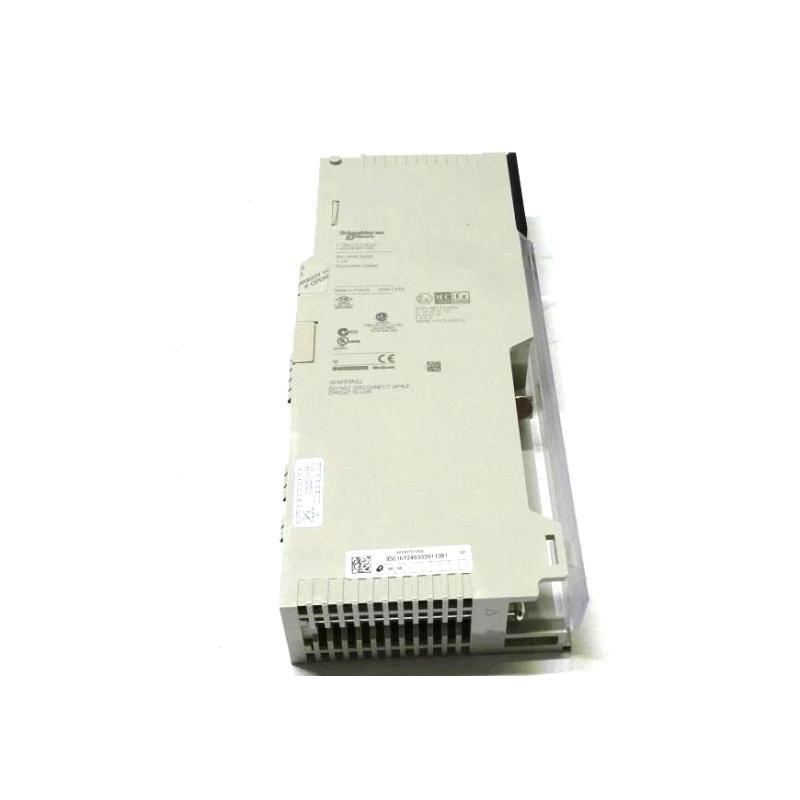

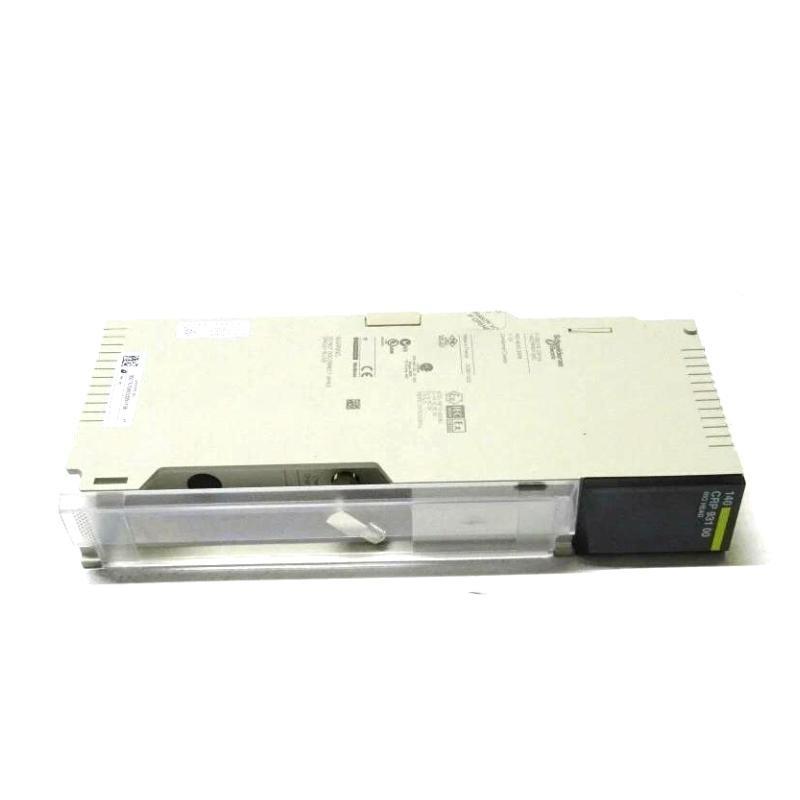

The Schneider 140CRP93100C is a Remote I/O (RIO) head-end adaptor module designed for Modicon Quantum automation platforms. It enables high-speed communication between the Quantum controller and remote I/O drops using a coaxial cable network. This module provides a reliable solution for distributing control and I/O over large distances in industrial environments.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Product Type | RIO Head End Adaptor Module |
| Series | Modicon Quantum |
| Communication Port | RIO coaxial connection |
| Bus Interface | Quantum backplane |
| Transmission Speed | 1.54 Mbps (RIO network) |
| Max Number von Drops | Up to 31 drops |
| Redundancy Support | Yes |
| Hot Standby Capability | Supported |
| Status Indicators | LED indicators for diagnostics |
| Power Supply | 5 V DC from backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W×H×D) | 45 × 170 × 310 mm |
| Gewicht | 0.45 kg |
Applications
-
Distributed I/O systems in large-scale automation
-
Remote I/O control in oil and gas plants
-
Water and wastewater treatment systems
-
Manufacturing and material handling systems
-
Power generation and utilities
Product Advantages
-
Reliable and high-speed RIO network support
-
Simplified cabling using coaxial interface
-
Compatible with hot standby systems for high availability
-
Up to 31 remote drops supported for scalability
-
Easy integration into Quantum PLC platforms
Häufig gestellte Fragen (FAQ)
Q1: What is the main function von the 140CRP93100C module?
A1: It acts as a head-end adaptor, enabling communication between the Quantum PLC and RIO drops.
Q2: Can this module be used in redundant systems?
A2: Yes, it supports hot standby and redundancy features.
Q3: What kind von cable is used for communication?
A3: It uses a 75-ohm coaxial cable for RIO communication.
Q4: How many I/O drops are supported?
A4: Up to 31 drops per RIO network.
Q5: Is it compatible with other Quantum series modules?
A5: Yes, it is fully compatible with Modicon Quantum systems.
Q6: Does the module require a separate power supply?
A6: No, it receives power from the Quantum backplane.
Q7: Are there LED indicators for diagnostics?
A7: Yes, the module has status LEDs for network and error status.
Q8: Can the 140CRP93100C be hot-swapped?
A8: No, it must be powered down before replacement.
Q9: What is the transmission speed von the RIO network?
A9: It operates at 1.54 Mbps.
Q10: What environments is this module suited for?
A10: It is suitable for industrial environments including oil & gas, utilities, and manufacturing.
Related or Same Series Modells
| Modell Number | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 140CRP93200 | RIO Head Adapter, coax, redundant | 45 × 170 × 310 | 0.45 kg |
| 140CRP31200 | RIO Head Adapter, fiber optic | 45 × 170 × 310 | 0.45 kg |
| 140CRA31200 | RIO Drop Adapter, fiber | 45 × 170 × 310 | 0.45 kg |
| 140CRA93100 | RIO Drop Adapter, coaxial | 45 × 170 × 310 | 0.45 kg |
| 140CPS11420 | Power Supply Module 115/230 V AC | 50 × 180 × 320 | 1.0 kg |
| 140CPU65160 | Quantum PLC CPU, 1 MB | 66 × 180 × 320 | 0.95 kg |
Popular Modells from Schneider
| Modell Number | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 140CPU67160 | Quantum CPU, Hot Standby | 66 × 180 × 320 | 1.0 kg |
| BMXP342020 | M340 CPU, 512KB | 48 × 150 × 250 | 0.3 kg |
| TM241CE24T | Modicon M241 Logic Controller | 85 × 130 × 100 | 0.55 kg |
| TM251MESE | Modicon M251 Controller | 90 × 140 × 100 | 0.60 kg |
| BMXCPS2010 | M340 Power Supply 24V DC | 32 × 150 × 120 | 0.25 kg |
| 140DDO35300 | Digital Output Module, 16-pt | 45 × 170 × 310 | 0.50 kg |
