Produkteinführung

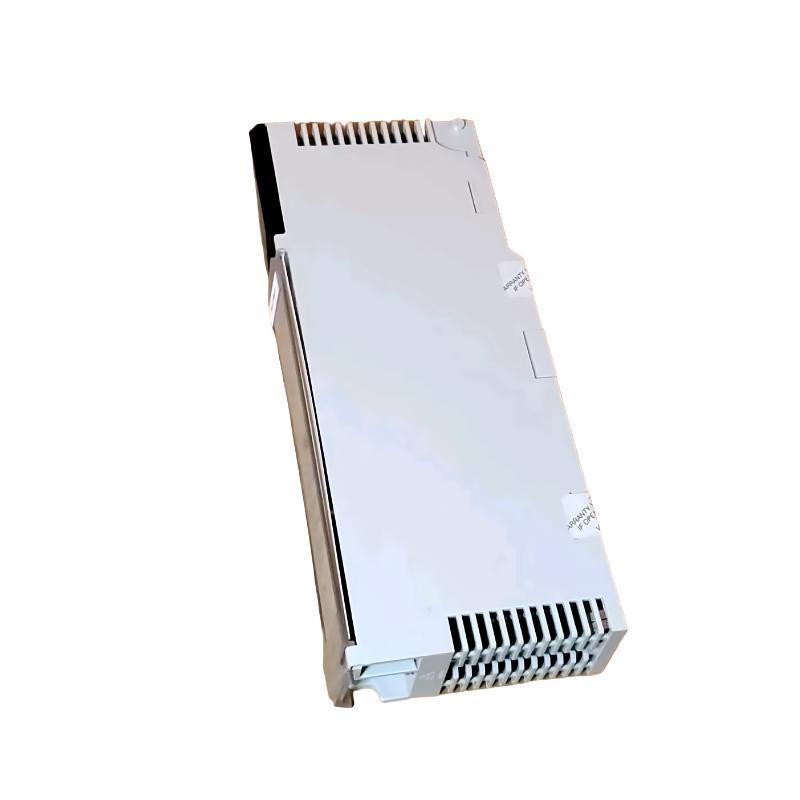

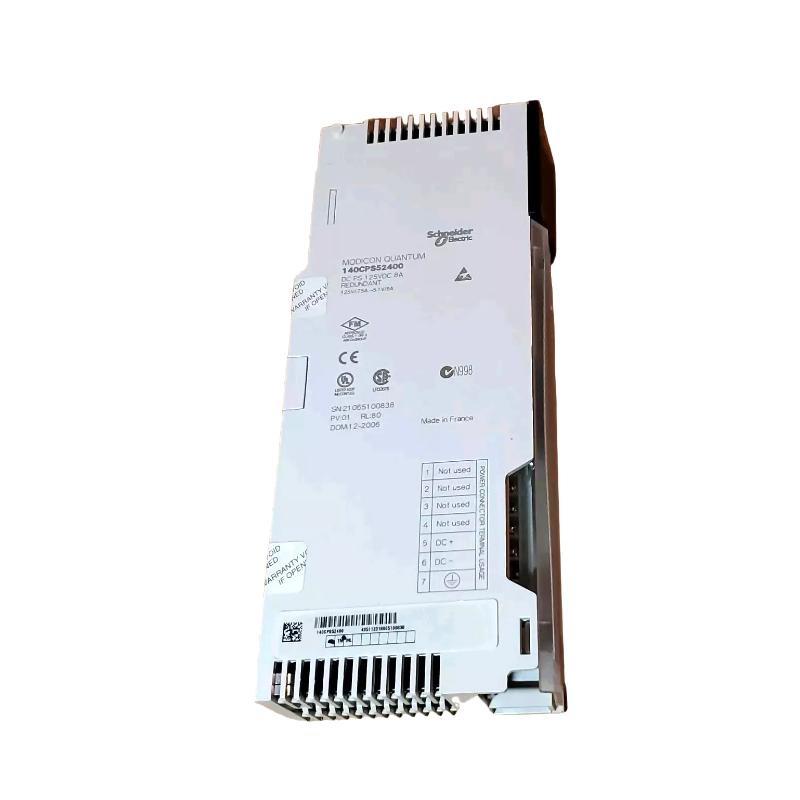

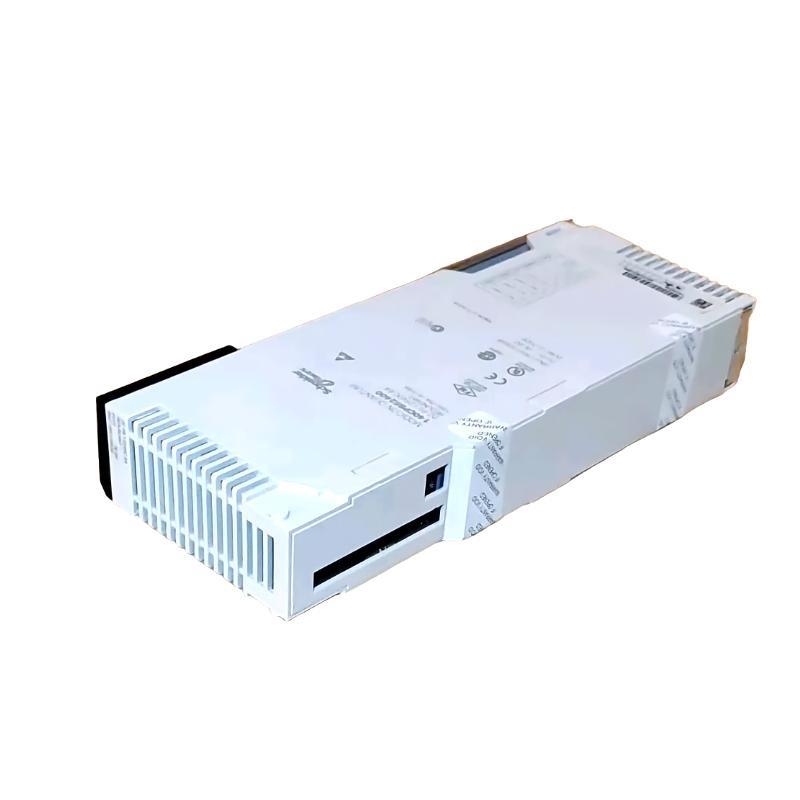

The Schneider Electric 140CPS52400C is a high-performance DC-input power supply module designed to serve the demanding needs von Modicon Quantum automation systems. Operating from a 24 VDC input, the module delivers a regulated 5 VDC output to the backplane von a Quantum rack, ensuring reliable and efficient power delivery to CPUs, I/O modules, and communication processors.
This model distinguishes itself with a robust 11 A output current capacity, making it particularly suitable for systems with a high-density module configuration. Built with industrial-grade components, the 140CPS52400C supports a wide range von automation environments, from power utilities and oil refineries to wastewater treatment plants and manufacturing lines.
Compact, reliable, and easy to integrate, this module is designed for long-term performance and complies with global certifications for industrial applications, including CE, UL, CSA, and ATEX.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 140CPS52400C |
| Hersteller | Schneider Electric |
| Product Type | Power Supply Module |
| PLC Platform | Modicon Quantum |
| Input Voltage | 24 VDC nominal |
| Input Voltage Range | 19–30 VDC |
| Input Current | Max. 6.5 A |
| Output Voltage | Regulated 5 VDC |
| Output Current | Up to 11 A |
| Power Output Capacity | Approx. 55 W |
| Redundancy Support | No (single power supply operation) |
| Protection Features | Overload, overvoltage, thermal shutdown, short circuit |
| Cooling Method | Natural convection (fanless) |
| LED Indicators | Power OK, Fault, Module Status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted in Quantum backplane |
| Certifications | CE, UL, CSA, ATEX, IEC |
| Dimensions (W × H × D) | 103.9 × 40.3 × 250 mm |
| Gewicht | 0.65 kg |
| Backplane Compatibility | Compatible with all Modicon Quantum racks |
Applications
The 140CPS52400C is suitable for environments that require stable and high-output DC power for automation infrastructure. Its performance and reliability make it an ideal solution in:
-
Oil & Gas
Powers critical PLC equipment for drilling rigs, pipeline automation, and safety systems. -
Power Generation & Distribution
Feeds backplane modules controlling turbine automation, switchgear, and substations. -
Wastewater & Water Treatment
Maintains consistent power to systems managing filtration, chemical dosing, and level control. -
Industrial Manufacturing
Powers robots, conveyor systems, and high-speed assembly lines in automotive and electronics. -
Chemical & Pharmaceutical Plants
Delivers regulated voltage to systems handling formulation, batching, and lab automation. -
Transport & Infrastructure Automation
Used in railway control systems, airport baggage handling, and smart grid systems.
Product Advantages
-
High Current Output (Up to 11 A)
Supports high-density configurations without requiring multiple power supply Stücks. -
Optimized for Quantum Systems
Seamlessly integrates into Modicon Quantum racks, ensuring mechanical and electrical compatibility. -
Electrical Fault Protection
Built-in protection safeguards the module and connected equipment from surges or short circuits. -
Passive Cooling Design
Operates silently with no fans, reducing maintenance and eliminating moving parts. -
Global Certifications
Complies with CE, UL, CSA, and ATEX standards for global use and hazardous locations. -
Status Monitoring LEDs
LED indicators vonfer fast visual diagnostics for operational assurance and troubleshooting. -
Compact Footprint
Ideal for cabinets and panels with limited space; efficient design without compromising performance.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the 140CPS52400C module?
It provides regulated 5 VDC power to Quantum PLC racks using a 24 VDC input. -
How much current can the module supply?
It supplies up to 11 A to the backplane, sufficient for high-density module configurations. -
Does this module support redundant configurations?
No, the 140CPS52400C is designed for single supply applications without redundancy. -
Is it compatible with all Modicon Quantum racks?
Yes, it integrates with standard and extended Quantum chassis configurations. -
Can it be installed while the system is running?
No, the module must be installed or removed with the system powered down to ensure safety. -
How is the module cooled?
It uses natural convection, which requires no fans or moving parts for cooling. -
What happens in the event von a short circuit or overload?
The module includes electronic protection features that shut it down safely in such events. -
What is the operational temperature range?
The module operates in environments from 0°C to +60°C and stores between -40°C and +85°C. -
Are LED status indicators available?
Yes, the module includes visual indicators for power status, faults, and operating conditions. -
What certifications does the product carry?
The 140CPS52400C is certified to CE, UL, CSA, ATEX, and international IEC standards.
Related or Compatible Modells from the Same Series
| Modell | Beschreibung | Input Voltage | Output Current | Redundancy | Platform Compatibility |
|---|---|---|---|---|---|
| 140CPS12420C | High-output DC power supply | 24 VDC | 8 A | Yes | Modicon Quantum |
| 140CPS11100 | AC input standard power supply | 115/230 VAC | 5 A | No | Modicon Quantum |
| 140CPS11420 | DC input compact power supply | 24 VDC | 8 A | No | Modicon Quantum |
| 140CPS22400 | Universal voltage input power supply | 24–125 VDC/AC | 8 A | Yes | Modicon Quantum |
| 140CPS21400 | Redundant AC power supply module | 115–230 VAC | 5 A | Yes | Modicon Quantum |
| 140CPS51100C | AC input compact model | 115/230 VAC | 5 A | No | Modicon Quantum |
Popular Schneider Electric Modells
| Modell | Type | Function | Platform |
|---|---|---|---|
| BMEP582040 | ePAC CPU Module | High-speed controller with Ethernet and security | Modicon M580 |
| BMXP342020 | CPU Module | Logic, communication, and memory handling | Modicon M340 |
| TM241CE40T | Logic Controller | Integrated I/O controller with Ethernet/USB | Modicon M241 |
| TSXDEY64D2K | Digital Input Module | 64-channel 24 VDC input for high-density I/O | Modicon Premium |
| BMXAMO0410 | Analog Output Module | 4-channel analog output for process automation | Modicon M340 |
| ABL8RPS24100 | Industrial Power Supply | DIN rail-mounted 24 VDC regulated power supply | Universal Use |
