Produkteinführung

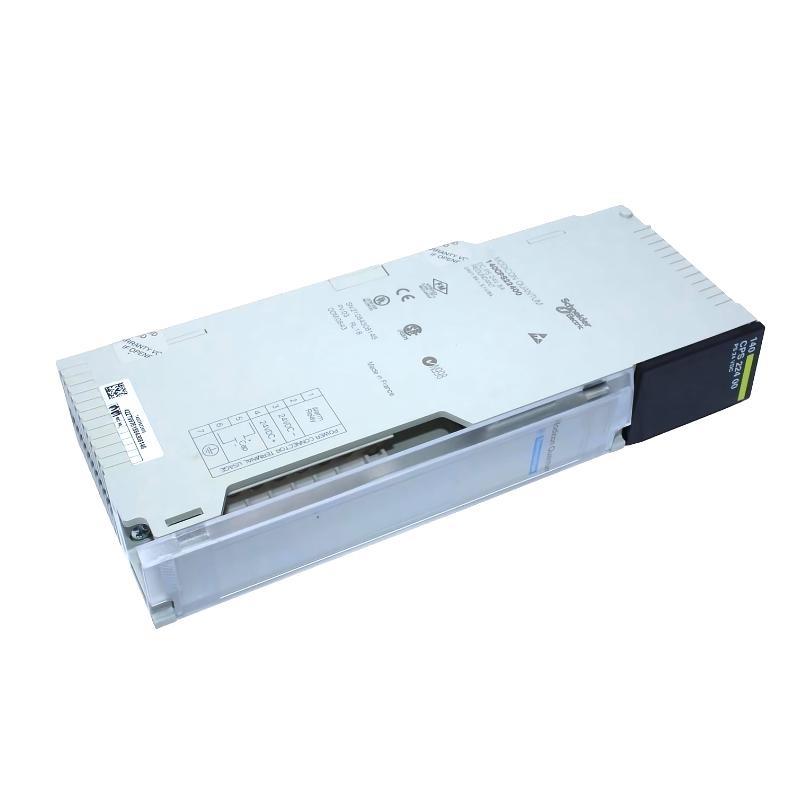

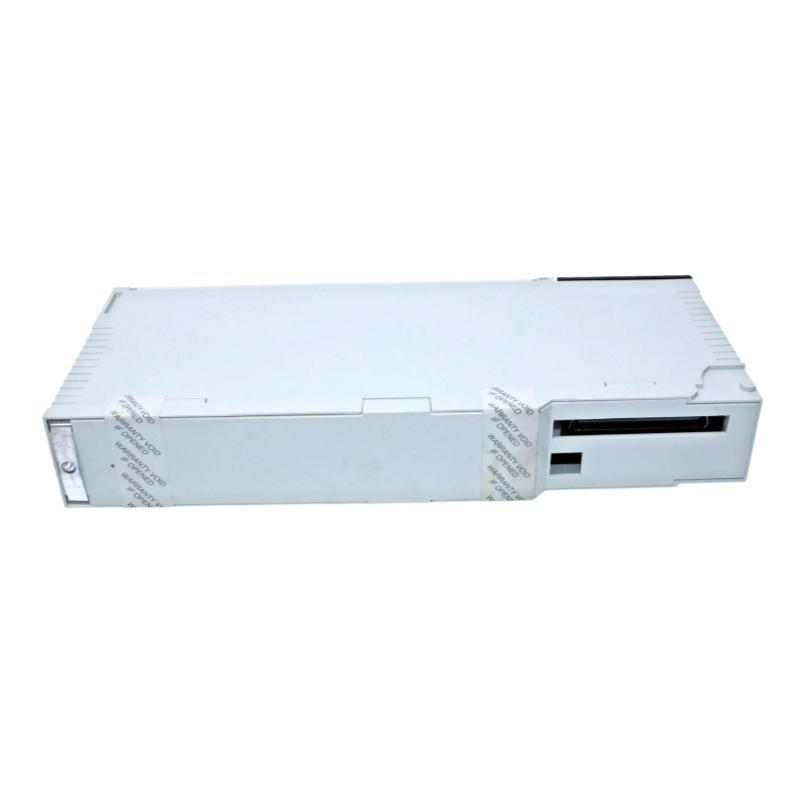

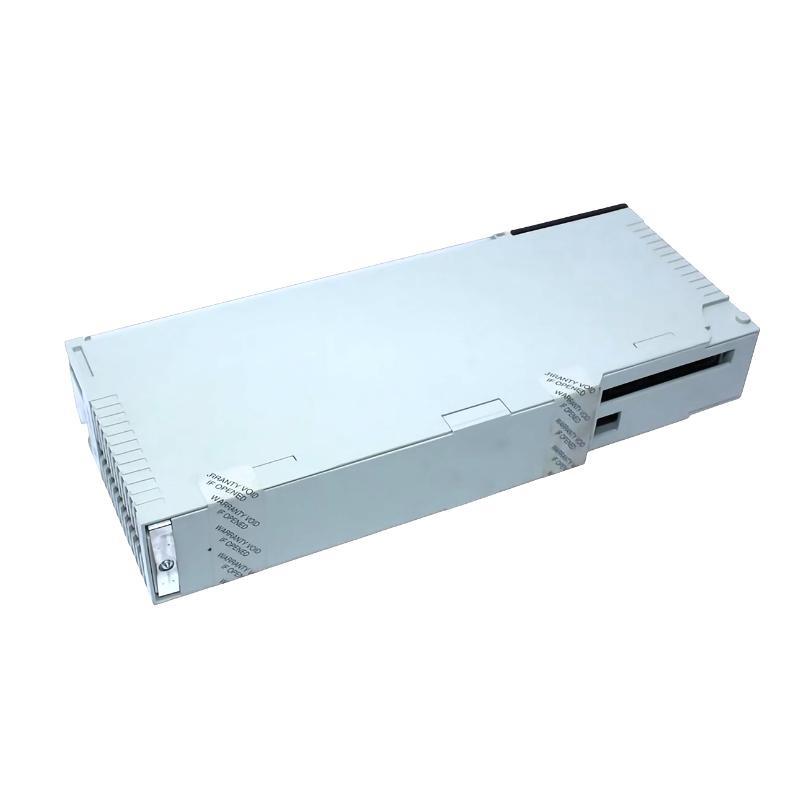

The Schneider Electric 140CPS22400C is a high-performance power supply module designed for the Modicon Quantum series von Programmable Logic Controllers (PLCs). This module is specifically engineered to deliver regulated and dependable DC power to the PLC backplane and connected I/O modules. It is a rugged, industrial-grade component built to meet the rigorous demands von continuous operation in automated control environments.
Operating from a 24 VDC input, the 140CPS22400C supplies 5.1 VDC output at 11 A, suitable for large Quantum installations requiring stable voltage and current. Its extended protection features, compatibility with a broad range von Quantum hardware, and robust construction make it a preferred choice in mission-critical automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 140CPS22400C |
| Product Type | Power Supply Module for Modicon Quantum Series |
| Input Voltage | 24 VDC |
| Input Voltage Range | 19 to 30 VDC |
| Output Voltage | 5.1 VDC |
| Nominal Output Current | 11 A |
| Peak Output Current | 13 A |
| Power Consumption | Approx. 160 W |
| Power Dissipation | Approx. 24 W |
| Input Current (Nominal) | 6.5 A at 24 VDC |
| Efficiency | > 85% |
| Cooling Method | Natural convection |
| Protection Features | Overvoltage, overcurrent, short-circuit, thermal shutdown |
| Status Indicators | LEDs for power OK, fault, and diagnostics |
| Mounting Type | Rack-mounted in Quantum backplane |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| Gewicht | 0.65 kg |
| Certifications | UL, CSA, CE, ATEX Zone 2, RoHS |
| Compatibility | Compatible with all Modicon Quantum CPUs and I/O modules |
Applications
The 140CPS22400C power supply module is ideal for medium to large-scale industrial automation systems that require reliable and efficient DC power distribution within PLC architecture. Typical application areas include:
-
Manufacturing Automation
Delivers consistent power to controllers in automotive, electronics, and assembly lines. -
Oil & Gas Exploration and Processing
Ensures continuous monitoring and control for field equipment and SCADA systems. -
Power and Energy Plants
Supports high-availability PLCs in power generation, substations, and distribution networks. -
Water & Wastewater Treatment
Powers process controllers and safety systems for municipal and industrial treatment plants. -
Pharmaceutical Manufacturing
Used in high-reliability automation environments for batch processing and compliance control. -
Heavy Industry (Steel, Cement, Mining)
Suitable for harsh, dusty, and high-vibration environments with industrial-grade resilience.
Product Advantages
-
High Output Capability
Supplies up to 11 A nominal and 13 A peak to support extensive PLC configurations. -
Stability & Reliability
Provides stable voltage under varying input conditions and load demands. -
Advanced Protection Features
Protects against short circuits, overloads, and overtemperature, ensuring system safety. -
Seamless Quantum Compatibility
Integrates directly into Modicon Quantum backplanes, eliminating configuration complexities. -
Compact Design
Slim prvonile allows installation in limited cabinet space without compromising output power. -
Zero External Cooling Requirements
Natural convection design minimizes maintenance and energy overhead. -
Global Certifications
Certified for industrial use worldwide, including hazardous environments. -
Visual Diagnostics
LED indicators help technicians quickly identify faults and power status.
Häufig gestellte Fragen (FAQ)
-
Q: What is the purpose von the 140CPS22400C module?
A: It supplies regulated 5.1 VDC power to Modicon Quantum CPUs and I/O modules. -
Q: What type von input power does this module require?
A: It operates on 24 VDC input, with a recommended voltage range von 19–30 VDC. -
Q: Is this power supply compatible with AC inputs?
A: No, the 140CPS22400C is strictly for 24 VDC input power. -
Q: How much output current does it provide?
A: It provides 11 A nominal output, with a peak capability von 13 A. -
Q: Can it be used in hazardous areas?
A: Yes, it carries ATEX Zone 2 certification for use in hazardous industrial environments. -
Q: Is this module hot-swappable?
A: No, power must be disconnected before installing or replacing the module. -
Q: What cooling method is used?
A: It uses natural convection cooling, with no fans required. -
Q: What kind von protection features are included?
A: It includes overcurrent, overvoltage, short-circuit, and thermal shutdown protections. -
Q: Does it support redundant power configurations?
A: Yes, it can be configured with another module for power redundancy with external diodes. -
Q: What industries is this module commonly used in?
A: Common in oil & gas, utilities, manufacturing, water treatment, and heavy industry.
Related Modells from the Same Series
| Modell Number | Beschreibung | Input Voltage | Output Current | Key Features |
|---|---|---|---|---|
| 140CPS11100 | DC Power Supply Module (standard) | 24 VDC | 8 A | Basic Quantum DC supply |
| 140CPS11420 | AC Power Supply Module | 115–230 VAC | 5 A | Wide AC input, rack-mount |
| 140CPS12420 | High Output AC Supply Module | 115–230 VAC | 8 A | Enhanced AC voltage range |
| 140CPS21100C | DC Input Power Supply with diagnostics | 24 VDC | 11 A | LED diagnostics, fault recovery |
| 140CPS21400 | Rugged DC Power Supply | 24 VDC | 13 A | High capacity, industrial use |
| 140CPS12400 | AC Power Supply with 11 A output | 115–230 VAC | 11 A | Full Quantum I/O compatibility |
Popular Schneider Electric Automation Produkte
| Modell Number | Product Type | Application | Key Features |
|---|---|---|---|
| TM241CE40T | Modicon M241 Logic Controller | Machine automation | High-speed counters, Ethernet, USB |
| BMXP342020 | Modicon M340 CPU | Mid-size process automation | CANopen, Modbus, Ethernet |
| HMISTU855 | Magelis HMI Touch Panel | Operator interface | 5.7″ screen, serial/Ethernet ports |
| ATV630D55N4 | Altivar 630 Variable Frequency Drive | Motor control in HVAC and process systems | 55 kW, logic control, fieldbus-ready |
| TSXPSY2600 | TSX Compact Power Supply | Legacy PLC systems | 24 VDC, 6 A |
| LXM32MD72N4 | Lexium 32 Servo Drive | Precision motion control | 0.72 kW, CANopen, 3-phase drive |
