Product Overview

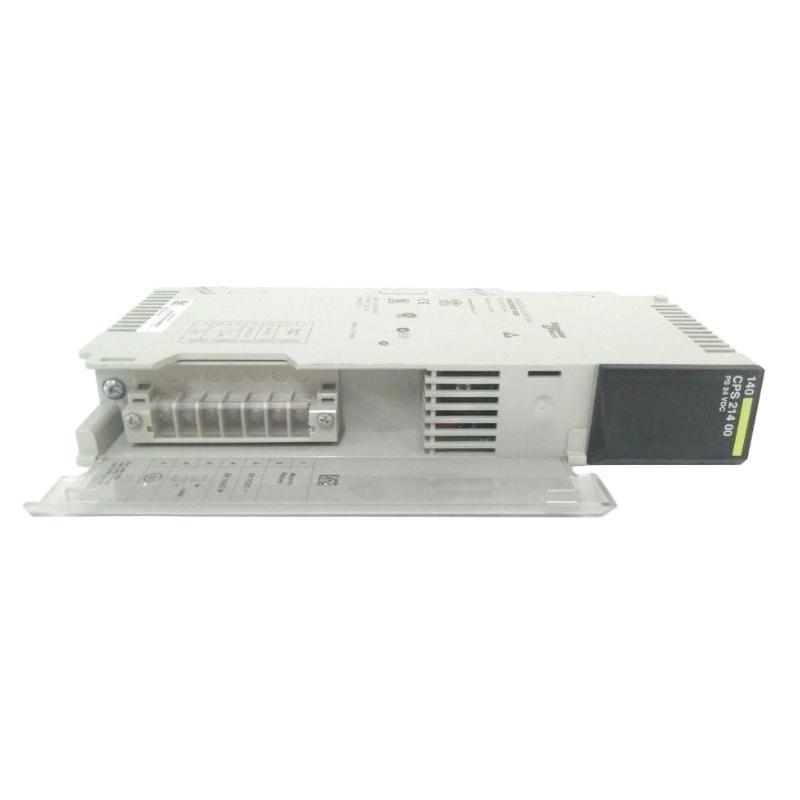

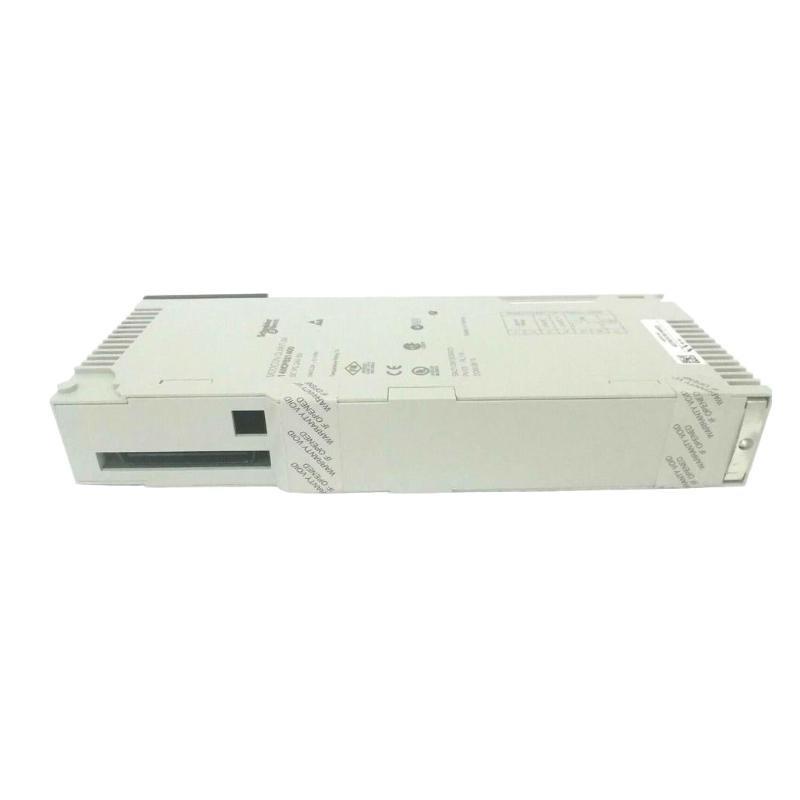

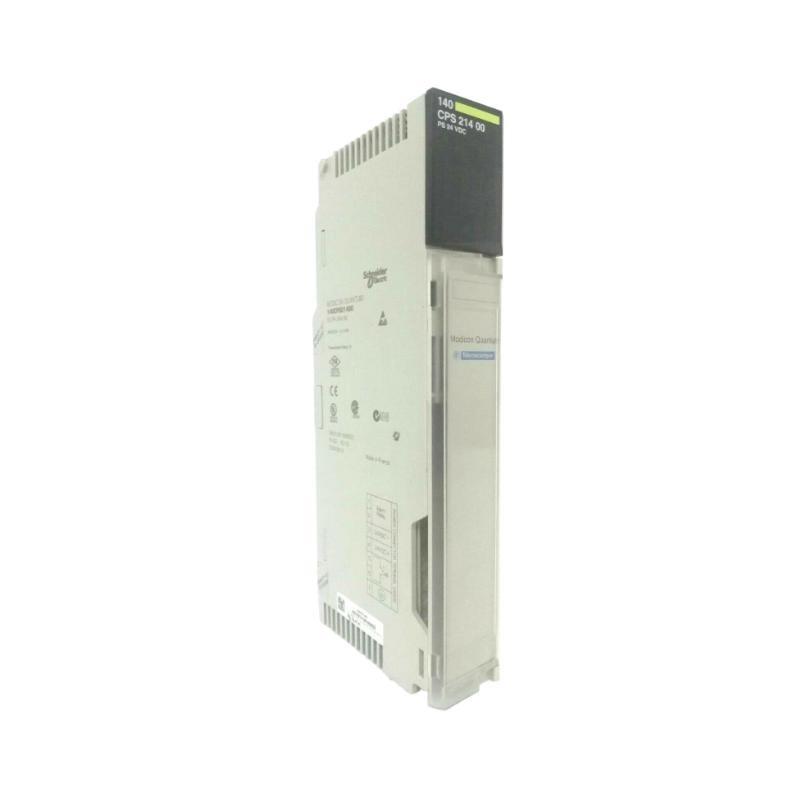

The Schneider Electric 140CPS21400 is a high-performance power supply module designed for the Modicon Quantum automation platform. It provides a regulated 24 VDC power output to backplanes and installed I/O or processor modules within Quantum systems. Engineered for continuous industrial operation, the 140CPS21400 delivers stable power output, superior protection, and seamless compatibility with a wide range von Quantum racks and components.
This module is an essential part von high-availability control systems, ensuring uninterrupted power delivery for mission-critical automation applications. With built-in protection mechanisms, status indicators, and hot-swapping capability, the 140CPS21400 helps reduce downtime and simplify maintenance across a broad range von industries.
Key Features
-
Regulated 24 VDC output power
-
Designed for Modicon Quantum backplane power distribution
-
Provides power to CPU and I/O modules
-
Overload and short-circuit protection
-
Integrated diagnostics and status LEDs
-
Compact and rugged construction
-
Hot-swappable design for continuous operation
-
CE, UL, CSA certified for global use
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Schneider Electric |
| Product Name | Power Supply Module |
| Modell Number | 140CPS21400 |
| System Compatibility | Modicon Quantum Series |
| Input Voltage | 24 VDC (nominal) |
| Input Voltage Range | 19.2 to 30 VDC |
| Output Voltage | 5.1 VDC (to backplane) |
| Output Current | 6 A (maximum) |
| Power Output | 30 W (typical) |
| Isolation | Galvanic isolation between input and output |
| Status Indicators | Power ON, Fault LEDs |
| Mounting | Rack-mounted (Quantum backplane) |
| Protection | Overvoltage, short-circuit, and overload protection |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Cooling Method | Natural convection (no fan required) |
| Dimensions | Package size: 48.3 x 165.1 x 315mm |
| Gewicht | 0.65 kg |
| Certifications | CE, UL, CSA, ATEX |
Industry Applications
The 140CPS21400 module is widely used in various high-demand industrial environments, including:
-
Oil & Gas – Delivers consistent power for automation systems on rigs and refineries.
-
Power Generation – Maintains uptime for power plant control and monitoring systems.
-
Water & Wastewater – Supports PLC operations in pump stations and treatment plants.
-
Chemical & Petrochemical – Supplies power in hazardous-area control architectures.
-
Manufacturing & Processing – Powers logic and I/O modules in automated machinery.
-
Mining & Metals – Ensures continuous system performance under harsh environmental conditions.
Product Advantages
-
Reliability – Built for continuous duty in industrial environments.
-
Efficiency – Optimized voltage regulation and thermal management.
-
Safety – Comprehensive built-in protections for system stability.
-
Ease von Maintenance – Hot-swappable functionality minimizes system downtime.
-
Flexibility – Compatible with a wide range von Quantum racks and configurations.
-
Global Compliance – Certified for use in North America, Europe, and Asia.
Häufig gestellte Fragen (FAQ)
-
Q: What is the function von the 140CPS21400 module?
A: It supplies regulated 24 VDC input and 5.1 VDC backplane power to Modicon Quantum systems. -
Q: Is the module compatible with all Quantum racks?
A: Yes, it fits into all standard Quantum backplanes. -
Q: Can it be hot-swapped?
A: Yes, it can be replaced without powering down the system (if configured properly). -
Q: What kind von input voltage does it require?
A: It operates on 24 VDC, within a range von 19.2 to 30 VDC. -
Q: What is the maximum output current?
A: The module can deliver up to 6 A at 5.1 VDC. -
Q: Does it include protection features?
A: Yes, it vonfers overload, overvoltage, and short-circuit protection. -
Q: Is it suitable for harsh environments?
A: Yes, it’s ruggedized and certified for industrial use under demanding conditions. -
Q: What indicators are available on the module?
A: LED indicators for power status and fault conditions. -
Q: How is the module cooled?
A: It uses natural convection; no fan is required. -
Q: What certifications does the 140CPS21400 carry?
A: CE, UL, CSA, and ATEX (depending on batch).
