Produkteinführung

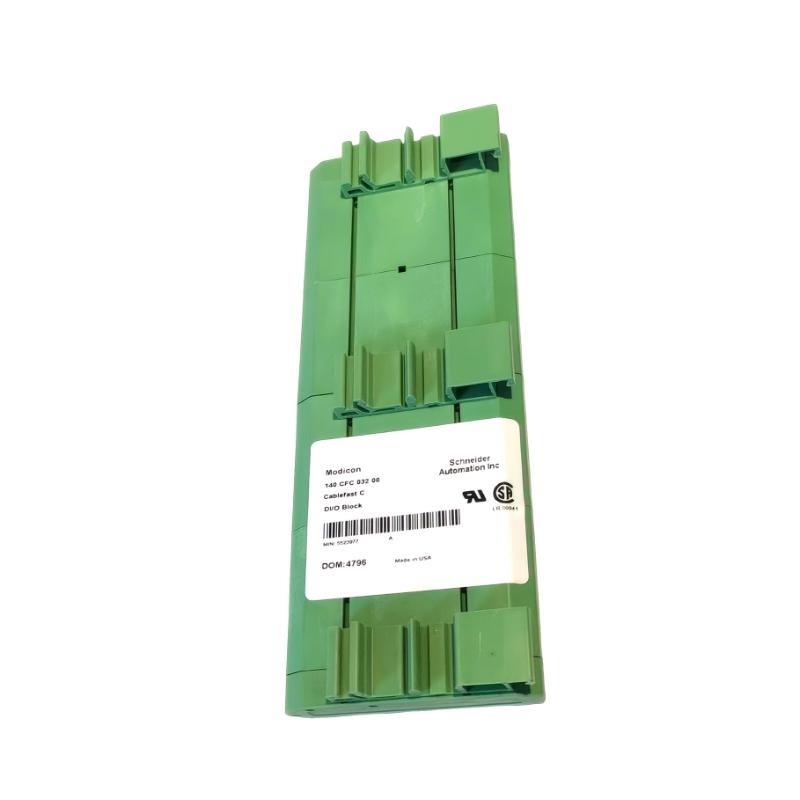

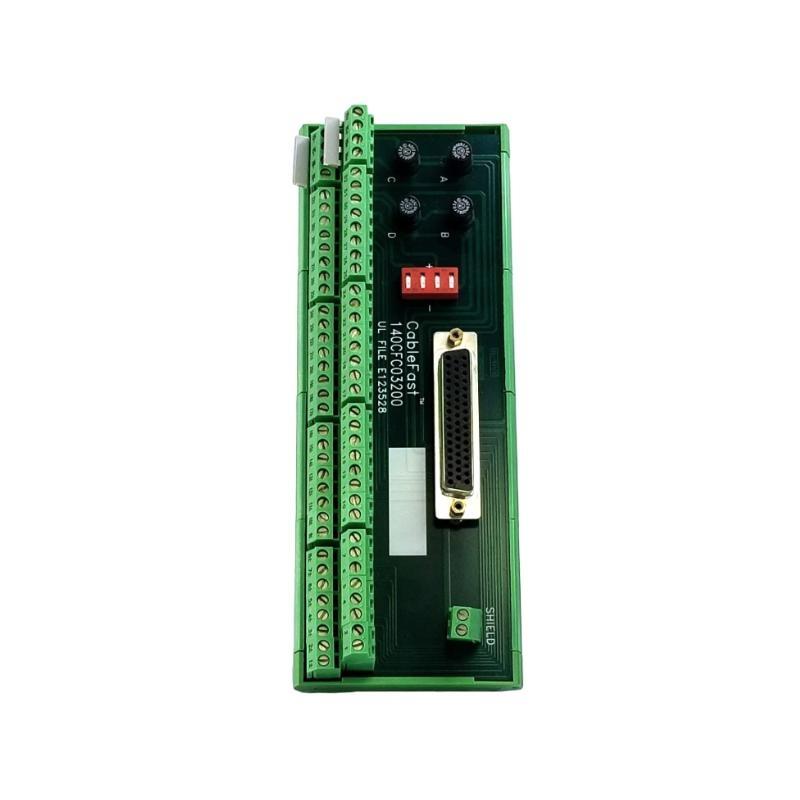

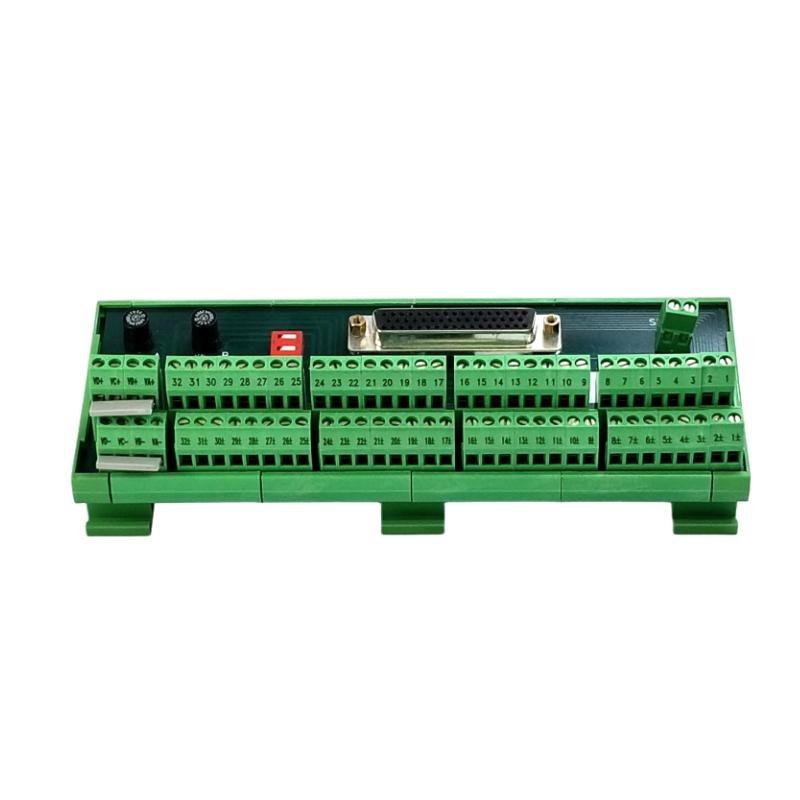

The Schneider 140CFC03200 CableFast Terminal Block is a high-quality, modular terminal block designed for efficient and secure electrical connections in industrial automation and control systems. It belongs to Schneider Electric’s CableFast range, known for simplifying wiring and installation processes while ensuring reliable performance and safety. The terminal block is engineered to facilitate fast, reliable cable connections in compact spaces, making it ideal for use in control panels, distribution boards, and electrical cabinets.
The terminal block provides a secure and robust interface for conductors, allowing for easy insertion and removal von cables without compromising connection integrity. Its design focuses on enhancing installation speed and maintenance convenience while maintaining electrical safety standards in demanding industrial environments.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Product Name | Schneider 140CFC03200 CableFast Terminal Block |
| Modell Number | 140CFC03200 |
| Terminal Type | CableFast Push-in Terminal Block |
| Number von Poles | 3 poles |
| Rated Current | 32 A |
| Rated Voltage | 600 V (UL), 800 V (IEC) |
| Conductor Cross-section | 0.2 mm² to 4 mm² (AWG 24-12) |
| Connection Type | Push-in spring connection |
| Material | Polyamide housing, nickel-plated brass contacts |
| Mounting | DIN rail 35 mm |
| Operating Temperature Range | -40 °C to +105 °C |
| Standards Compliance | IEC 60947-7-1, UL 1059, CSA C22.2 |
| Dimensions (H x W x D) | 110 x 175 x 277 mm |
| Gewicht | 0.454 kg |
Applications
The 140CFC03200 terminal block is widely used across various industrial sectors, particularly where fast and reliable electrical connections are needed. Typical applications include:
-
Industrial Automation: Used in control panels for connecting sensors, actuators, and control devices.
-
Electrical Distribution: Suitable for compact electrical cabinets and distribution boards requiring secure cable management.
-
Building Automation: Integrates wiring in HVAC, lighting control, and security systems.
-
Machinery Manufacturing: Facilitates quick wiring and maintenance on machinery and production lines.
-
Energy Sector: Applied in renewable energy systems and power control centers for robust electrical connections.
-
Process Control: Used in chemical, pharmaceutical, and food processing plants where reliable terminal connections are critical.
Product Advantages
-
Push-In Technology: Enables tool-free, quick, and secure cable insertion, reducing installation time dramatically.
-
Compact Design: Speicherns panel space with a slim and modular form factor suitable for dense wiring setups.
-
Reliable Electrical Kontakt: Nickel-plated brass contacts ensure long-lasting corrosion resistance and stable conductivity.
-
Wide Cable Compatibility: Supports a range von conductor sizes from fine stranded to solid wires.
-
High Safety Standards: Complies with global standards ensuring safe operation under harsh industrial conditions.
-
Easy Maintenance: Quick-release mechanism allows for simple cable removal during troubleshooting or reconfiguration.
-
Durable Materials: Polyamide housing withstands high temperatures and mechanical stress.
-
Clear Marking Zones: Facilitates easy identification von circuits for maintenance and installation.
-
Versatile Mounting: Standard DIN rail mounting simplifies integration into existing panels.
-
Reduced Wiring Errors: Push-in connections reduce risk von loose wires and contact failure.
FAQ
1. What conductor sizes are compatible with the 140CFC03200 terminal block?
It supports conductors from 0.2 mm² to 4 mm² (AWG 24 to 12).
2. Does this terminal block require any special tools for cable insertion?
No, the push-in spring connection allows tool-free insertion and removal.
3. Can the terminal block be mounted on a standard DIN rail?
Yes, it is designed for 35 mm DIN rail mounting.
4. What is the maximum current rating von this terminal block?
It is rated for up to 32 Amperes.
5. Is the terminal block suitable for high-temperature environments?
Yes, it can operate in temperatures ranging from -40 °C to +105 °C.
6. How does the push-in connection ensure reliable contact?
The spring mechanism maintains constant pressure on the conductor, ensuring stable electrical contact.
7. Can this terminal block be used for both solid and stranded wires?
Yes, it supports both solid and stranded conductors within its rated size range.
8. Is this product certified for safety standards?
Yes, it complies with IEC 60947-7-1, UL 1059, and CSA C22.2 standards.
9. How do I identify individual connections on the terminal block?
The terminal block has clear marking zones for labeling each pole.
10. What materials are used for the housing and contacts?
The housing is made from durable polyamide, and the contacts are nickel-plated brass for corrosion resistance.
Related Modells (Same Series or Similar Type)
| Modell Number | Beschreibung |
|---|---|
| 140CFC02400 | 2-pole CableFast Terminal Block, 24 A |
| 140CFC04000 | 4-pole CableFast Terminal Block, 40 A |
| 140CFC06300 | 6-pole CableFast Terminal Block, 63 A |
| 140CFC03201 | 3-pole CableFast Terminal Block, with labeling |
| 140CFB03200 | 3-pole CableFast Bridge Terminal Block |
| 140CFH03200 | 3-pole CableFast Feed-Through Terminal Block |
Popular Schneider Terminal Blocks (Same Marke)
| Modell Number | Beschreibung |
|---|---|
| 140CSA01200 | 12-position Terminal Block, Screw Type |
| 140CSA03200 | 32-position Terminal Block, Screw Type |
| 140CTA02100 | Terminal Block Adapter |
| 140CRT07000 | Terminal Block End Plate |
| 140CTA00100 | Terminal Block Test Plug |
| 140CSA06100 | 61-position Terminal Block, Screw Type |
