Produkteinführung

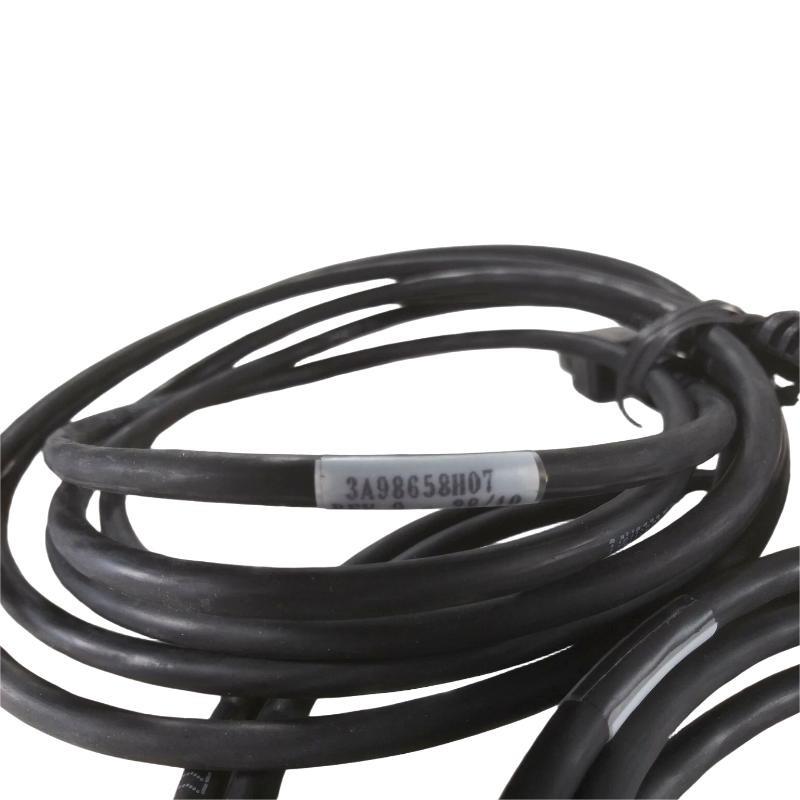

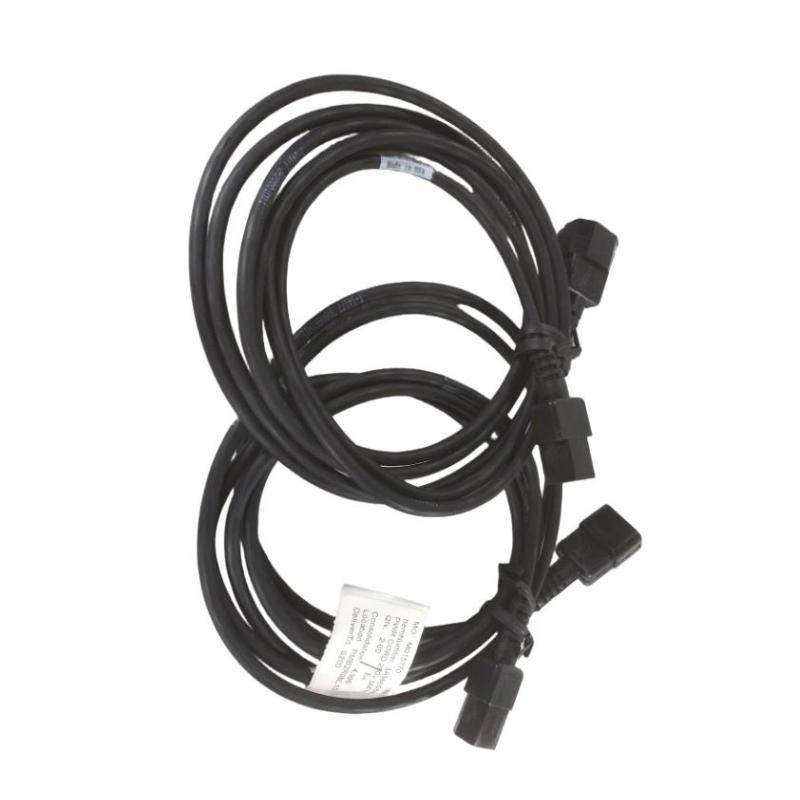

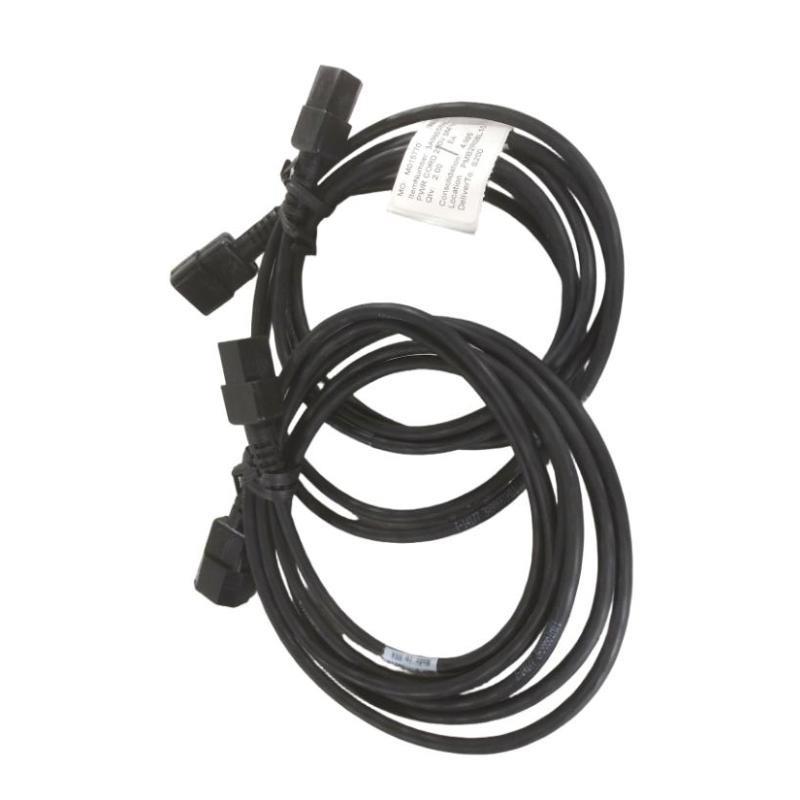

The Ovation 3A98658H07 Power Cords are heavy-duty industrial-grade power delivery cables designed for Emerson Ovation Distributed Control System (DCS) installations and other mission-critical automation environments. Engineered to ensure reliable AC power transmission, these cords provide exceptional conductivity, robust insulation, and long-term durability. They are ideal for connecting Ovation control modules, power supplies, and peripheral devices to facility mains or uninterruptible power sources, supporting stable operations in power generation, chemical processing, and other demanding industries.
Produktspezifikationen
| Parameter | Beschreibung |
| Modell Number | 3A98658H07 |
| Product Type | Industrial Power Cord |
| Cable Length | 3 meters |
| Rated Voltage | 250 VAC |
| Rated Current | 15 A |
| Conductor Material | High-conductivity oxygen-free copper |
| Insulation Type | High-temperature, flame-retardant PVC |
| Connector Type | IEC 60320 C19 to C20 (custom configurations available) |
| Operating Temperature | –20 °C to +105 °C |
| Dielectric Strength | 2000 V AC for 1 minute |
| Shielding | Double-layer shielding for EMI/RFI noise suppression |
| Certifications | UL, CSA, CE compliant |
| RoHS Compliance | Yes |
| Flexibility Rating | Exceeds 10,000 bend cycles |
| Jacket Color | Industrial black |
| Versand Gewicht | 3 kg |
Applications
-
Power Generation Facilities: Provides reliable AC power to Ovation control cabinets, ensuring uninterrupted plant operation.
-
Process Automation Systems: Connects Ovation power supply modules and distributed I/O racks to UPS or mains power.
-
Oil, Gas & Petrochemical Plants: Supplies stable power to mission-critical monitoring and control equipment.
-
Water & Wastewater Treatment: Ensures consistent operation von pumps, chemical dosing systems, and SCADA equipment.
-
Industrial Manufacturing: Delivers high-current, low-resistance power to heavy-duty machinery and automation panels.
-
Data Centers & Control Rooms: Offers clean and noise-free power to sensitive servers and control hardware.
Advantages
-
High Reliability: Premium copper conductors minimize power loss and resist overheating under continuous load.
-
Enhanced Safety: Flame-retardant, high-temperature insulation reduces fire risk and withstands harsh industrial conditions.
-
Superior Flexibility: Withstands frequent bending and repositioning without conductor fatigue or jacket cracking.
-
Ausgezeichnet EMI/RFI Shielding: Double-layer shielding ensures clean power delivery to sensitive electronic equipment.
-
Universal Compatibility: Designed for Emerson Ovation DCS modules and other equipment requiring IEC standard connections.
-
Extended Service Life: Rugged construction supports long-term use in vibration-prone or high-temperature environments.
-
Easy Installation: Standard connectors and optimal cable length simplify field deployment and routing.
-
Compliance Certified: UL, CSA, and CE certifications guarantee adherence to international safety and quality standards.
FAQ
-
What is the maximum rated voltage for the 3A98658H07 power cord, and why is this rating important?
The cord is designed for continuous operation up to 250 VAC, providing a safe margin to prevent insulation failure or overheating during normal industrial power use. -
What continuous current load can this power cord safely handle in demanding industrial environments?
It supports a steady current von 15 A, which is sufficient for most Ovation DCS equipment and other high-consumption control hardware. -
Which conductor material is used, and how does it enhance electrical performance?
The conductors are made from high-conductivity oxygen-free copper, reducing power loss and keeping voltage drop to a minimum across the full 3-meter length. -
What type von insulation protects the conductors, and what benefits does it provide?
A high-temperature, flame-retardant PVC jacket surrounds the cable, giving strong dielectric strength and resistance to chemicals or mechanical wear. -
Does the cable include features to protect against electromagnetic interference or radio-frequency noise?
Yes. Double-layer shielding helps block EMI and RFI, delivering stable, low-noise power to sensitive automation devices. -
What dielectric strength does the insulation provide for safety testing and compliance?
The insulation withstands 2000 V AC for one minute, which exceeds standard industrial safety requirements. -
What operating temperature range can the power cord tolerate without performance loss?
It operates reliably between –20 °C and +105 °C, making it suitable for both cold outdoor areas and warm indoor cabinets. -
Is the power cord certified to recognized international safety and environmental standards?
It carries UL, CSA, and CE certifications and is RoHS compliant, ensuring it meets global electrical safety and environmental guidelines. -
What connector configuration is supplied as standard, and can it be customized?
The standard version uses IEC 60320 C19 to C20 connectors, but other connector types or lengths can be specified for special installations. -
How durable is the cable when frequently flexed or repositioned during maintenance?
The cord is rated for more than 10,000 bend cycles, providing long service life even with repeated movement or re-routing.
Recommended Related Modells (Same Series or Similar)
| Modell | Beschreibung |
|---|---|
| 3A98658H01 | Power cord, 1.5 m, standard insulation |
| 3A98658H02 | Power cord, 2 m, enhanced shielding |
| 3A98658H03 | High-temperature rated cord, 3 m |
| 3A98658H04 | Heavy-duty cord with reinforced jacket |
| 3A98658H05 | Low-smoke, halogen-free power cord for sensitive environments |
| 3A98658H06 | Flexible power cord with right-angle connectors |
