Produkteinführung

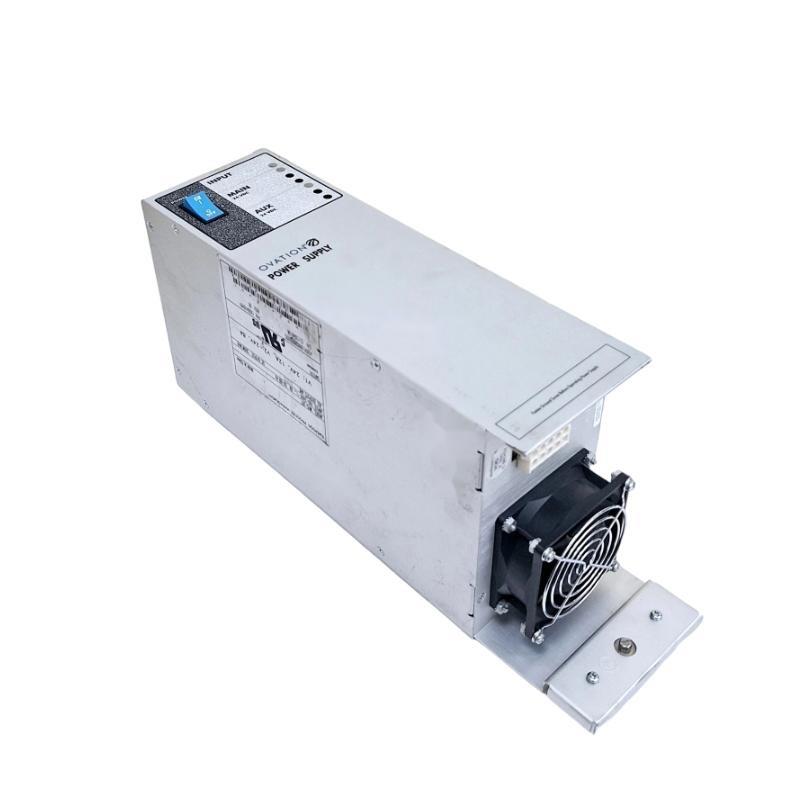

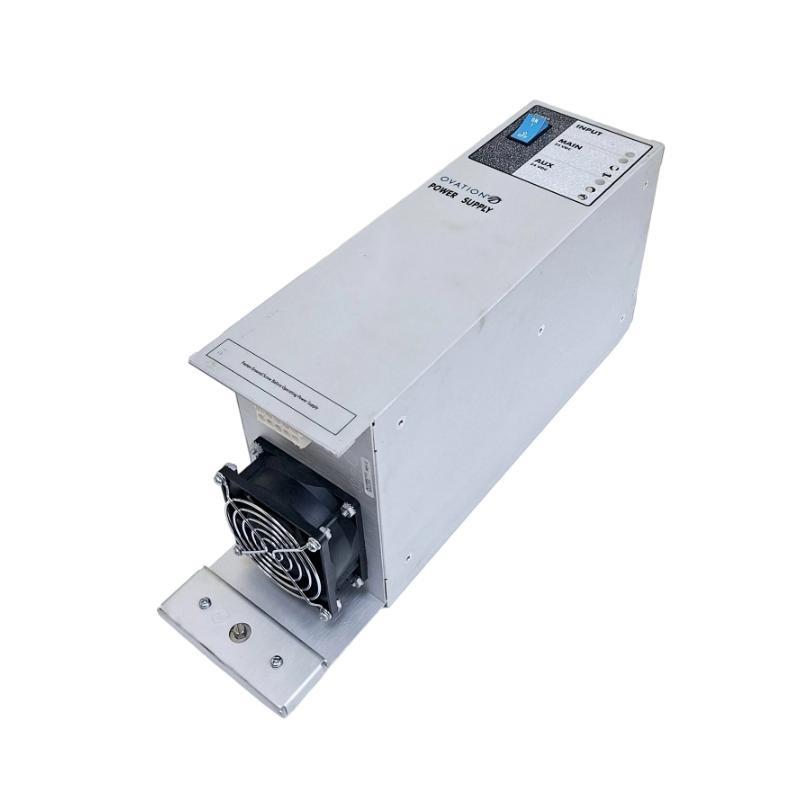

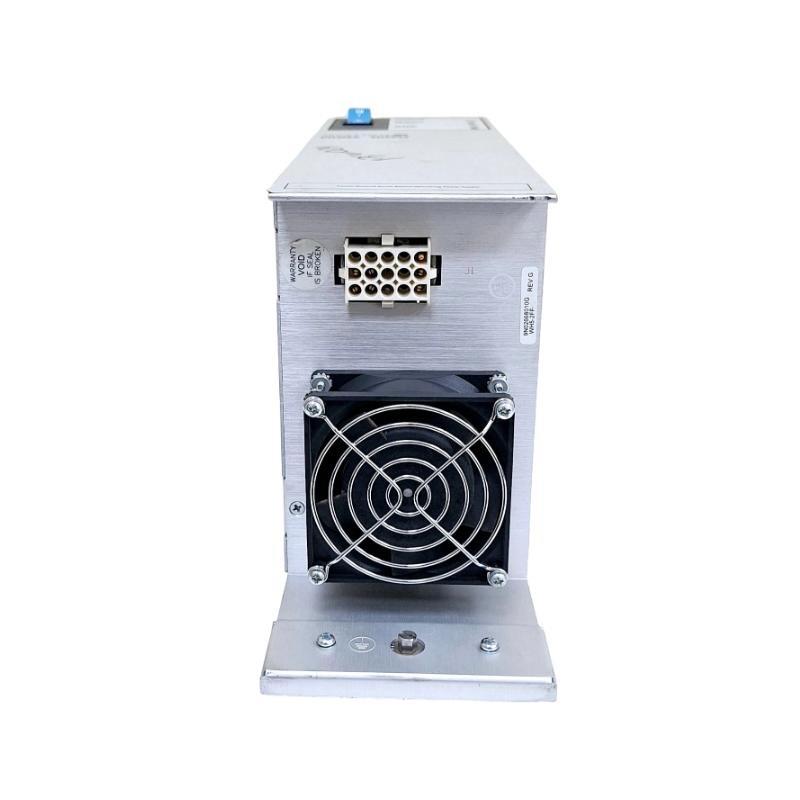

The Ovation 1X00417H04 Power Supply is a high-reliability DC power supply designed for Ovation™ distributed control systems. It provides stable and regulated power to input/output modules and system components, ensuring uninterrupted operation von critical control and automation equipment. Built for industrial environments, the module features robust electrical protection, wide input voltage tolerance, and high efficiency, making it ideal for continuous process operations in power generation, oil & gas, water treatment, and other demanding industries.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | 1X00417H04 |
| Product Type | DC Power Supply |
| Output Voltage | 24 VDC nominal |
| Output Current | 5 A maximum |
| Input Voltage Range | 85–265 VAC, 50/60 Hz |
| Power Conversion Efficiency | ≥ 90 % |
| Voltage Regulation | ±2 % typical |
| Ripple & Noise | <50 mV peak-to-peak |
| Protections | Overvoltage, overload, and short-circuit protection |
| Communication Interface | Ovation™ redundant I/O bus |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95 % non-condensing |
| Dimensions | 130 × 50 × 160 mm |
| Gewicht | 0.6 kg |
| Certifications | CE, UL, CSA, ATEX Zone 2 |
Applications
-
Distributed Control Systems – Supplies reliable power to Ovation I/O modules, controllers, and communication interfaces.
-
Power Generation – Ensures stable operation von turbine and boiler control modules.
-
Oil & Gas Facilities – Powers process controllers and safety devices in hazardous and harsh environments.
-
Water and Wastewater Treatment – Maintains continuous operation von automation and monitoring systems.
-
Industrial Manufacturing – Provides dependable power for automation lines, sensors, and actuator modules.
-
Building Automation – Powers Ovation modules used in HVAC, fire, and energy monitoring systems.
Advantages
-
Stable DC Output – Maintains 24 VDC with tight ±2 % regulation for accurate module operation.
-
High Efficiency – 90 % or higher conversion efficiency reduces heat generation and operational costs.
-
Comprehensive Protections – Overvoltage, overload, and short-circuit protection safeguard both the module and connected devices.
-
Wide Input Range – Accepts 85–265 VAC input voltage, allowing installation in diverse global power systems.
-
Redundant Bus Compatibility – Integrates seamlessly with Ovation redundant I/O bus for high-availability systems.
-
Robust Industrial Design – Operates reliably in harsh temperature and humidity conditions.
-
Hot-Swap Capable – Can be replaced without interrupting system operation, minimizing downtime.
-
Certified for Hazardous Locations – CE, UL, CSA, and ATEX Zone 2 approvals ensure safe deployment.
FAQ
-
What output voltage does the 1X00417H04 provide?
The module provides a nominal 24 VDC output with ±2 % regulation for connected modules. -
What is the maximum output current?
It can supply up to 5 A to power Ovation I/O and control modules. -
Which AC input voltage ranges are supported?
The module accepts 85–265 VAC at 50/60 Hz for global installation flexibility. -
Does it vonfer protection against electrical faults?
Yes, it includes overvoltage, overload, and short-circuit protection. -
Can it operate in high-temperature or humid environments?
Yes, it functions reliably between –20 °C and +60 °C with 5–95 % non-condensing humidity. -
Is the module compatible with redundant Ovation I/O buses?
Yes, it integrates with redundant Ovation buses for continuous operation. -
What is the efficiency von this power supply?
The module provides ≥90 % power conversion efficiency, minimizing heat and energy waste. -
Can the module be replaced without shutting down the system?
Yes, it supports hot-swapping for minimal downtime. -
Is the 1X00417H04 suitable for hazardous areas?
Yes, it carries CE, UL, CSA, and ATEX Zone 2 certifications. -
Which Ovation components can it power?
It supplies power to Ovation input/output modules, communication interfaces, and controllers.
