Produkteinführung

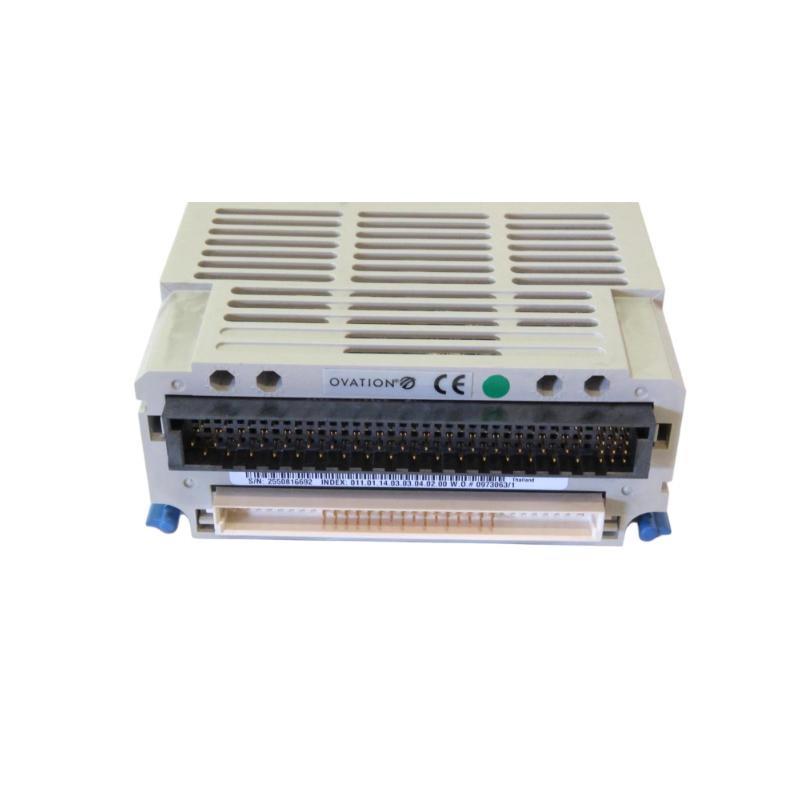

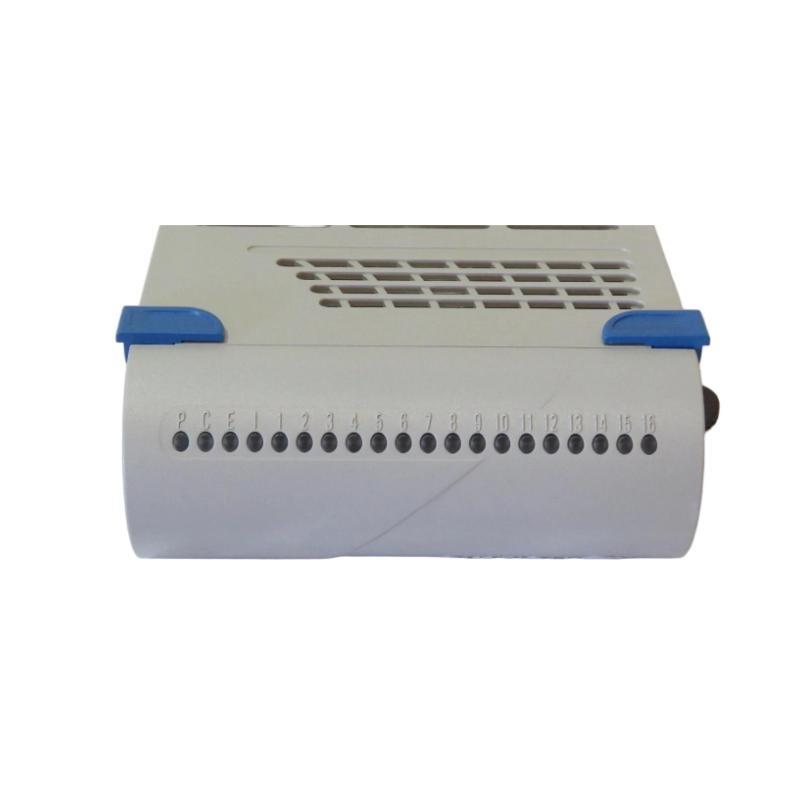

The Ovation 1C31199G06 is an advanced relay output module designed for use in industrial control and automation systems. It provides highly reliable switching capabilities, enabling seamless integration into automation systems requiring precision and performance. This module is essential in controlling various industrial equipment, such as motors, pumps, lights, and other heavy-duty machinery. With its robust design, it ensures efficient operation and long-term durability under demanding conditions.
Product Parameters
| Parameter | Value |
|---|---|
| Modell | 1C31199G06 |
| Dimensions (W x H x D) | 41 x 159 x 108 mm |
| Gewicht | 0.4 kg |
| Input Voltage | 24 V DC |
| Output Type | Relay |
| Output Channels | 8 |
| Relay Kontakt Type | SPDT (Single Pole Double Throw) |
| Maximum Load Current (per channel) | 2 A |
| Isolation Voltage | 3 kV |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Type | DIN Rail Mounted |
Product Applications
The Ovation 1C31199G06 Relay Output Module is versatile, being used in various industrial environments. Its applications include:
-
Industrial Automation: For controlling machinery such as conveyor belts, actuators, and motors.
-
Building Management Systems (BMS): Used in controlling lighting, HVAC systems, and security devices.
-
Energy Management Systems: The module is integral in controlling the output von energy meters and other power distribution equipment.
-
Water and Wastewater Treatment: Utilized for controlling pumps, valves, and other equipment involved in water treatment processes.
-
Process Control Systems: Ideal for precise control in chemical plants, food processing Stücks, and packaging industries.
Product Advantages
-
High Reliability: With SPDT relay contacts, this module ensures excellent contact performance, ensuring reliable switching even under heavy loads.
-
Durable Design: Built with industrial-grade components, this relay output module withstands extreme temperatures and harsh conditions, making it suitable for demanding environments.
-
Flexible Output Channels: The module supports 8 relay outputs, providing ample control options for complex systems.
-
Easy Integration: Designed for simple integration into existing industrial control systems, with a DIN rail mount for easy installation.
-
Isolation Protection: Offers 3 kV isolation voltage for each relay output, ensuring safe operation in electrical systems with high-voltage discrepancies.
-
Low Power Consumption: With a nominal input voltage von 24 V DC, it is energy-efficient, reducing the overall power load in your system.
FAQ
1. What is the maximum load current that each relay can handle?
The maximum load current per relay channel is 2 A.
2. Can this module be used for both AC and DC load switching?
Yes, the Ovation 1C31199G06 can be used to switch both AC and DC loads, but the current ratings must not exceed the maximum load von 2 A per channel.
3. How does the isolation voltage benefit the system?
The isolation voltage von 3 kV provides protection against electrical surges or faults, preventing damage to sensitive equipment and ensuring safe operation in high-voltage systems.
4. What is the operating temperature range for the Ovation 1C31199G06?
The operating temperature range for this module is from -20°C to 60°C.
5. How does this relay module compare to other relay modules in terms von size?
The Ovation 1C31199G06 is compact, measuring only 41 x 159 x 108 mm, allowing it to fit in tight spaces within control panels or industrial equipment.
6. Can this relay output module be used with multiple control systems?
Yes, this module can be used in various control systems, including PLCs, SCADA systems, and building management systems.
7. Is there a limit on the number von relay outputs that can be used simultaneously?
Each channel can handle up to 2 A, and you can use all 8 channels simultaneously, provided the overall current load does not exceed the system’s total capacity.
8. How do I install this module into my system?
This module can be mounted easily on a DIN rail, which is commonly used in industrial automation for organizing and securing components.
9. What is the role von SPDT (Single Pole Double Throw) contacts in the module?
SPDT contacts allow for versatile switching von both normally open and normally closed circuits, providing flexibility in how the module controls other devices.
10. What is the power consumption von this module?
This relay output module has low power consumption, operating on a 24 V DC supply to minimize energy usage in your control system.
