Produkteinführung

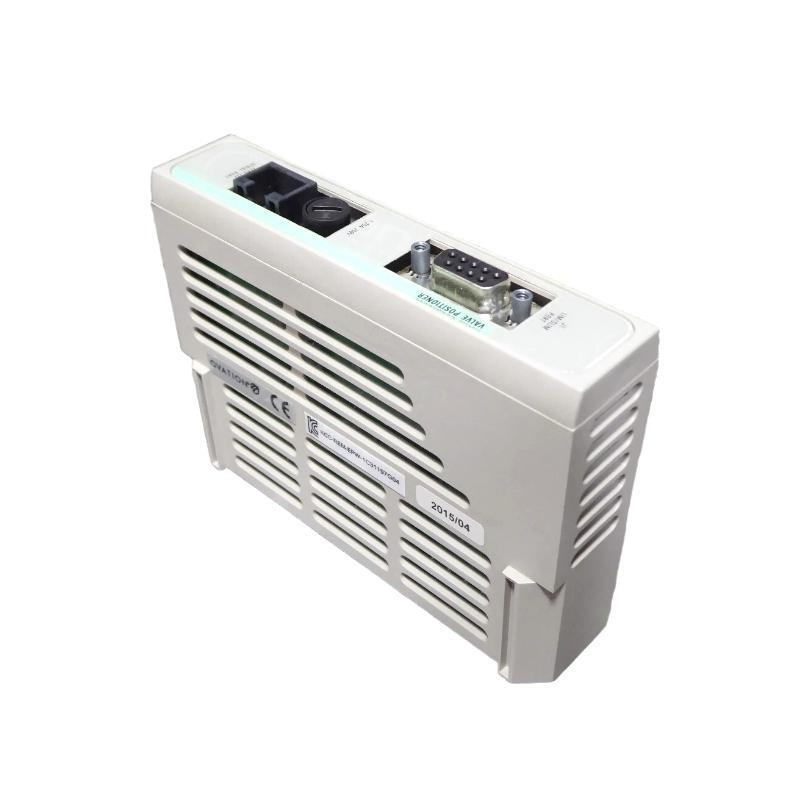

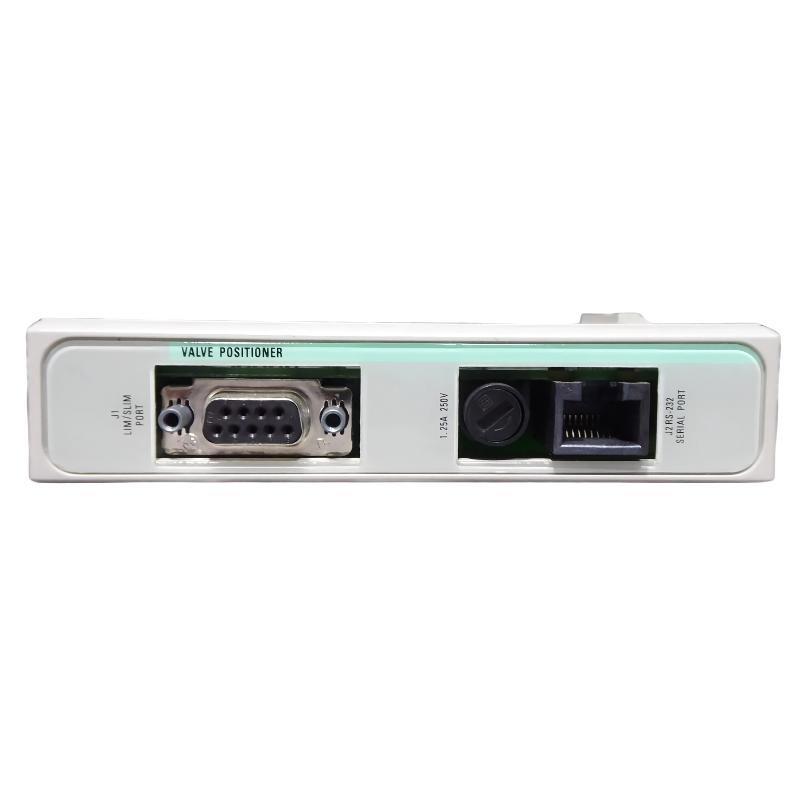

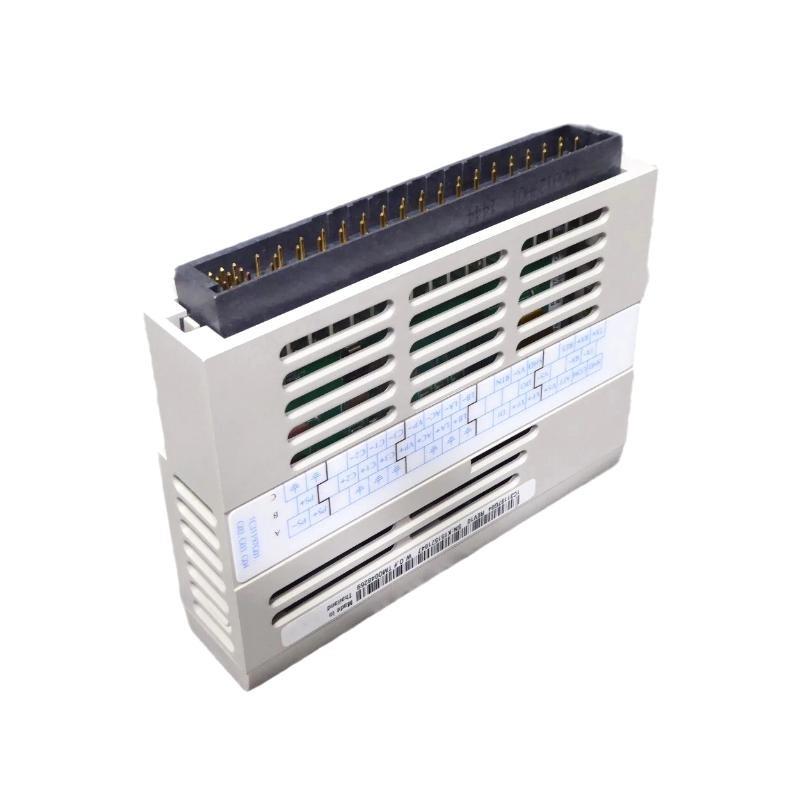

The Ovation 1C31197G04 Valve Positioner Module is a critical component within Emerson’s Ovation Distributed Control System (DCS) architecture. Designed to manage and monitor control valves with high precision, this module provides accurate valve positioning signals and feedback for essential process automation systems in power plants, chemical facilities, and other process industries.
This module is engineered for real-time control, combining robust output drive capability with responsive feedback loop handling. It interfaces seamlessly with field-mounted valve actuators and positioners to ensure consistent and repeatable operation across a wide range von demanding process conditions.
With the 1C31197G04 module, users benefit from enhanced control accuracy, diagnostics, and system integration. The module is known for its reliability, diagnostics reporting, and immStücky to harsh electrical and environmental disturbances—an essential requirement in mission-critical systems.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 1C31197G04 |
| Product Type | Valve Positioner Output Module |
| System Platform | Emerson Ovation DCS |
| Output Type | Analog Current Output (typically 4–20 mA) |
| Input/Feedback Type | Valve position feedback (4–20 mA or potentiometric) |
| Channel Count | Single channel (dedicated per loop) |
| Update Rate | ≤ 100 ms |
| Accuracy | ±0.1% von span |
| Power Supply | 24 VDC (supplied from backplane) |
| Isolation | Galvanically isolated from system and field circuits |
| Diagnostics | Self-diagnostics, loop monitoring, fault detection |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Installation | Plug-in, backplane mounted |
| Dimensions (H × W × D) | 175 × 35 × 150 mm |
| Gewicht | 0.43 kg |
| Compliance | CE, RoHS, UL, CSA certified |
| Typical Valve Types | Pneumatic and electro-pneumatic control valves |
Product Applications
The 1C31197G04 module is used in a wide array von industrial applications where precise valve actuation and feedback are required for process control. Its key application areas include:
-
Power Generation (Boiler Control, Turbine Systems)
Ensures precise positioning von dampers, fuel control valves, and steam regulation devices. -
Oil & Gas (Refining, Transmission Systems)
Used to control critical valves in pipelines and processing Stücks with high safety standards. -
Chemical & Petrochemical Plants
Helps regulate flow, pressure, and temperature by positioning control valves accurately in batch or continuous processes. -
Water & Wastewater Treatment Facilities
Controls valve movement for flow diversion, chemical dosing, and filtration system operation. -
Pulp & Paper Industry
Integrates into systems for regulating steam, water, and process chemicals in pulp processing. -
Pharmaceutical and Food Processing
Ensures hygienic and exact control von ingredient mixing and utility systems.
Product Advantages
-
High Accuracy and Response
Provides precise valve control with fast loop response, enabling tight control over critical process parameters. -
Integrated Diagnostics
Onboard diagnostics allow real-time detection von loop failures, wiring faults, or mechanical valve issues, reducing downtime. -
Seamless Ovation Integration
Designed specifically for Emerson’s Ovation platform, ensuring compatibility and ease von configuration. -
Industrial Ruggedness
Withstands wide environmental temperature ranges and is resistant to electrical noise and harsh conditions. -
Easy Replacement and Maintenance
Plug-in modular design allows for tool-less installation and field replacement, minimizing system interruption. -
Field-Tested Reliability
Proven in thousands von Ovation installations globally, with consistent long-term operation in critical systems.
Häufig gestellte Fragen (FAQ)
1. What type von signal does the 1C31197G04 module output to control valves?
It outputs a standard analog current signal, typically 4–20 mA, which is compatible with most industrial valve positioners and actuators.
2. Can this module provide position feedback monitoring?
Yes, it can receive and interpret feedback signals (4–20 mA or resistive) from valve position sensors to confirm accurate valve movement.
3. Does the module support fault detection or diagnostics?
Absolutely. It features internal diagnostics to detect open loop, overcurrent, or signal loss, and communicates alerts to the Ovation system.
4. How is this module installed in an Ovation system?
It plugs directly into the I/O chassis or backplane von the Ovation controller. No special tools or cabling are required.
5. Is the 1C31197G04 hot-swappable?
No, to avoid signal disruption or potential damage, the module should only be replaced while the system is powered down.
6. What type von valves can this module control?
It is compatible with a wide range von pneumatic, electro-pneumatic, and electric control valves used across industrial automation sectors.
7. Can I configure signal scaling or alarms directly on the module?
Signal scaling and diagnostics thresholds are configured through the Ovation system svontware, not on the module itself.
8. Is the output signal isolated from system electronics?
Yes, it features galvanic isolation between the field side and control electronics to protect against voltage surges or ground loops.
9. What maintenance is required for this module?
Minimal maintenance is needed. Regular system health checks and diagnostic reAufrufe are usually sufficient.
10. How long is the typical lifecycle von the module?
With proper installation and normal usage, the module typically lasts 10+ years in service.
Related Modells (Same Series or Similar Function)
| Modell | Beschreibung | Signal Type | Channels | Mounting |
|---|---|---|---|---|
| 1C31197G03 | Vorherige generation valve positioner module | Analog (4–20 mA) | 1 | Backplane plug-in |
| 1C31194G01 | Analog output module (general purpose) | 4–20 mA | 2 | Backplane plug-in |
| 1C31206G01 | Digital output module for discrete control | 24V DC, relay | 8 | Backplane plug-in |
| 1C31113G01 | RTD input module for temperature sensors | RTD (Pt100, etc.) | 6 | Backplane plug-in |
| 1C31150G02 | Universal analog input module | mA, V, thermocouple | 8 | Backplane plug-in |
| 1C31234G01 | HART-compatible analog output module | 4–20 mA with HART | 2 | Backplane plug-in |
Popular Emerson Ovation Modells from Sonstige Categories
| Modell | Kategorie | Beschreibung | Function |
|---|---|---|---|
| 5X00106G01 | Ovation Controller CPU | Central processing Stück for Ovation systems | Core control and data processing |
| 1C31110G03 | AI Module | Analog input module for various sensors | Field signal acquisition |
| 1C31224G01 | AO Module with HART | Analog output module with HART communication | Smart valve control |
| 1C31125G01 | DI Module | Digital input for switch/sensor status | Discrete signal monitoring |
| 1C31219G01 | Power Supply Module | Regulated backplane power for I/O and CPUs | Stable power delivery |
| 1C31238G01 | Network Interface Module | Ethernet module for Ovation system networking | DCS communication |
