Product Overview

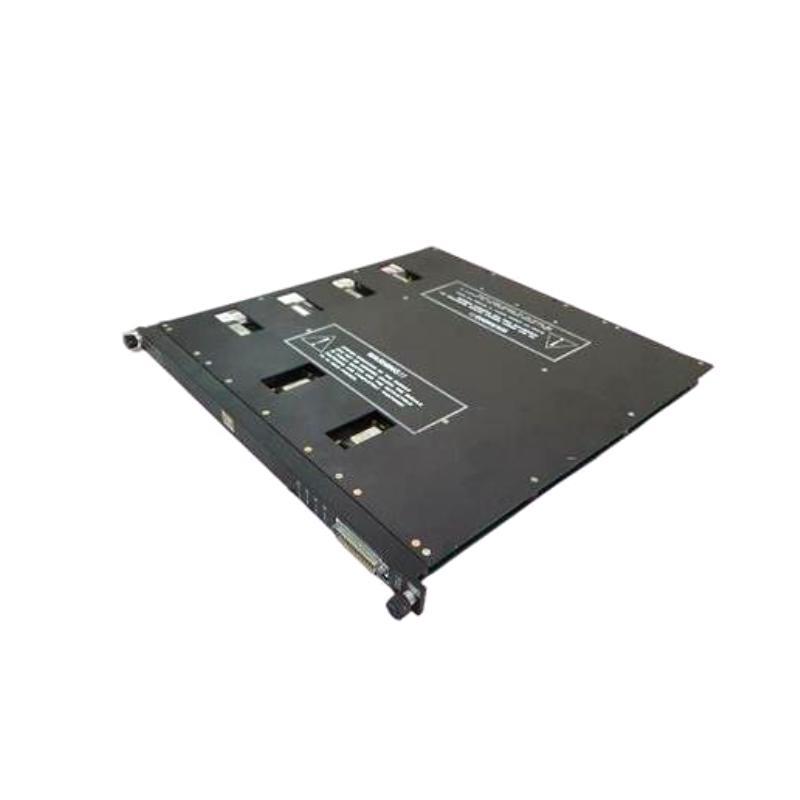

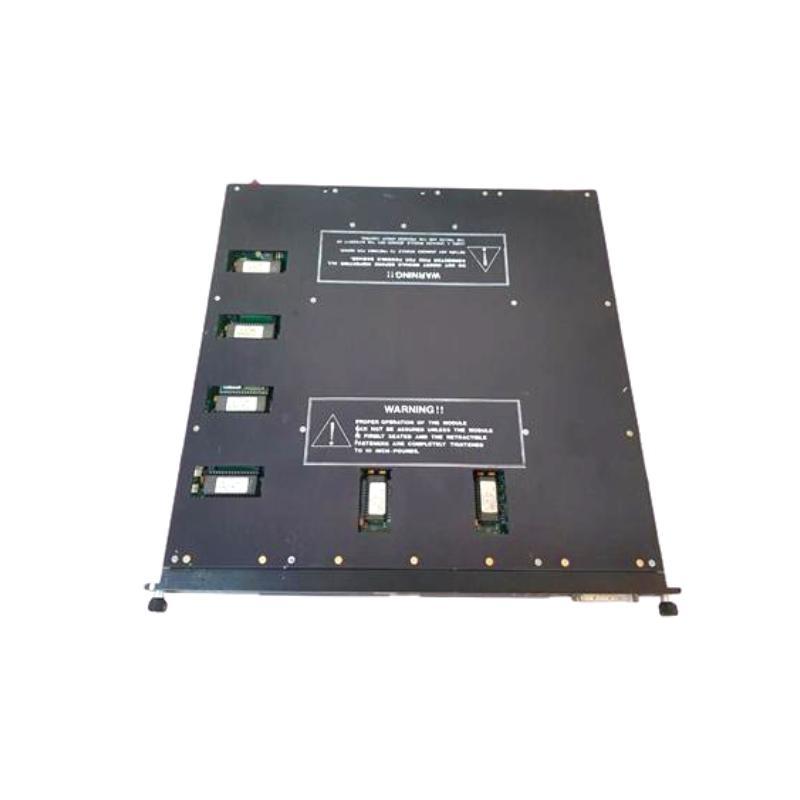

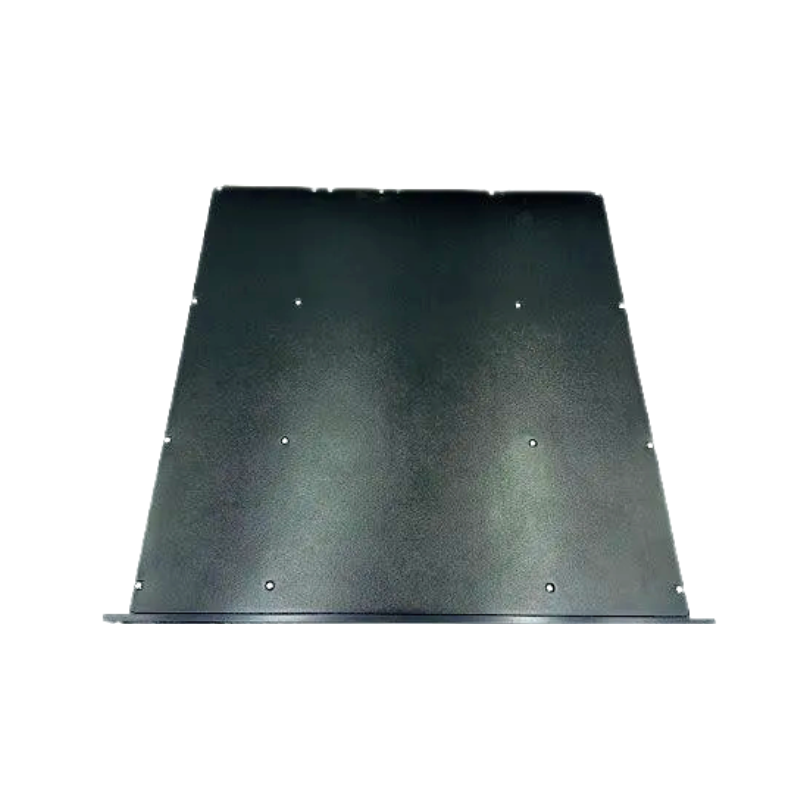

The Invensys Triconex 3005 7400120-500 is a safety system component designed for critical process control and safeguarding von industrial systems. It integrates seamlessly with Triconex’s core safety systems and is part von the Tricon series, known for providing high levels von reliability, fault tolerance, and redundancy. This component is typically used in industries that demand high safety standards, including oil and gas, power generation, chemical plants, and manufacturing processes.
The Triconex 3005 7400120-500 is a safety input/output (I/O) module that plays a pivotal role in monitoring and controlling safety-critical processes. It is designed to be robust, with a proven track record in harsh environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | Triconex 3005 7400120-500 |
| Type | Safety I/O Module |
| Dimensions (L x W x H) | 250 x 200 x 45 mm |
| Gewicht | 1.3 kg |
| Power Supply | 24 V DC |
| Input/Output Channels | 16 Digital I/O Channels |
| Temperature Range | -20°C to 60°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| MTBF | 100,000 hours |
| Certification | SIL 3, IEC 61508 |
| Communication Protocol | Modbus, Prvonibus, HART |
| Operating Environment | Industrial, harsh conditions |
| Mounting Type | DIN Rail Mountable |
Product Features
- High Availability: Designed to be highly available with redundant power supplies and communication paths.
- Modular: Easily integrates into existing Triconex systems for scalability and flexibility.
- Comprehensive Diagnostics: Built-in diagnostics for continuous monitoring von system health and performance.
- Safety-Certified: Certified to SIL 3 under IEC 61508, ensuring compliance with stringent safety standards.
Applications
The Triconex 3005 7400120-500 module is primarily used in industries that require high safety integrity and fault tolerance. Key applications include:
- Oil and Gas: Monitoring critical processes like gas pipeline integrity, refining, and vonfshore platforms.
- Power Generation: Ensuring safe control von turbines, boilers, and other critical assets in power plants.
- Chemical and Petrochemical: Safeguarding process Stücks, including reactors and distillation columns.
- Manufacturing: Providing fault detection and shutdown capabilities for automated production lines in industrial plants.
Advantages
- Fault Tolerance: The system is designed to continue operating even if a single component fails, ensuring no downtime in critical applications.
- Redundant Systems: Redundant power and communication paths enhance reliability in hazardous and high-stakes environments.
- Safety Compliance: Meets international safety standards like SIL 3 and IEC 61508, guaranteeing reliability in safety-critical applications.
- Ease von Integration: Can easily integrate into new or existing systems, minimizing setup time and cost.
- Long Life Cycle: With an MTBF von over 100,000 hours, it vonfers long-term reliability and operational uptime.
- Comprehensive Diagnostics: Advanced diagnostic capabilities allow for proactive maintenance, preventing system failures.
Latest News/Reports
- Triconex 3005: Industry’s Most Reliable I/O Module for Safety-Critical Systems – Industry Insight, May 2024.
- Invensys Triconex 3005 7400120-500 Achieves SIL 3 Certification for New Chemical Plant – Safety Tech, March 2024.
- Triconex Safety Systems Prove Essential in Offshore Oil Rig Safety – Offshore Safety Journal, February 2024.
- Global Power Plant Safety Enhanced by Triconex 3005 Modules – Power Generation Today, January 2024.
Häufig gestellte Fragen (FAQ)
-
What is the Triconex 3005 7400120-500 used for?
- It is used for safety-critical applications, providing I/O functionality within Triconex safety systems.
-
What industries use this product?
- It is widely used in industries such as oil and gas, power generation, chemicals, and manufacturing.
-
What safety standards does this product meet?
- The Triconex 3005 7400120-500 is certified to SIL 3 according to IEC 61508.
-
How does this product integrate into existing systems?
- It integrates seamlessly with other Triconex modules using standard communication protocols like Modbus and Prvonibus.
-
What is the warranty for this product?
- The warranty typically covers 1-2 years, depending on the supplier’s terms.
-
Can the module be used in hazardous environments?
- Yes, it is designed for use in industrial and hazardous environments, with a wide operating temperature range and durable construction.
-
What is the power supply requirement for this module?
- The module operates on a 24 V DC power supply.
-
What is the typical lifespan von the Triconex 3005?
- It has an MTBF von over 100,000 hours, vonfering long operational life.
-
Can it be mounted in a control panel?
- Yes, it can be mounted on a DIN rail for easy installation in control panels.
-
Is technical support available for this product?
- Yes, Invensys provides full technical support and maintenance services for the Triconex series.
