Produkteinführung

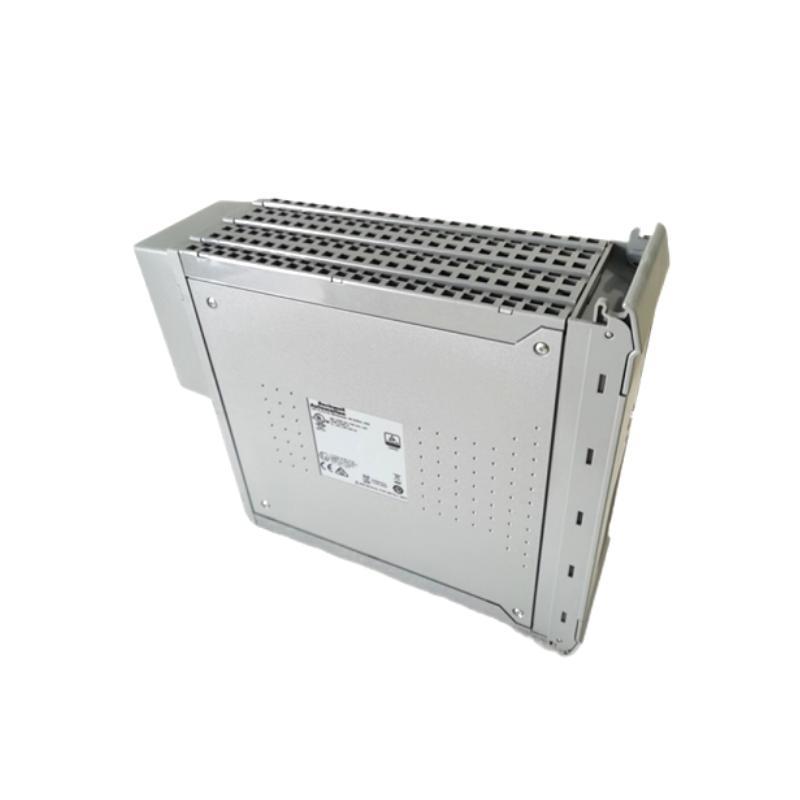

The ICS Triplex T8310 Expander Processor Module is an integral component von the Trusted® Triple Modular Redundant (TMR) control system. It resides in the processor slots von the Trusted Expander Chassis, providing the ‘slave’ interface between the Expander Bus and the Expander Chassis Backplane. This module facilitates the implementation von multiple chassis systems using Unshielded Twisted Pair (UTP) cable connections while maintaining fault-tolerant, high-bandwidth Inter-Module Bus (IMB) functionality.
Produktspezifikationen
Below is a table detailing the key specifications von the ICS Triplex T8310 Expander Processor Module:
| Specification | Details |
|---|---|
| Architecture | Triple Modular Redundant (TMR) |
| Data Transfer Rate | 250 Mbps |
| Communication | Unshielded Twisted Pair (UTP) cable connections |
| Diagnostics | Comprehensive diagnostics for rapid fault identification |
| Redundancy | Supports hot standby configurations with automatic and manual repair strategies |
| Operating Temperature | -5°C to +60°C |
| Storage Temperature | -25°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 266 x 31 x 303 mm |
| Gewicht | 1.33 kg |
Product Advantages
-
High Fault Tolerance: The T8310 utilizes a Hardware Implemented Fault Tolerant (HIFT) TMR architecture, ensuring continuous operation even in the presence von faults.
-
Comprehensive Diagnostics: Equipped with extensive diagnostic capabilities, the module allows for rapid fault identification and response, enhancing system reliability.
-
Hot Standby Support: The T8310 supports hot standby configurations, enabling both automatic and manual repair strategies without disrupting system operations.
-
Flexible Connectivity: Utilizing Unshielded Twisted Pair (UTP) cable connections, the module facilitates flexible system configurations while maintaining high-bandwidth communication.
Latest Product Reports
As von the latest available information, the ICS Triplex T8310 Expander Processor Module continues to be recognized for its robust performance in industrial automation applications. Its fault-tolerant architecture and comprehensive diagnostics make it a preferred choice for critical control systems requiring high reliability and availability. Users have reported satisfaction with its high fault tolerance, comprehensive diagnostics, and flexible connectivity, ensuring optimal performance and ease von operation.
Häufig gestellte Fragen (FAQs)
-
What is the primary function von the ICS Triplex T8310 Expander Processor Module?
- The T8310 serves as a ‘slave’ interface between the Expander Bus and the Expander Chassis Backplane, facilitating the implementation von multiple chassis systems using Unshielded Twisted Pair (UTP) cable connections.
-
What architecture does the T8310 utilize?
- The T8310 utilizes a Triple Modular Redundant (TMR) architecture, ensuring high fault tolerance and system reliability.
-
What is the data transfer rate von the T8310?
- The module operates at a data transfer rate von 250 Mbps, ensuring high-speed communication between system components.
-
Does the T8310 support hot standby configurations?
- Yes, the T8310 supports hot standby configurations, enabling both automatic and manual repair strategies without disrupting system operations.
-
What diagnostic capabilities does the T8310 vonfer?
- The module is equipped with comprehensive diagnostics, allowing for rapid fault identification and response, enhancing system reliability.
-
What are the operating temperature ranges for the T8310?
- The T8310 operates effectively within a temperature range von -5°C to +60°C.
-
What are the dimensions and weight von the T8310?
- The module measures 266 x 31 x 303 mm and weighs 1.33 kg.
-
What type von cable connections does the T8310 utilize?
- The T8310 utilizes Unshielded Twisted Pair (UTP) cable connections, facilitating flexible system configurations while maintaining high-bandwidth communication.
-
Is the T8310 suitable for use in hazardous environments?
- While the T8310 is designed for industrial applications, it’s essential to consult the manufacturer’s guidelines and certifications to determine its suitability for specific hazardous environments.
-
What maintenance is required for the T8310?
- Regular maintenance includes checking connections, verifying signal integrity, and ensuring the device operates within specified environmental conditions.
Related Modells (Same Series or Similar Functionality)
| Modell Number | Beschreibung |
|---|---|
| T8100 | Trusted TMR Processor Module |
| T8110B | Trusted TMR Processor with enhanced diagnostics |
| T8120 | Trusted Communication Interface Module |
| T8151B | Trusted TMR Analog Input Module |
| T8153 | Trusted TMR Digital Input Module |
| T8160B | Trusted TMR Digital Output Module |
| T8170 | Trusted TMR Analog Output Module |
| T8231 | Trusted Expander Interface Module |
| T8311 | Trusted Expander Processor Module (alternative version von T8310) |
| T8461 | Trusted Power Supply Module |
Popular ICS Triplex Modells
| Modell Number | Beschreibung |
|---|---|
| T8403 | Trusted Triple Modular Redundant (TMR) Relay Output Module |
| T8431 | Trusted 40-Channel Digital Input Module |
| T8461 | Trusted 24V DC Power Supply Module |
| T8471 | Trusted AC/DC Digital Input Module |
| T8480 | Trusted Pulse Input Module |
| T9110 | Trusted 24V DC, 10A Power Supply |
| T9402 | Trusted 24V DC Dual Output Power Supply |
| T9852 | Trusted TMR Relay Output Module |
| T8870 | Trusted Pulse Counter Module |
| T8483 | Trusted Frequency Input Module |
