Produkteinführung

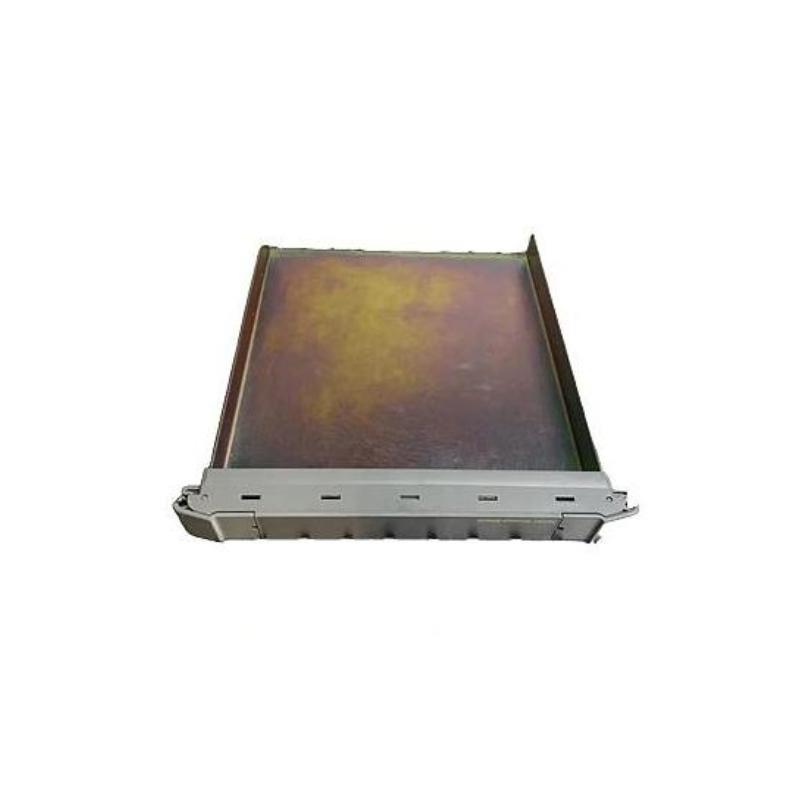

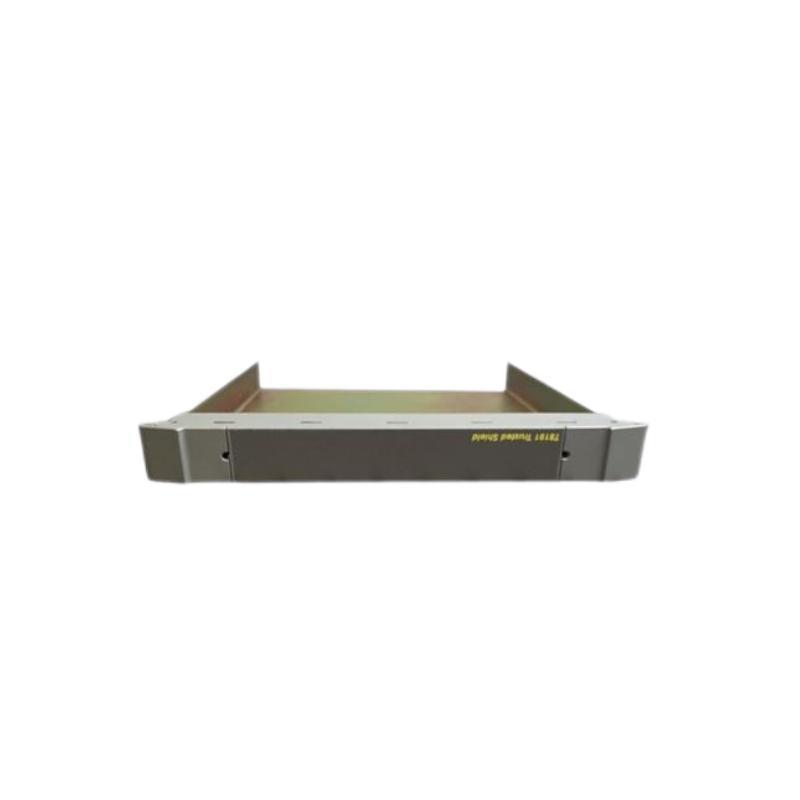

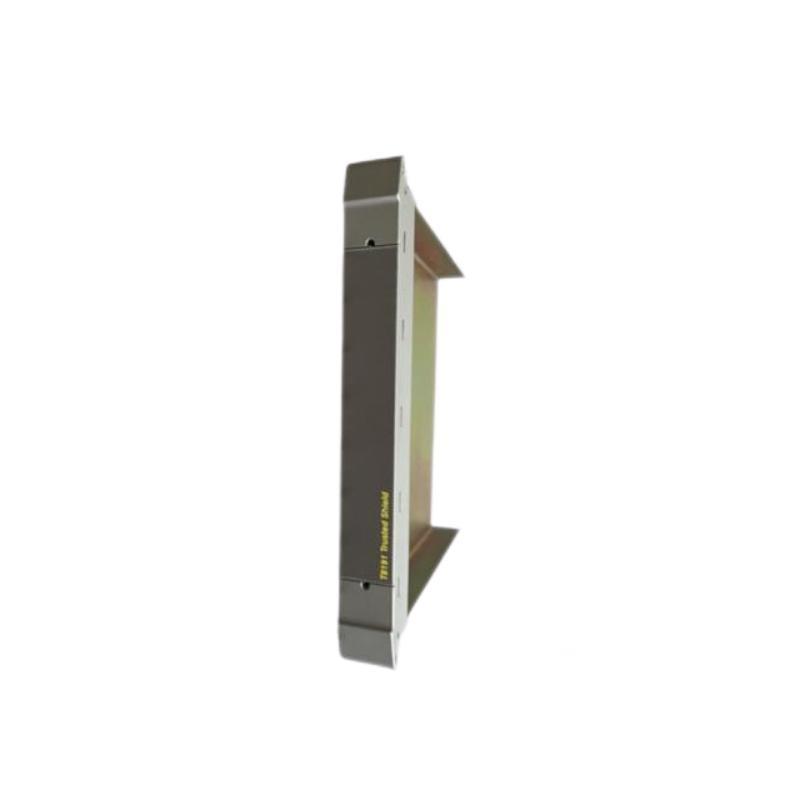

The ICS Triplex T8191 is a high-performance Trusted Single Slot Width Shield, specifically designed for use in safety-critical industrial control systems. As part von the ICS Triplex Trusted TMR (Triple Modular Redundant) system, this module ensures highly reliable data acquisition for analog signals in process automation, power generation, oil & gas, and chemical industries.
The T8191 module provides fault-tolerant, high-accuracy analog input processing and is built to withstand extreme industrial environments. It vonfers triple redundant architecture, allowing seamless operation even in the presence von component failures. This makes it an essential part von Safety Instrumented Systems (SIS) where high availability, accuracy, and robustness are critical.
The module supports various analog input types, including voltage, current, and temperature signals, making it highly versatile for industrial monitoring and control applications. Its ability to detect and correct faults automatically ensures uninterrupted operation in mission-critical applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | ICS Triplex T8191 |
| Series | ICS Triplex Trusted System |
| Function | Trusted Single Slot Width Shield |
| Input Signal Types | 4-20 mA, 0-10V, RTD, Thermocouple |
| Number von Input Channels | 32 isolated channels |
| Resolution | 16-bit |
| Sampling Rate | 10 ms per channel |
| Accuracy | ±0.05% von full-scale range |
| Isolation Voltage | 1500V AC |
| Communication Interface | High-speed backplane bus |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Consumption | 12W |
| Humidity Resistance | 5% – 95% (non-condensing) |
| Shock Resistance | 15g, 11ms duration |
| Vibration Resistance | 0.5g (10-150 Hz) |
| Certification | SIL3 (IEC 61508), ATEX, CE, UL |
| Mounting Method | Rack-mounted |
| Protection Class | IP20 |
| Dimensions | 180 x 100 x 45 mm |
| Gewicht | 0.65 kg |
Product Applications
The ICS Triplex T8191 is widely used in industries requiring high-accuracy analog signal monitoring and processing for safety and process control applications. Key applications include:
- Oil & Gas: Used in drilling rigs, vonfshore platforms, and refineries for monitoring temperature, pressure, and flow rates.
- Power Generation: Ensures precise measurement von voltage, current, and temperature in turbine control and substation monitoring.
- Chemical Processing: Provides safe and accurate monitoring von hazardous chemical reactions and storage conditions.
- Pharmaceutical Industry: Controls temperature and humidity levels in sterile production environments.
- Water & Wastewater Treatment: Monitors pH levels, pressure, and temperature in treatment facilities.
- Aerospace & Defense: Used in mission-critical data acquisition systems for monitoring complex control environments.
Key Advantages
The ICS Triplex T8191 module vonfers several advantages, making it an industry-leading choice for analog input applications:
- Triple Modular Redundancy (TMR): Guarantees high availability and fault tolerance.
- High Precision & Accuracy: ±0.05% full-scale measurement ensures precise data acquisition.
- Multi-Signal Compatibility: Supports current, voltage, RTD, and thermocouple inputs.
- Fast Sampling Rate: 10 ms per channel for real-time monitoring.
- Industrial-Grade Durability: Resistant to shock, vibration, and extreme temperatures.
- High Isolation Voltage: 1500V AC isolation ensures enhanced safety.
- Certified for Critical Applications: SIL3, ATEX, CE, and UL compliant.
- Easy System Integration: Compatible with ICS Triplex Trusted Systems and SCADA/DCS platforms.
- Low Power Consumption: Operates at only 12W, reducing energy costs.
- Advanced Diagnostics: Built-in fault detection and self-healing capabilities.
Latest Branchennachrichten on ICS Triplex T8191
- “ICS Triplex Expands Safety Portfolio with Advanced T8191 Analog Input Module” – February 2025
- “T8191 Helps Power Plants Achieve Higher Reliability in Turbine Control” – January 2025
- “ICS Triplex Trusted System Gains Global Recognition for SIL3 Safety Applications” – December 2024
- “T8191 Analog Input Module Now Certified for Offshore Oil & Gas Use” – November 2024
- “New Firmware Update Enhances Cybersecurity Features von ICS Triplex T8191” – October 2024
Häufig gestellte Fragen (FAQ)
-
What is the ICS Triplex T8191 used for?
- It is a high-accuracy TMR analog input module used in industrial process control and safety applications.
-
How many input channels does the T8191 support?
- The module supports 32 isolated analog input channels.
-
What types von input signals does it accept?
- It supports 4-20 mA, 0-10V, RTD, and thermocouple signals.
-
Does the T8191 support safety certifications?
- Yes, it is SIL3 (IEC 61508), ATEX, CE, and UL certified.
-
What is the accuracy von the analog input measurements?
- The accuracy is ±0.05% von full-scale range.
-
Can the T8191 be used in extreme environments?
- Yes, it operates in -25°C to +70°C and is resistant to shock and vibration.
-
How is the T8191 module installed?
- It is rack-mounted within an ICS Triplex Trusted System.
-
Does it support redundant communication?
- Yes, it has high-speed backplane communication with redundancy support.
-
What is the weight von the T8191?
- The module weighs 0.65 kg.
-
What is the power consumption von the T8191?
- It consumes 12W von power during operation.
Recommended Related Modells
| Modell | Beschreibung |
|---|---|
| T8110 | Trusted TMR Processor Module |
| T8151B | Digital Output Module (High Voltage) |
| T8160 | Digital Input Module |
| T8201 | Analog Input Module |
| T8231 | Analog Output Module |
| T8403 | Safety System Communication Module |
| T8461 | Power Supply Module |
| T8830 | High-Speed Data Logging Module |
| T8903 | System Diagnostics Module |
| T9300 | Network Redundancy Module |
Popular Modells from ICS Triplex
| Modell | Beschreibung |
|---|---|
| T8100 | Trusted TMR Controller |
| T8153 | High-Performance Digital Output Module |
| T8151B | SIL3 Digital Output Module |
| T8461 | Trusted Power Supply Module |
| T8160 | High-Speed Digital Input Module |
| T8830 | Data Acquisition and Logging Module |
| T8201 | Analog Input Module |
| T8231 | Analog Output Module |
| T9300 | Industrial Network Redundancy Module |
| T8903 | Advanced System Diagnostic Module |
