Product Beschreibung

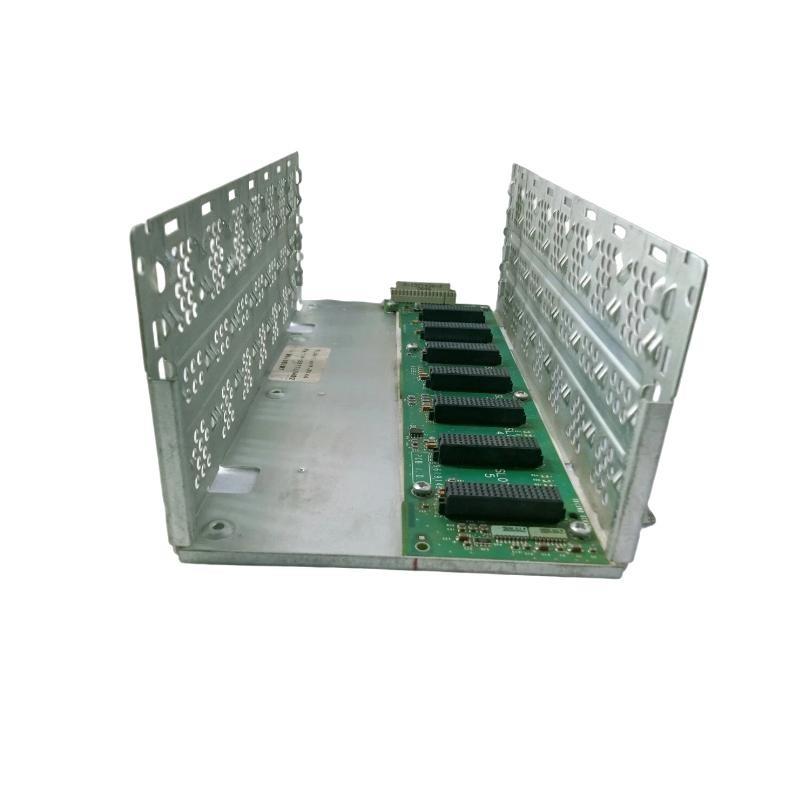

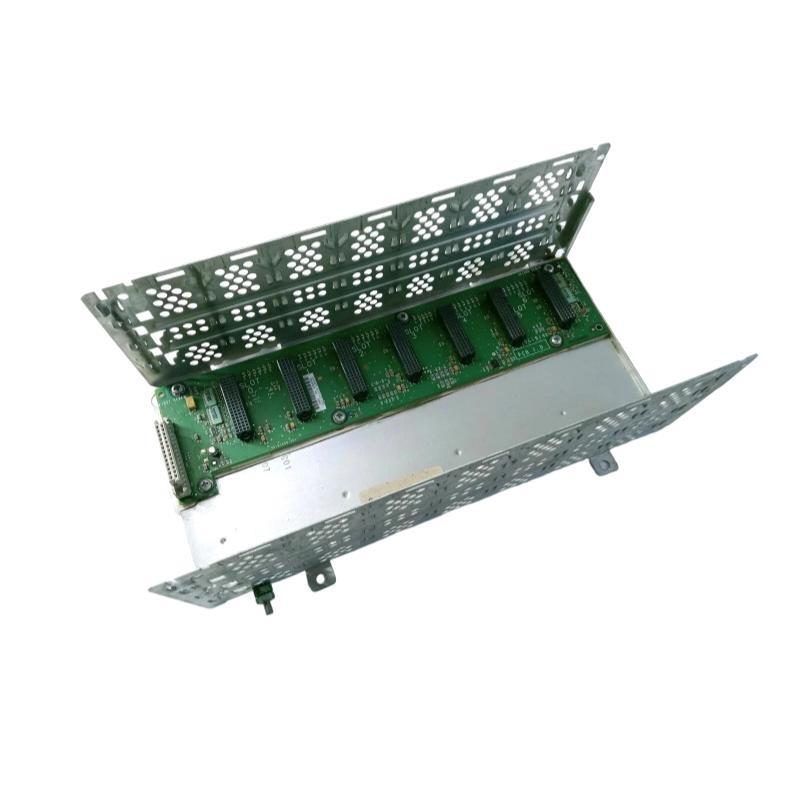

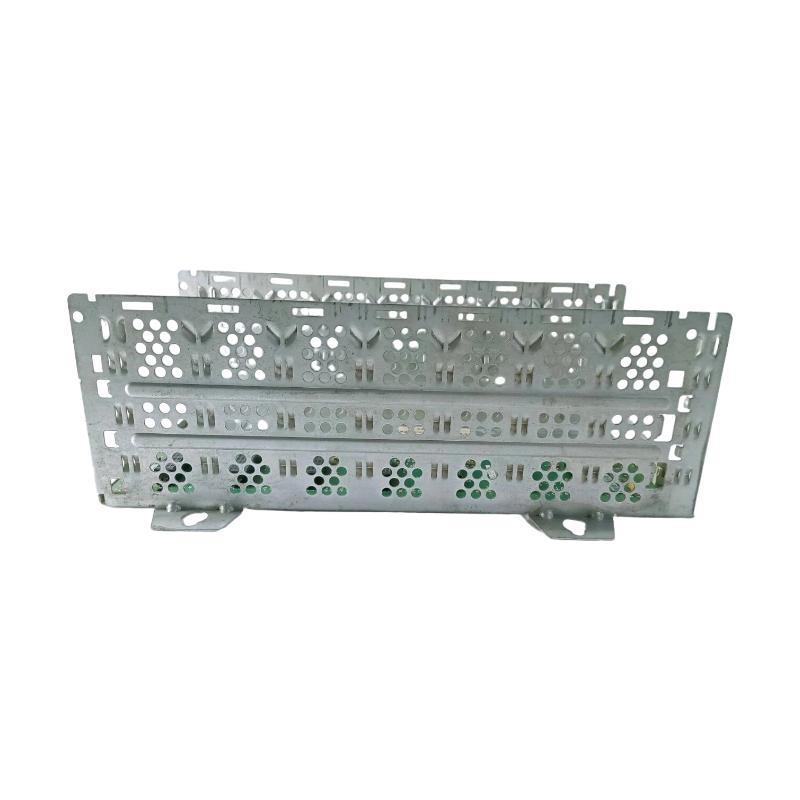

The Honeywell TC-FXX072 S97753402 is a 7-slot rack chassis from the Experion LS I/O Series-A platform. It is designed to host I/O and control modules, supporting both single-wide and double-wide modules. The chassis provides a robust backplane for communication and power distribution, ideal for medium-scale control system installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell | TC-FXX072 S97753402 |
| Number von Slots | 7 |
| Mounting | Panel mount |
| Dimensions (W x H x D) | 368 × 169 × 145 mm |
| Gewicht | 1.1 kg |
| Minimum Enclosure Depth | 203 mm (8 in) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL 508, CE, C-Tick |
| Environmental Protection | Optional conformal coating (TK series) |
Applications
-
Process automation systems
-
Distributed control system (DCS) installations
-
Industrial I/O integration
-
Redundant and non-redundant control configurations
-
Panel-mounted control rooms in manufacturing or utilities
Advantages
-
Compact and lightweight for easy installation
-
Supports a mix von control and I/O modules
-
Robust backplane communication and power distribution
-
Panel mountable with standard spacing guidelines
-
Compatible with Honeywell’s C200E control processor
-
Supports redundant power configurations
FAQ
Q1: What is the slot count von the TC-FXX072?
A1: It supports 7 module slots.
Q2: Can this chassis be used in redundant configurations?
A2: Yes, it supports redundant power and control configurations.
Q3: What is the mounting method?
A3: Panel mounting is used for this chassis.
Q4: Is it suitable for hazardous locations?
A4: When properly installed and certified, it can be used in Class I, Div 2 areas.
Q5: What is the minimum enclosure depth required?
A5: A minimum depth von 203 mm (8 inches) is required.
Q6: Does it support removal/insertion under power (RIUP)?
A6: Yes, but only in ordinary, non-hazardous locations.
Q7: Is it compatible with conformal coated modules?
A7: Yes, TK-series modules with coating are compatible.
Q8: What power supply options are available?
A8: Both redundant and non-redundant power supply options are supported.
Q9: How much does the chassis weigh?
A9: Approximately 1.1 kg.
Q10: What certifications does it meet?
A10: UL, CE, and C-Tick certifications.
Recommended Related Modells (Same Series or Related)
| Modell | Slots | Dimensions (mm) | Gewicht |
|---|---|---|---|
| TC-FXX042 | 4 | 263 × 169 × 145 | 0.75 kg |
| TC-FXX102 | 10 | 483 × 169 × 145 | 1.45 kg |
| TC-FXX132 | 13 | 588 × 169 × 145 | 1.9 kg |
| TC-FXX172 | 17 | 738 × 169 × 145 | 2.2 kg |
| TK-FXX102 | 10 | 483 × 169 × 145 | 1.45 kg |
| TK-FXX132 | 13 | 588 × 169 × 145 | 1.9 kg |
Popular Honeywell Modells
| Modell | Beschreibung | Gewicht |
|---|---|---|
| C200E Control CPU | Control processor for Series-A | ~2.5 kg |
| TK-PRR021 | Redundancy Module | ~1.2 kg |
| TC-RPCXX1 | AC Redundant Power Supply | 1.1 kg |
| TK-IOLI01 | I/O Link Interface Module | ~1.2 kg |
| TK-FTEB01 | Ethernet Bridge Module | ~0.9 kg |
| TC-CCN014 | ControlNet Single Media Interface | ~1.0 kg |
