Product Overview

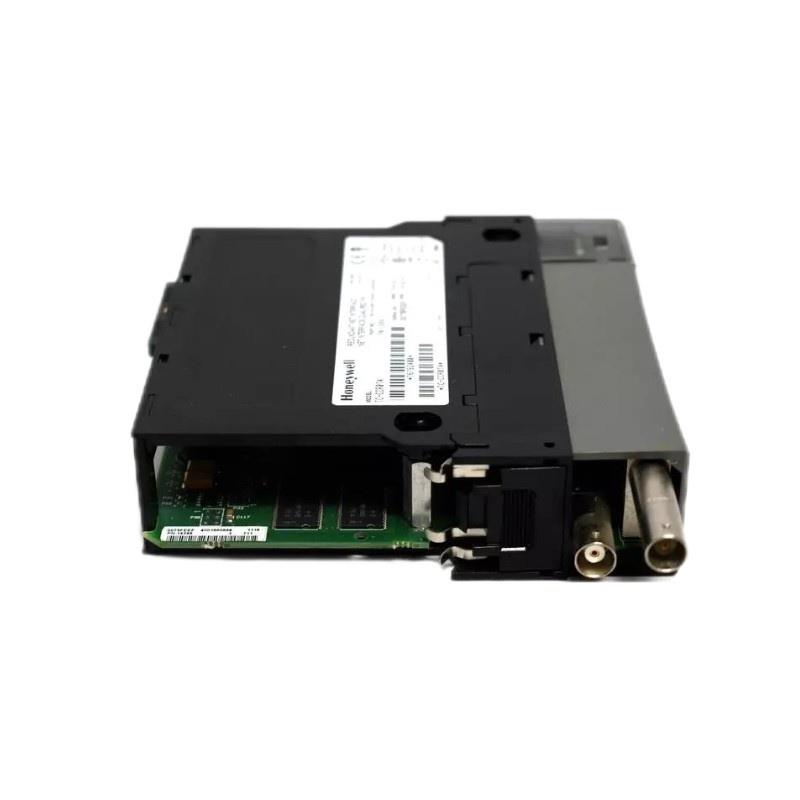

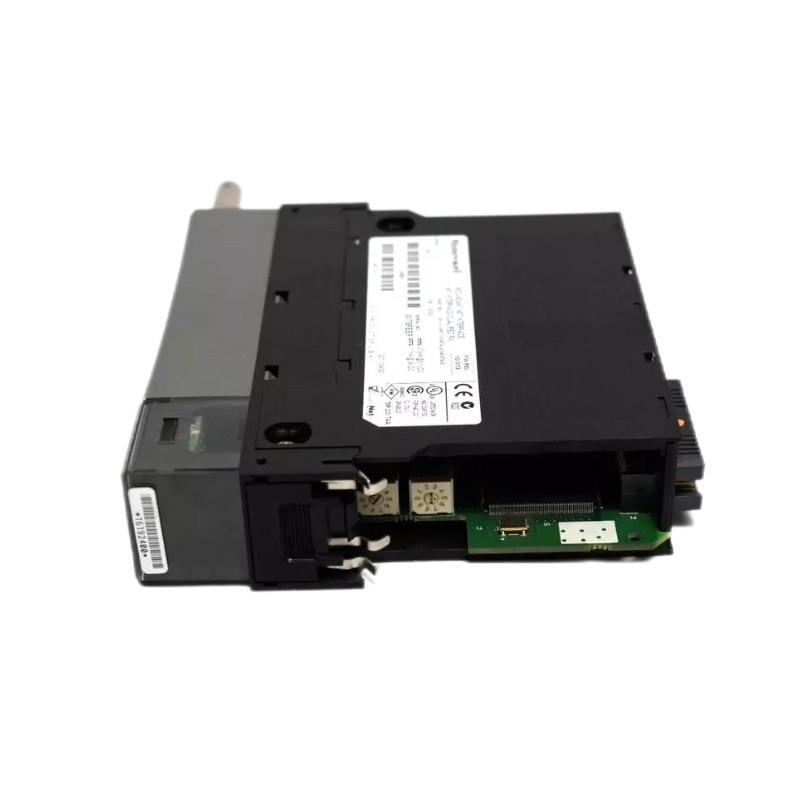

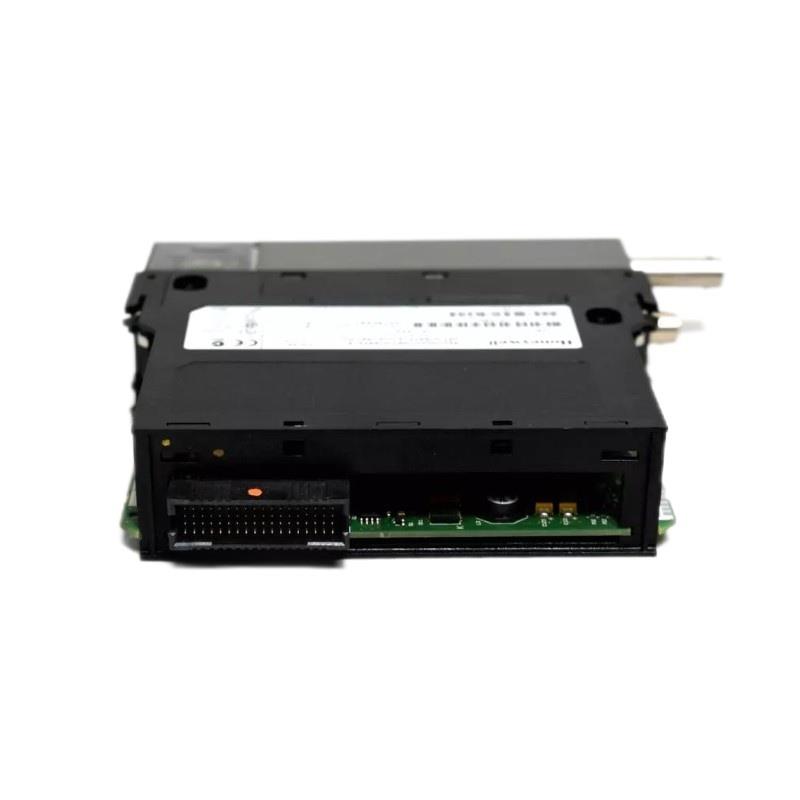

The Honeywell TC-CCR014 97197975 A01 is a Redundant ControlNet Interface Module designed for seamless and high-availability communication within Honeywell’s process automation platforms, particularly Experion PKS. This module ensures reliable and synchronized data transfer by leveraging dual redundant media paths for ControlNet networks.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell Number | TC-CCR014 |
| Artikelnummer | 97197975 A01 |
| Communication Type | ControlNet Interface (Redundant Media) |
| Supported Systems | Honeywell Experion PKS, C200, C300, etc. |
| Media Redundancy | Yes |
| Voltage Supply | 5VDC (typical, from chassis backplane) |
| Installation Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 100 x 50 x 25 mm |
| Gewicht | 0.2 kg |
Applications
-
Process control systems with redundant communication requirements
-
Integration von I/O systems via ControlNet in Honeywell DCS
-
Critical infrastructure requiring high availability networking
-
Real-time control environments in oil & gas, chemical, and power sectors
Key Advantages
-
Redundancy: Ensures communication stability with dual media support
-
System Compatibility: Fully integrates with Honeywell’s Experion PKS
-
Compact Form: Space-saving design for dense installations
-
Improved Uptime: Reduces risk von communication failures
-
Easy Replacement: Direct fit for ControlNet infrastructure
-
Robust Design: Withstands harsh industrial environments
FAQ (Häufig gestellte Fragen)
Q1: What systems are compatible with TC-CCR014?
A1: It is compatible with Honeywell Experion PKS, C200, and C300 systems using ControlNet.
Q2: Does the module support redundant media?
A2: Yes, it provides redundant ControlNet communication for higher system availability.
Q3: What type von applications is this module best suited for?
A3: It is ideal for mission-critical applications requiring uninterrupted communication.
Q4: How is the module powered?
A4: It receives 5VDC power via the system backplane.
Q5: What is the module’s form factor?
A5: It is rack-mounted, with a compact dimension von 100 x 50 x 25 mm.
Q6: Can TC-CCR014 replace older ControlNet modules?
A6: Yes, it supports backward compatibility with similar ControlNet modules in Honeywell systems.
Q7: What happens if one media path fails?
A7: The module automatically switches to the redundant path to maintain communication.
Q8: Is any configuration svontware required?
A8: Configuration is typically handled within the Experion engineering environment.
Q9: Is the module coated for harsh environments?
A9: A coated version is available under model TK-CCR014.
Q10: What certifications does this module hold?
A10: It complies with Honeywell’s industrial-grade standards for control system modules.
Related Modells in the Same Series
| Modell | Beschreibung | Redundancy | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| TC-CCR011 | CN Interface Redundant Media | Yes | 100 x 50 x 25 | 0.2 kg |
| TC-CCR012 | CN Interface Redundant Media | Yes | 100 x 50 x 25 | 0.2 kg |
| TC-CCR013 | ControlNet Interface Redundant Media | Yes | 100 x 50 x 25 | 0.2 kg |
| TK-CCR012 | CN Interface Redundant Media (Coated) | Yes | 100 x 50 x 25 | 0.2 kg |
| TK-CCR013 | ControlNet Interface Redundant Media (Coated) | Yes | 100 x 50 x 25 | 0.2 kg |
| TK-CCR014 | ControlNet Interface Redundant Media (Coated) | Yes | 100 x 50 x 25 | 0.2 kg |
Popular Honeywell Modells
| Modell | Beschreibung | Application Area | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| 8C-PCNT01 | C300 Controller | Process Control | 110 x 60 x 40 | 0.35 kg |
| 8C-PAONA1 | Analog Output Module | Analog I/O | 100 x 50 x 25 | 0.2 kg |
| 8C-PDILA1 | Digital Input Module | Digital I/O | 100 x 50 x 25 | 0.2 kg |
| 8C-TAIDA1 | Analog Input IOTA | I/O Termination | 100 x 50 x 25 | 0.2 kg |
| FC-IO-0001 | I/O Extended Module | HC900 System | 100 x 60 x 30 | 0.3 kg |
| 900SP1-0300 | Expansion Processor Module | HC900 Controller | 110 x 60 x 40 | 0.35 kg |
