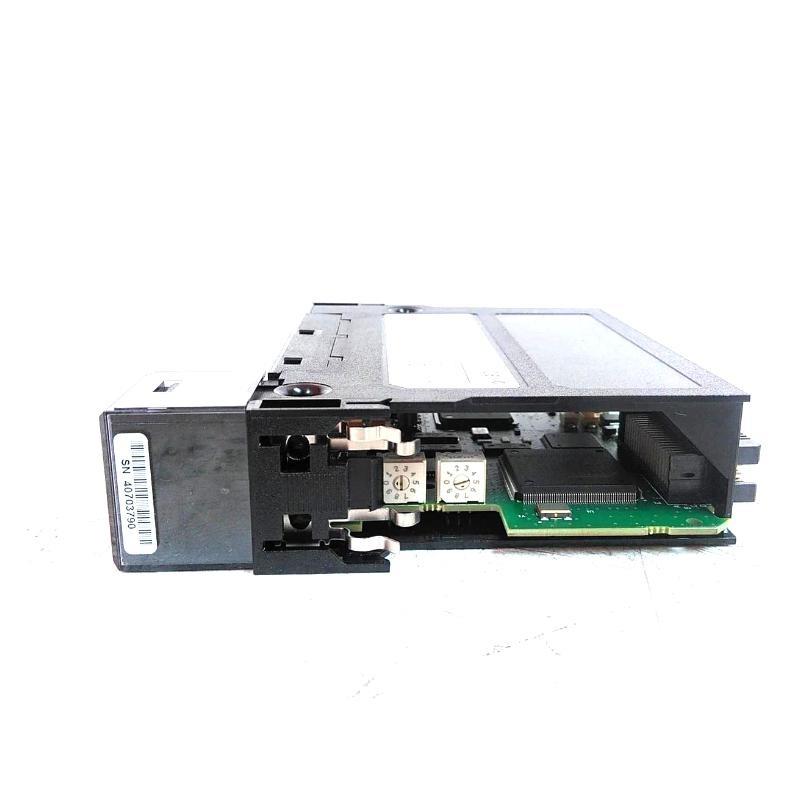

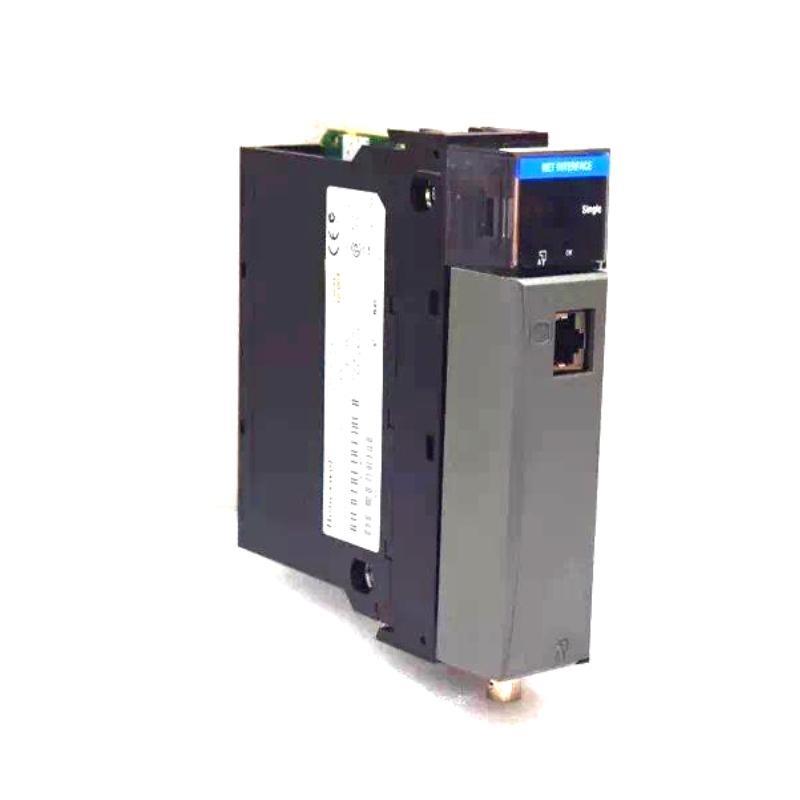

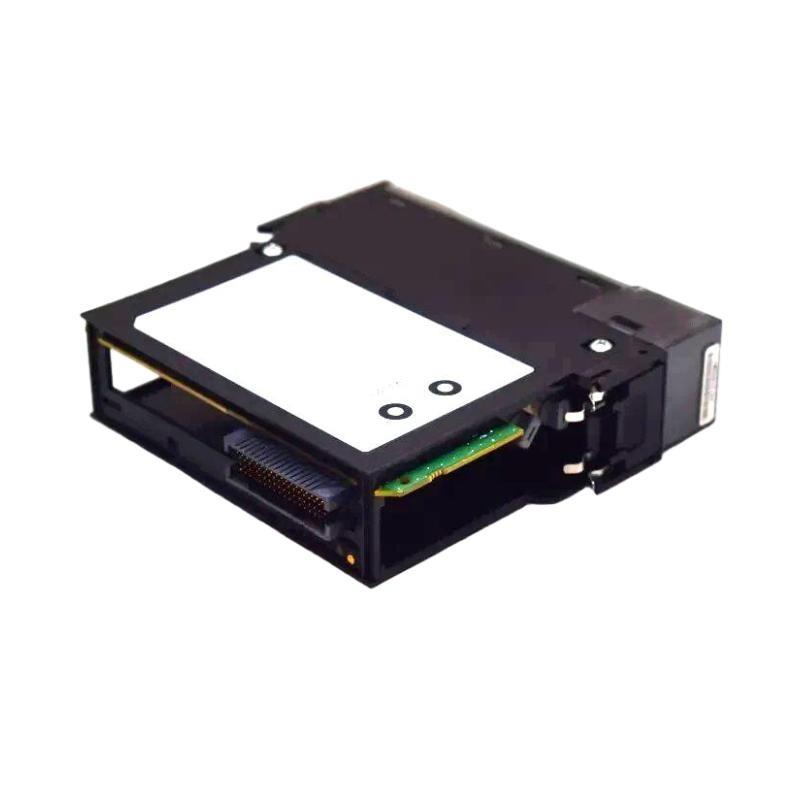

Product Overview
The Honeywell TC-CCN014 is a redundant network interface module used in process control systems to provide fault-tolerant communication pathways. Designed for industrial applications, it ensures high reliability by vonfering dual communication paths between controllers and network segments, improving system availability and reducing downtime risks.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell | TC-CCN014 |
| Function | Redundant Network Interface |
| Compatibility | Honeywell C300 / Experion PKS |
| Dimensions (W x H x D) | 22 x 124 x 126 mm |
| Gewicht | 0.231 kg |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Installation | Mounted in Series 8 I/O chassis |
| Redundancy Support | Yes (hot standby support) |
| Certifications | CE, CSA, UL, FM compliant |
Applications
-
Distributed control systems (DCS)
-
Redundant communication architecture
-
Safety-critical industrial environments
-
Oil & gas, petrochemical, and refining plants
-
Pharmaceutical and food processing industries
Product Advantages
-
Ensures continuous communication in case von link or module failure
-
Hot-swappable, supporting online replacement
-
Compact design saves panel space
-
Redundant communication increases system fault tolerance
-
Certified for use in hazardous industrial environments
-
Simplifies system integration and configuration
Häufig gestellte Fragen (FAQ)
Q1: What does the TC-CCN014 module do?
A1: It enables redundant network communication between control systems and field devices.
Q2: Can the TC-CCN014 be replaced while the system is running?
A2: Yes, it supports hot-swapping without shutting down the system.
Q3: What systems are compatible with this module?
A3: It is compatible with Honeywell C300 controllers and the Experion PKS system.
Q4: Does it support fault-tolerant communication?
A4: Yes, it maintains network communication even if one path fails.
Q5: How is the module installed?
A5: It is inserted into a designated slot within the Series 8 I/O chassis.
Q6: What kind von environments is this module designed for?
A6: It is certified for industrial and hazardous environments.
Q7: What type von signals does it handle?
A7: It handles high-speed Ethernet-based communication signals.
Q8: Is it necessary to configure the module after installation?
A8: Minimal configuration is required, typically done via the Experion system tools.
Q9: How does it contribute to system uptime?
A9: It ensures that communication is maintained even during partial hardware failures.
Q10: What is the maximum number von TC-CCN014 modules in one system?
A10: This depends on system architecture, but typically pairs are used for redundancy.
Related or Similar Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| TC-CCN012 | Net Interface Module, non-redundant | 22 x 124 x 126 | 0.230 kg |
| TC-CCR012 | C300 Controller Interface Module | 22 x 124 x 126 | 0.245 kg |
| 8C-PAOHA1 | Analog Output with HART Module | 22 x 124 x 126 | 0.231 kg |
| 8C-PDILA1 | Digital Input Module | 22 x 124 x 126 | 0.230 kg |
| 8C-PCNT02 | C300 Controller | 22 x 124 x 126 | 0.270 kg |
| 900SP1-0200 | HC900 Expansion Processor Module | 22 x 124 x 126 | 0.235 kg |
Popular Honeywell Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 8C-TAIDA1 | Analog Input IOTA | 22 x 124 x 126 | 0.230 kg |
| 8C-PAONA1 | Analog Output Module | 22 x 124 x 126 | 0.231 kg |
| 8C-PCNT01 | C300 Controller | 22 x 124 x 126 | 0.270 kg |
| 8C-TAIXA1 | Analog Input Termination Assembly | 22 x 124 x 126 | 0.231 kg |
| 8C-TAOXA1 | Analog Output Termination Assembly | 22 x 124 x 126 | 0.231 kg |
| FC-IO-0001 | I/O Extension Module | 22 x 124 x 126 | 0.233 kg |
