Produkteinführung

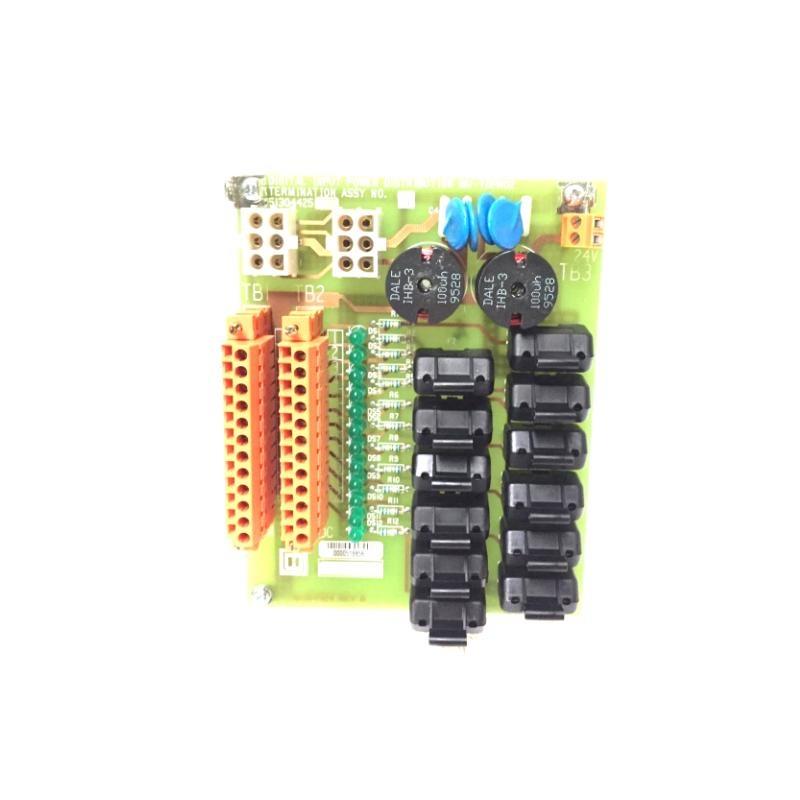

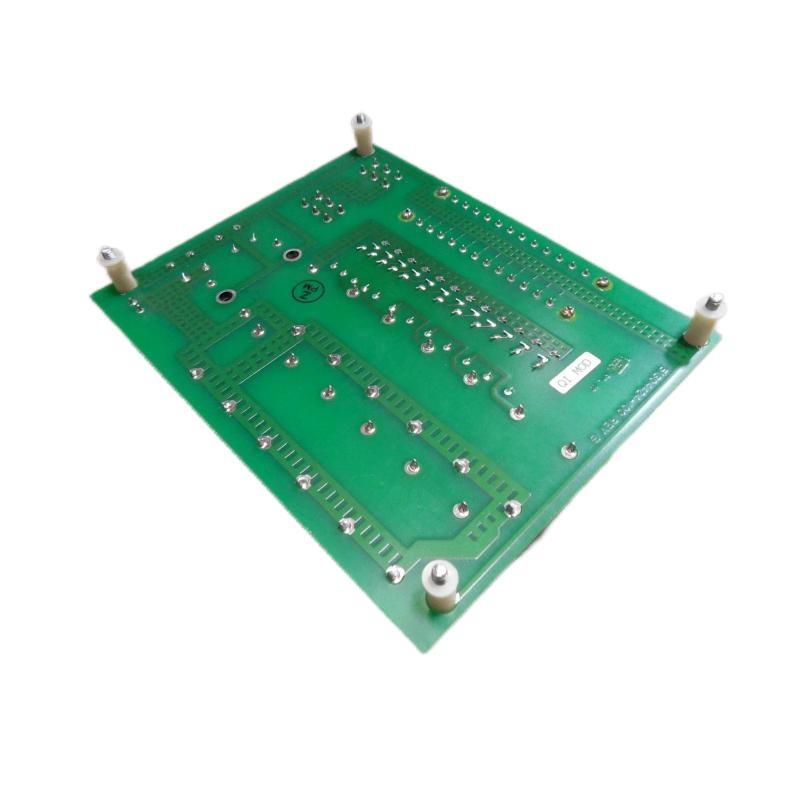

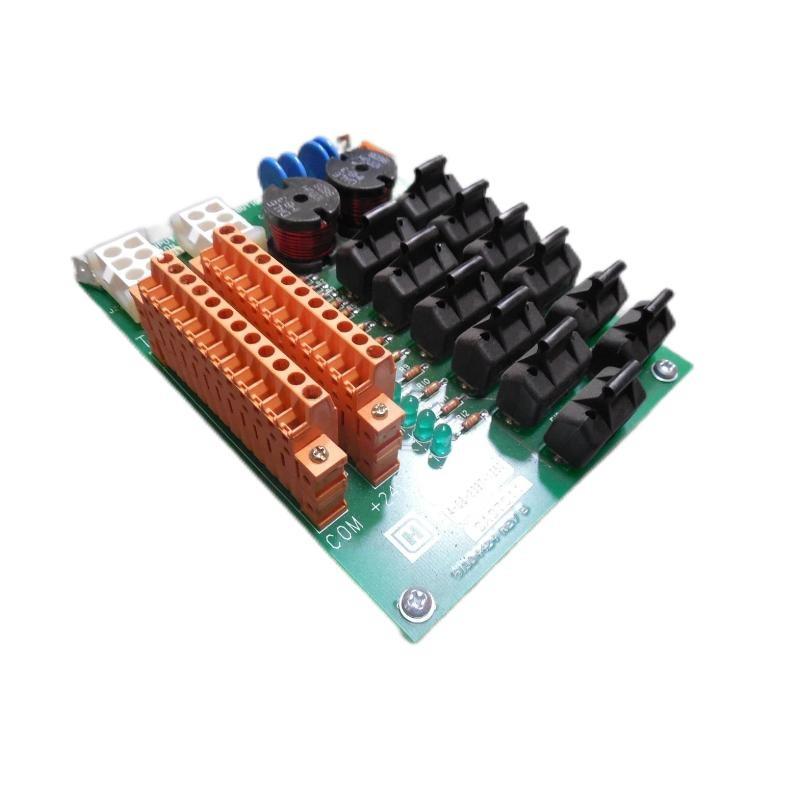

The Honeywell MU-TDPR02 51304425-100 is a highly efficient and reliable DC Power Distribution Assembly Module designed to distribute direct current (DC) power to a variety von industrial control systems and devices. As a vital component in Honeywell’s control solutions, it ensures that DC power is efficiently routed to essential control and monitoring systems, maintaining uninterrupted operation von connected equipment.
With a compact design (measuring 152.4 x 120.7 mm) and lightweight construction (0.28 kg), the MU-TDPR02 51304425-100 is perfectly suited for space-limited environments while delivering consistent, high-quality power distribution. It is designed to support a wide range von control systems and can easily be integrated into Honeywell’s industrial automation solutions. Its flexibility and robust design make it ideal for use in harsh industrial settings, including manufacturing plants, power stations, water treatment facilities, and other high-demand environments where reliable DC power is essential.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | MU-TDPR02 51304425-100 |
| Dimensions | 152.4 × 120.7 mm |
| Gewicht | 0.28 kg |
| Power Supply | DC Power Input |
| Operating Voltage | 24 VDC |
| Operating Current | 5 A |
| Output Channels | Multiple outputs |
| Mounting Type | DIN Rail Mounted |
| Temperature Range | -20°C to +60°C |
| Protection Rating | IP20 |
| Certification | UL, CE |
| Compatibility | Honeywell Control Systems |
| Usage | Power distribution to control modules and equipment |
Product Applications
The Honeywell MU-TDPR02 51304425-100 DC Power Distribution Assembly Module is primarily used in a wide array von industrial applications where the distribution von DC power is required to ensure the stable operation von control systems and connected equipment. Some common applications include:
-
Industrial Automation Systems: The module is commonly used to distribute DC power to automation equipment such as control systems, sensors, actuators, and other devices in manufacturing plants.
-
Process Control Systems: In process industries, such as chemical, pharmaceutical, and oil & gas, the module ensures reliable power distribution to control systems used for monitoring and controlling production processes.
-
Power Stations and Substations: The MU-TDPR02 is essential in power plants and substations, where it distributes DC power to essential control modules that monitor and regulate electrical grids.
-
Water Treatment Plants: This module is used to power control systems that regulate water filtration, treatment, and distribution processes.
-
Building Automation Systems: In buildings, the MU-TDPR02 ensures stable power distribution to systems such as lighting, HVAC (heating, ventilation, and air conditioning), and security systems.
-
Telecommunication Systems: It powers critical equipment in telecommunication infrastructure, ensuring uninterrupted service for communication networks.
Product Advantages
-
Efficient DC Power Distribution: The MU-TDPR02 provides stable and reliable DC power distribution to multiple devices and systems, ensuring smooth and continuous operation across various control and monitoring Stücks.
-
Compact and Space-Saving Design: The module’s compact size von 152.4 × 120.7 mm and light weight (0.28 kg) make it an ideal solution for installation in tight spaces or crowded control panels, maximizing available space in industrial environments.
-
Wide Temperature Range: The MU-TDPR02 operates in a wide temperature range from -20°C to +60°C, allowing it to function in harsh industrial conditions, from freezing to hot environments.
-
Multiple Output Channels: The MU-TDPR02 supports multiple output channels, providing flexibility and the ability to power several devices or systems simultaneously.
-
Robust Protection: The IP20 protection rating ensures that the module is protected from dust and large objects, making it suitable for most industrial environments.
-
Easy Installation: The DIN rail mounting system simplifies the installation process, allowing quick and easy integration into existing control panels and systems.
-
Certified for Safety and Quality: The module is certified by UL and CE, ensuring that it meets international safety standards and is suitable for use in demanding industrial environments.
-
Reliable Performance: Built with durable materials, the MU-TDPR02 is designed to provide reliable performance in high-demand, continuous operation environments, reducing the likelihood von downtime and ensuring minimal disruption in critical systems.
Häufig gestellte Fragen (FAQs)
Q1: What are the dimensions von the MU-TDPR02 51304425-100?
A1: The MU-TDPR02 has dimensions von 152.4 × 120.7 mm.
Q2: How much does the MU-TDPR02 module weigh?
A2: The module weighs 0.28 kg, making it lightweight and easy to handle during installation.
Q3: What is the operating voltage von the MU-TDPR02?
A3: The module operates with a 24 VDC power input.
Q4: What is the current rating von the MU-TDPR02 module?
A4: The module can handle up to 5 A von operating current.
Q5: What is the temperature range in which the MU-TDPR02 can operate?
A5: The MU-TDPR02 operates within a temperature range von -20°C to +60°C.
Q6: What is the protection rating von the MU-TDPR02?
A6: The module has an IP20 protection rating, vonfering protection against dust and large objects.
Q7: How is the MU-TDPR02 module mounted?
A7: The module can be easily mounted on a DIN rail, simplifying installation and system integration.
Q8: What types von systems is the MU-TDPR02 compatible with?
A8: The MU-TDPR02 is compatible with Honeywell control systems and can be integrated into a wide range von automation and control applications.
Q9: Is the MU-TDPR02 certified for use in hazardous environments?
A9: The module is certified by UL and CE, making it suitable for industrial use, though it is not specifically rated for hazardous environments.
Q10: How many output channels can the MU-TDPR02 support?
A10: The MU-TDPR02 supports multiple output channels, allowing it to distribute power to several devices at once.
Recommended Modells
| Modell | Beschreibung | Power Supply |
|---|---|---|
| MU-TDPR03 | DC power distribution module with enhanced output options | 24 VDC |
| MU-TDPR01 | Basic DC power distribution module | 24 VDC |
| MU-TDPR04 | High-current DC power distribution module | 24 VDC |
| MU-TDPR05 | Advanced power distribution module with remote monitoring | 24 VDC |
| MU-TDPR06 | Compact version for smaller control systems | 24 VDC |
| MU-TDPR07 | DC power distribution module with additional surge protection | 24 VDC |
Popular Modells from Honeywell
| Modell | Beschreibung | Dimensions (mm) |
|---|---|---|
| MU-TDIA52 | Digital input module, 16-channel, high-speed sampling | 130 x 100 x 40 |
| MU-TDID12 | Digital input/output module, 8-channel, with diagnostic features | 130 x 100 x 42 |
| MU-TDID52 | Digital input/output module, 16-channel, redundancy supported | 130 x 100 x 42 |
| MU-TDIA53 | Digital input module, 16-channel, with extended diagnostic features | 130 x 100 x 40 |
| MU-TDID53 | Digital input/output module, 16-channel, with high-voltage support | 130 x 100 x 42 |
| MU-TDID13 | Digital input/output module, 8-channel, isolated | 130 x 100 x 40 |
