Product Overview

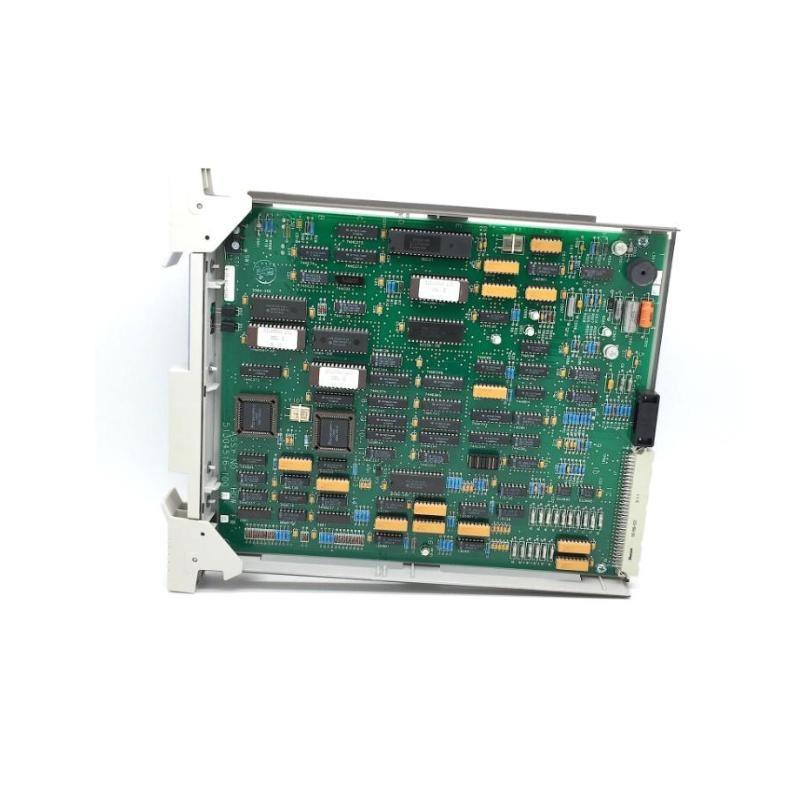

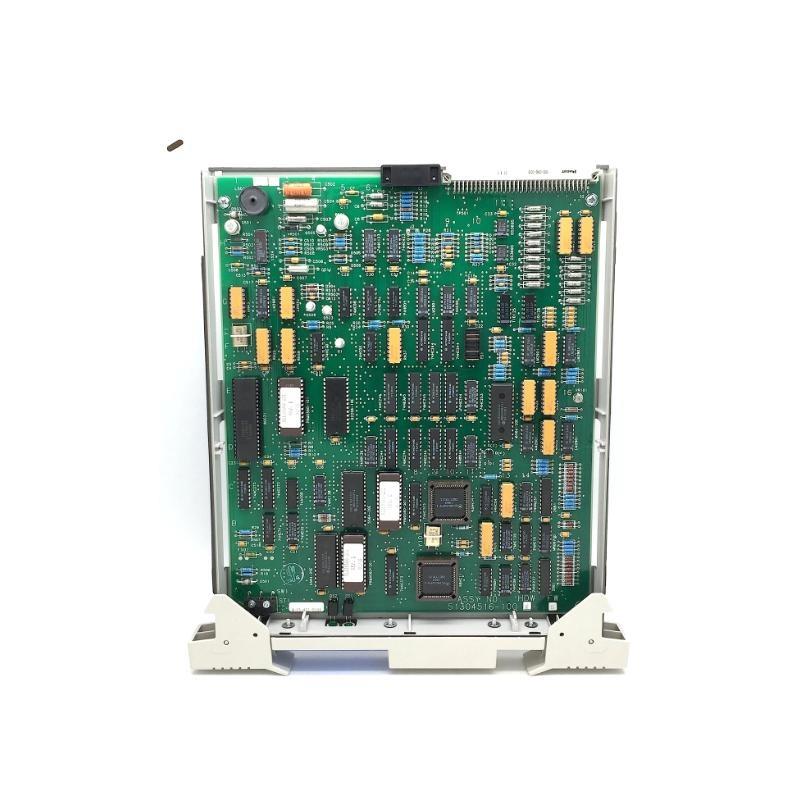

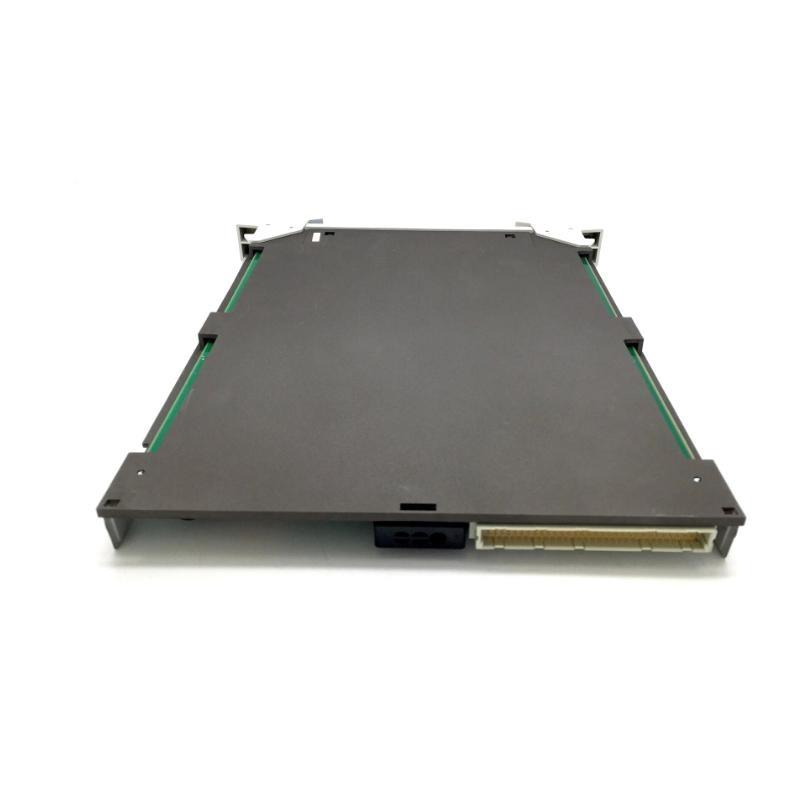

The Honeywell MU-PSTX02 51304516-100 is a Smart Transmitter Interface (STI) Processor module designed for interfacing with field smart transmitters in Honeywell’s TotalPlant Solution (TPS) and TDC 3000 systems. It facilitates communication between smart transmitters and the High-Performance Process Manager (HPM), enabling real-time process control and monitoring.
Product Applications
-
Integration with HART-compatible smart transmitters
-
Continuous process monitoring in refining, chemical, and power industries
-
Interfacing analog field data with HPM control networks
-
Use in redundant I/O configurations for high-availability process systems
-
Adaptable for critical safety loops with galvanic isolation
-
Data acquisition for analog signal conditioning and diagnostics
Product Advantages
-
Smart Transmitter Support: Interfaces with intelligent devices to capture enhanced diagnostics
-
Redundant Operation: Supports redundant configurations for high reliability
-
Modular Design: Simplified system expansion and maintenance
-
Galvanic Isolation: Prevents ground loops and protects system integrity
-
Flexible Installation: Compatible with both standard and hazardous environments
-
Long-Distance Communication: Supports fiber optic extensions for remote IO placement
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | MU-PSTX02 |
| Artikelnummer | 51304516-100 |
| Beschreibung | Smart Transmitter Interface Processor |
| System Compatibility | Honeywell TPS / TDC 3000 |
| Input Type | Smart Transmitter (HART-compatible) |
| Redundancy Support | Yes |
| Galvanic Isolation | Yes |
| Communication Interface | I/O Link Interface with HPMM |
| Mounting | Installed in IOP card files |
| Dimensions | 68 × 162 × 165 mm |
| Gewicht | 0.79 kg |
Häufig gestellte Fragen (FAQ)
Q1: What type von transmitters does the MU-PSTX02 support?
A1: It supports HART-compatible smart transmitters.
Q2: Can the MU-PSTX02 be used in redundant configurations?
A2: Yes, it fully supports IOP redundancy for high availability systems.
Q3: Is galvanic isolation included in the module?
A3: Yes, the MU-PSTX02 includes galvanic isolation to ensure electrical safety.
Q4: Which Honeywell systems are compatible with this module?
A4: It is designed for Honeywell TotalPlant Solution (TPS) and TDC 3000 systems.
Q5: How is the MU-PSTX02 mounted in a system?
A5: It is mounted in a 7-slot or 15-slot IOP card file.
Q6: Can this module be used in hazardous environments?
A6: Yes, it supports deployment in Division 2 and Zone-rated environments when paired with proper FTAs.
Q7: What is the communication interface used?
A7: It communicates with the HPM via the I/O Link Interface.
Q8: What is the typical use case von this module?
A8: It is typically used to acquire and process data from smart field instruments.
Q9: What makes this module different from traditional analog input modules?
A9: It provides advanced diagnostics and digital communication via smart protocols.
Q10: Is it possible to remotely place this module?
A10: Yes, remote placement is possible using fiber optic I/O Link Extenders.
Related Modells from the Same Series
| Modell Number | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| MU-STIM02 | Smart Transmitter Interface Multivariable | 68 × 162 × 165 | 0.79 kg |
| MU-AO02 | Analog Output Processor Module | 68 × 162 × 165 | 0.78 kg |
| MU-DI24 | 24 VDC Digital Input Module | 68 × 162 × 165 | 0.76 kg |
| MU-DO24 | 24 VDC Digital Output Module | 68 × 162 × 165 | 0.76 kg |
| MU-HLAI02 | High Level Analog Input Processor | 68 × 162 × 165 | 0.80 kg |
| MU-RHMUX02 | Remote Low Level Multiplexer | 68 × 162 × 165 | 0.79 kg |
