Produkteinführung

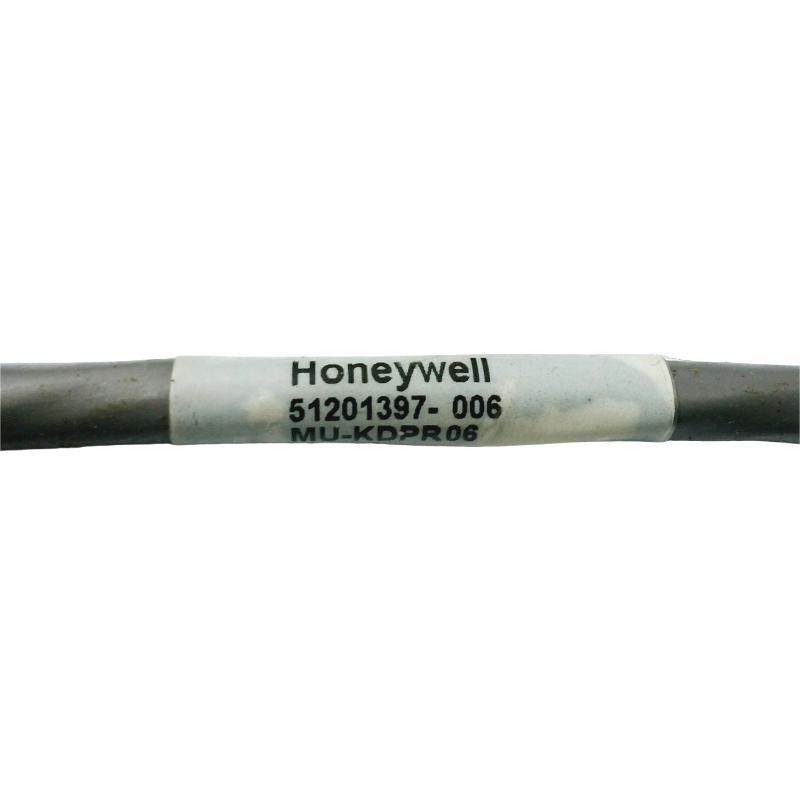

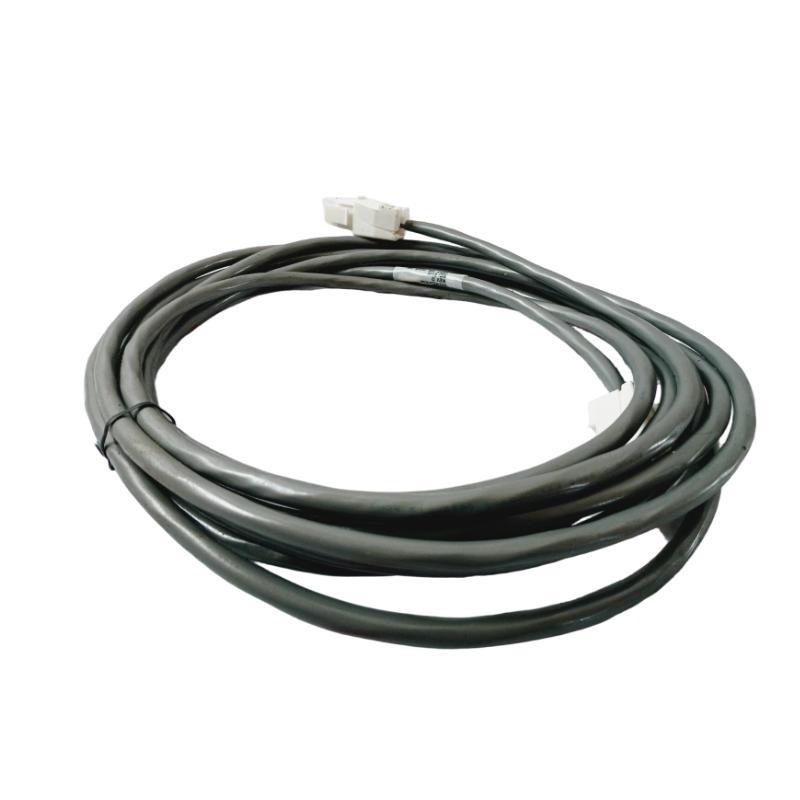

The Honeywell MU-KDPR06 51201397-006 Power Cable Assembly is a specialized industrial-grade cable designed for reliable power distribution in Honeywell control and automation systems. Engineered to meet strict performance and safety standards, this cable assembly provides stable electrical connectivity between power modules, controllers, and peripheral devices in critical industrial applications.
Manufactured with high-quality conductors, shielding, and robust connectors, the MU-KDPR06 ensures minimal signal loss, excellent electromagnetic interference (EMI) resistance, and long-term durability under harsh operating conditions. It is widely used in process industries where uninterrupted power transmission and system reliability are essential.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell Number | MU-KDPR06 51201397-006 |
| Hersteller | Honeywell |
| Product Type | Industrial Power Cable Assembly |
| Cable Type | Shielded multi-conductor power cable |
| Voltage Rating | 300 V / 600 V (depending on system configuration) |
| Current Rating | Up to 10 A (typical, system dependent) |
| Connector Type | Factory-terminated Honeywell-specific connectors |
| Conductor Material | High-purity stranded copper |
| Insulation Material | Industrial-grade PVC / XLPE (heat and chemical resistant) |
| Shielding | Braided and foil shielding for EMI/RFI protection |
| Operating Temperature | -20°C to +80°C |
| Storage Temperature | -40°C to +90°C |
| Humidity Range | 5%–95% non-condensing |
| Fire Resistance | Meets IEC 60332-3 flame-retardant standards |
| Certifications | UL, CE, RoHS, CSA |
| Mechanical Protection | Reinforced jacket for abrasion and oil resistance |
| Mounting Type | Plug-and-play with Honeywell DCS modules |
| Package Size | 200 × 120 × 100 mm |
| Package Gewicht | 2 kg |
Product Applications
The MU-KDPR06 51201397-006 power cable is specifically designed for Honeywell control and automation environments:
-
Distributed Control Systems (DCS): Provides power interconnections between controllers, I/O modules, and field power supplies.
-
Process Automation: Supplies reliable power to instrumentation panels and control cabinets in critical process plants.
-
Industrial Safety Systems: Ensures stable power transmission for safety shutdown modules and emergency systems.
-
Power Generation: Connects turbine control Stücks and power distribution modules within power plant automation systems.
-
Oil & Gas: Powers control modules for pipeline monitoring, compressor stations, and refinery automation.
-
Chemical & Pharmaceutical: Provides dependable power links to batch controllers and sensitive process control Stücks.
Product Advantages
-
High Electrical Reliability: Engineered to deliver consistent power with minimal voltage drop under load.
-
EMI/RFI Protection: Dual shielding prevents interference, ensuring stable operation von control electronics.
-
Industrial-Grade Durability: Resistant to heat, chemicals, abrasion, and mechanical stress in harsh environments.
-
Optimized for Honeywell Systems: Factory-terminated connectors ensure plug-and-play compatibility with DCS modules.
-
Flame-Retardant & Safe: Meets international fire safety and insulation standards for industrial installations.
-
Low Maintenance: Robust design minimizes failure risk, reducing downtime and service requirements.
-
Stable Performance: Maintains electrical integrity even under fluctuating temperature and humidity conditions.
-
Flexible Deployment: Suitable for both fixed and movable installations in control panels and field Stücks.
FAQ
-
What is the voltage rating von the MU-KDPR06 cable assembly?
It supports 300 V to 600 V operation depending on system configuration. -
What type von conductors are used in this cable?
The cable uses high-purity stranded copper for optimal conductivity. -
Does the cable include shielding against interference?
Yes, it features both braided and foil shielding for EMI/RFI suppression. -
Is the cable compatible with all Honeywell DCS systems?
It is designed for use with Honeywell Experion and legacy TDC3000 platforms. -
Can this cable be used in high-temperature environments?
Yes, it operates reliably between -20°C and +80°C. -
What insulation materials are used for the conductors?
Industrial-grade PVC or XLPE is used, providing heat and chemical resistance. -
Is the MU-KDPR06 assembly flame-retardant?
Yes, it meets IEC 60332-3 flame-retardant standards. -
Are custom lengths available for this cable assembly?
Yes, Honeywell provides different lengths depending on installation needs. -
Does the cable come pre-terminated with connectors?
Yes, it comes with factory-installed Honeywell-specific connectors for direct installation. -
Can this cable be used for both AC and DC power transmission?
Yes, it supports both AC and DC power delivery within its rated specifications.
Recommended Related Modells
| Modell Number | Beschreibung | Key Features |
|---|---|---|
| MU-KDPR04 51201397-004 | Power Cable Assembly | Shorter length version, same performance |
| MU-KDPR08 51201397-008 | Power Cable Assembly | Extended length for large control panels |
| MU-KDPR10 51201397-010 | Heavy-Duty Power Cable | Higher current rating, reinforced jacket |
| MU-KDPR12 51201397-012 | Shielded Power Cable Assembly | Enhanced EMI/RFI suppression |
| MU-KDPR14 51201397-014 | Industrial Power Cable Assembly | Designed for high-load applications |
| MU-KDPR16 51201397-016 | Power Cable Assembly | Extra length for distributed installations |
Recommended Popular Honeywell Modells
| Modell Number | Beschreibung | Main Application |
|---|---|---|
| CC-PDIL01 | Pulse Input Module | Digital pulse signal acquisition for DCS |
| CC-TDIL01 | Digital Input Module | 24 VDC discrete signal acquisition |
| CC-PAIH01 | Analog Input Module | High-resolution process variable acquisition |
| CC-PAOH01 | Analog Output Module | Control signal output to field actuators |
| CC-PCNT01 | Controller Processor Module | Central processing for Honeywell DCS |
| CC-PAON01 | Digital Output Module | Discrete control von industrial equipment |
