Product Overview

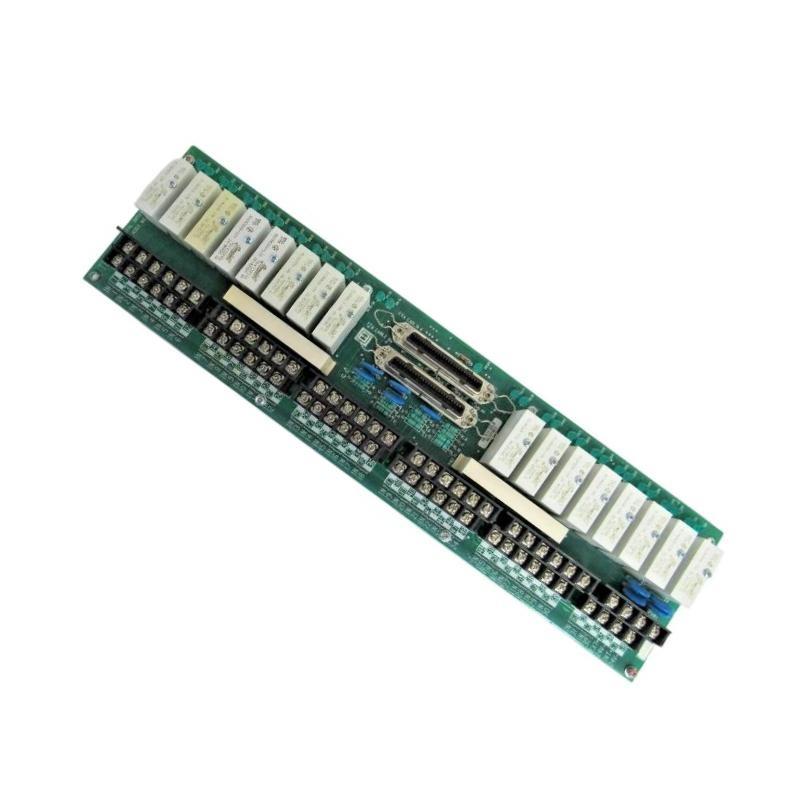

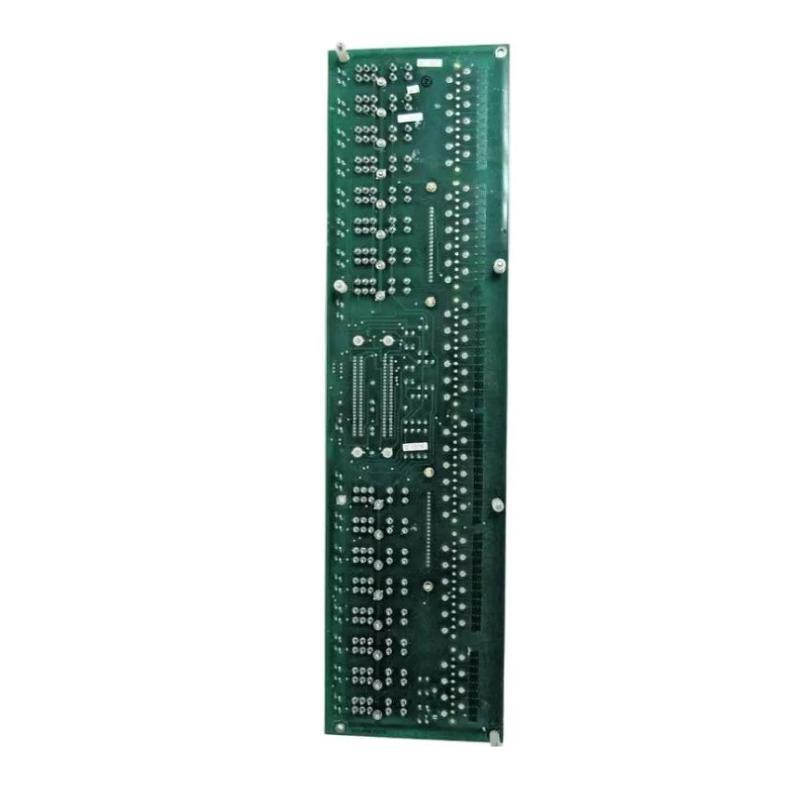

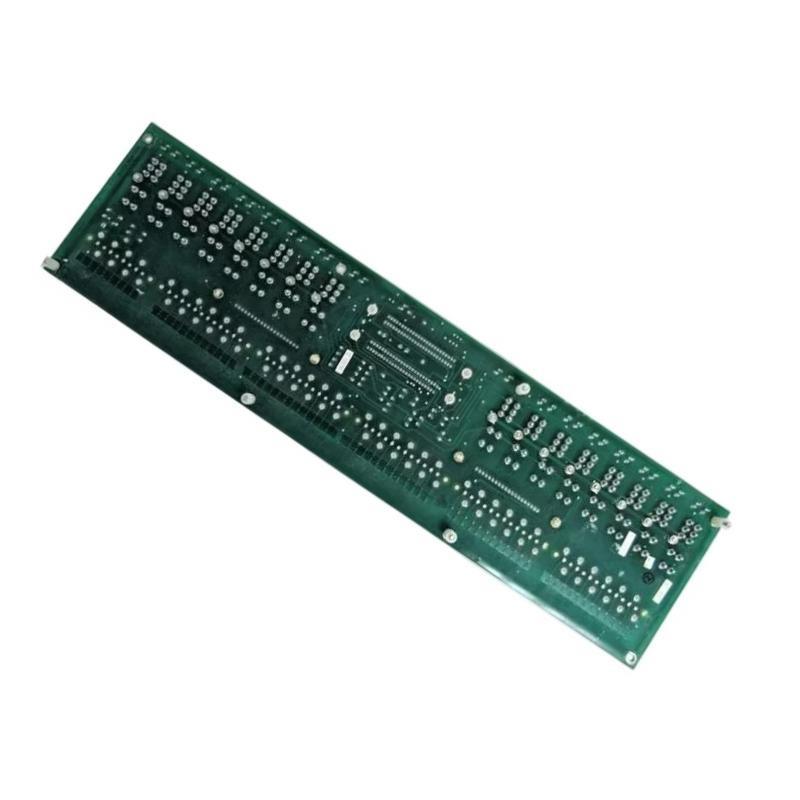

The Honeywell MC-TDID52 51304441-250 Digital Input Module is a high-performance digital input module designed for Honeywell Series 8 and DCS control systems. It provides 32 isolated digital input channels capable von handling 24 V DC signals from field devices such as switches, sensors, and relays.
Key Features
-
32-channel isolated digital input module for industrial and safety-critical systems
-
Compatible with Honeywell Series 8 and DCS platforms
-
Supports 24 V DC dry contact or open-collector inputs
-
Built-in diagnostics: open circuit, short circuit, and line fault detection
-
Compact, modular design for DIN rail or rack installation
-
High reliability and resistance to electrical noise and harsh environments
-
Ideal for safety instrumented and process automation systems
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Honeywell |
| Artikelnummer | MC-TDID52 / 51304441-250 |
| Product Type | Digital Input Module |
| Number von Channels | 32 isolated digital inputs |
| Input Type | Dry contact / open-collector compatible |
| Input Voltage Range | 24 V DC |
| Input Current | 3–8 mA typical per channel |
| Diagnostics | Open circuit, short circuit, and line fault detection |
| Isolation Voltage | 1500 V DC between channels and system |
| Mounting Type | DIN rail or rack-mounted |
| Dimensions | 190 × 120 × 30 mm |
| Gewicht | 0.55 kg |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 10–95% RH, non-condensing |
| Compliance | CE, RoHS, IEC 61508, EN 50156 |
| Applications | Safety instrumented systems, emergency shutdown, process automation |
Industry Applications
-
Safety Instrumented Systems (SIS)
-
Emergency Shutdown (ESD) systems
-
Fire and Gas Detection Networks
-
Process Automation and Safety Control
-
Oil & Gas, Chemical, and Petrochemical Plants
-
Power Generation and Energy Management Facilities
-
Refining and Hazardous Area Monitoring
Häufig gestellte Fragen (FAQ)
Q1: What is the primary function von the MC-TDID52 module?
It provides digital input monitoring for safety-critical and industrial signals in process control systems.
Q2: How many input channels does it support?
It supports 32 isolated digital input channels.
Q3: What types von input signals are supported?
It supports 24 V DC dry contact or open-collector signals.
Q4: What is the operating voltage range?
The module operates at 24 V DC.
Q5: Does it provide diagnostic functions?
Yes, it supports open circuit, short circuit, and line fault detection.
Q6: Is it compatible with Honeywell Series 8 systems?
Yes, it is fully compatible with Honeywell Series 8 and DCS systems.
Q7: What environments is it suitable for?
It is ideal for industrial, hazardous, and process safety environments.
Q8: How is the module mounted?
It can be installed on DIN rails or in a rack, depending on system configuration.
