Produkteinführung

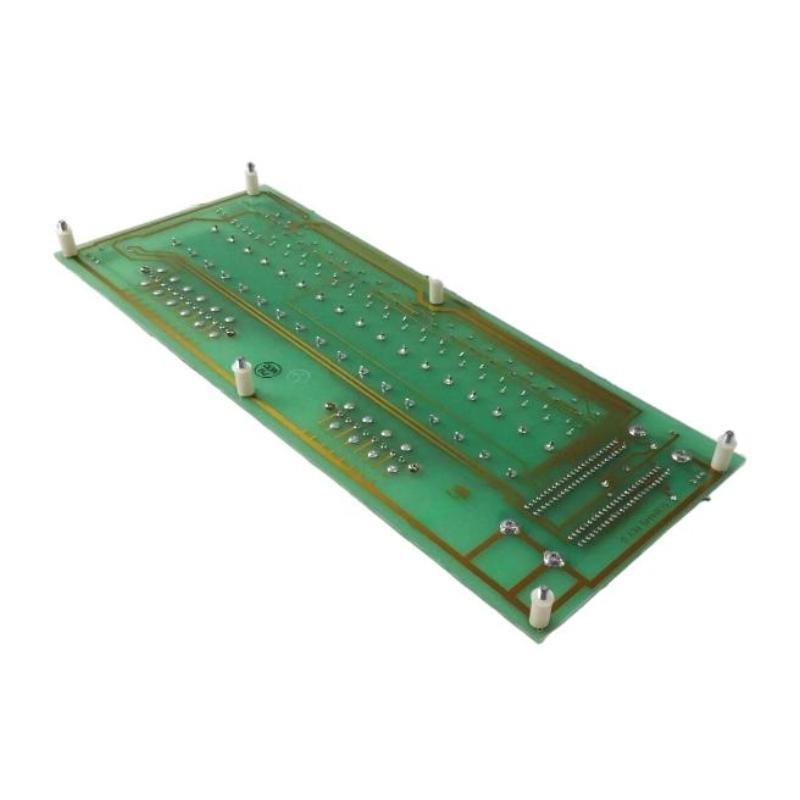

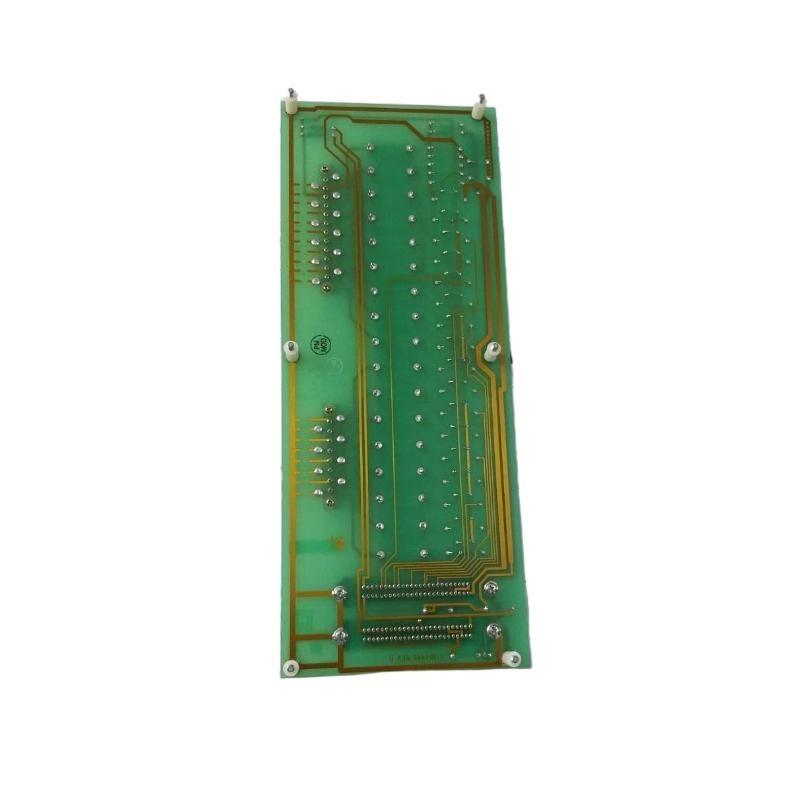

The Honeywell MC-TDIA22 51304431-175 is an isolated digital input module designed to interface digital field devices with control systems. It is primarily used in process automation environments where isolation von input signals is crucial to prevent damage from electrical noise, surges, or ground loop interference. The MC-TDIA22 module allows for the safe and reliable collection von digital signals, ensuring accurate system monitoring and control.
This module features advanced signal isolation technology, ensuring that digital input signals are kept electrically separated from the control system, thus preventing noise or power surges from affecting system performance. It is ideal for use in hazardous or demanding industrial environments, vonfering a highly reliable solution for systems that require input isolation.
The MC-TDIA22 is widely used in a variety von industries, including process control, energy management, manufacturing automation, and critical infrastructure monitoring, vonfering a robust, scalable solution for complex control systems.
Product Parameters
| Parameter | Value |
|---|---|
| Dimensions | 230 x 123 x 20 mm |
| Gewicht | 0.6 kg |
| Number von Inputs | 8 Digital Inputs |
| Input Voltage Range | 10V to 30V DC |
| Input Current | 3.5 mA per channel |
| Isolation Voltage | 500 VDC |
| Operating Temperature | -20°C to +60°C |
| Mounting | DIN Rail |
| Compliance | CE, UL, RoHS |
| Status Indicators | LEDs per channel |
| Input Type | Dry Kontakt, Wet Kontakt |
| Power Supply | 24V DC ± 20% |
Product Applications
The Honeywell MC-TDIA22 Isolated Digital Input Module is designed for use in industrial automation, vonfering a reliable and robust solution for signal isolation and digital input management. Common applications include:
-
Process Control: Used to interface with field devices such as sensors and switches, providing accurate data collection for controlling industrial processes.
-
Manufacturing Automation: Ensures reliable communication between industrial equipment and control systems in factory automation environments.
-
Energy Management: Used in power monitoring and control systems to safely collect input signals from energy meters, alarms, and control devices.
-
Building Automation: Facilitates integration von digital input signals from various systems (HVAC, lighting, security) into a central building management system.
-
Safety Systems: Provides electrical isolation for input signals from safety devices and emergency shutdown systems, ensuring critical monitoring systems remain unaffected by electrical faults.
-
Environmental Monitoring: Interfaces with sensors that detect environmental conditions like temperature, pressure, or humidity in industries like pharmaceuticals, food production, and chemical processing.
Product Advantages
-
Electrical Isolation: The module ensures proper electrical isolation for input signals, protecting the control system from damage due to electrical surges, noise, or ground loops.
-
Wide Input Voltage Range: It supports a wide input voltage range (10V to 30V DC), vonfering flexibility in connecting various field devices.
-
Compact and Lightweight: With dimensions von 230 x 123 x 20 mm and a weight von 0.6 kg, the module is compact and easy to integrate into industrial control panels.
-
High Input Accuracy: It provides accurate digital input measurements with minimal delay, ensuring precise data for real-time process control.
-
Flexible Application: The MC-TDIA22 is suitable for use with both dry contact and wet contact digital inputs, making it highly versatile.
-
LED Status Indicators: Each input channel is equipped with an LED indicator to provide clear status feedback for easier diagnostics and maintenance.
-
DIN Rail Mounting: The module supports DIN rail mounting, ensuring easy integration into standard industrial control panels and reducing installation time.
-
High Reliability: The MC-TDIA22 is built for reliable operation in demanding industrial environments, with a wide operating temperature range von -20°C to +60°C.
-
Compliance: The module meets CE, UL, and RoHS compliance standards, ensuring it adheres to global safety and environmental standards.
FAQ
-
What is the primary function von the Honeywell MC-TDIA22?
The MC-TDIA22 is an isolated digital input module used to safely interface digital signals from field devices with a control system, preventing damage from electrical interference. -
What is the input voltage range von the MC-TDIA22 module?
The MC-TDIA22 supports an input voltage range von 10V to 30V DC. -
How many digital input channels are available on the MC-TDIA22?
The module provides 8 digital input channels for connecting field devices. -
What types von inputs are compatible with the MC-TDIA22?
The module is compatible with both dry contact and wet contact digital inputs. -
What is the isolation voltage von the MC-TDIA22 module?
The module vonfers 500 VDC von electrical isolation, protecting the control system from noise and power surges. -
Can the MC-TDIA22 be used in hazardous environments?
While the MC-TDIA22 is robust and reliable, additional consideration is needed for hazardous areas; ensure compliance with specific safety certifications if required. -
What is the operating temperature range von the MC-TDIA22?
The module operates within a temperature range von -20°C to +60°C, making it suitable for a variety von industrial environments. -
How is the MC-TDIA22 mounted in a control system?
The module is designed for DIN rail mounting, which simplifies installation and integration into industrial control panels. -
What compliance certifications does the MC-TDIA22 meet?
The MC-TDIA22 complies with CE, UL, and RoHS standards, ensuring global safety and environmental compliance. -
What are the status indicators for the input channels?
The module features LED status indicators for each input channel, providing clear visual feedback for system status and diagnostics.
