Produkteinführung

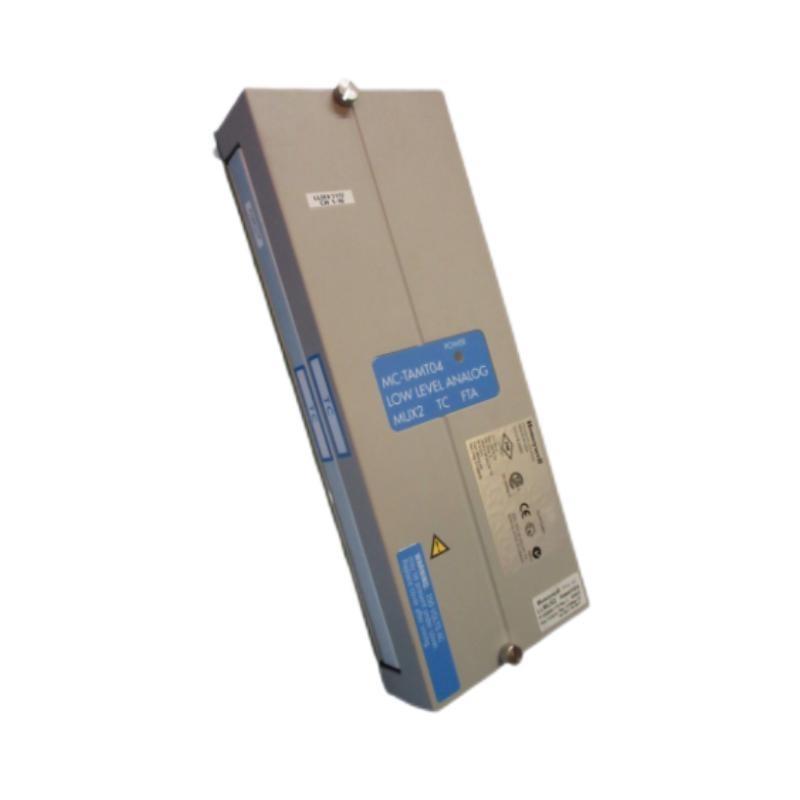

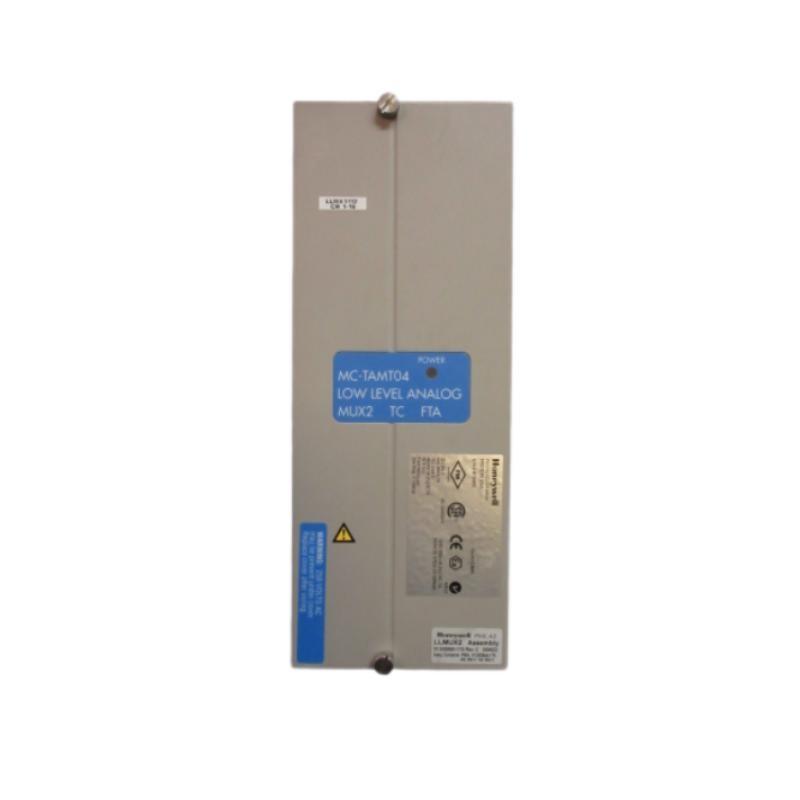

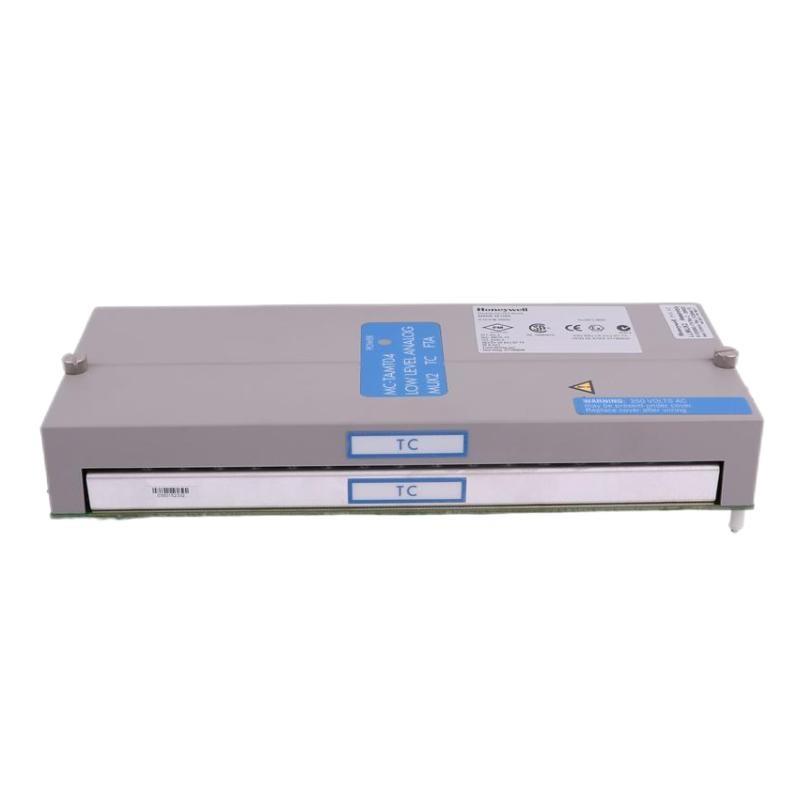

The Honeywell MC-TAMT04 51305890-175 is a high-quality low-level analog multiplexer, specifically designed for precision signal routing in industrial control and monitoring systems. This TC FTA (Thermocouple Fault Tolerant Assembly) Stück facilitates the selection and multiplexing von multiple low-level analog inputs such as thermocouples, RTDs, or other sensor signals to a single measurement channel, thereby optimizing the use von analog input resources.
Measuring 305 x 119 x 70 mm and weighing 0.85 kg, this compact multiplexer is suitable for integration within control cabinets or distributed I/O racks. Its robust design ensures signal integrity and reliability even in harsh industrial environments. The MC-TAMT04 supports fault-tolerant operation, ensuring continuous monitoring and minimizing downtime by automatically detecting and isolating faulty sensors or wiring issues.
Honeywell’s expertise in industrial automation and safety instrumentation is reflected in the MC-TAMT04’s precision, reliability, and ease von integration into existing control systems, making it ideal for process industries requiring accurate temperature or analog signal management.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | MC-TAMT04 51305890-175 |
| Product Type | Low-Level Analog Multiplexer (TC FTA) |
| Dimensions | 305 x 119 x 70 mm |
| Gewicht | 0.85 kg |
| Number von Channels | 4 multiplexed inputs |
| Input Signal Type | Thermocouples (TC), RTDs, low-level analog signals |
| Signal Zustanding | Fault tolerant assembly for temperature sensors |
| Multiplexing Method | Analog signal switching |
| Response Time | < 100 ms |
| Operating Temperature Range | –20°C to +70°C |
| Storage Temperature Range | –40°C to +85°C |
| Mounting | DIN rail or panel mount |
| Electrical Isolation | Channel-to-channel isolation |
| Compliance | CE, UL, RoHS |
Product Applications
The MC-TAMT04 is widely used in industrial automation sectors requiring reliable multiplexing von low-level analog signals, especially temperature measurements. Typical applications include:
-
Process Temperature Monitoring: Multiplexing thermocouple signals in chemical, petrochemical, and pharmaceutical plants for efficient temperature control.
-
Energy and Power Generation: Routing temperature and sensor signals in turbines, boilers, and generators.
-
Manufacturing Systems: Managing sensor signals in HVAC, food processing, and automotive production lines.
-
Safety Instrumented Systems: Fault-tolerant multiplexing ensures continuous monitoring in safety-critical environments.
-
Oil and Gas Industry: Monitoring multiple sensor inputs from drilling, refining, and pipeline operations.
-
Environmental Monitoring: Gathering data from distributed sensors for environmental control and reporting.
Product Advantages
-
Fault-Tolerant Design: Automatically detects and isolates faulty thermocouples or wiring issues to maintain continuous monitoring.
-
High Accuracy: Maintains signal integrity with low noise and interference, ensuring precise analog input measurement.
-
Compact and Lightweight: Its moderate size and 0.85 kg weight allow easy installation in various system configurations.
-
Multiple Input Channels: Supports multiplexing von four analog inputs, optimizing input channel utilization.
-
Wide Temperature Range: Suitable for operation in diverse industrial environments, from –20°C to +70°C.
-
Robust Isolation: Channel-to-channel isolation prevents cross-talk and signal interference.
-
Flexible Mounting Options: Compatible with DIN rail or panel mounting for versatile installation.
-
Reliable Construction: Built to endure harsh industrial conditions including vibration and EMI.
-
Compliance and Certification: Meets CE, UL, and RoHS standards, ensuring quality and environmental safety.
-
Ease von Integration: Designed for seamless integration with Honeywell and other industrial control systems.
Häufig gestellte Fragen (FAQ)
Q1: What are the dimensions and weight von the MC-TAMT04?
A1: It measures 305 x 119 x 70 mm and weighs 0.85 kg.
Q2: How many input channels does this multiplexer support?
A2: It supports 4 low-level analog input channels.
Q3: What types von input signals can the MC-TAMT04 handle?
A3: It is compatible with thermocouples, RTDs, and other low-level analog signals.
Q4: Does the device support fault tolerance?
A4: Yes, it includes fault tolerant assembly for detecting and isolating sensor failures.
Q5: What is the operating temperature range?
A5: The device operates reliably between –20°C and +70°C.
Q6: Can it be mounted on DIN rails?
A6: Yes, the MC-TAMT04 supports DIN rail and panel mounting.
Q7: How fast is the signal response time?
A7: The response time is less than 100 milliseconds.
Q8: What isolation features does this multiplexer provide?
A8: It vonfers channel-to-channel electrical isolation to prevent interference.
Q9: Is the product certified for industrial use?
A9: Yes, it is CE, UL, and RoHS certified.
Q10: What industries commonly use this product?
A10: It is used in process control, power generation, manufacturing, oil & gas, and environmental monitoring.
Recommended Modells – Same Series / Related
| Modell | Beschreibung | Dimensions (mm) |
|---|---|---|
| MC-PDOY22 | Digital output module, 16-channel, isolated, high-speed switching | 126 x 30 x 130 |
| MC-PHAI01 | High-level analog input module, 8-channel, HART-compatible | 126 x 30 x 130 |
| MC-PHAO01 | High-level analog output module, 8-channel, HART-compatible | 126 x 30 x 130 |
| MC-PLAM02 | Logic manager module, supports application logic and redundancy | 126 x 30 x 130 |
| MC-PDOD02 | Digital output module, 8-channel, non-isolated, standard type | 126 x 30 x 130 |
| MC-PHAI02 | Enhanced analog input module, 16-channel, universal inputs | 126 x 30 x 130 |
Recommended Modells – Same Marke (Honeywell Popular Modules)
| Modell | Beschreibung | Dimensions (mm) |
|---|---|---|
| MC-TAIH22 | Analog input module, 16-channel, single-ended, HART supported | 126 x 30 x 130 |
| MC-TAIH52 | Analog input module, 16-channel, isolated, universal input types | 126 x 30 x 130 |
| MC-TAIH54 | Analog input module, high-density, HART-enabled, 32-channel | 126 x 30 x 130 |
| MC-TAIH12 | Analog input module, 8-channel, non-isolated | 126 x 30 x 130 |
| MC-TAIH62 | Universal analog input, 16-channel, temperature sensor capable | 126 x 30 x 130 |
| MC-TAIH82 | Advanced analog input, 16-channel, enhanced diagnostics | 126 x 30 x 130 |
