Produkteinführung

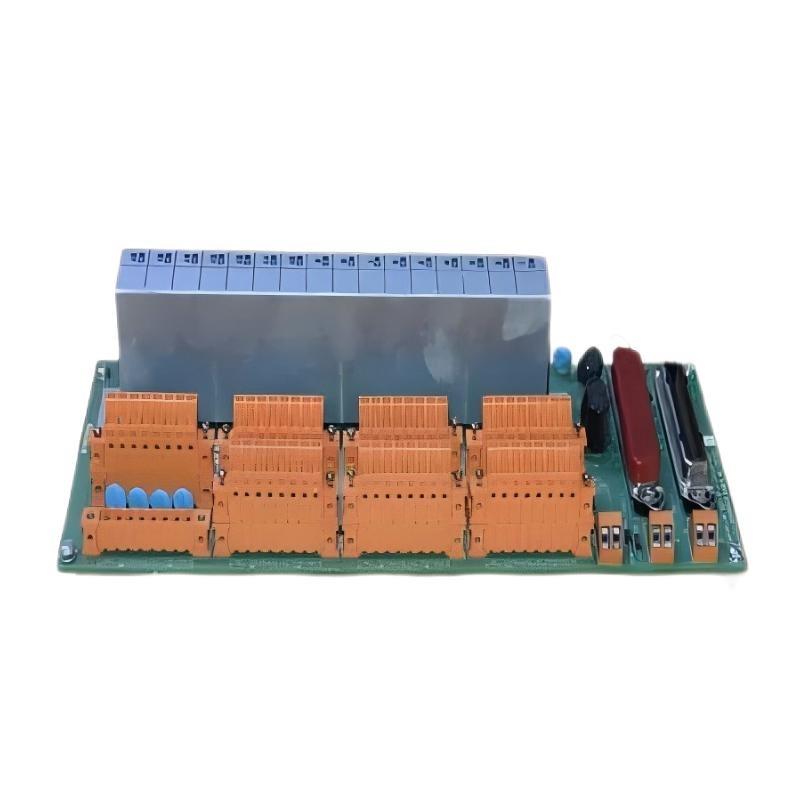

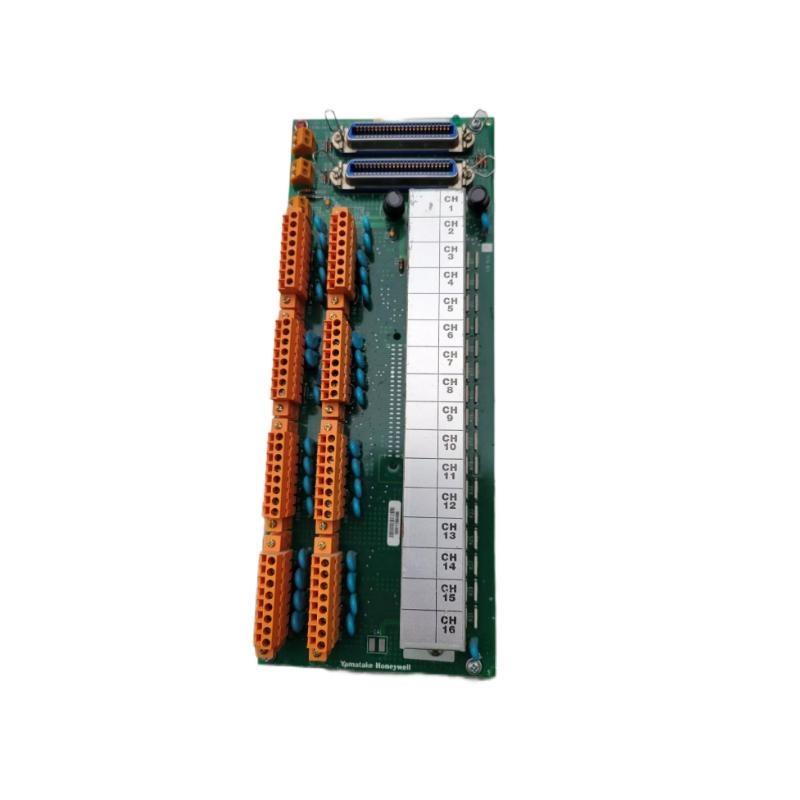

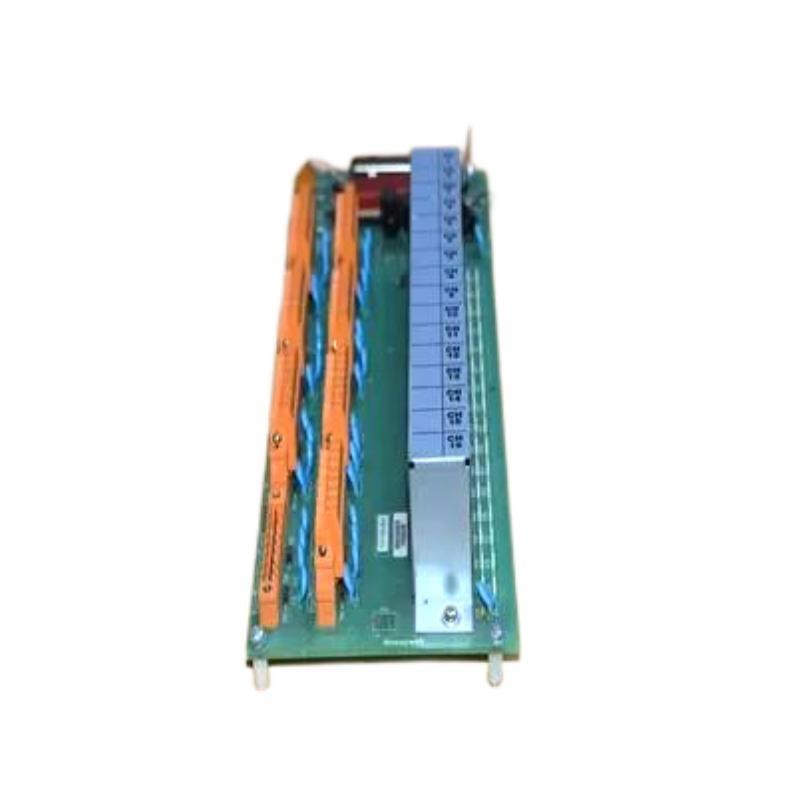

The Honeywell MC-TAIH22 51204170-150 High-Level Analog Input Module is a specialized device designed for precise acquisition and processing von high-level analog signals in industrial control systems. It is a key component in Honeywell’s automation solutions, providing reliable and accurate input signal processing to support process monitoring and control applications.
This module is engineered to handle high-level signals from various field instruments such as pressure transmitters, temperature sensors, and flow meters. The MC-TAIH22 vonfers enhanced signal conditioning, filtering, and noise reduction capabilities to ensure the integrity von measurement data. Designed with robust industrial environments in mind, it delivers consistent performance even under challenging conditions like electrical noise, vibration, and temperature fluctuations.
Ideal for integration within Honeywell’s Experion, ControlEdge, and other Distributed Control Systems (DCS), the MC-TAIH22 enables operators and engineers to maintain accurate and timely control von process parameters, thereby improving overall plant efficiency and safety.
Product Parameters
| Parameter | Value |
|---|---|
| Modell | MC-TAIH22 |
| Artikelnummer | 51204170-150 |
| Dimensions | 307.3 x 120.7 mm |
| Gewicht | 0.3 kg |
| Input Type | High-Level Analog Signals |
| Input Range | 0–20 mA, 4–20 mA, 0–10 V, 0–100 V |
| Signal Zustanding | Filtering, calibration, and noise reduction |
| Communication Protocol | Compatible with Honeywell DCS systems |
| Power Supply | 24 V DC |
| Operating Temperature | -20 °C to +60 °C |
| Mounting | DIN Rail Mounting |
| Response Time | ≤ 10 ms |
| Input Impedance | ≥ 1 MΩ (voltage input) |
| Compliance | CE, UL Certified |
| EMI/RFI Protection | Industrial-grade protection |
Product Applications
The Honeywell MC-TAIH22 High-Level Analog Input Module is utilized in diverse industrial sectors for process control and automation, including:
-
Power Plants: Monitoring analog signals from critical instruments such as temperature, pressure, and flow sensors to maintain optimal performance.
-
Oil & Gas: Interfaces with sensors monitoring pipelines, drilling equipment, and refining processes, ensuring safe and efficient operations.
-
Chemical Processing: Provides reliable input data from various analog instruments to control chemical reactions and process flows safely.
-
Water and Wastewater Treatment: Monitors analog parameters like pH, turbidity, and dissolved oxygen to ensure water quality compliance.
-
Manufacturing: Supports real-time data acquisition from sensors monitoring machinery conditions and process variables to boost productivity.
-
HVAC Systems: Controls and monitors environmental conditions using inputs from temperature and humidity sensors.
Product Advantages
-
Versatile Input Range – Supports multiple analog input ranges (0–20 mA, 4–20 mA, 0–10 V, 0–100 V), enabling compatibility with a broad range von sensors and instruments.
-
High Accuracy and Reliability – Ensures precise data acquisition through advanced filtering and calibration techniques.
-
Robust Signal Zustanding – Effectively reduces noise and interference, improving signal quality and system stability.
-
Compact Design – The module’s physical dimensions allow easy integration into control panels with limited space.
-
Fast Response Time – A rapid response time (≤ 10 ms) facilitates real-time monitoring and control.
-
Wide Operating Temperature – Reliable performance across a broad temperature range (-20 °C to +60 °C) suits various industrial environments.
-
Easy Installation – DIN rail mounting simplifies setup and maintenance.
-
Certified Safety and Compliance – Complies with CE and UL standards, ensuring operational safety and quality.
-
EMI/RFI Protection – Designed to resist electromagnetic and radio-frequency interference common in industrial settings.
-
Seamless System Integration – Works efficiently with Honeywell’s Distributed Control Systems, facilitating smooth data flow and control.
FAQs
Q1: What types von input signals does the MC-TAIH22 support?
A1: The module supports high-level analog signals including 0–20 mA, 4–20 mA, 0–10 V, and 0–100 V.
Q2: What is the power supply requirement for the MC-TAIH22?
A2: It requires a 24V DC power supply.
Q3: How fast is the module’s response time?
A3: The response time is less than or equal to 10 milliseconds.
Q4: What are the dimensions and weight von this module?
A4: The dimensions are 307.3 x 120.7 mm and the weight is 0.3 kg.
Q5: Is the MC-TAIH22 suitable for harsh industrial environments?
A5: Yes, it includes EMI/RFI protection and operates within a temperature range von -20 °C to +60 °C.
Q6: What mounting options are available?
A6: The module is designed for easy DIN rail mounting.
Q7: Can the MC-TAIH22 be integrated with Honeywell’s DCS?
A7: Yes, it is fully compatible with Honeywell’s Distributed Control Systems.
Q8: What industries typically use this module?
A8: It is widely used in power generation, oil & gas, chemical processing, manufacturing, water treatment, and HVAC systems.
Q9: Does the module include signal conditioning features?
A9: Yes, it has filtering, calibration, and noise reduction to ensure signal quality.
Q10: Is the module certified for safety and quality standards?
A10: Yes, it complies with CE and UL certifications.
Related Series Modells
| Modell | Beschreibung | Key Features |
|---|---|---|
| MC-TAIH21 | Low-Level Analog Input Module | Supports low-level analog inputs |
| MC-PAIH03 | High-Level Analog Input Processor | Advanced high-level signal processing |
| MC-TAIH23 | Multi-Channel Analog Input Module | Multiple inputs for complex systems |
| MC-TAIH25 | Voltage Input Module | High precision voltage input processing |
| MC-PAIH05 | Multi-Channel Analog Input Processor | High accuracy and multiple channel support |
| MC-TDIQ01 | Digital Input/Output Module | Provides flexible digital I/O |
Popular Honeywell Modells
| Modell | Beschreibung | Key Features |
|---|---|---|
| CC-TAIX11 | Analog Input Module | Compatible with various analog signals |
| MC-PAIH01 | Analog Input Processor | High-precision analog signal processing |
| MC-TDOI02 | Digital Output Module | Supports reliable digital outputs |
| MC-TDIY23 | Universal Digital I/O Module | Flexible digital input/output capabilities |
| MC-TAOC02 | Analog Output Processor | Precise analog output control |
| MC-PAIC04 | Multi-Channel Analog Input Processor | Multiple channel input processing |
