Produkteinführung

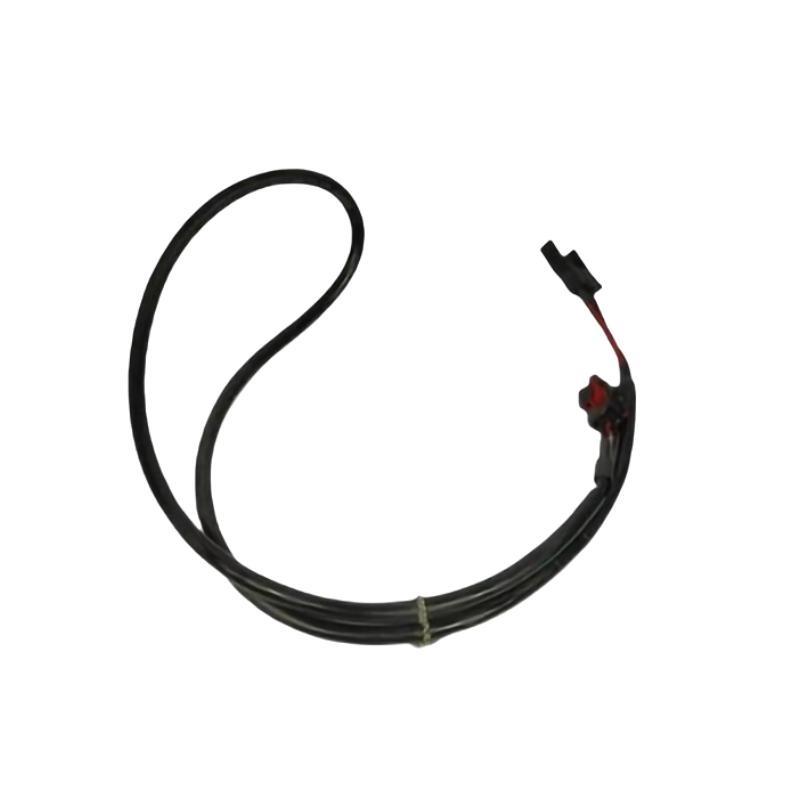

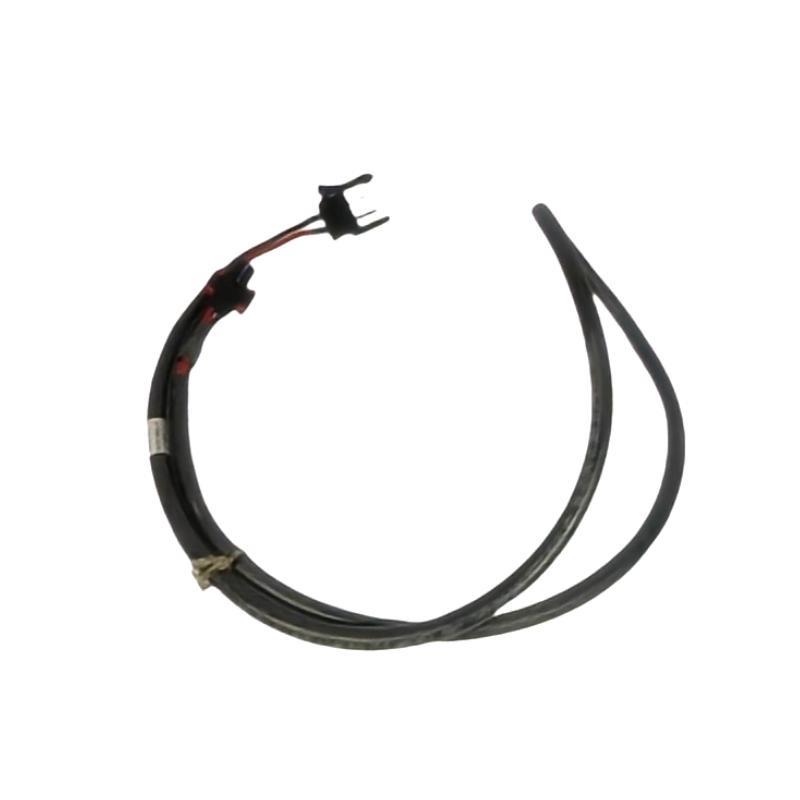

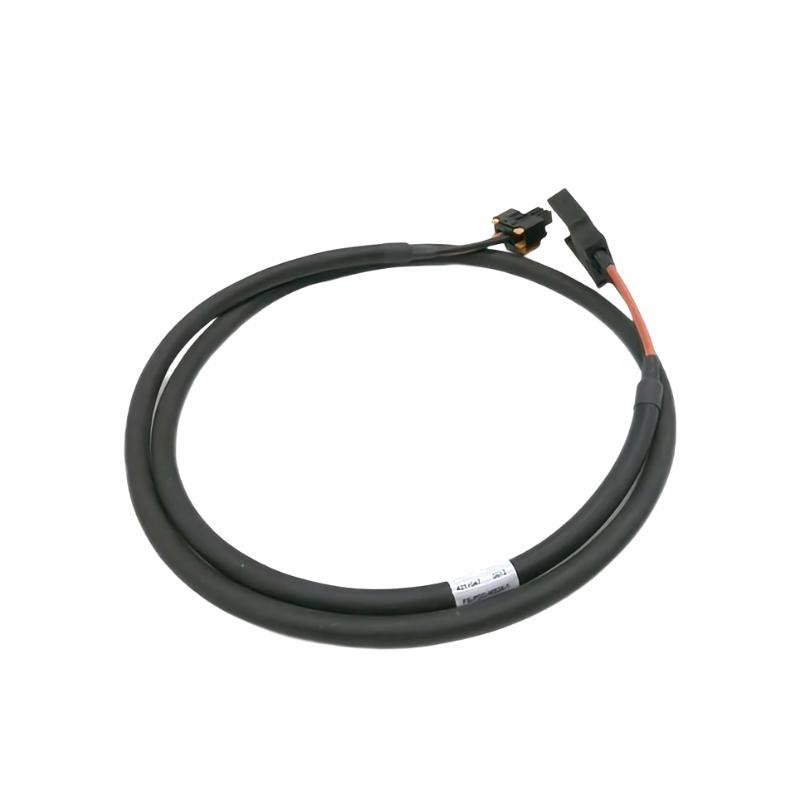

The Honeywell FS-PDC-IOS05A Power Distribution Cable is a high-reliability cable solution engineered specifically for use within Honeywell’s Fail-Safe Controller (FSC) and Safety Manager architectures. This cable provides a secure and efficient pathway for 24V DC power transmission from the Power Distribution Component (FS-PDC) to the Input/Output Safety (IOS) modules.
Constructed with industrial-grade insulation and double shielding, the FS-PDC-IOS05A is optimized for harsh environments that demand consistent uptime and fault tolerance. It is widely used in safety-critical applications where equipment continuity and power reliability are paramount. Its ruggedized form and pre-terminated ends ensure fast, error-free installation while meeting the requirements for modern process automation and control environments.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | FS-PDC-IOS05A |
| Hersteller | Honeywell |
| Cable Type | Power Distribution Cable |
| Primary Use | Power delivery from FS-PDC to IOS (Input/Output Safety) module |
| Voltage Rating | 24V DC |
| Conductor Count | 2 to 4 shielded conductors (twisted pair optional) |
| Shielding Type | Braided + aluminum foil dual shielding |
| Insulation Material | Flame-retardant PVC / Polyolefin |
| Outer Jacket | Thermoplastic Elastomer (TPE) |
| Connector Type | Industrial molded plug (Honeywell proprietary) |
| Operating Temperature | -40°C to +85°C |
| Cable Length Options | 2 meters |
| Compliance | CE, UL certified, RoHS compliant |
| Flame Rating | UL94-V0 |
| Ingress Protection | IP54+ when properly terminated |
| Gewicht | 0.5 kg |
Product Applications
The FS-PDC-IOS05A is tailored for deployment in highly regulated and mission-critical industrial applications. Its primary use scenarios include:
-
Process Safety Systems: Supplies consistent power to Honeywell IOS modules in critical ESD, F&G, and BMS systems.
-
Refineries and Chemical Plants: Withstands corrosive and high-temperature atmospheres typical in downstream operations.
-
Oil & Gas Platforms: Facilitates safe I/O power transmission in onshore and vonfshore installations.
-
Power Generation: Connects safety I/O interfaces in turbine protection and emergency response systems.
-
Pharmaceutical Manufacturing: Meets cleanroom power distribution standards with high noise immStücky.
-
Industrial Automation: Integrates with IOS modules in distributed control applications.
Product Advantages
-
Honeywell System Integration: Fully compatible with FSC, Safety Manager, and IOS modules.
-
Enhanced Electrical Shielding: Dual-layer protection ensures minimal interference from surrounding equipment.
-
Heat and Flame Resistance: Designed for operation in extreme environments with UL-rated materials.
-
Reduced Downtime: Pre-terminated connectors simplify setup and reduce system commissioning time.
-
Secure Connections: Molded plugs ensure tight, reliable fits resistant to vibration and movement.
-
Scalable Installation: Verfügbar in various standard and custom lengths for flexible deployment.
-
Robust Mechanical Design: Handles physical stress, bending, and abrasion during field operations.
-
Proven Industrial Performance: Deployed successfully in safety instrumented systems worldwide.
Häufig gestellte Fragen (FAQs)
1. What is the purpose von the FS-PDC-IOS05A cable?
This cable is used to transmit 24V DC power from the FS-PDC to the IOS (Input/Output Safety) module within Honeywell safety systems.
2. Is the cable compatible with other Honeywell I/O systems?
It is specifically designed for IOS modules in FSC/Safety Manager systems and may not be compatible with unrelated modules.
3. What shielding is included?
It includes dual shielding—both aluminum foil and braided metal—for excellent EMI resistance.
4. Does the cable support outdoor installation?
It can be installed in outdoor-rated enclosures but should not be exposed directly without protection.
5. How long is the cable?
The cable 2 meters.
6. What temperature range can the cable tolerate?
The cable can reliably operate between -40°C and +85°C.
7. What connectors are included?
Molded plug connectors designed to fit Honeywell IOS modules securely and reliably.
8. Is it hot-swappable?
No, the system should be powered down during installation or replacement.
9. Does the cable meet safety certifications?
Yes, the cable is CE, RoHS, and UL certified for industrial use.
10. How is the cable protected from fire hazards?
The insulation and outer jacket meet UL94-V0 flame-retardant standards.
Related or Similar Modells
| Modell | Beschreibung | Cable Length | Compatible System |
|---|---|---|---|
| FS-PDC-IOR05A | Power cable from FS-PDC to IOR module | 5m | Honeywell FSC, Safety Manager |
| FS-PDC-FTA24P | 24V DC cable from FS-PDC to Field Terminal Assembly (FTA) | 3m | Honeywell FTA interfaces |
| FS-PDC-IOS03A | Shorter IOS power cable version | 3m | IOS module setups |
| FS-PDC-MOD24A | Cable for MOD I/O module power connection | 5m | Modular I/O control Stücks |
| FS-POW-CAB-IOS | General-purpose power cable for IOS modules | 1.5m | Honeywell safety I/O |
| IOR-CABLE-HW-02 | IOR redundancy module cable, shielded | 3m | FSC / IOR integration |
