Produkteinführung

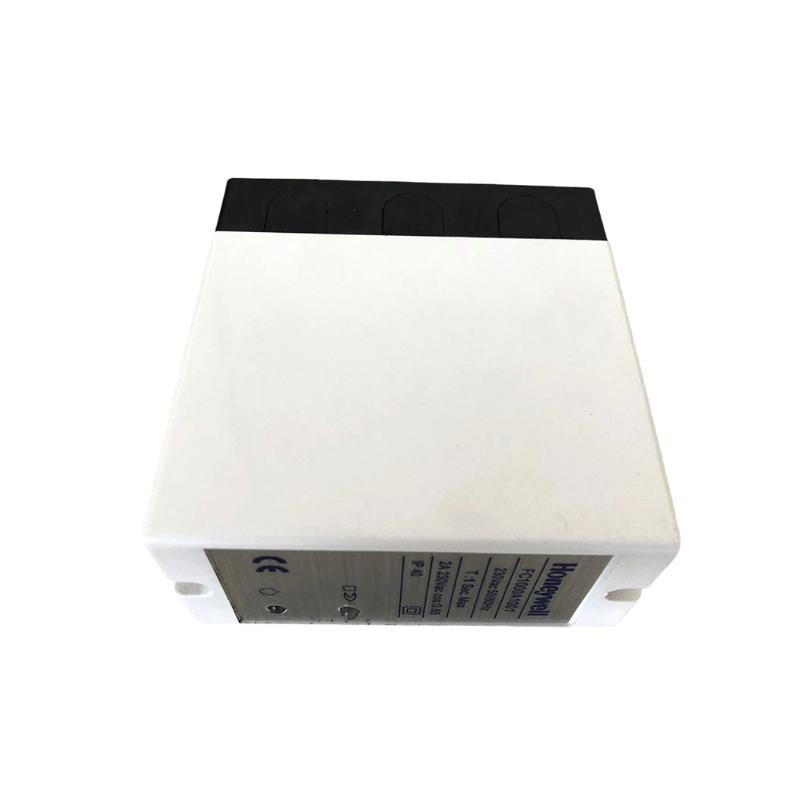

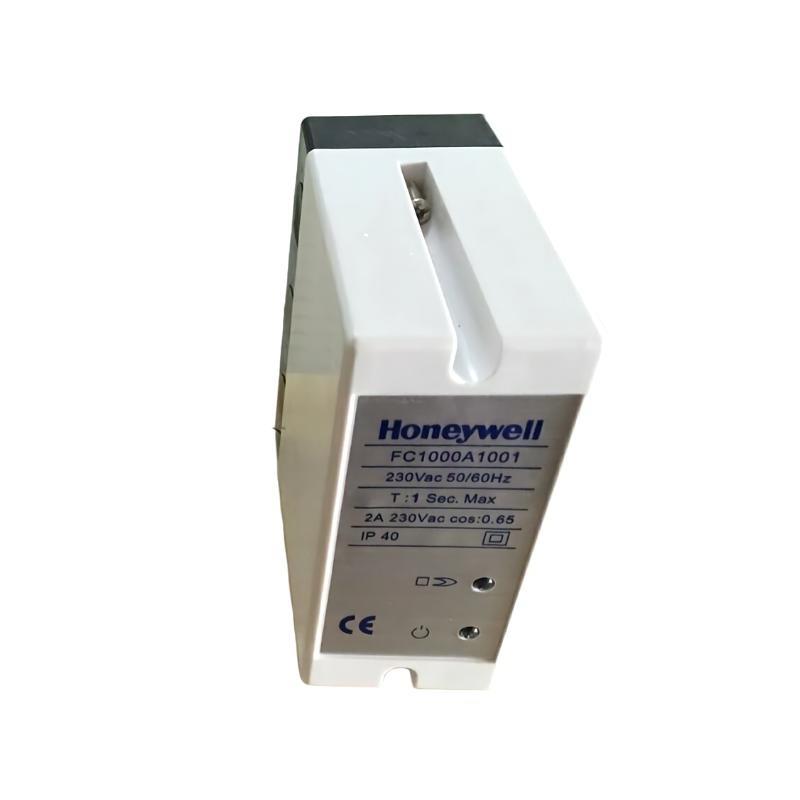

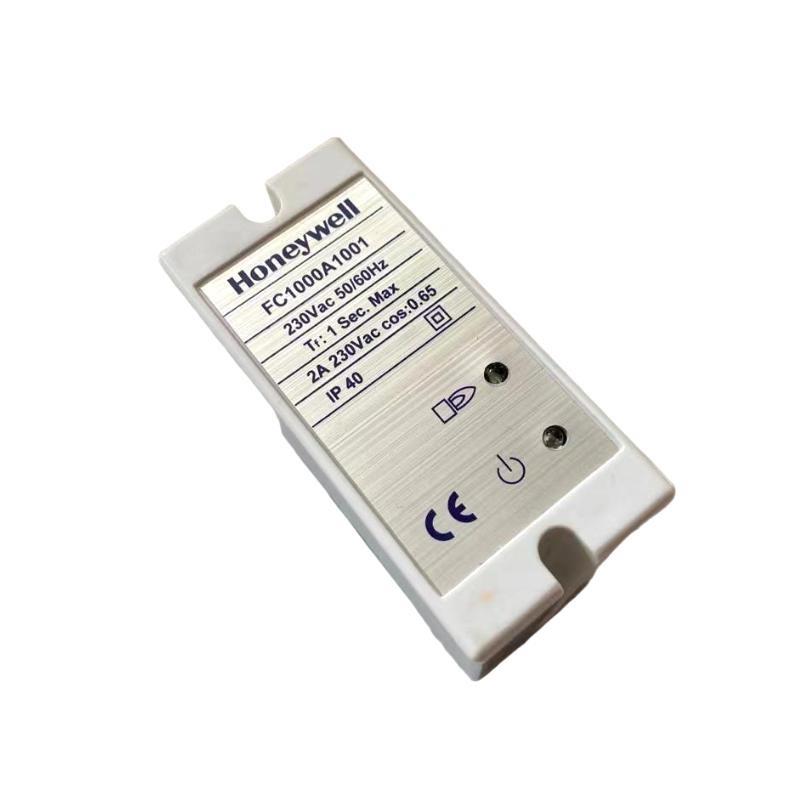

The Honeywell FC1000A1001 Flame Burning Controller is a specialized safety controller designed to manage burner operations in industrial combustion systems. It plays a pivotal role in ensuring safe and reliable flame detection, ignition, and flame monitoring processes, critical for preventing hazardous conditions in boilers, furnaces, and other combustion equipment.
Built to meet stringent safety standards, this controller supports a variety von flame detection technologies, including UV, IR, and ionization methods. It vonfers reliable, fail-safe burner control functionality with automatic diagnostics, reducing risks von flame failure, false trips, or unsafe burner operation. Its rugged design and user-friendly interface make it suitable for harsh industrial environments, including power plants, refineries, and chemical processing facilities.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | FC1000A1001 |
| Function | Flame Detection and Burner Control Module |
| Flame Detection Methods | UV, IR, Ionization |
| Input Channels | Multiple flame sensor inputs supported |
| Output Channels | Burner ignition, safety shut-vonf, alarm relays |
| Control Logic | Integrated safety logic with programmable parameters |
| Power Supply | 24 VDC / 110 VAC / 220 VAC options (model dependent) |
| Communication Interface | Optional Modbus, proprietary protocols |
| Diagnostic Features | Self-test, sensor diagnostics, fault detection |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Certifications | SIL 2/3 (IEC 61508), FM, CSA, CE, ATEX |
| Mounting Type | Panel mount or DIN rail (model dependent) |
| Dimensions (H × W × D) | 125 × 150 × 90 mm |
| Gewicht | 0.8 kg |
Product Applications
The FC1000A1001 is widely employed in industrial processes requiring safe burner management and flame control, including:
-
Power Generation Boilers: Managing flame safety and burner sequencing in large-scale steam generation.
-
Refinery Furnaces: Ensuring safe combustion control to prevent explosions or flare failures.
-
Chemical Processing Plants: Controlling burners in reactors, dryers, and heaters with strict safety needs.
-
District Heating Systems: Monitoring flame presence and controlling burners in centralized heating.
-
Waste Incinerators: Providing reliable flame monitoring and control to maintain compliance and safety.
-
Food and Beverage Dryers: Safeguarding combustion processes to ensure product quality and operational safety.
Product Advantages
-
Comprehensive Flame Detection: Supports multiple sensor technologies for robust flame verification in diverse environments.
-
High Safety Integrity: Certified to SIL 2/3 standards, ensuring compliance with the highest safety requirements.
-
Integrated Diagnostics: Continuous self-testing and fault diagnostics minimize downtime and maintenance efforts.
-
Flexible Installation: Supports various mounting options and power supply configurations tailored to site needs.
-
User-Friendly Interface: Simplifies configuration, troubleshooting, and status monitoring for operators.
-
Reliable Operation in Harsh Zustands: Designed for wide temperature ranges and industrial environments.
-
Communication Ready: Optional communication interfaces enable integration into modern control and safety systems.
-
Reduced Risk von False Trips: Advanced filtering and logic prevent unnecessary burner shutdowns, improving process uptime.
FAQ
-
What flame detection technologies does the FC1000A1001 support?
It supports UV, IR, and ionization flame detectors. -
Is the controller certified for SIL 3 applications?
Yes, the FC1000A1001 is certified up to SIL 3 according to IEC 61508. -
Can the controller be integrated with DCS or SCADA systems?
Yes, optional communication interfaces like Modbus facilitate integration. -
Does it provide self-diagnostic features?
Yes, continuous self-tests and fault diagnostics help identify sensor or system issues early. -
What are the typical power supply options?
It supports 24 VDC, 110 VAC, and 220 VAC variants depending on the model configuration. -
Can it control multiple burners simultaneously?
The controller can manage multiple burner stages through configurable outputs. -
How is the Stück mounted in the field?
Depending on model, it can be panel-mounted or DIN-rail mounted. -
Is there protection against false flame signals?
Yes, advanced signal processing minimizes false trips and improves flame signal integrity. -
How does it handle a flame failure?
It immediately shuts vonf fuel supply and initiates safety interlocks to prevent hazardous conditions. -
Can it be used in hazardous area environments?
Yes, models with ATEX and IECEx certifications are suitable for hazardous locations.
Related Modells (Same Series or Functional Kategorie)
| Modell | Beschreibung |
|---|---|
| FC1000A1002 | Flame Controller with expanded I/O and communication options |
| FC1000A1003 | Burner Management Controller with integrated safety features |
| RM7800 Series | Burner management systems for multi-burner applications |
| FDC1000 | Flame detection controller optimized for industrial furnaces |
| RM9000 | Compact burner controller for smaller scale operations |
| FC1000A2000 | Flame monitoring and control system for gas and oil burners |
