Produkteinführung

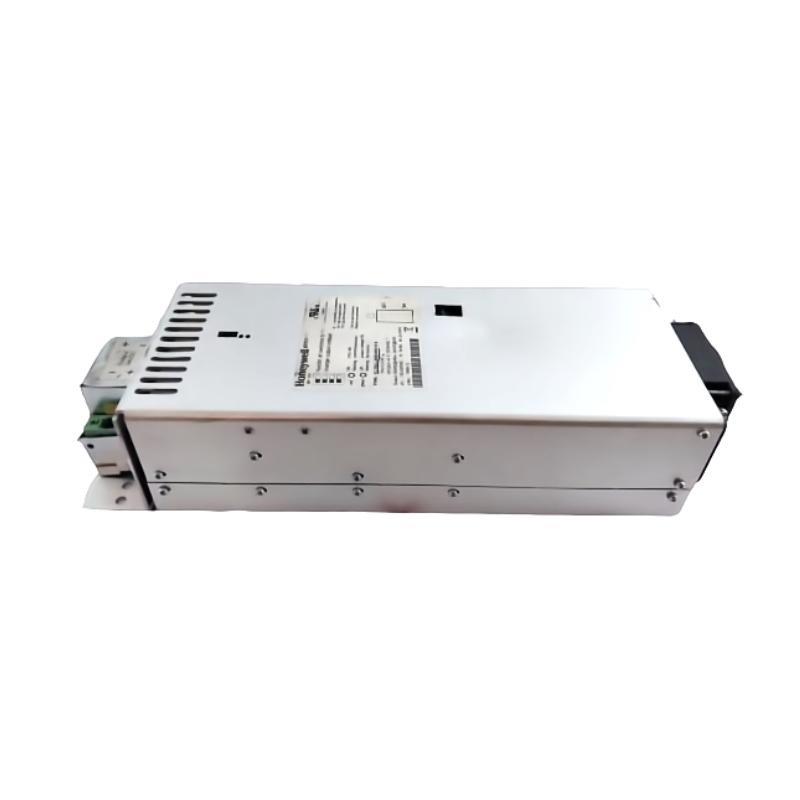

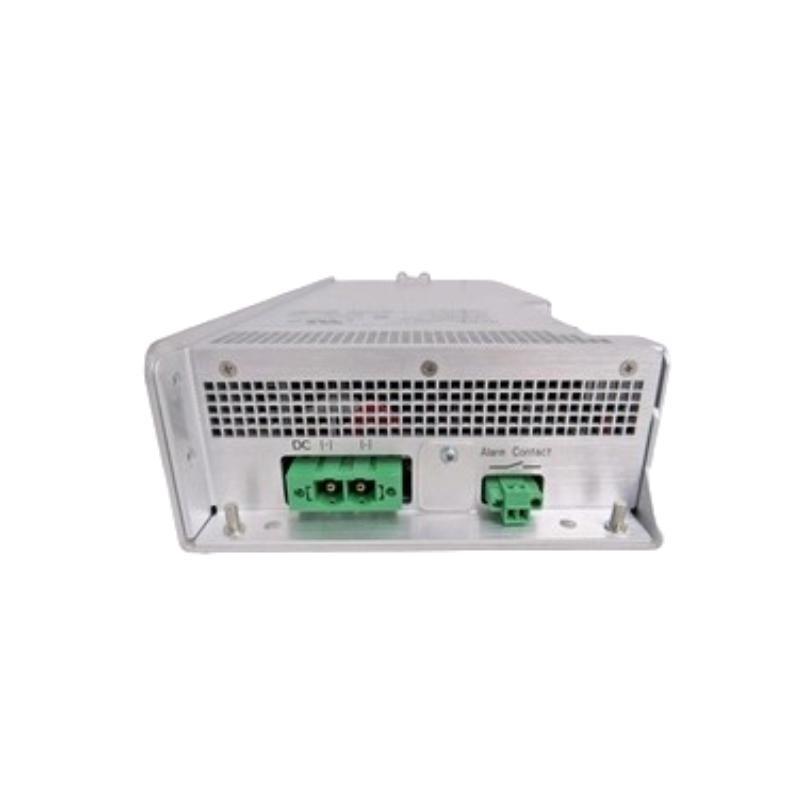

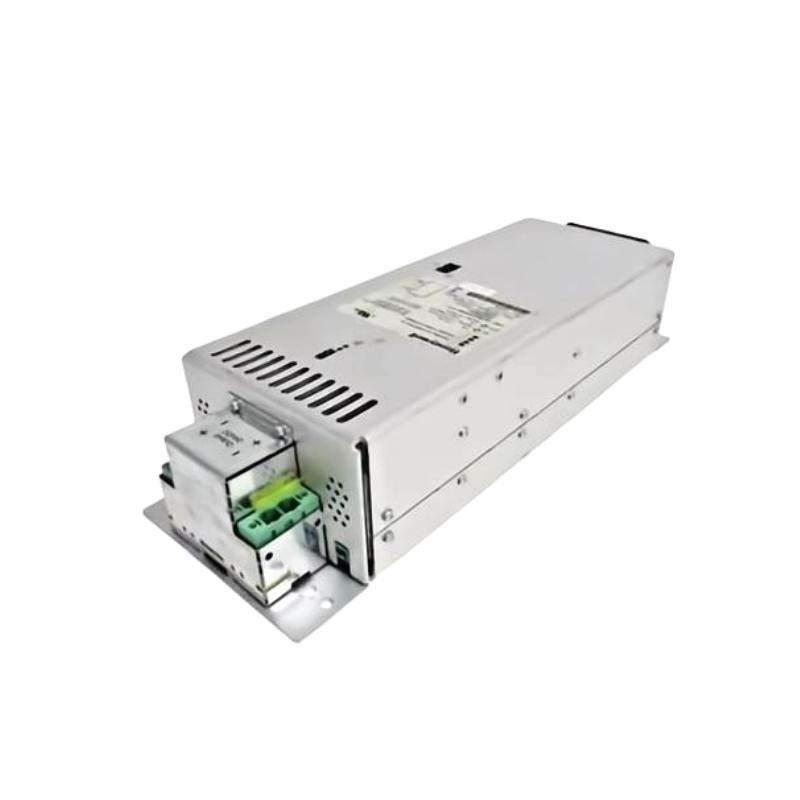

The Honeywell FC-PSU-UNI2424 Power Supply Einheit is an industrial-grade power module designed to deliver consistent and reliable 24 VDC output to automation systems, field instruments, and control panels. Engineered for demanding environments, this universal power supply accommodates a wide range von input voltages and provides highly regulated DC output with superior efficiency and protection features.
Part von Honeywell’s well-regarded FC series, the FC-PSU-UNI2424 ensures uninterrupted power delivery for programmable logic controllers (PLCs), distributed control systems (DCS), and field devices used across industries such as energy, oil & gas, chemicals, water treatment, pharmaceuticals, and manufacturing. Its compact size, flexible mounting options, and robust construction make it an excellent choice for both new installations and retrvonits.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Product Name | Honeywell FC-PSU-UNI2424 Power Supply Einheit |
| Modell Number | FC-PSU-UNI2424 |
| Series | Honeywell FC Series |
| Function | Industrial 24 VDC Power Supply Einheit |
| Input Voltage Range | 85 – 264 VAC |
| Input Frequency | 47 – 63 Hz |
| Output Voltage | 24 VDC nominal |
| Output Current | Up to 10 A |
| Output Power | 240 W (nominal) |
| Efficiency | ≥ 92% |
| Ripple and Noise | < 100 mV pp |
| Overvoltage Protection | Yes |
| Overcurrent/Short-Circuit Protection | Yes |
| Power Factor Correction (PFC) | Active PFC |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -25°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Cooling Method | Convection |
| Mounting Type | DIN rail or panel mounting |
| Dimensions (H x W x D) | 120 x 90 x 40 mm |
| Gewicht | 0.6 kg |
| Certifications | CE, UL, CSA, RoHS compliant |
Product Applications
The Honeywell FC-PSU-UNI2424 power supply Stück is ideal for industrial environments that demand robust and reliable 24 VDC power for critical automation systems:
-
Power Generation
Supplies consistent power for control equipment in turbine automation, auxiliary plant systems, and monitoring panels. -
Oil & Gas Production and Processing
Provides reliable power to hazardous area-rated instruments, controllers, and fire & gas systems. -
Chemical and Petrochemical Industries
Powers field instruments, analyzers, and control equipment with stable and filtered DC output. -
Water & Wastewater Treatment
Delivers clean DC power for pump controls, SCADA systems, and distributed I/O networks. -
Pharmaceutical Manufacturing
Ensures validated and stable power delivery for control systems in GMP-compliant processes. -
General Manufacturing and Automation
Supplies regulated power for PLCs, machine controls, conveyors, packaging lines, and robotics.
Product Advantages
-
Universal Input Range
Supports global AC voltage standards (85–264 VAC), reducing SKUs for international projects. -
High Efficiency
≥ 92% efficiency minimizes energy loss and reduces heat buildup in enclosures. -
Robust Protection Features
Built-in overvoltage, overcurrent, and short-circuit protection enhance system safety and longevity. -
Compact and Lightweight
Space-saving design simplifies installation in crowded control panels. -
Flexible Mounting Options
Supports both DIN rail and direct panel mounting. -
Quiet Operation
Convection-cooled with no noisy fans—ideal for low-noise applications. -
High Reliability
Proven design ensures continuous operation under demanding industrial conditions. -
Global Certifications
CE, UL, CSA certified for worldwide use in industrial automation systems.
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the FC-PSU-UNI2424?
It delivers highly regulated 24 VDC output for industrial control equipment and field instruments. -
What is the input voltage range supported?
The Stück accepts 85 – 264 VAC input. -
What is the output current capability?
The module can provide up to 10 A von output current. -
What is the nominal output power?
240 W nominal output power. -
Does it include built-in protection features?
Yes—overvoltage, overcurrent, and short-circuit protection are included. -
Can it be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting. -
What is the operating temperature range?
-10°C to +60°C. -
What certifications does the Stück have?
CE, UL, CSA, and RoHS compliant. -
Is the power supply fan-cooled or convection-cooled?
It uses convection cooling for quieter operation and enhanced reliability. -
What industries typically use the FC-PSU-UNI2424?
It is widely used in power generation, oil & gas, chemicals, water treatment, and industrial manufacturing.
Recommended Related Modells
| Modell Number | Beschreibung |
|---|---|
| FC-PSU-UNI2410 | 24 VDC, 10 A Power Supply Einheit |
| FC-PSU-UNI2415 | 24 VDC, 15 A Power Supply Einheit |
| FC-PSU-UNI2420 | 24 VDC, 20 A Power Supply Einheit |
| FC-PSU-UNI4805 | 48 VDC, 5 A Power Supply Einheit |
| FC-PSU-ACDC2410 | AC to DC 24 V, 10 A Converter |
| FC-PSU-DC2412 | 24 VDC, 12 A Industrial Power Supply |
Popular Honeywell Modells
| Modell Number | Beschreibung |
|---|---|
| CC-TDIL01 | Digital Input Module |
| CC-TDOB01 | Digital Output Module |
| MC-PAOY22 | Analog Output Module |
| FC-TSDI-1624 | 16-Channel Digital Input Module |
| FC-TSRO-0824 | 8-Channel Relay Output Module |
| CC-PDIL01 | Pulse Digital Input Module |
