Product Overview

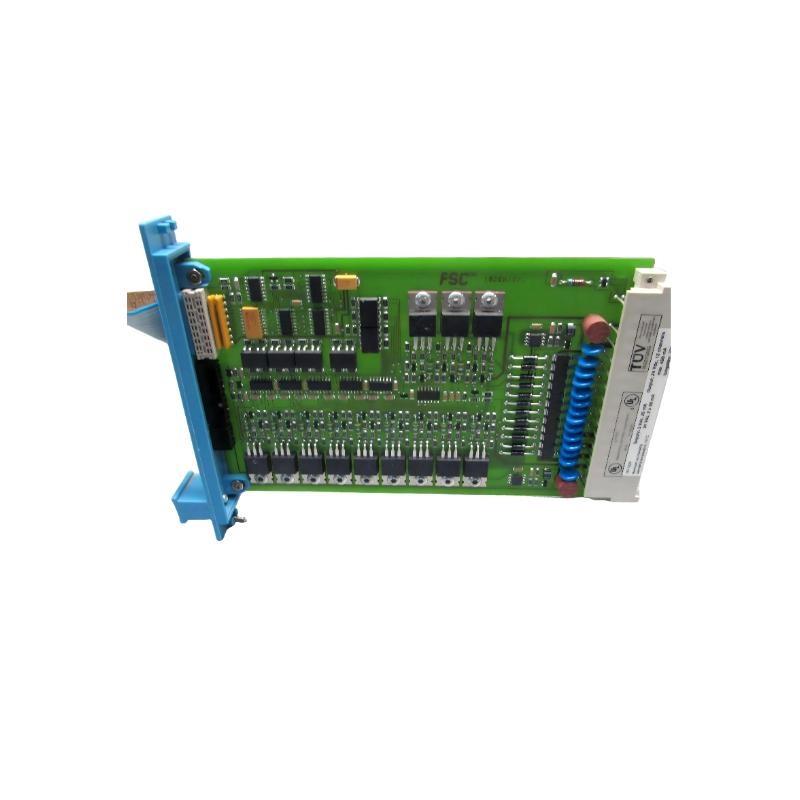

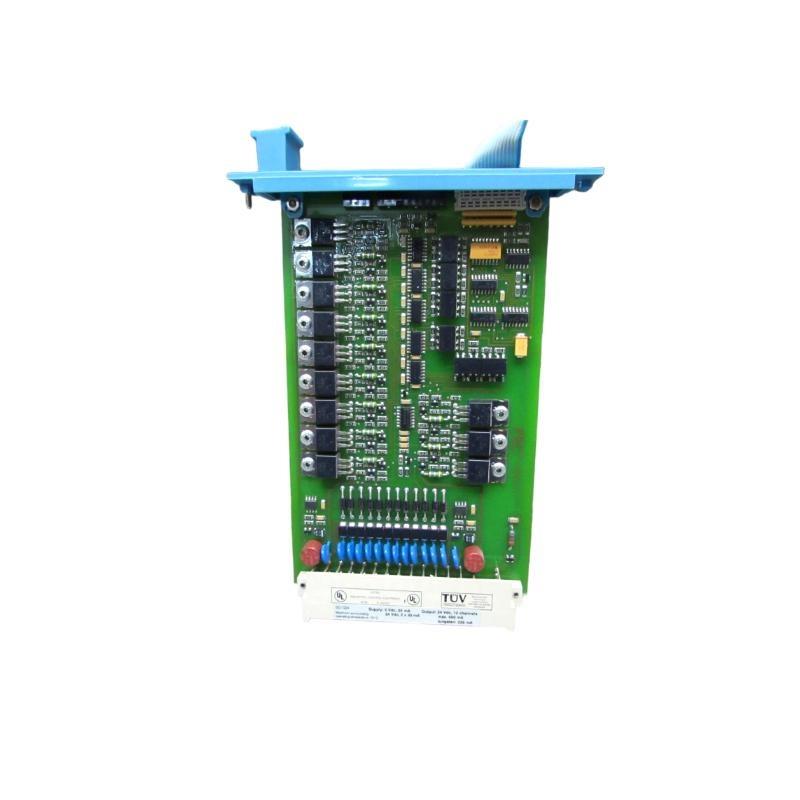

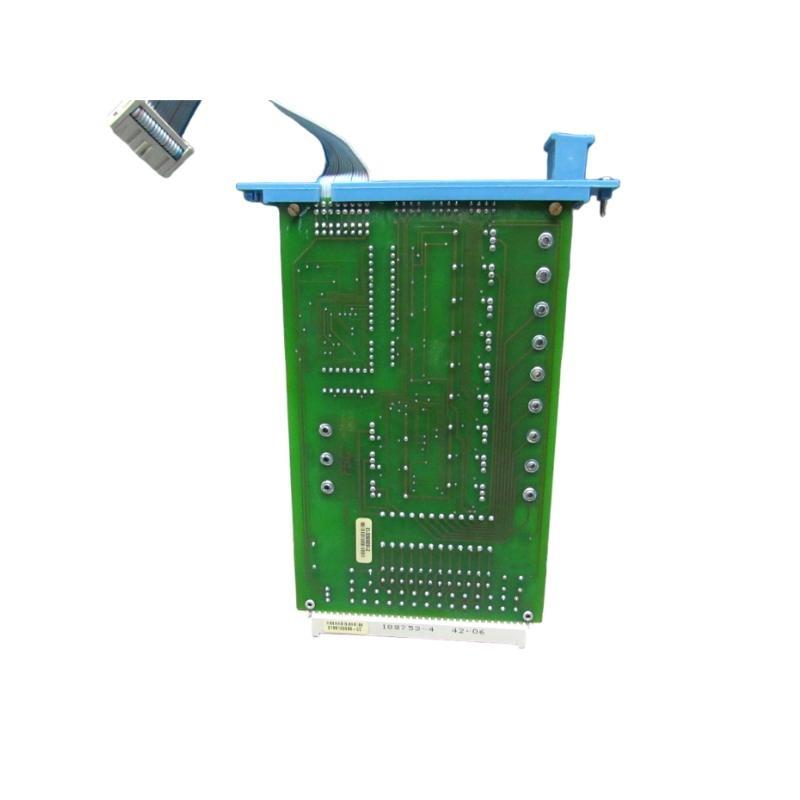

The Honeywell FC-DO-1224 is a digital output module designed to provide high-performance and reliable control in industrial automation systems. This module is part von Honeywell’s extensive family von I/O modules, which are engineered to handle various automation needs efficiently. The FC-DO-1224 module supports multiple digital output channels, providing crucial communication between control systems and field devices in processes such as manufacturing, energy, and other industrial applications. Its robust design and precise functionality make it ideal for critical control applications in demanding environments.
Product Parameters
The following table outlines the key technical parameters von the Honeywell FC-DO-1224 Digital Output Module:
| Parameter | Specification |
|---|---|
| Modell | FC-DO-1224 |
| Type | Digital Output Module |
| Number von Outputs | 24 |
| Output Voltage | 24V DC |
| Output Current | 0.5 A per channel |
| Communication | Digital signal via fieldbus |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 201 x 110 x 35 mm |
| Gewicht | 0.6 kg |
| Mounting Type | DIN Rail |
| Power Consumption | 2 W (typical) |
Product Applications
The Honeywell FC-DO-1224 module is widely used in the following applications:
-
Process Control: It provides output signals to actuators, valves, and other field devices.
-
Automation Systems: Used in factory automation systems to control machinery based on digital signals.
-
Energy Sector: Controls various digital field devices in energy plants and substations.
-
Manufacturing: Provides precise control over manufacturing processes, ensuring efficiency and reliability.
-
Building Management Systems: Used for controlling digital equipment in HVAC and lighting systems.
Product Advantages
-
High Performance: The FC-DO-1224 ensures stable and accurate digital output, supporting complex control systems.
-
Durability: Built to operate in harsh industrial environments with a wide temperature range and robust design.
-
Easy Integration: The module seamlessly integrates with Honeywell’s control systems and fieldbus networks, making setup and maintenance easier.
-
Scalability: Multiple modules can be used in parallel to expand I/O capacity, allowing for greater flexibility in large-scale systems.
-
Cost-Effective: Offers a cost-efficient solution for digital output needs without compromising on performance or reliability.
FAQ
1. What is the maximum output current per channel for the FC-DO-1224 module?
The FC-DO-1224 supports a maximum output current von 0.5 A per channel.
2. Can the FC-DO-1224 module be used in hazardous environments?
Yes, the module is designed to work in industrial environments but should be evaluated for specific hazardous area requirements.
3. How does the FC-DO-1224 communicate with the control system?
The FC-DO-1224 communicates via digital signals over a fieldbus network, which allows it to interface with Honeywell control systems.
4. What is the operating temperature range von the FC-DO-1224?
The module operates within a temperature range von -20°C to +60°C.
5. Is the FC-DO-1224 compatible with other Honeywell I/O modules?
Yes, it is fully compatible with other Honeywell I/O modules in the same control system and fieldbus network.
6. How is the FC-DO-1224 mounted?
The module is designed for DIN rail mounting, making installation straightforward and secure.
7. Does the FC-DO-1224 have any redundancy features?
The module itself does not include redundancy features, but it can be integrated into redundant control systems for increased reliability.
8. What is the power consumption von the FC-DO-1224 module?
The typical power consumption von the FC-DO-1224 is 2 W.
9. How can the FC-DO-1224 be maintained or serviced?
Maintenance is straightforward and typically involves checking the wiring and ensuring the module’s communication with the control system is intact.
10. Can the outputs be configured individually?
Yes, the outputs can be configured individually to control different field devices based on the specific requirements von the application.
Recommended Similar Modells
| Modell | Beschreibung |
|---|---|
| FC-DO-1212 | 12-channel digital output module |
| FC-DO-1224R | Redundant 24-channel digital output |
| FC-DO-1232 | 32-channel digital output module |
| FC-DO-1208 | 8-channel digital output module |
| FC-DO-1248 | 48-channel digital output module |
| FC-DO-1216 | 16-channel digital output module |
Popular Modells from Honeywell
| Modell | Beschreibung |
|---|---|
| FC-IO-1216 | 16-channel input/output module |
| FC-IC-1308 | 8-channel analog input module |
| FC-OC-1256 | 56-channel digital output module |
| FC-IA-1212 | 12-channel analog input module |
| FC-DO-1204 | 4-channel digital output module |
| FC-IOM-1208 | 8-channel input/output module |
