Produkteinführung

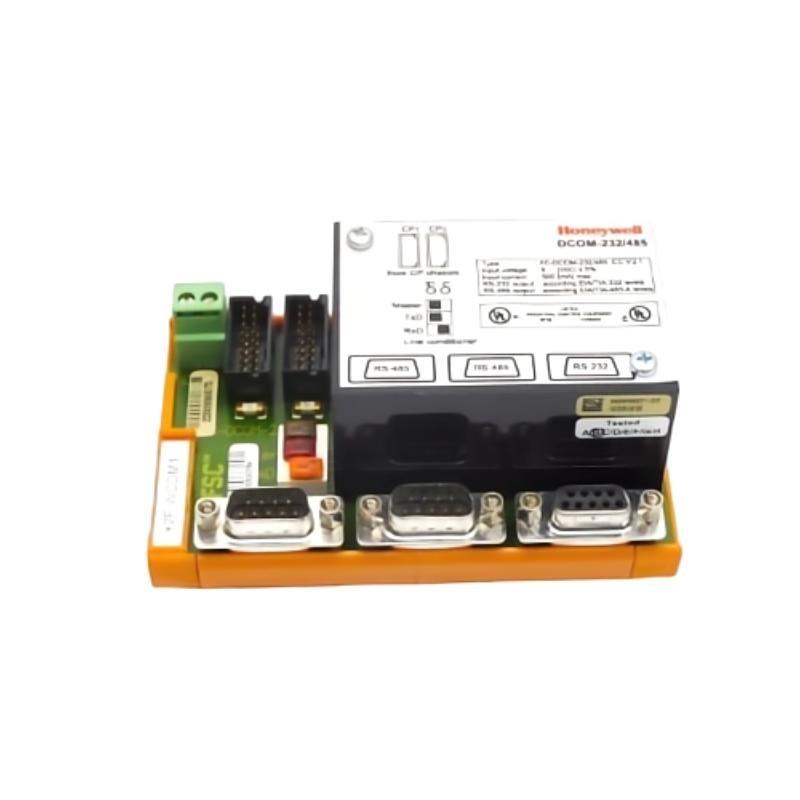

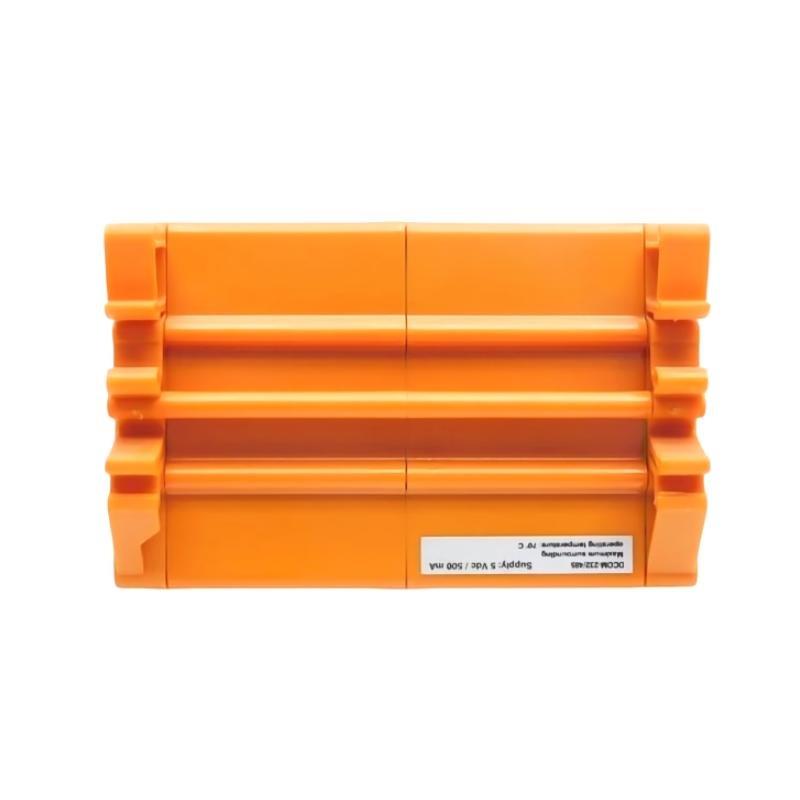

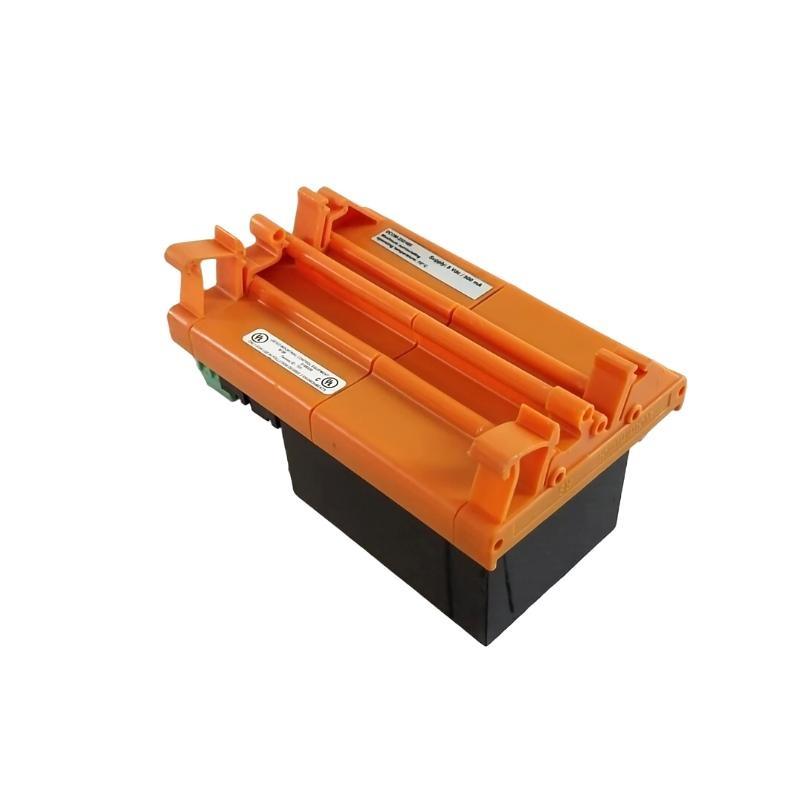

The Honeywell FC-DCOM-234/485 Communication Interface Module is a specialized communication interface Stück designed for Honeywell’s ControlEdge, Experion, and Field Control (FC) series platforms. It enables reliable serial data communication using RS-232C and RS-485 standards, ensuring compatibility with a wide array von third-party devices, including PLCs, flow computers, RTUs, and smart sensors.
This module is particularly well-suited for industrial automation environments that require robust integration with legacy or external systems over serial networks. It supports MODBUS RTU protocol and can function in both master and slave modes, enhancing its interoperability. Designed for DIN-rail mounting and easy slot integration, the FC-DCOM-234/485 ensures seamless communication expansion while maintaining high standards von industrial reliability and cybersecurity.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | FC-DCOM-234/485 |
| Communication Ports | 1 × RS-232C, 1 × RS-485 |
| Supported Protocols | MODBUS RTU (Master/Slave), ASCII (limited), custom serial |
| Baud Rate Range | 300 to 115.2 kbps |
| Port Configuration | Svontware configurable for parity, stop bits, data bits |
| Isolation | Optical isolation on RS-485 line |
| Number von Supported Devices | Up to 32 devices on RS-485 bus |
| Diagnostics | Built-in communication status monitoring |
| Hot Swap Support | Yes (when supported by controller architecture) |
| Mounting Type | DIN-rail or baseplate-mounted (depending on controller) |
| Power Supply | 24V DC via controller backplane |
| LED Indicators | TX, RX, Module Status, Communication Error |
| Firmware Update Method | Via engineering workstation (Experion configuration tools) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% RH, non-condensing |
| Certifications | CE, UL, CSA, RoHS compliant |
| Dimensions (H × W × D) | 120 x 100 x 80 mm |
| Gewicht | 1 kg |
Product Applications
The FC-DCOM-234/485 module is engineered for critical industrial use cases requiring dependable serial communication integration between Honeywell systems and third-party or legacy devices. Its applications include:
-
Process Automation Integration: Interfacing flow computers, analyzers, and RTUs into Experion PKS or ControlEdge networks.
-
Modbus Interoperability: Connecting legacy Modbus RTU devices into modern Honeywell control architectures.
-
OEM Equipment Communication: Linking vendor-specific equipment with proprietary RS-485 protocols.
-
Remote Asset Management: Serving as a communication interface for distributed devices in oil & gas, mining, or utility systems.
-
Pipeline SCADA Systems: Acting as a serial gateway for telemetry and metering data from field devices.
-
Legacy PLC Integration: Bridging legacy programmable controllers to the main automation layer.
Product Advantages
-
Dual Protocol Support (RS-232C & RS-485): Offers flexibility for connecting a wide range von field devices.
-
MODBUS RTU Master/Slave Compatibility: Ensures smooth data exchange with both modern and legacy devices.
-
Hot-Swappable Design: Reduces downtime and simplifies maintenance activities.
-
Optically Isolated RS-485 Ports: Protects communication integrity in electrically noisy environments.
-
Advanced Diagnostics: Real-time status LEDs and integrated svontware diagnostics for quick fault detection.
-
High Reliability: Designed to meet industrial-grade environmental specifications for rugged deployments.
-
Seamless Experion Integration: Fully compatible with Honeywell’s control platforms and configuration tools.
-
Svontware Configurable: Port settings can be managed via engineering svontware without physical jumper changes.
FAQ
-
Does the FC-DCOM-234/485 module support MODBUS RTU in both master and slave configurations?
Yes, the module can be configured to act as either a MODBUS master or slave depending on application needs. -
Can the module communicate over both RS-232C and RS-485 simultaneously?
No, only one port is active at a time based on configuration. You must choose either RS-232C or RS-485 during setup. -
Is the RS-485 port electrically isolated from the system bus?
Yes, optical isolation is provided to prevent noise and protect against ground loops. -
Can I update firmware remotely?
Yes, firmware can be upgraded using Honeywell engineering tools connected to the host controller or system. -
How many devices can be connected on the RS-485 line?
The module can support up to 32 devices per RS-485 bus, following standard RS-485 limitations. -
Are custom baud rates supported?
The module supports standard baud rates between 300 and 115.2 kbps. Some custom rates may work if aligned with configuration tools. -
Is this module supported in ControlEdge RTU and PLC platforms?
Yes, it is compatible with both ControlEdge PLC and RTU systems. -
How is the communication port configured?
Port parameters (baud rate, parity, stop bits) are svontware-configurable via system configuration tools. -
Does the module support HART communication?
No, HART communication is not supported via RS-232/485. Use dedicated HART I/O modules for that purpose. -
What happens if the module fails during operation?
Failover or module replacement can be performed with minimal impact due to hot-swap support, depending on controller setup.
Related Modells (Same Series or Functional Kategorie)
| Modell | Beschreibung |
|---|---|
| FC-DCOM-232 | Single-port RS-232C module for serial communication |
| FC-DCOM-485 | RS-485 only version with advanced fault tolerance |
| FC-DCOM-ETH | Ethernet communication module with TCP/IP and MODBUS TCP |
| FC-DCOM-CAN | CANbus interface module for motion control integration |
| FC-IODI16 | 16-point digital input module, vonten used alongside DCOM modules |
| FC-IODO16 | 16-point digital output module, same series |
Popular Honeywell Modells (Same Marke)
| Modell | Function |
|---|---|
| C300 Controller | High-performance process controller for Experion |
| FIM4 | Field Interface Module for I/O subsystem |
| HC900 | Modular process and safety controller |
| PMIO | Process Manager I/O module for legacy systems |
| UCN Bridge | Bridge module for Universal Control Network |
| RM7838A1070 | Burner control relay module for safety shutdowns |
