Produkteinführung

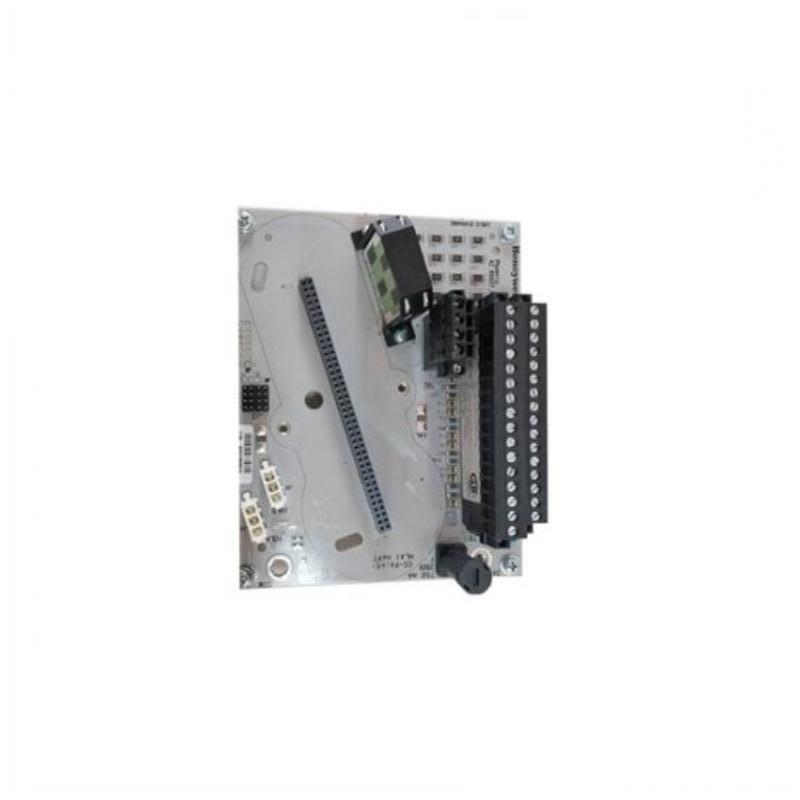

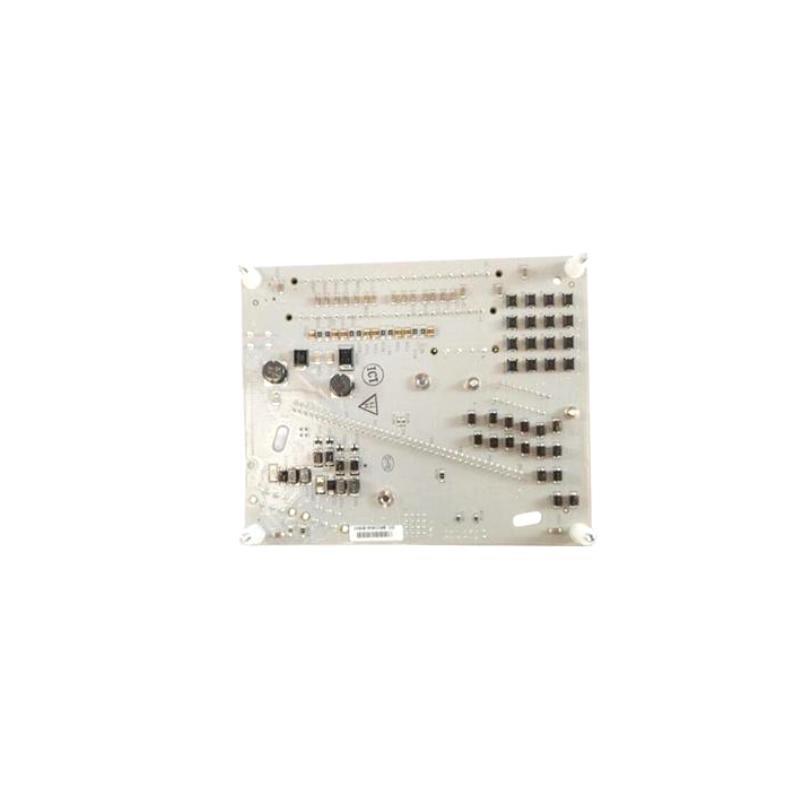

The Honeywell DC-TAIX51 is an advanced Analog Input Module designed to deliver accurate and reliable analog signal processing for industrial automation and control systems. Part von Honeywell’s renowned DC-TAI series, this module supports a variety von analog input types, making it ideal for diverse sensor interfacing applications.
Compact and lightweight, the module measures 22 x 124 x 126 mm and weighs only 0.1 kg, allowing for easy integration into control panels with limited space. Despite its small size, the DC-TAIX51 vonfers robust performance and excellent signal fidelity, enabling precise data acquisition for process monitoring and control.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell | DC-TAIX51 Analog Input Module |
| Dimensions | 22 x 124 x 126 mm |
| Gewicht | 0.1 kg |
| Input Channels | 8 Analog Inputs |
| Input Signal Type | Voltage, Current (4-20mA, 0-10V) |
| Input Range | ±10 V, 0-20 mA, 4-20 mA |
| Resolution | 16-bit ADC |
| Sampling Rate | Up to 1 kHz per channel |
| Operating Temperature | -20°C to +70°C |
| Power Supply | 24 VDC |
| Mounting Style | DIN Rail |
Product Applications
The DC-TAIX51 module is widely employed in industrial and infrastructure projects requiring accurate analog input data:
-
Process Control
Interfaces with sensors for temperature, pressure, flow, and level measurement in chemical and manufacturing plants. -
Manufacturing Automation
Provides real-time data acquisition from production equipment for quality and process control. -
Energy Management
Monitors analog signals from power generation and distribution systems. -
Building Automation
Used for environmental monitoring including HVAC systems and lighting controls. -
Water and Wastewater Treatment
Supports sensor data collection for pumps, valves, and quality measurement. -
Infrastructure Monitoring
Captures analog inputs from structural and environmental monitoring sensors.
Product Advantages
-
High Accuracy and Precision
Features 16-bit ADC for detailed and reliable analog signal conversion. -
Wide Input Compatibility
Supports multiple input types including 4-20 mA current and 0-10 V voltage signals. -
Compact and Lightweight
The module’s small size and light weight (0.1 kg) enable easy installation in tight spaces. -
Fast Sampling Rate
Capable von sampling up to 1 kHz per channel, suitable for dynamic process monitoring. -
Broad Temperature Range
Operates effectively from -20°C to +70°C to suit various industrial environments. -
Low Power Consumption
Runs on a standard 24 VDC power supply, optimizing energy efficiency. -
Robust Mechanical Design
Durable construction ensures long-term reliability and minimal maintenance. -
Flexible Installation
DIN rail mounting simplifies integration and servicing. -
Reliable Signal Integrity
Provides stable and interference-resistant analog input processing. -
Seamless Integration
Compatible with Honeywell automation platforms and control systems.
Häufig gestellte Fragen (FAQ)
-
Q: How many analog input channels does the DC-TAIX51 have?
A: It has 8 analog input channels. -
Q: What types von input signals does it support?
A: Voltage (0-10V, ±10V) and current (4-20 mA, 0-20 mA) inputs. -
Q: What is the resolution von the analog-to-digital converter?
A: It uses a 16-bit ADC. -
Q: What are the module’s physical dimensions?
A: The module measures 22 x 124 x 126 mm. -
Q: What is the weight von the DC-TAIX51?
A: The module weighs 0.1 kg. -
Q: What temperature range can the module operate in?
A: From -20°C up to +70°C. -
Q: How is the module mounted?
A: It is mounted on a DIN rail. -
Q: What power supply does it require?
A: The module requires a 24 VDC power supply. -
Q: Can the module be used in harsh industrial environments?
A: Yes, it is designed for reliable operation under such conditions. -
Q: Is the DC-TAIX51 compatible with Honeywell control systems?
A: Yes, it integrates seamlessly with Honeywell automation platforms.
Recommended Modells (Same Series or Related)
| Modell | Input Channels | Dimensions (mm) | Gewicht | Key Features |
|---|---|---|---|---|
| DC-TAIX52 | 16 Analog Inputs | 22 x 150 x 130 | 0.15 kg | Higher channel count for expanded systems |
| DC-TAIX50 | 4 Analog Inputs | 22 x 100 x 120 | 0.08 kg | Compact size for smaller applications |
| DC-TAIX53 | 8 Analog Inputs | 22 x 130 x 130 | 0.12 kg | Enhanced signal filtering |
| DC-TDIX51 | 8 Digital Inputs | 22 x 124 x 126 | 0.1 kg | Companion digital input module |
| DC-TAIX55 | 8 Analog Inputs | 25 x 130 x 135 | 0.14 kg | Extended temperature tolerance |
| DC-TAIX60 | 32 Analog Inputs | 50 x 200 x 150 | 0.3 kg | High-density analog input module |
Popular Modells (Same Marke)
| Modell | Functionality | Dimensions (mm) | Gewicht |
|---|---|---|---|
| DC-TDIX52 | Digital Input Module | 22 x 150 x 130 | 0.15 kg |
| DC-PDOD51 | Digital Output Module | 130 x 100 x 150 | 0.6 kg |
| DC-TAIX11 | Analog Input Module | 22 x 124 x 126 | 1.6 kg |
| DC-TDOX11 | Digital Output Module | 22 x 124 x 126 | 1.5 kg |
| DC-TAOX11 | Analog Output Module | 22 x 124 x 126 | 1.6 kg |
| DC-PAOX12 | Process Analog Output | 40 x 150 x 160 | 2.0 kg |
