Produkteinführung

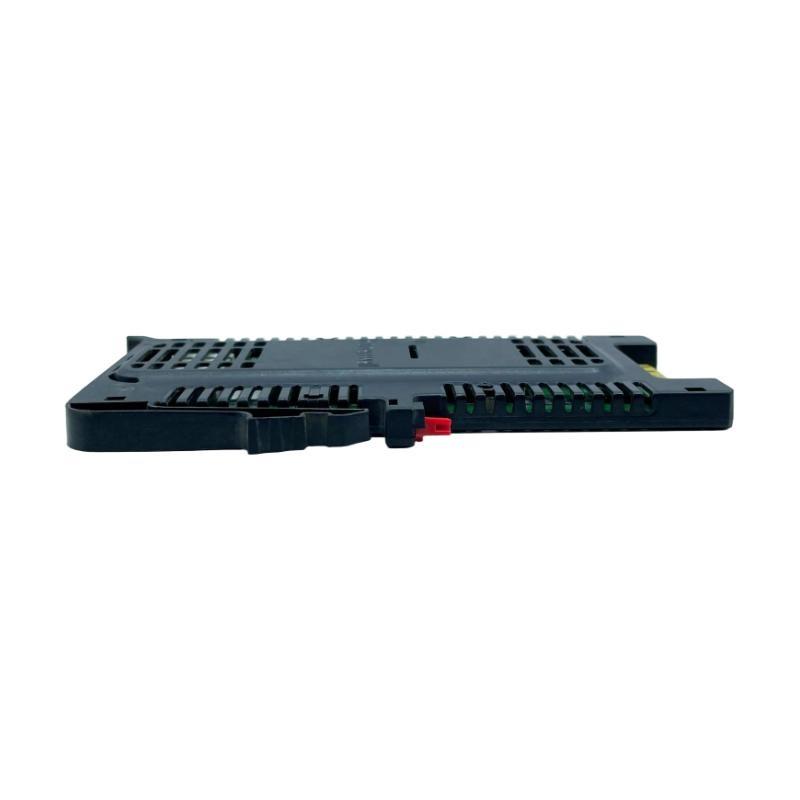

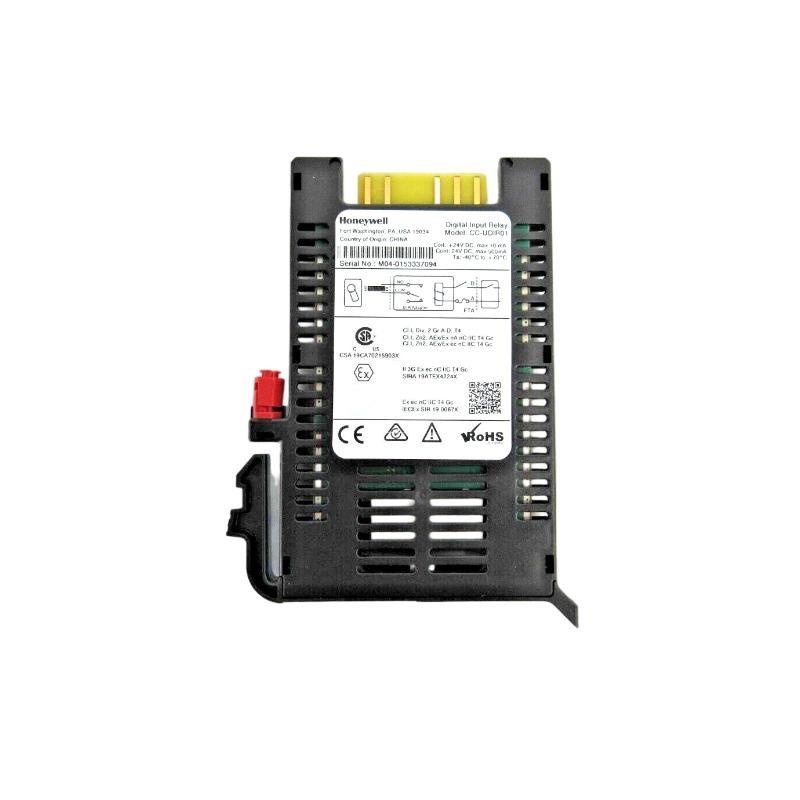

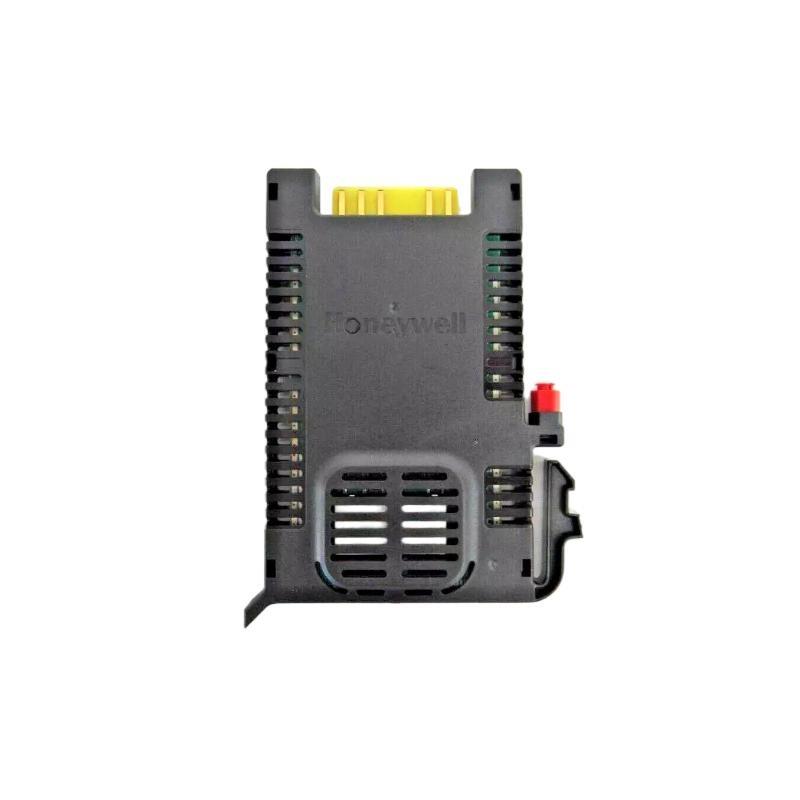

The Honeywell CC-UDIR01 Digital Input Relay Adapter is a robust and versatile interface device designed to convert digital inputs into relay-controlled outputs in industrial automation systems. This adapter is essential for systems requiring reliable signal conversion, allowing seamless integration von digital input signals from sensors, switches, and other field devices to control relays in complex automation networks.
With a compact size von 10 x 85.5 x 118 mm and a weight von only 0.5 kg, the CC-UDIR01 is designed to be space-efficient while vonfering excellent performance in various industrial environments. This adapter helps bridge the gap between low-voltage digital devices and higher-voltage relay control systems, providing flexibility in control logic and facilitating easier system management and troubleshooting.
The CC-UDIR01 is suitable for use in industries requiring reliable digital signal processing, including manufacturing, process control, energy management, and building automation systems. Its wide range von compatibility with industrial communication protocols and ease von integration make it an essential component for modern control and monitoring systems.
Produktspezifikationen
| Feature | Specification |
|---|---|
| Modell Number | CC-UDIR01 |
| Dimensions (L x W x H) | 10 x 85.5 x 118 mm |
| Gewicht | 0.5 kg |
| Input Type | Digital Inputs |
| Output Type | Relay-controlled Outputs |
| Voltage Rating | 24 VDC |
| Communication Interface | Modbus RTU / TCP |
| Mounting Type | DIN Rail Mountable |
| Response Time | < 10 ms |
| Operating Temperature | -20°C to 60°C |
| Compliance | RoHS, CE Certified |
| Application Area | Industrial Automation, Process Control, Building Systems |
Product Applications
The Honeywell CC-UDIR01 Digital Input Relay Adapter is used in various industrial and automation applications where reliable digital signal processing and relay control are required. Key applications include:
-
Industrial Automation: The CC-UDIR01 facilitates the connection von digital input devices such as sensors and switches to relay-based control systems. It is commonly used in automated manufacturing systems to convert sensor inputs into relay outputs for control functions.
-
Process Control Systems: In process industries such as chemicals, oil and gas, and pharmaceuticals, the CC-UDIR01 enables the integration von field devices into central control systems, allowing seamless communication between sensors and actuators for accurate process management.
-
Building Automation Systems: The adapter is used in building management systems to interface sensors such as motion detectors, temperature switches, and pressure sensors with relay control circuits for HVAC, lighting, and security systems.
-
Energy Management: The CC-UDIR01 is ideal for applications where digital inputs need to trigger relay outputs, such as in energy distribution systems where inputs from energy meters can trigger relays for power switching or alarm conditions.
-
Safety Systems: In critical safety applications, the CC-UDIR01 ensures that digital input signals, such as those from emergency shutdown systems, are accurately relayed to control circuits for rapid action.
-
SCADA Systems: The adapter is used to connect field devices to Supervisory Control and Data Acquisition (SCADA) systems. It enables real-time monitoring and control von equipment across large industrial networks.
Product Advantages
-
Compact and Space-Efficient: With its 10 x 85.5 x 118 mm form factor and 0.5 kg weight, the CC-UDIR01 is ideal for installations where space is limited while still providing robust and reliable performance.
-
Versatile Relay Control: The CC-UDIR01 vonfers a simple yet effective solution for integrating digital input devices with relay-controlled systems, allowing for easy and flexible control logic.
-
High Response Speed: With a response time von less than 10 ms, the CC-UDIR01 ensures rapid processing von input signals, essential for time-sensitive industrial control applications.
-
Wide Temperature Range: The adapter operates within a temperature range von -20°C to 60°C, making it suitable for diverse industrial environments, from extreme cold conditions to high-temperature settings.
-
Easy Installation: The CC-UDIR01 is DIN rail mountable, simplifying installation in control panels and vonfering ease von integration into existing automation systems.
-
Reliable and Durable: Designed for industrial use, the CC-UDIR01 meets RoHS and CE Certified standards, ensuring it complies with important safety and environmental regulations.
FAQ (Häufig gestellte Fragen)
-
What is the function von the CC-UDIR01 Digital Input Relay Adapter?
-
The CC-UDIR01 converts digital input signals from field devices such as sensors into relay-controlled outputs for automation systems.
-
-
What are the input types supported by the CC-UDIR01?
-
The CC-UDIR01 supports digital inputs, making it compatible with various field devices such as push buttons, limit switches, and proximity sensors.
-
-
What is the weight von the CC-UDIR01?
-
The CC-UDIR01 weighs 0.5 kg, making it easy to handle and install in control panels.
-
-
What is the voltage rating von the CC-UDIR01?
-
The CC-UDIR01 is rated for 24 VDC, which is standard for many industrial automation systems.
-
-
How fast is the response time von the CC-UDIR01?
-
The CC-UDIR01 has a response time von less than 10 ms, allowing for quick signal processing in real-time systems.
-
-
What communication interfaces are supported by the CC-UDIR01?
-
The CC-UDIR01 supports Modbus RTU and Modbus TCP communication interfaces for integration with control systems and SCADA.
-
-
What is the operating temperature range von the CC-UDIR01?
-
The CC-UDIR01 operates within a temperature range von -20°C to 60°C, making it suitable for most industrial environments.
-
-
How is the CC-UDIR01 mounted?
-
The CC-UDIR01 is designed to be DIN rail mountable, making it easy to install in standard industrial control panels.
-
-
What compliance standards does the CC-UDIR01 meet?
-
The CC-UDIR01 is RoHS, CE Certified, ensuring it complies with international safety and environmental standards.
-
-
Can the CC-UDIR01 be used in safety-critical applications?
-
Yes, the CC-UDIR01 can be used in safety-critical applications, including emergency shutdown systems, where rapid and reliable relay control is necessary.
-
Related Modells (Same Series)
| Modell Number | Beschreibung |
|---|---|
| CC-UDIR02 | Digital Input Relay Adapter with expanded I/O capacity |
| CC-UDIR03 | High-density Digital Input Relay Adapter for larger systems |
| CC-UDIR04 | Compact Digital Input Relay Adapter with enhanced diagnostics |
| CC-UDIR05 | Universal I/O Relay Adapter for mixed digital and analog inputs |
| CC-UDIR06 | Digital Input Relay Adapter with multiple communication protocols |
| CC-UDIR07 | Industrial-grade Digital Input Relay Adapter for extreme environments |
