Produkteinführung

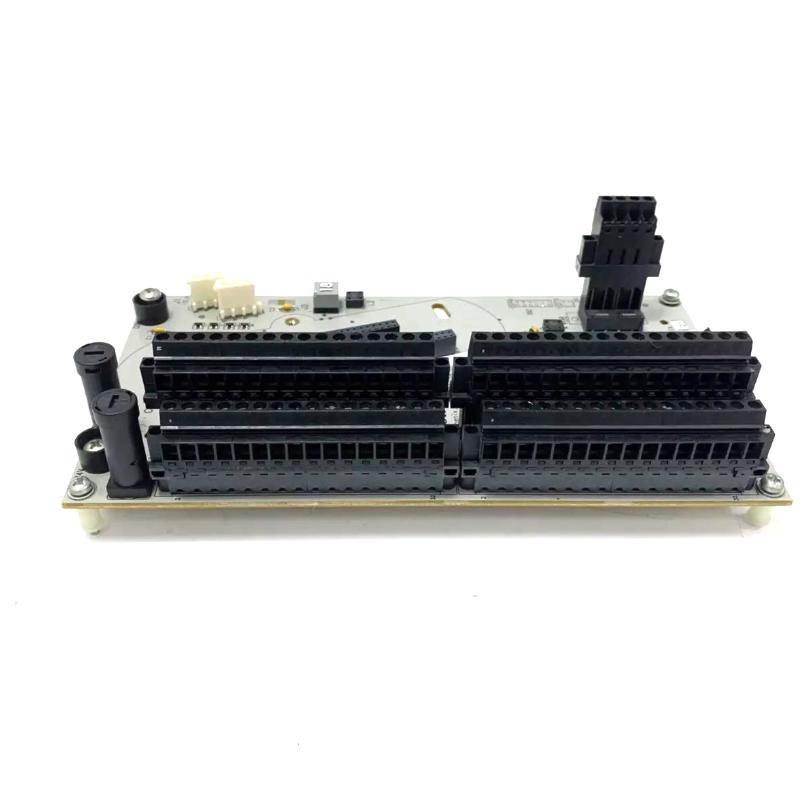

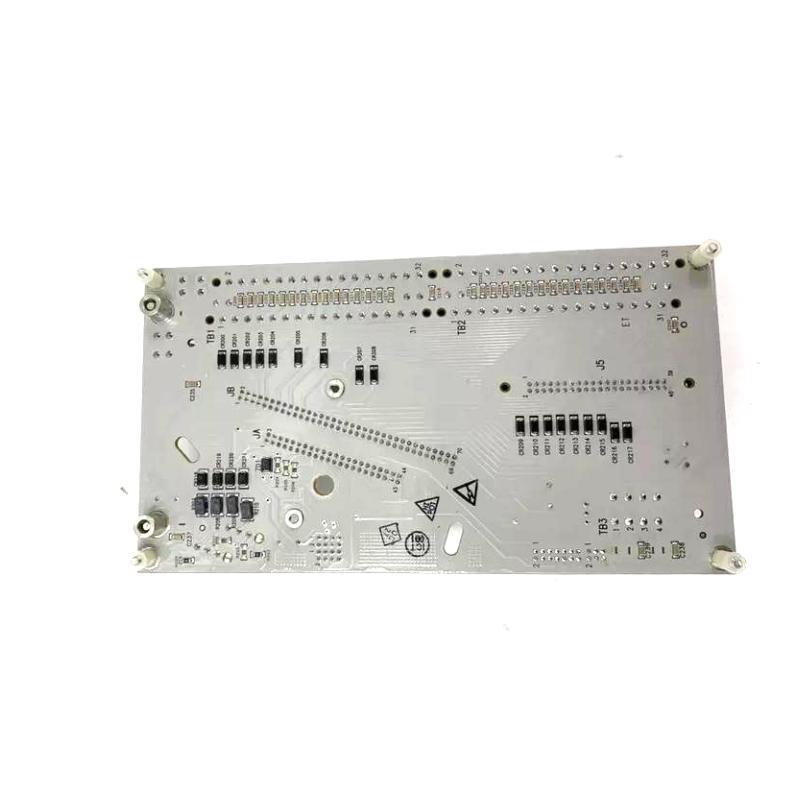

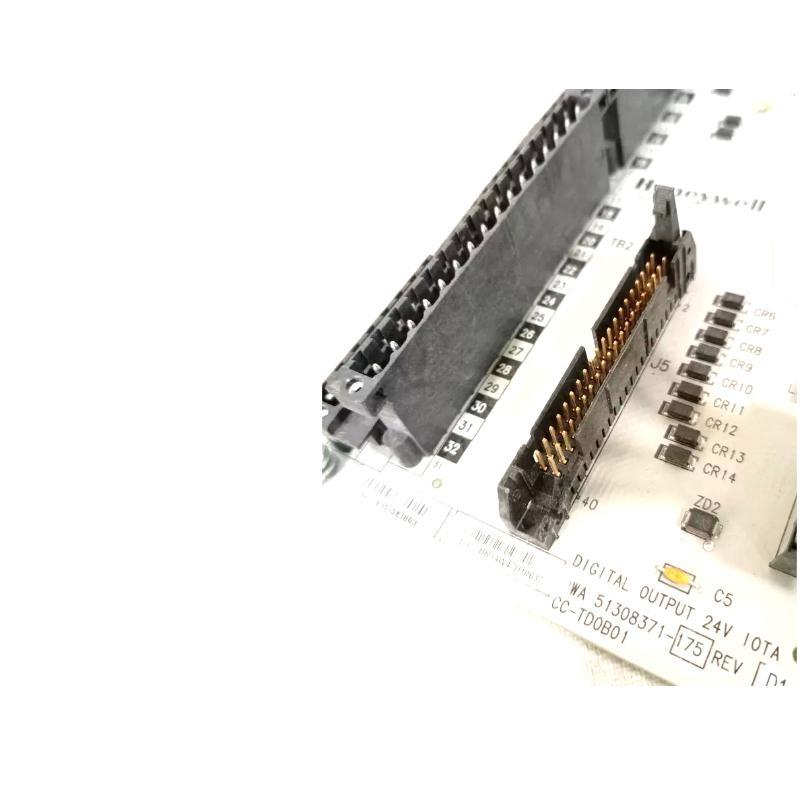

The Honeywell CC-TDOB01 51308388-175 is a high-performance digital output module designed for industrial automation and control systems. It is part von Honeywell’s trusted ControlEdge series, known for reliability, precision, and seamless integration with distributed control systems (DCS). This module is widely used in process industries such as oil & gas, power generation, and chemical processing, where accurate signal transmission and robust performance are critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Modell Number | CC-TDOB01 51308388-175 |
| Type | Digital Output Module |
| Voltage Range | 24V DC (Standard) |
| Output Channels | 16 (Configurable) |
| Current Rating | 0.5A per channel (Max) |
| Communication Protocol | Honeywell Experion PKS / Universal Protocol |
| Isolation | Channel-to-Channel & Field-to-System |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Gewicht | 0.5 kg |
| Mounting | DIN Rail or Panel Mount |
| Certifications | CE, ATEX, IECEx, SIL 2/3 Compliant |
Product Applications
The CC-TDOB01 module is designed for demanding industrial environments, including:
-
Oil & Gas: Control von valves, pumps, and safety shutdown systems.
-
Power Generation: Monitoring and control von turbine systems.
-
Chemical Processing: Precision control in batch processing.
-
Water & Wastewater: Automation von filtration and pumping stations.
-
Manufacturing: Integration into PLC and DCS for machine control.
Product Advantages
-
High Reliability: Built with industrial-grade components for long-term operation in harsh conditions.
-
Flexible Configuration: Supports multiple communication protocols for easy integration.
-
Robust Isolation: Prevents signal interference and ensures safe operation.
-
Compact Design: Space-saving form factor for high-density installations.
-
Compliance with Safety Standards: Meets ATEX, IECEx, and SIL certifications for hazardous environments.
-
Easy Maintenance: Hot-swappable design reduces downtime during replacements.
Häufig gestellte Fragen (FAQ)
-
What is the maximum load current per channel?
Each channel supports up to 0.5A. -
Is this module compatible with third-party DCS systems?
Yes, it supports universal protocols but works best with Honeywell Experion PKS. -
What is the operating temperature range?
It operates from -40°C to +70°C. -
Can this module be used in explosive environments?
Yes, it is ATEX and IECEx certified for hazardous areas. -
How many output channels does it have?
It provides 16 configurable digital outputs. -
What is the module’s power supply requirement?
It requires 24V DC for operation. -
Does it support hot-swapping?
Yes, it is designed for hot-swappable replacement. -
What certifications does this module hold?
It is CE, ATEX, IECEx, and SIL 2/3 compliant. -
What are the mounting options?
It can be mounted on a DIN rail or panel. -
Is there a warranty for this product?
Honeywell typically provides a 2-year warranty (check with the supplier).
Recommended Related & Popular Modells
6 Similar/Related Modells in the Series
| Modell Number | Beschreibung | Key Features |
|---|---|---|
| CC-TAOX01 | Analog Output Module | 16 channels, 4-20mA, SIL 3 Certified |
| CC-TDIB01 | Digital Input Module | 32 channels, 24V DC, High-Speed |
| CC-TAIB02 | Analog Input Module | 8 channels, RTD/Thermocouple Input |
| CC-TAOB02 | Analog Output Module | 8 channels, 0-10V, Isolated Outputs |
| CC-TCNT01 | Counter Module | 4 channels, High-Speed Counting |
| CC-TAIC01 | Current Input Module | 16 channels, 0-20mA, High Accuracy |
6 Popular Honeywell Modells (Sonstige Series)
| Modell Number | Beschreibung | Key Features |
|---|---|---|
| TDC3000 | Legacy DCS Controller | High Availability, Scalable |
| Experion PKS C300 | Process Controller | Advanced Automation, Redundancy |
| ST3000 Smart Transmitter | Pressure Transmitter | Wireless, High Accuracy |
| ML-2000 Level Sensor | Radar Level Transmitter | Non-Kontakt, Reliable Measurement |
| X Series Flow Meter | Ultrasonic Flow Meter | High Precision, Multi-Parameter |
| Honeywell Safety Manager FSC | Safety Controller | SIL 3 Certified, Redundant Design |
