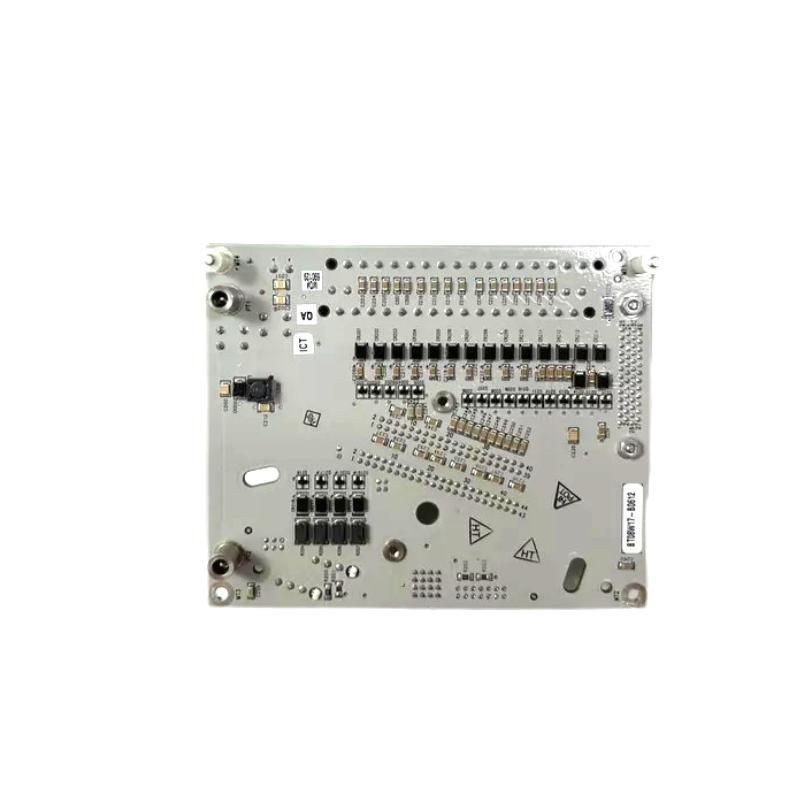

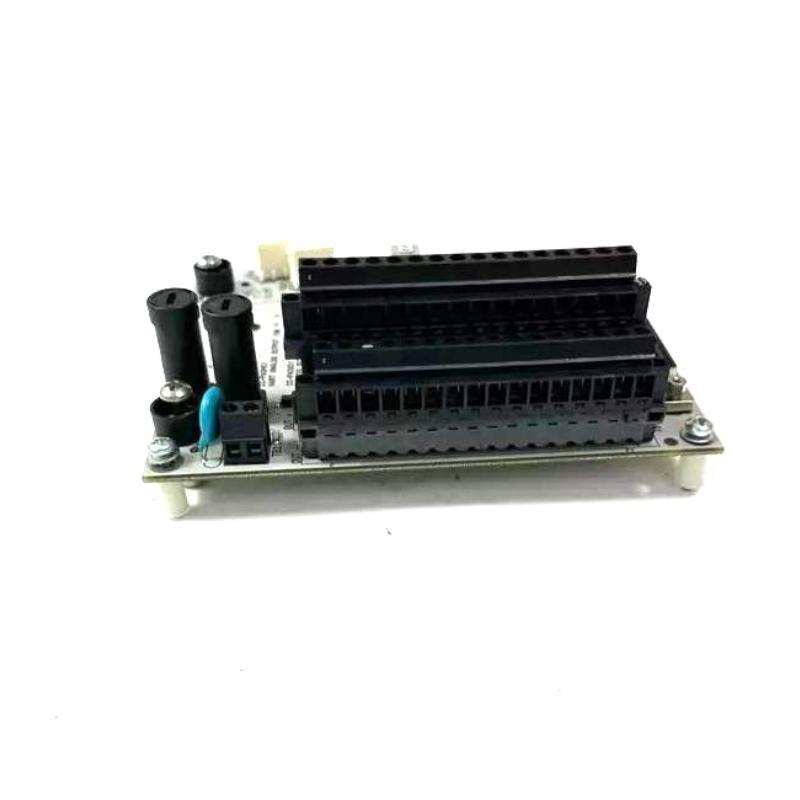

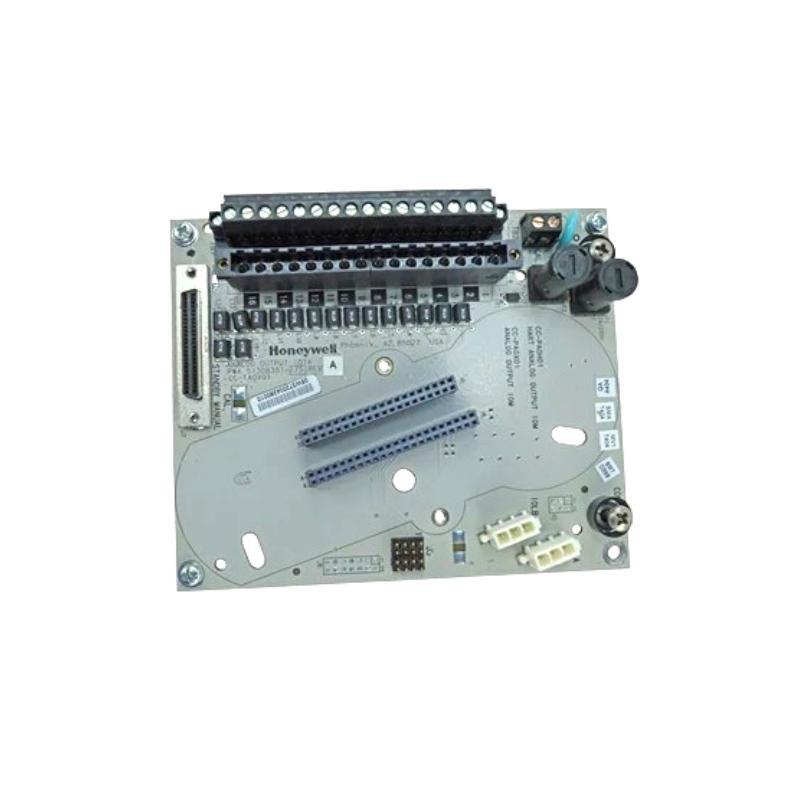

Product Overview: Honeywell CC-TAOX01 51308351-175
The Honeywell CC-TAOX01 51308351-175 is a high-performance Analog Output module designed for use in Honeywell’s Experion Process Knowledge System (PKS) and C300 controller platform. This module enables the system to send continuous control signals to field devices such as I/P converters, control valves, and positioners. It is engineered with advanced diagnostics and seamless integration capabilities that ensure reliable analog output control in complex industrial automation processes.
With support for HART (Highway Addressable Remote Transducer) communication, the CC-TAOX01 enables bidirectional communication for configuration, calibration, and diagnostics, ensuring superior operational efficiency. Its robust construction and fault-tolerant design make it suitable for mission-critical applications in process industries such as oil & gas, petrochemical, power generation, and pharmaceuticals.
Product Features
-
High-resolution analog output with 12-bit DAC conversion
-
Supports HART protocol for intelligent field communication
-
Hot-swap capability for non-disruptive maintenance
-
Advanced diagnostics for fault detection and loop integrity verification
-
Direct integration with Honeywell Experion PKS systems
-
Conformal coating for enhanced durability in harsh environments
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | CC-TAOX01 |
| Artikelnummer | 51308351-175 |
| Function | Analog Output Module |
| Output Channels | 8 Analog Outputs |
| Output Type | 4–20 mA, HART-enabled |
| Resolution | 12-bit DAC |
| Load Range | 0–750 Ohms |
| Diagnostic Features | Loop monitoring, Open wire detection |
| Communication | FTE / HART |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 130 × 100 × 30 mm |
| Gewicht | 0.4 kg |
| Certifications | CE, UL, CSA, ATEX |
| Mounting Type | Mounted on I/O base (CC-TDIL01/CC-TDOR01) |
Applications
-
Distributed Control Systems (DCS) in chemical and refining industries
-
Oil and gas pipeline control
-
Power generation turbine and boiler control
-
Batch processing in pharmaceuticals
-
Water and wastewater treatment automation
-
Pulp and paper industry process regulation
Product Advantages
-
Seamless Integration: Natively supports Honeywell’s Experion PKS, simplifying system engineering and commissioning.
-
Advanced Communication: HART-enabled outputs facilitate intelligent field device interactions and reduce field visits.
-
Field Flexibility: Supports a wide load range and delivers precise analog output for varied field devices.
-
Diagnostic Capabilities: Onboard diagnostics help identify issues before they escalate, reducing downtime.
-
Hot-Swappable: Modules can be replaced without powering down the system, enhancing maintainability.
-
Robust Design: Industrial-grade construction ensures long operational life even in harsh conditions.
Häufig gestellte Fragen (FAQs)
Q1: What is the primary function von the Honeywell CC-TAOX01 module?
A1: It provides 8-channel analog output capability with HART support for sending control signals to actuators and other devices.
Q2: Is the module hot-swappable?
A2: Yes, it can be replaced without shutting down the system, ensuring uninterrupted operation.
Q3: Can the CC-TAOX01 support HART communication?
A3: Yes, it supports HART for device diagnostics and configuration.
Q4: What type von signals does it output?
A4: It provides 4–20 mA current output signals with 12-bit resolution.
Q5: What is the maximum load resistance supported?
A5: The maximum load resistance is 750 Ohms.
Q6: What Honeywell platform is this module designed for?
A6: It is designed for use with the Honeywell C300 controller and Experion PKS.
Q7: What diagnostic features are available?
A7: Loop integrity checks, open wire detection, and onboard status LEDs are supported.
Q8: Is this module suitable for harsh environments?
A8: Yes, it has conformal coating and certifications for industrial applications.
Q9: Can the module be used in safety instrumented systems?
A9: While primarily used for control, its diagnostics contribute to overall system reliability; specific safety use must comply with application-level certifications.
Q10: What is the physical size and weight von the CC-TAOX01?
A10: It measures 130 × 100 × 30 mm and weighs 0.4 kg.
Recommended Related or Same Series Modells
| Modell | Artikelnummer | Beschreibung |
|---|---|---|
| CC-TAIX01 | 51308365-175 | Analog Input Module |
| CC-TDOR01 | 51308318-175 | Digital Output Relay Module |
| CC-TDIL01 | 51308307-175 | Digital Input Module |
| CC-PDOB01 | 51405043-176 | Pulse Output Digital Module |
| CC-PAIH01 | 51405038-375 | High-Level Analog Input Module |
| CC-PAOH01 | 51405039-175 | High-Level Analog Output Module |
Sonstige Popular Honeywell Modules
| Modell | Artikelnummer | Beschreibung |
|---|---|---|
| CC-PCNT01 | 51405046-175 | Pulse Counter Module |
| CC-MCAR01 | 51403892-100 | Master Control Application Processor |
| CC-PAIN01 | 51410069-175 | Analog Input Module with Advanced Features |
| CC-PDOB01 | 51405043-176 | Pulse Output Digital Module |
| CC-TAON01 | 51306519-175 | Analog Output Module |
| CC-TAIX51 | 51308365-175 | Isolated Analog Input Module |
