Produkteinführung

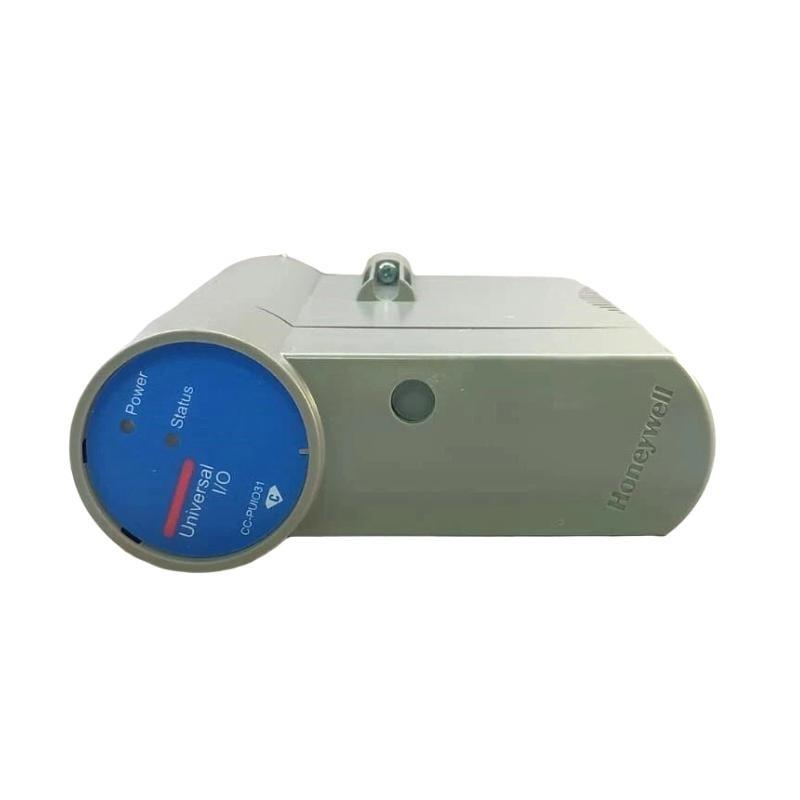

The Honeywell CC-PUI03 is a versatile Universal Input/Output (I/O) Module designed for industrial automation and process control applications. This module provides the capability to interface with a wide range von analog and digital signals, vonfering precise data acquisition, signal conditioning, and control flexibility.
Engineered for robust performance, the CC-PUI03 ensures reliable operation in demanding environments. Its universality allows seamless integration with Honeywell controllers, fieldbus networks, and distributed I/O systems. The module is widely adopted in industries such as oil & gas, power generation, chemical processing, and manufacturing for process monitoring and control.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell | Honeywell CC-PUI03 |
| Type | Universal Input/Output Module |
| Function | Signal acquisition, conditioning, and control |
| Supported Signal Types | Analog (4–20 mA, 0–10 V), Digital, Thermocouples, RTDs |
| Input Channels | 8 analog / 8 digital, configurable |
| Output Channels | 4 analog / 4 digital, configurable |
| Accuracy | ±0.1% von full scale |
| Resolution | 16-bit |
| Communication Interfaces | RUSIO, Modbus, Fieldbus |
| Integration | Compatible with Honeywell PLCs, DCS, and I/O systems |
| Diagnostics | Status LEDs, self-test, fault reporting |
| Power Supply Requirement | 24 V DC nominal |
| Power Consumption | <12 W typical |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Installation Type | Rack-mounted or panel-mounted |
| Dimensions (W×H×D) | 63.5 x 124.46 x 307.34 mm |
| Gewicht | 0.3 kg |
Product Applications
-
Industrial Process Control: Interfaces analog and digital signals for process automation.
-
Distributed Control Systems (DCS): Integrates with Honeywell and other DCS systems for flexible I/O expansion.
-
Oil & Gas Industry: Monitors and controls flow, pressure, temperature, and other critical parameters.
-
Power Generation: Connects sensors and actuators for turbine and generator monitoring.
-
Chemical & Pharmaceutical Plants: Ensures accurate measurement and control von processing variables.
-
Factory Automation: Facilitates modular and scalable I/O solutions for machinery and production lines.
Product Advantages
-
Universal Signal Support: Handles analog, digital, thermocouple, and RTD signals.
-
High Accuracy & Resolution: Ensures precise measurement and control with ±0.1% accuracy and 16-bit resolution.
-
Flexible Configuration: Supports multiple input/output channels that can be configured for different applications.
-
Robust Industrial Design: Designed to operate reliably in harsh temperature and humidity conditions.
-
Diagnostics & Fault Reporting: Built-in LEDs and self-test routines enhance operational reliability.
-
Seamless Integration: Compatible with Honeywell PLCs, DCS, and fieldbus systems.
-
Scalable Solution: Suitable for both single-module installations and large distributed I/O networks.
FAQ
-
What signal types can the CC-PUI03 module support?
It can handle analog signals (4–20 mA, 0–10 V), digital signals, thermocouples, and RTDs. -
How many input and output channels does the module provide?
The module provides 8 configurable analog/digital inputs and 4 configurable analog/digital outputs. -
Can this module be integrated into Honeywell PLC systems?
Yes, it is fully compatible with Honeywell PLCs and distributed control systems. -
What is the accuracy and resolution von the module?
The module provides ±0.1% von full-scale accuracy with 16-bit resolution. -
Does the CC-PUI03 provide diagnostic features?
Yes, it includes LED status indicators, self-test routines, and fault reporting capabilities. -
Which communication protocols does the module support?
The module supports RUSIO, Modbus, and other standard fieldbus protocols. -
Is the module suitable for harsh industrial environments?
Yes, it operates reliably in temperatures from -20°C to +60°C and 5–95% humidity. -
Can input and output channels be reconfigured?
Yes, the channels are fully configurable depending on the application requirements. -
Can the module support both process control and safety-critical systems?
Yes, it is designed for precise signal handling and integration into both standard and safety-critical applications. -
What installation types does the module support?
The module can be installed in rack-mounted or panel-mounted configurations for flexible deployment.
Related Modells
| Modell | Beschreibung |
|---|---|
| Honeywell CC-PUI01 | Universal I/O module with 4 input / 2 output channels |
| Honeywell CC-PUI02 | Universal I/O module with 8 input / 4 output channels |
| Honeywell CC-PUI04 | High-density universal I/O module with 16 input / 8 output channels |
| Honeywell CC-PUI05 | Universal I/O module with enhanced thermocouple and RTD support |
| Honeywell CC-PUI06 | Redundant universal I/O module for safety systems |
| Honeywell CC-PUI07 | Universal I/O module with advanced diagnostics and fieldbus integration |
