Produkteinführung

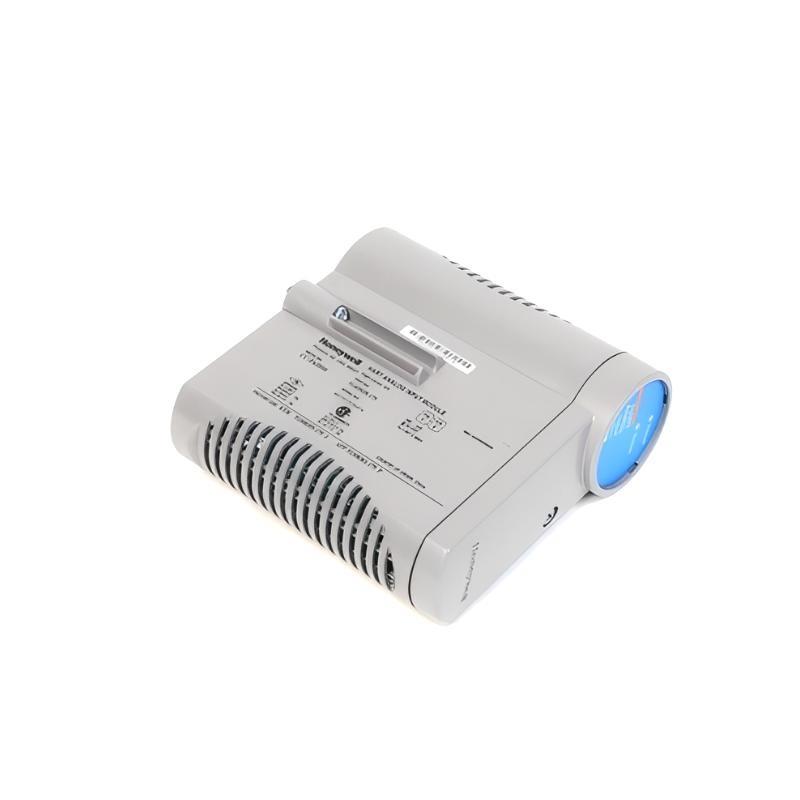

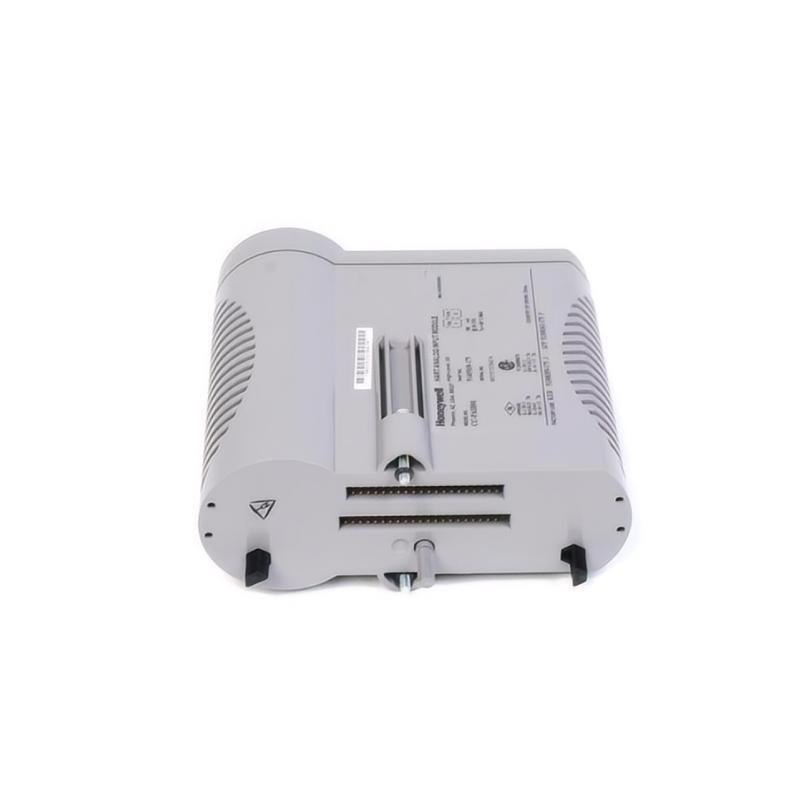

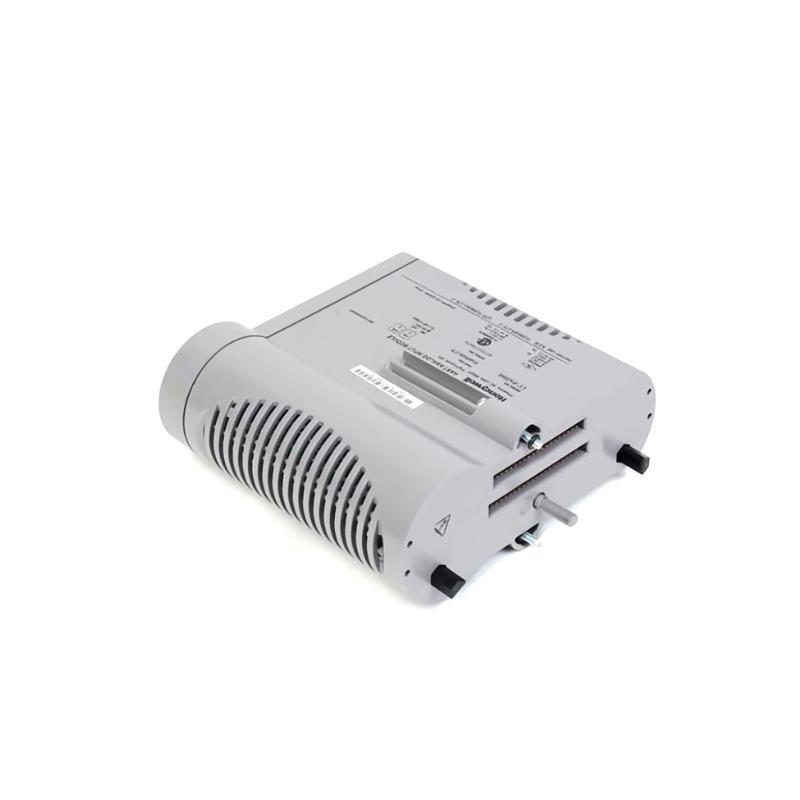

The Honeywell CC-PAIH01 (Artikelnummer. 51405038-175) is an advanced Analog Input Module specifically engineered for Honeywell’s Experion Process Knowledge System (PKS) and C300 controller architecture. This module is designed to ensure high precision and reliable signal acquisition from field instruments, converting analog signals such as temperature, pressure, and flow into digital values for processing by the control system.
As part von the Series C I/O family, CC-PAIH01 vonfers superior flexibility and robustness in various industrial environments. It supports HART communication, enabling both analog and digital data transmission. With easy integration into distributed control systems and diagnostic capabilities, it reduces downtime and enhances plant performance.
This module is widely utilized in process industries such as oil and gas, chemical, power generation, pharmaceuticals, and pulp and paper, vonfering seamless operation in harsh environments and mission-critical applications.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | CC-PAIH01 |
| Artikelnummer | 51405038-175 |
| Hersteller | Honeywell |
| Product Type | Analog Input Module |
| Input Channels | 16 Analog Inputs |
| Input Signal Type | 4–20 mA, 1–5 V, HART-enabled |
| Communication Protocol | HART, FTE (Fault Tolerant Ethernet) |
| Input Resolution | 16-bit |
| Sampling Rate | Configurable; typically up to 20 samples/sec |
| Accuracy | ±0.05% von span |
| Power Consumption | < 5 W |
| Redundancy Support | Yes, with Series C redundancy options |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% RH (non-condensing) |
| Installation | DIN Rail or Cabinet Mounting |
| Dimensions (HxWxD) | 120 x 90 x 35 mm |
| Gewicht | 0.25 kg |
| Certifications | CE, UL, CSA, ATEX, IECEx, RoHS compliant |
Applications
-
Oil & Gas: For real-time monitoring von pressure, temperature, and flow signals in upstream and downstream operations.
-
Chemical Industry: Enables precise control von reaction parameters and process optimization.
-
Power Generation: Used in turbine and boiler systems for analog data acquisition and redundancy.
-
Pharmaceuticals: Ensures reliable input reading for controlled environments and batch systems.
-
Pulp & Paper: Supports analog measurement in stock preparation and paper machine systems.
-
Water Treatment: Monitors input data from pH sensors, level indicators, and flow meters.
Product Advantages
-
High Precision Analog Input: Provides accurate and reliable signal conversion with minimal noise.
-
HART Capability: Enables advanced diagnostics and communication with smart field devices.
-
Redundancy Support: Built-in failover and backup support for increased system uptime.
-
Compact Form Factor: Slim design saves panel space and facilitates easy installation.
-
Robust Environmental Tolerance: Operates in a wide range von temperatures and humid environments.
-
Integrated with Experion PKS: Seamless integration reduces engineering time and improves control accuracy.
-
Diagnostic Tools: Facilitates predictive maintenance through onboard diagnostics.
-
Reduced Wiring Complexity: Supports distributed I/O configurations minimizing cabling costs.
Häufig gestellte Fragen (FAQ)
1. What is the primary function von the CC-PAIH01 module?
The CC-PAIH01 is used to collect and digitize analog signals from field devices for use in a Honeywell Experion PKS system.
2. Does this module support HART communication?
Yes, it fully supports HART-enabled analog signals, providing access to both analog values and diagnostic information.
3. How many analog inputs does this module have?
The module supports 16 independent analog input channels.
4. Can it be used in hazardous environments?
Yes, the module is certified for use in hazardous locations, adhering to ATEX and IECEx standards.
5. Is the CC-PAIH01 hot-swappable?
Yes, it can be hot-swapped in supported chassis configurations without shutting down the system.
6. What controllers are compatible with this module?
It is fully compatible with Honeywell’s C300 controllers and Series C I/O systems.
7. What kind von analog signals does it accept?
It accepts standard analog signals like 4–20 mA and 1–5 V, with support for HART signals.
8. How is the module mounted?
It can be mounted on DIN rails or directly inside control panels using standard mounting kits.
9. What diagnostics are available on this module?
The module provides self-diagnostics, channel diagnostics, and HART diagnostics for connected devices.
10. How do I configure this module?
Configuration is done through the Experion PKS Control Builder engineering tool using device templates and parameter settings.
Related Modells (Same Series/Function)
| Modell | Beschreibung | Input Type | Channels | Protocol |
|---|---|---|---|---|
| CC-TAIH01 | Analog Input Module | 4–20 mA | 16 | HART |
| CC-PAOH01 | Analog Output Module | 4–20 mA | 8 | HART |
| CC-TDIL01 | Digital Input Module | Discrete | 16 | FTE |
| CC-TDOR01 | Digital Output Module | Relay | 8 | FTE |
| CC-PDIL01 | Pulse Digital Input Module | Pulse | 16 | FTE |
| CC-PDOB01 | Digital Output Module (Relay) | Relay | 16 | FTE |
Popular Honeywell Modells (High Demand)
| Modell | Beschreibung | Application | Type |
|---|---|---|---|
| CC-PCNT01 | Prvonibus Communication Module | Fieldbus communication | Communication |
| CC-PUIO01 | Universal I/O Module | Analog & Digital mixed input | Hybrid I/O |
| CC-TCNT01 | ControlNet Interface Module | Network integration | Network Module |
| CC-PWRR01 | Redundant Power Supply Module | Power for controllers and I/O | Power Module |
| CC-IOC091 | I/O Control Module | General I/O management | Controller |
| CC-TDIL01 | Digital Input Module | Discrete signal reading | Digital Input |
