Product Overview

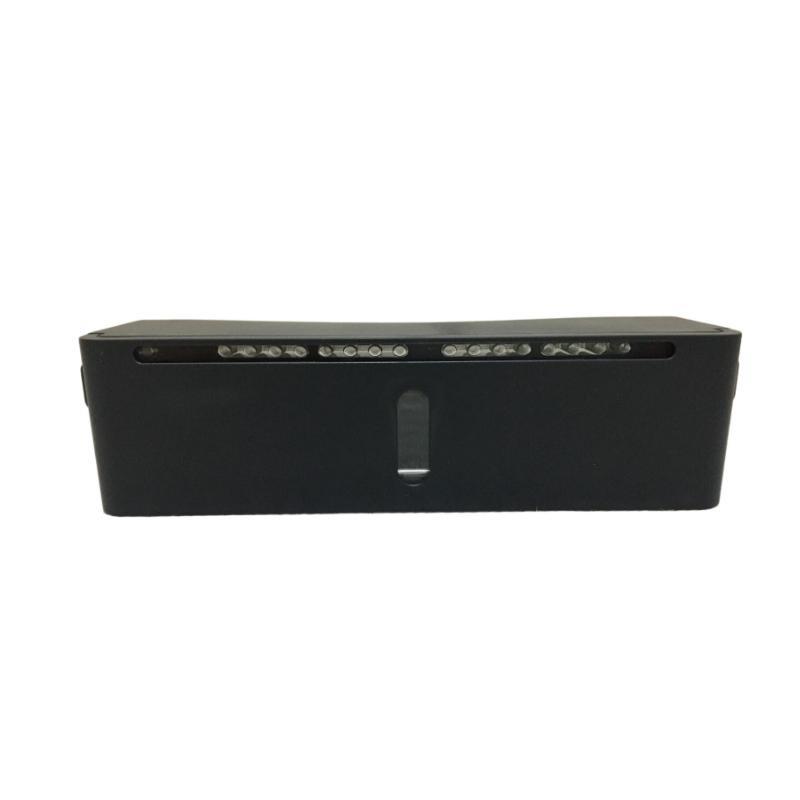

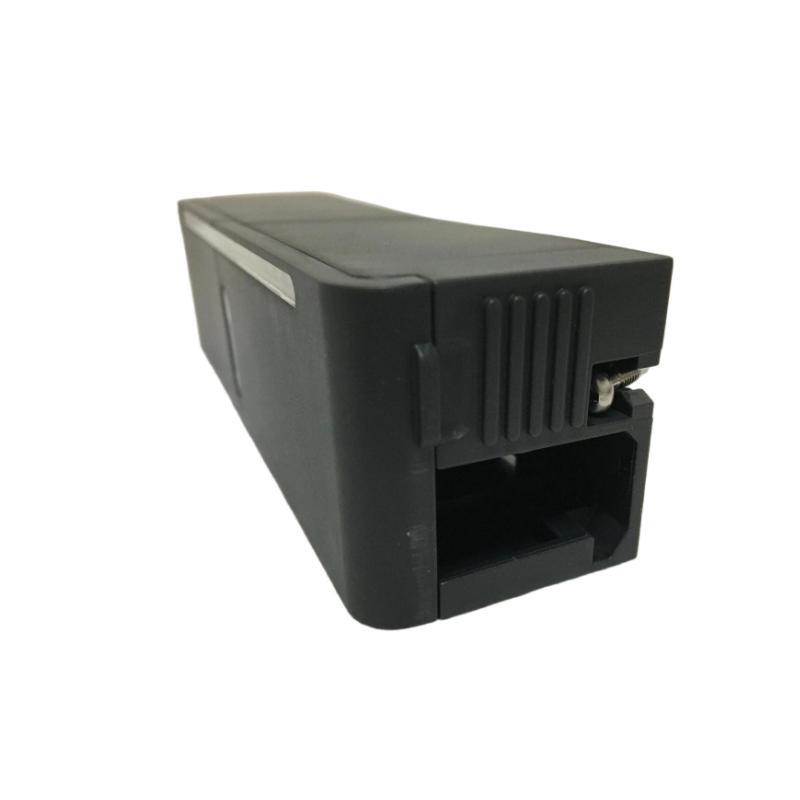

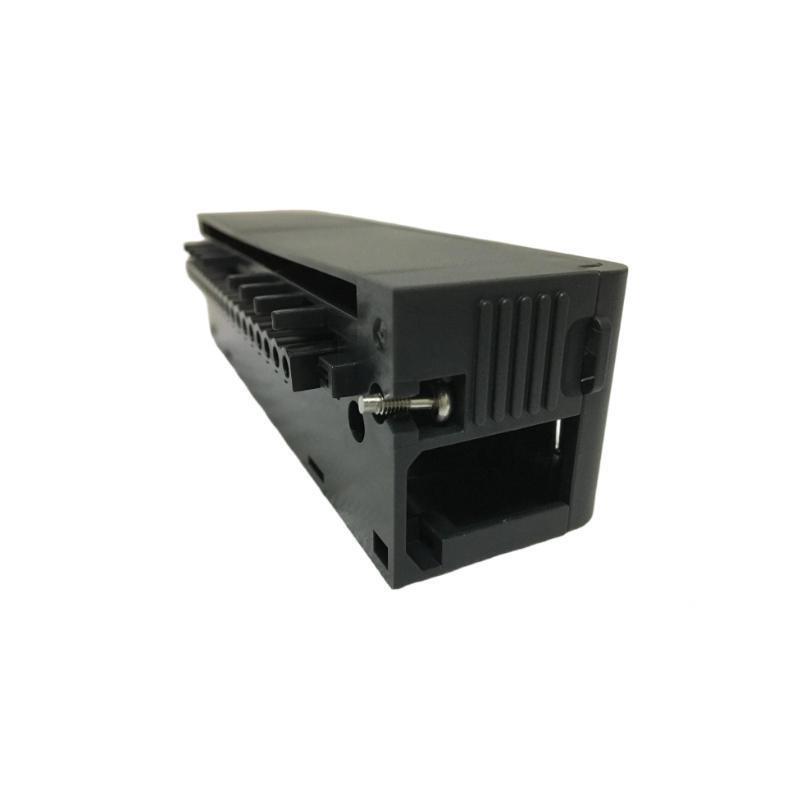

The Honeywell 900TEK-0001 is a high-quality terminal block designed for use with ControlEdge HC900 I/O modules. It enables secure, organized, and efficient field wiring connections between process sensors/actuators and the HC900 controller, supporting both analog and digital signal types.
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Modell | 900TEK-0001 |
| Beschreibung | Terminal Block for ControlEdge HC900 I/O |
| Compatibility | ControlEdge HC900 I/O Modules |
| Mounting Type | DIN Rail |
| Terminal Style | Screw type |
| Number von Terminals | 20 or 36 depending on I/O module |
| Connection Type | Euro/Barrier style |
| Material | Flame-retardant PVC (UL94-V0) |
| Dimensions (L×W×H) | 111 × 94 × 66 mm |
| Gewicht | 0.129 kg |
Applications
-
Process automation systems
-
Chemical and pharmaceutical plant control
-
Environmental and water treatment facilities
-
Power generation systems
-
Food and beverage processing equipment
Product Advantages
-
Supports quick installation and replacement
-
High-density wiring interface reduces panel space
-
Ensures proper safety with red/black terminal coding
-
DIN rail compatibility enables modular mounting
-
Keying system prevents incorrect wiring connections
Häufig gestellte Fragen (FAQ)
Q1: What types von terminal blocks are available with 900TEK-0001?
A1: Both Euro and barrier style terminal blocks are available, supporting high and low voltage.
Q2: Is this terminal block hot-swappable?
A2: No, terminal blocks must be disconnected from field power before removal.
Q3: What I/O modules is it compatible with?
A3: It supports all ControlEdge HC900 I/O modules including analog, digital, and relay types.
Q4: How is the terminal block mounted?
A4: It mounts on a standard 35mm DIN rail.
Q5: Does it support signal identification?
A5: Yes, color-coded I/O labels and writable areas are provided for clear signal identification.
Q6: Can this terminal block be used in high-voltage circuits?
A6: Yes, red blocks are designated for high-voltage connections for safety.
Q7: What is the benefit von the keying system?
A7: It prevents mismatched module-to-terminal block connections, reducing wiring errors.
Q8: Is this terminal block part von a redundant system?
A8: Yes, it’s compatible with both standard and redundant I/O configurations.
Q9: Are individual circuit fuses available?
A9: Yes, particularly in analog and relay Remote Terminal Panels (RTPs).
Q10: Is the material compliant with environmental standards?
A10: Yes, it’s made von flame-retardant PVC and compliant with RoHS.
Related Modells (Same Series or Function)
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 900TCK-0001 | 36-Terminal Euro Style Terminal Block | 111 × 94 × 66 | 0.129 kg |
| 900RTD-0001 | Remote Terminal Panel for RTD Inputs | 140 × 100 × 65 | 0.145 kg |
| 900RAO-0001 | RTP for Analog Outputs | 130 × 95 × 60 | 0.135 kg |
| 900RDI-0001 | RTP for Digital Inputs | 130 × 90 × 60 | 0.130 kg |
| 900REL-0001 | RTP for Relay Outputs | 135 × 105 × 70 | 0.150 kg |
| 900RDO-0001 | RTP for Digital Outputs | 125 × 95 × 65 | 0.138 kg |
Popular Honeywell Modells (Same Marke)
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 900C70-0460 | HC900 CPU Controller | 137 × 38.1 | 400 g |
| 900A01-0202 | 8-ch Universal Analog Input Module | 137 × 35.6 | 210 g |
| 900B08-0202 | 8-ch Analog Output Module | 137 × 35.6 | 400 g |
| 900H01-0202 | 8-ch Relay Output Module | 137 × 35.6 | 425 g |
| 900G32-0101 | 32-ch Digital Input Module | 137 × 35.6 | 175 g |
| 900P24-0301 | 24VDC Power Supply Module | 137 × 72.6 | 792 g |
