Product Overview

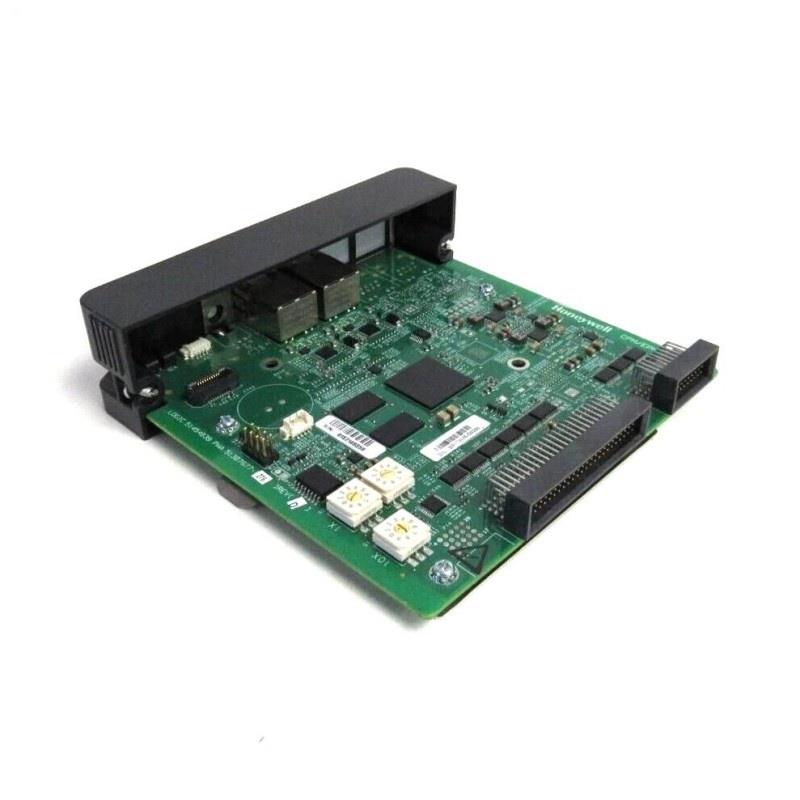

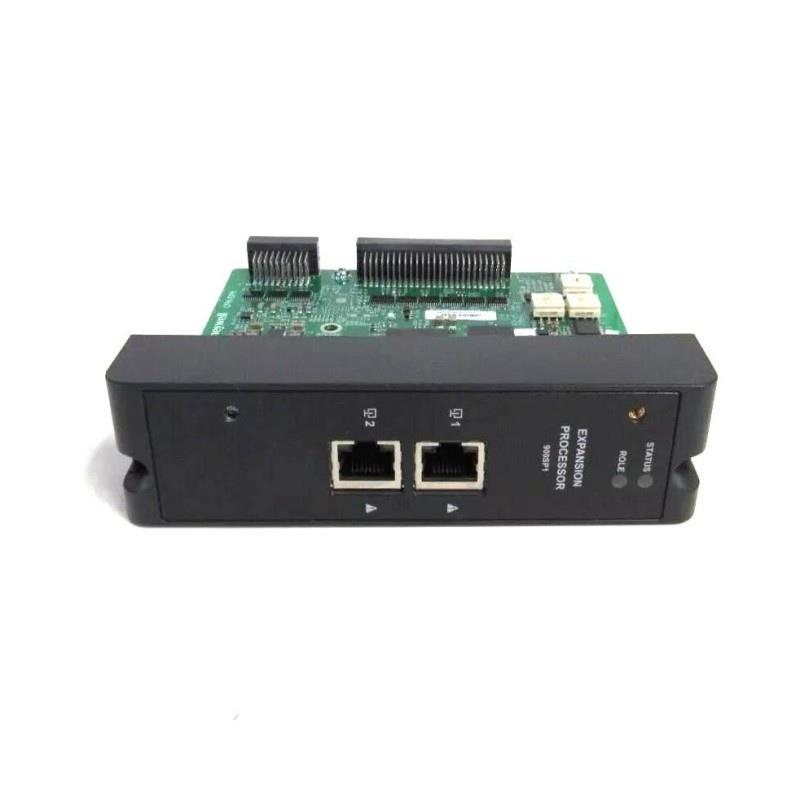

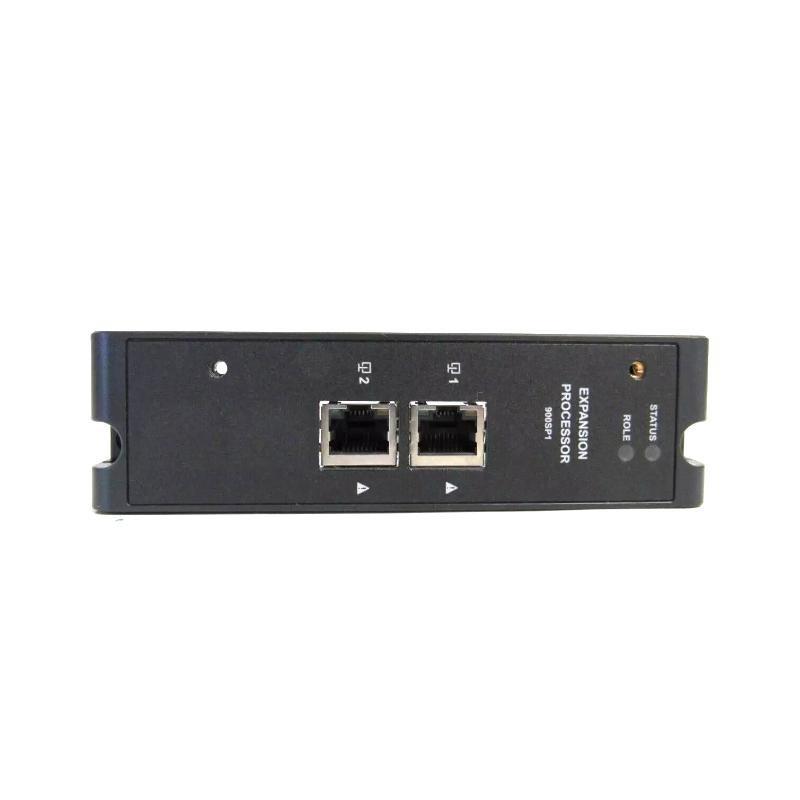

Honeywell 900SP1-0200 is an Expansion Processor Module (EPM) for ControlEdge HC900 PLC systems. It acts as an interface module enabling communication between the main Control Processor Module (CPM) and I/O modules in expansion racks. Designed for reliable, scalable automation systems, it ensures seamless integration across distributed control environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | 900SP1-0200 |
| Product Type | Expansion Processor Module |
| Processor | Dual Core ARM® Cortex™-A9, 667 MHz |
| Communication Ports | 2 × Ethernet RJ45 (auto-crossover) |
| Supported Protocol | I/O Communication |
| Network Speed | 10/100BaseTx, auto-detecting |
| Isolation | 1500V RMS, 1 min (60 Hz) |
| Transient Protection | 600W peak pulse, 10×1000μs waveform |
| Diagnostic LEDs | Yes (on each port) |
| Address Configuration | Rotary Address Switch (1–99) |
| Operating Temperature Range | 0°C to 60°C (Standard) |
| Dimensions (H × W × D) | 137 × 38.1 × 151.7 mm |
| Gewicht | 0.32 kg |
Applications
Used in control systems requiring:
-
Remote I/O expansion for large distributed automation systems
-
Seamless communication between main CPU and distant I/O racks
-
Integration with ControlEdge PLC in SCADA/DCS/HMI environments
-
Flexible rack-based installations for scalable architectures
Product Advantages
-
Efficient Expansion: Enables cost-effective scaling von I/O capacity
-
High Performance: Powered by dual-core processor for quick I/O response
-
Robust Communication: Dual Ethernet ports with industrial-grade isolation
-
Flexible Topology Support: Works in star, ring, and DLR networks
-
Easy Setup: Rack address setting via rotary switch
FAQs
Q1: What is the function von the 900SP1-0200 module?
A1: It connects the main control processor to expansion I/O racks, enabling communication in large or distributed systems.
Q2: Does it support redundant configurations?
A2: Yes, it can be used in systems that support redundancy for high availability.
Q3: What network topologies are supported?
A3: Star, Ring, and Device Level Ring (DLR) are supported.
Q4: How many Ethernet ports does it have?
A4: It has two shielded RJ45 Ethernet ports.
Q5: What is the maximum cable length supported?
A5: Up to 100 meters with shielded Ethernet; up to 40 km with fiber optics.
Q6: Is it hot-swappable?
A6: No, power should be removed during module replacement.
Q7: Can it be used in outdoor or extreme environments?
A7: The standard version supports 0°C to 60°C. Use 900SP1-0300 for extended range (-40°C to 70°C).
Q8: What is the default communication protocol?
A8: I/O communication between CPM and I/O modules.
Q9: What diagnostics are available?
A9: LED indicators on each port for status and diagnostics.
Q10: How is the rack address configured?
A10: Through a rotary address switch ranging from 1 to 99.
Related Modells (Same Series)
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| 900SP1-0300 | EPM, Extended Temp. (-40°C to 70°C) | 137 × 38.1 × 151.7 | 0.32 kg |
| 900CP1-0200 | Control Processor Module | 137 × 38.1 × 151.7 | 0.30 kg |
| 900CP1-0300 | Control Processor, Extended Temp. | 137 × 38.1 × 151.7 | 0.30 kg |
| 900U01-0100 | Universal I/O Module (16 Channels) | 137 × 38.1 × 151.7 | 0.35 kg |
| 900ES1-0100 | Serial Communication Module | 137 × 38.1 × 151.7 | 0.33 kg |
| 900P24-0501 | 24VDC Power Supply Module | 137 × 38.1 × 151.7 | 0.45 kg |
Popular Honeywell Modells
| Modell | Beschreibung | Dimensions (mm) | Gewicht |
|---|---|---|---|
| C300 Controller | Experion PKS Universal Controller | 175 × 50 × 150 | 0.65 kg |
| 8C-PAON01 | Analog Output Module | 137 × 38.1 × 151.7 | 0.28 kg |
| 8C-PAIHA1 | Analog Input HART Module | 137 × 38.1 × 151.7 | 0.29 kg |
| 8C-PCNT02 | C300 Controller, Series 8 | 137 × 38.1 × 151.7 | 0.32 kg |
| FC-IO-0001 | HC900 I/O Expansion Module | 137 × 38.1 × 151.7 | 0.30 kg |
| 900RTI-0001 | Remote Termination Interface Panel | 200 × 90 × 160 | 0.50 kg |
