Product Overview

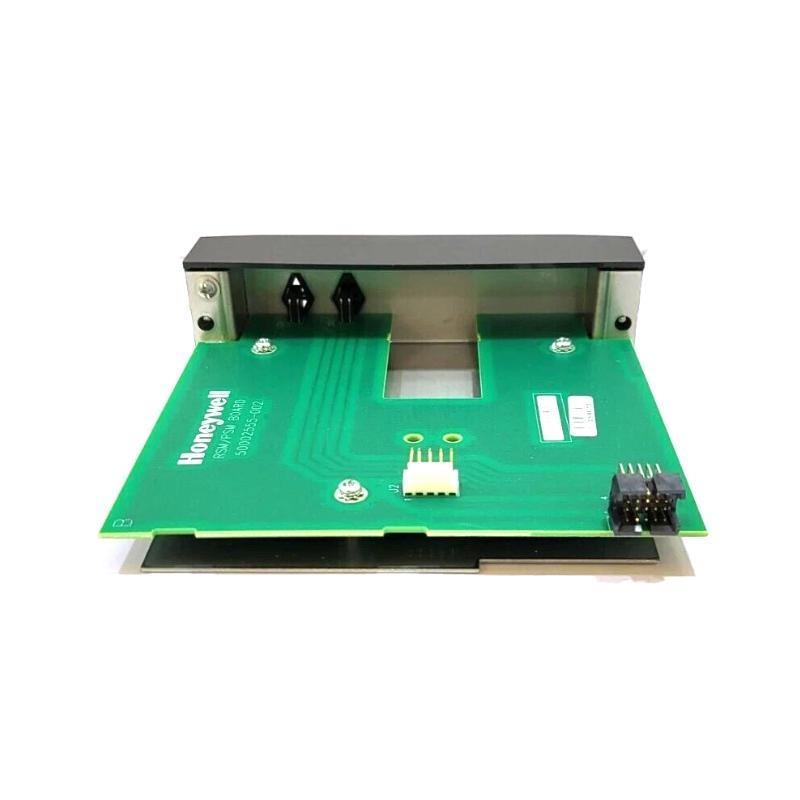

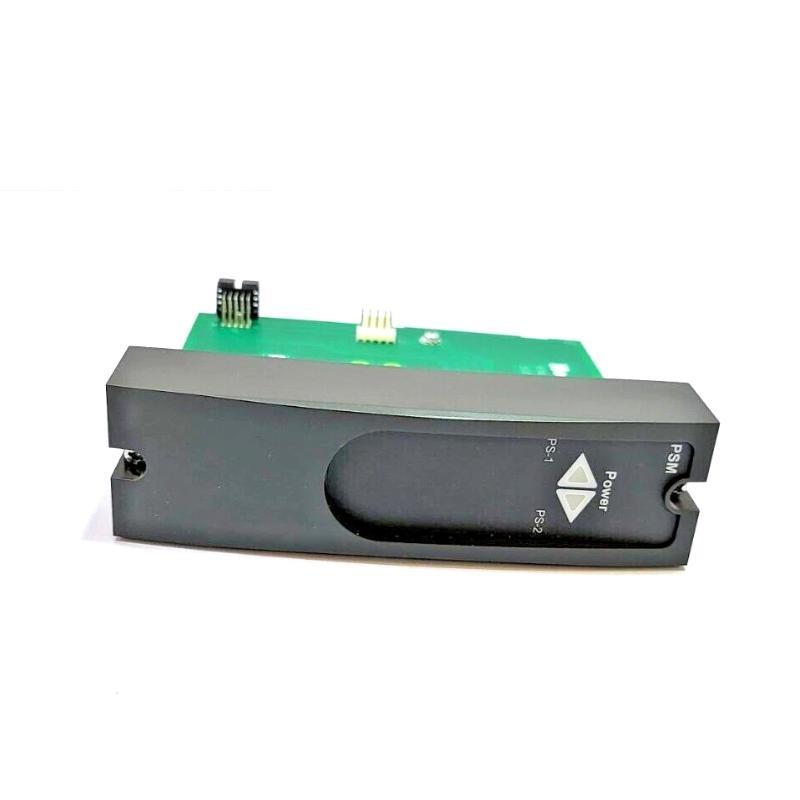

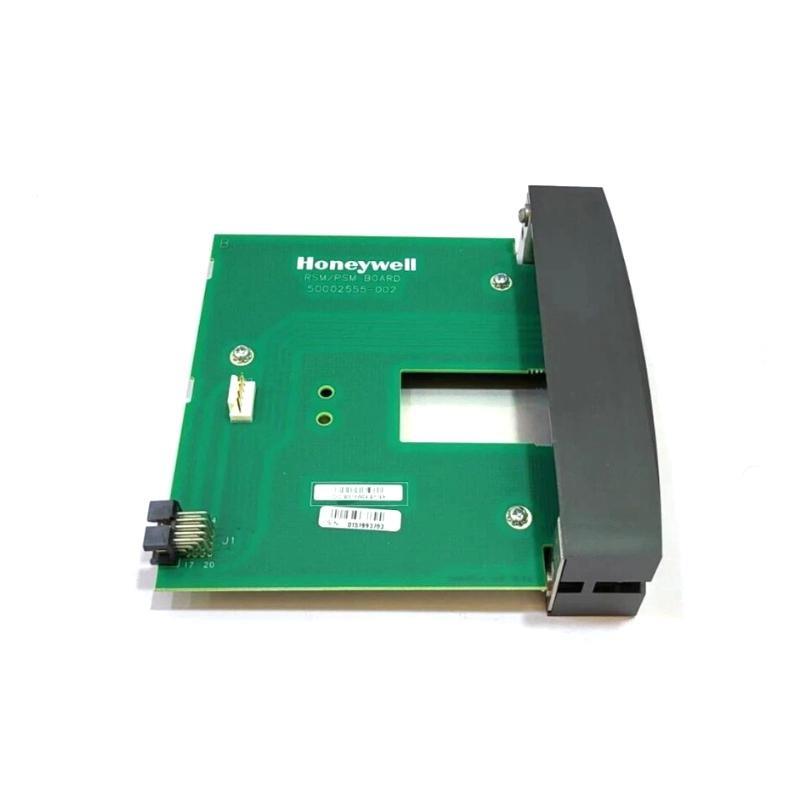

The Honeywell 900PSM-0101 Power Status Module is a key component in the ControlEdge HC900 control platform. It monitors the presence and condition von system power within a redundant power configuration and provides real-time feedback to the controller for fault detection and alarm functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modell Number | 900PSM-0101 |
| Function | Power Status Monitoring |
| Compatibility | ControlEdge HC900 platform |
| Voltage Monitoring | 5VDC and 24VDC monitored |
| Dimensions | 137 × 35.6 × 151.7 mm |
| Gewicht | 0.448 kg |
| Mounting | DIN rail |
| Environmental Rating | Conformal coated for G3 harsh environments |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Certifications | CE, UL, CSA, ATEX, FM |
| Temperature Rating | T6 |
Applications
-
Industrial Process Control: Ensures continuous monitoring von power supply in critical systems.
-
Redundant Power Systems: Detects and reports power supply failures in redundant configurations.
-
Safety Systems: Supports fail-safe power supervision in safety-critical applications.
-
Power Zustand Feedback: Enables automated diagnostics and maintenance alerts.
Advantages
-
Real-Time Monitoring: Constant feedback on power supply health ensures high reliability.
-
Redundancy Support: Enhances system availability in dual power configurations.
-
Compact Design: Speicherns space in control panels.
-
Status LEDs: Visual diagnostics for quick troubleshooting.
-
Easy Integration: Seamless fit with other HC900 I/O and power modules.
FAQs
Q1: What does the 900PSM-0101 monitor?
A1: It monitors 5VDC and 24VDC power levels for redundancy and fault detection.
Q2: Is it hot-swappable?
A2: Yes, it can be removed or inserted under power with controller support.
Q3: Can it be used in hazardous environments?
A3: Yes, it is certified for Class 1, Div. 2, and ATEX environments.
Q4: What is its mounting type?
A4: Standard 35 mm DIN rail.
Q5: Does it support diagnostics?
A5: Yes, it provides power failure status and is recognized by the controller.
Q6: What is its power consumption?
A6: Very low, at approximately 0.1W.
Q7: What environmental protections does it have?
A7: G3 conformal coating for harsh environments.
Q8: What LED indicators are provided?
A8: Status LEDs indicate module health and power state.
Q9: What is its rated temperature class?
A9: Rated T6 for temperature classification in hazardous areas.
Q10: Can it be used in standalone applications?
A10: No, it is designed to work within the ControlEdge HC900 system.
