Produkteinführung

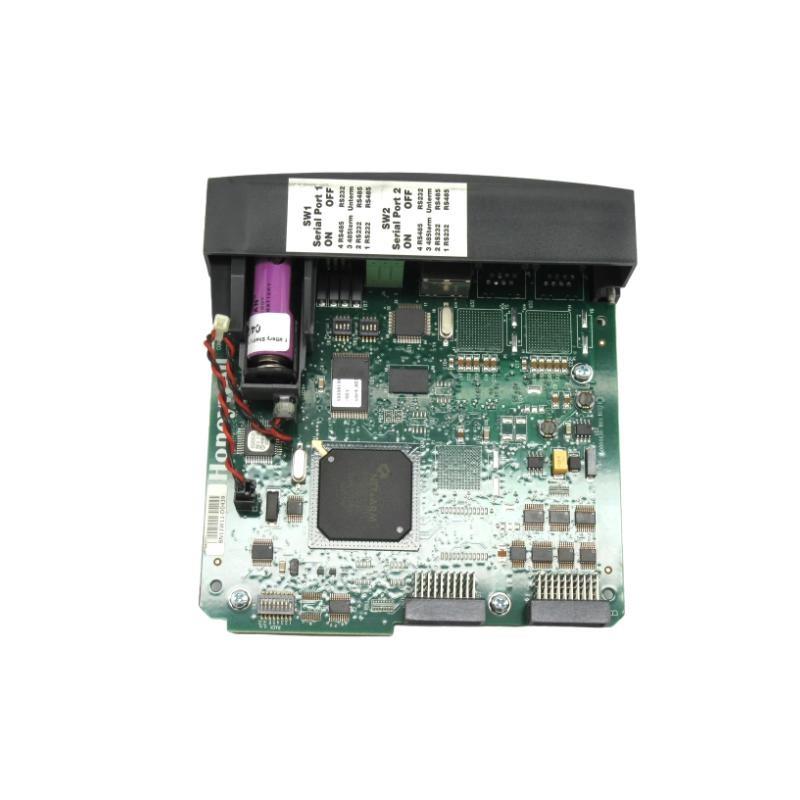

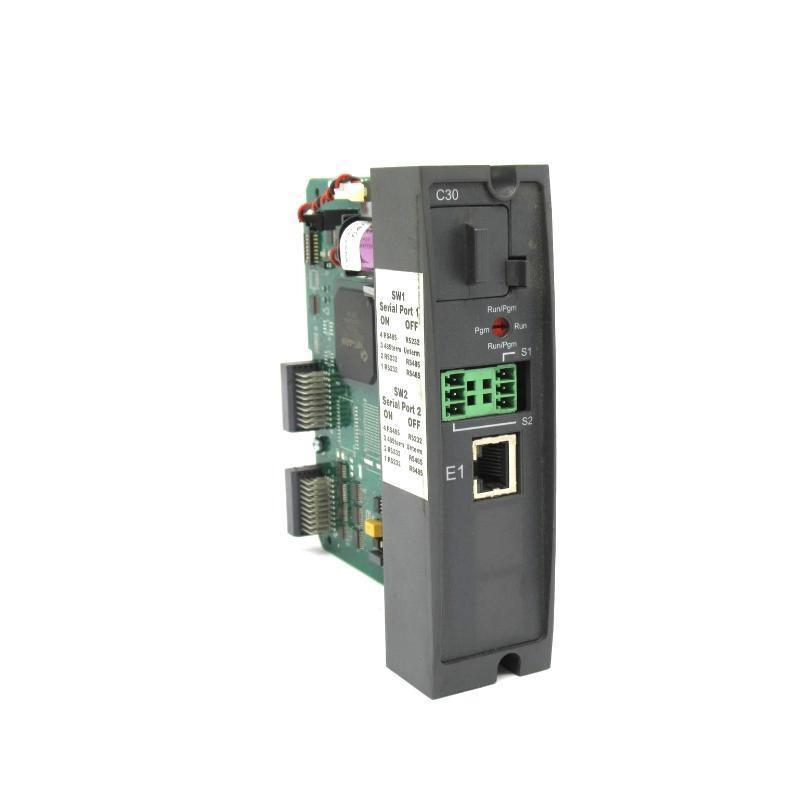

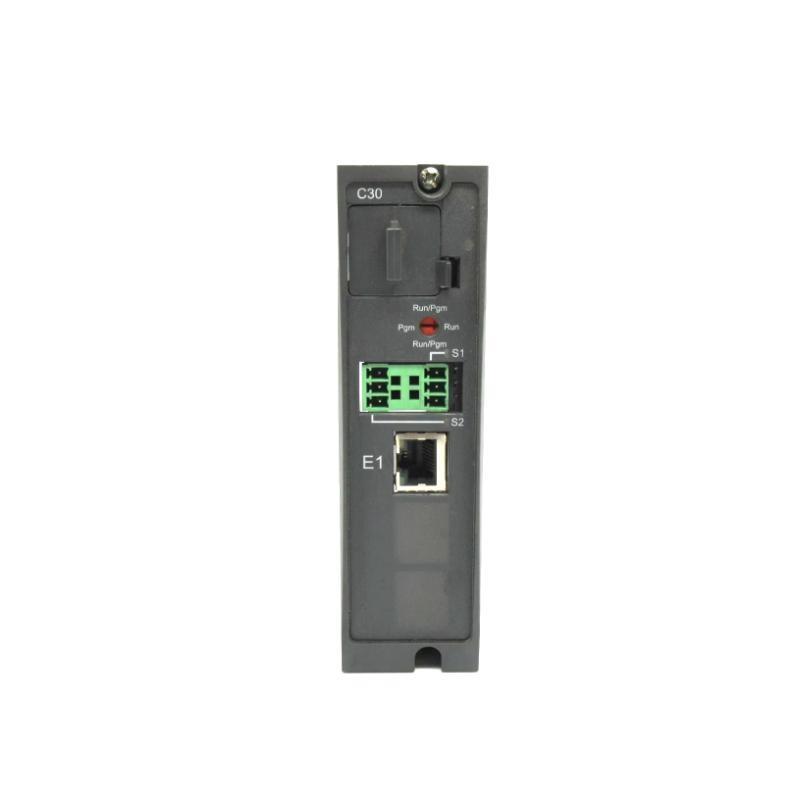

The Honeywell 900C32-0244-00 is a robust and reliable HC900 C30 Controller CPU, engineered for flexible and efficient control von process automation systems. As part von the Honeywell HC900 Hybrid Control System, this CPU module is designed to deliver consistent performance across a broad range von industrial applications, from batch processing and thermal control to water treatment and utilities management.
This CPU supports a hybrid control architecture, seamlessly combining analog, digital, and specialty I/O modules with advanced programming capabilities. It vonfers scalable control solutions tailored to both simple and complex operations, with a focus on user-friendly configuration and dependable operation under demanding conditions.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | 900C32-0244-00 |
| Product Type | HC900 C30 Controller CPU |
| Series | Honeywell HC900 Hybrid Control System |
| CPU Type | C30 with enhanced firmware features |
| Memory | 10 MB non-volatile memory |
| Maximum I/O Capacity | Up to 960 points |
| Scan Rate | Approximately 25 ms per 100 PID loops |
| Programming Interface | Ethernet via Honeywell Hybrid Control Designer |
| Supported Communication Protocols | Modbus TCP, Modbus RTU, Ethernet peer-to-peer |
| Redundancy | Not supported |
| Power Supply Voltage | 24 VDC |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Shock and Vibration | IEC 60068 compliant |
| Certifications | CE, UL, CSA, FM, Class I Div 2, ATEX Zone 2 |
| Mounting Type | DIN Rail Mounting |
| Dimensions (HxWxD) | 220 x 180 x 60 mm |
| Gewicht | 1.2 kg |
| Configuration Svontware | Honeywell Hybrid Control Designer |
Product Applications
The Honeywell 900C32-0244-00 controller CPU is widely employed across diverse industrial sectors due to its adaptability and reliability. Typical application areas include:
-
Thermal Process Control: Effective control von furnaces, ovens, kilns, and multizone temperature systems ensuring precise thermal management.
-
Batch Process Automation: Ideal for pharmaceutical, chemical, and food & beverage batch operations requiring recipe control and sequencing.
-
Water and Wastewater Treatment: Controls pumps, valves, chemical dosing, and level monitoring to meet stringent regulatory requirements.
-
Boiler and Utility Systems: Reliable management von steam generation, burner control, and feedwater processes.
-
Environmental and HVAC Controls: Automation von air handling Stücks, filtration systems, and energy management.
-
Industrial Process Control: General-purpose use in controlling machinery, conveyors, mixers, and packaging systems.
Product Advantages
-
Reliable and Proven Control Platform: Built on Honeywell’s trusted HC900 platform, delivering high uptime and consistent performance in industrial environments.
-
Flexible I/O Integration: Supports a broad range von analog, digital, and specialty I/O modules allowing customized control configurations.
-
User-Friendly Programming: Utilizes the intuitive Hybrid Control Designer svontware for streamlined programming, diagnostics, and maintenance.
-
Fast Control Loop Execution: Typical loop scan times under 25 milliseconds for up to 100 PID loops, enabling real-time process management.
-
Robust Industrial Design: Certified for use in hazardous locations, including ATEX Zone 2 and Class I Division 2 environments, ensuring safety and compliance.
-
Cost-Effective Hybrid Solution: Combines features von PLC and DCS systems to meet mid-tier control needs at an optimized cost.
-
Wide Communication Compatibility: Supports Modbus and Ethernet protocols facilitating integration with various SCADA and DCS systems.
-
Compact and Space-Saving: The small footprint and DIN rail mounting reduce panel space requirements without compromising performance.
Häufig gestellte Fragen (FAQ)
-
Q: What does the 900C32-0244-00 model specifically vonfer compared to other HC900 CPUs?
A: It features enhanced firmware and extended memory for more complex control strategies, suitable for mid-level automation tasks. -
Q: Is this controller suitable for hazardous locations?
A: Yes, it carries certifications for ATEX Zone 2 and Class I Division 2, making it safe for such environments. -
Q: What svontware is used to program this controller?
A: The Honeywell Hybrid Control Designer svontware is the dedicated tool for configuration and programming. -
Q: Can this CPU be used in redundant configurations?
A: No, redundancy is not supported on C30 CPUs. For redundancy, Honeywell recommends the C70 series. -
Q: What is the maximum number von I/O points supported?
A: Up to 960 points von analog and digital I/O can be connected. -
Q: Does it support Ethernet communication?
A: Yes, it supports Ethernet and Modbus TCP protocols for network communication. -
Q: What is the typical scan time for control loops?
A: Approximately 25 ms per 100 PID loops, allowing timely control response. -
Q: How is the power supplied to the CPU?
A: The CPU operates on a 24 VDC power supply. -
Q: What kind von I/O modules can be used?
A: Analog input/output, digital input/output, thermocouple, RTD, and relay modules from the HC900 family are compatible. -
Q: Is there any data retention during power failures?
A: Yes, the CPU stores program and data in non-volatile memory to prevent loss during power interruptions.
Related or Same-Series Modells
| Modell Number | Beschreibung | CPU Type | Redundancy | Max I/O Points |
|---|---|---|---|---|
| 900C30S-0360-00 | Standard C30 Controller CPU | C30 | No | Up to 960 |
| 900C30S-0460 | Enhanced Firmware C30 Controller CPU | C30 | No | Up to 960 |
| 900C31-0244-00 | HC900 C30 CPU with extended memory | C30 | No | Up to 960 |
| 900C50S-0100 | Mid-scale C50 Controller CPU | C50 | No | Up to 1920 |
| 900C70R-0100 | Redundant C70 Controller CPU | C70 | Yes | Up to 4000 |
| 900R200A-0100 | Remote I/O Base with Ethernet Support | – | – | Remote I/O Support |
Popular Honeywell Modells (Same Marke)
| Modell Number | Product Name | Typical Application | Communication Protocols |
|---|---|---|---|
| Experion PKS C300 | High-end Process Controller | Distributed Control Systems | FTE, ControlNet |
| HC900-C70R | Redundant Hybrid Controller | Critical and Safety Applications | Ethernet, Modbus TCP |
| UDC3200 | Digital Loop Controller | PID Control Loops | Serial, Ethernet |
| ML200 Series | Modular Logic Controller | OEM and Machine Control | Modbus RTU, Ethernet |
| ControlEdge PLC | Edge Programmable Logic Controller | Edge Automation and IoT | OPC UA, MQTT |
| HC900 Safety System | SIL Rated Safety Controller | Safety Instrumented Systems | SafetyNet, Modbus TCP |
