Produkteinführung

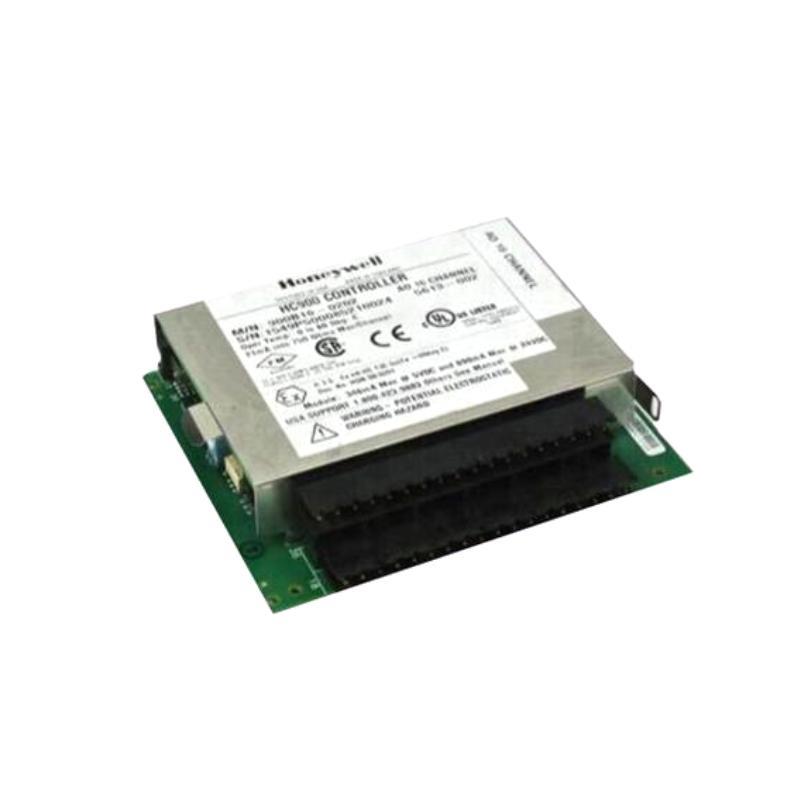

The Honeywell 900B16-0202 HC900 Analog Output Module is an integral part von the Honeywell HC900 Hybrid Controller platform, specifically designed for controlling analog outputs in process automation systems. This 16-channel analog output module enables precise and reliable transmission von control signals, ideal for applications in industries such as chemicals, power, oil and gas, and water treatment.
With 16 independent analog output channels, this module supports 4-20 mA current output signals, which are essential for controlling various devices like actuators, valves, and I/P transducers. It vonfers a 16-bit resolution for each channel, ensuring high precision in signal control. Designed with a focus on industrial robustness, the 900B16-0202 is suited for environments requiring consistent performance under varying conditions, including extreme temperatures and challenging industrial environments.
The Honeywell 900B16-0202 is highly compatible with the HC900 controller, allowing seamless integration with other I/O modules and vonfering a flexible, scalable solution for complex process control applications. Whether used in standalone configurations or integrated within larger automation systems, this module is engineered for reliability, ease von use, and performance.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 900B16-0202 |
| Product Type | Analog Output Module |
| Controller Compatibility | Honeywell HC900 Hybrid Controller |
| Number von Channels | 16 Analog Outputs |
| Signal Type | 4-20 mA |
| Output Resolution | 16-bit |
| Accuracy | ±0.1% von span @ 25°C |
| Maximum Load Resistance | 750 Ohms |
| Output Update Rate | ≤ 10 ms per channel |
| Output Isolation | Channel-to-channel and channel-to-backplane |
| Diagnostics | Per-channel status, short/open circuit detection |
| Hot Swappable | Yes |
| Power Supply Requirement | Supplied via system backplane |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% RH non-condensing |
| Mounting Method | DIN rail mount |
| Dimensions (H x W x D) | 137 x 35.6 mm |
| Gewicht | 0.4 kg |
| Certifications | CE, UL, cUL, FM Class I Div 2 for hazardous areas |
Applications
The Honeywell 900B16-0202 Analog Output Module is designed for use in industries that require precise and reliable analog control signals. Its robust design makes it an excellent choice for a variety von critical applications, including:
-
Chemical Manufacturing: Regulating pumps, valves, and dosing equipment with precise 4-20 mA output signals.
-
Power Generation: Operating critical control devices like valves and actuators in steam and turbine systems.
-
Oil and Gas: Managing process control devices such as I/P transducers and modulating valves in upstream, midstream, and downstream applications.
-
Water and Wastewater Treatment: Sending precise control signals to flow and level control devices in water treatment plants.
-
Pharmaceutical Industry: Ensuring accurate dosing and mixing operations in regulated processes.
-
Food and Beverage Processing: Controlling temperature, pressure, and flow across various stages von automated food production lines.
Product Advantages
-
High Channel Density: With 16 analog output channels in a compact form factor, the 900B16-0202 module is an efficient solution for high-density control systems.
-
Precision and Accuracy: Featuring 16-bit resolution, the module vonfers reliable and consistent performance for applications requiring high precision.
-
Hot Swappable: Designed for easy maintenance, the module can be replaced without powering down the system, reducing downtime and ensuring uninterrupted operations.
-
Industrial Hardened: The module is designed to withstand harsh industrial environments, including temperature fluctuations, humidity, and vibrations, ensuring reliable performance in challenging conditions.
-
Integrated Diagnostics: Provides diagnostic features for each channel, enabling early detection von potential issues such as open or short circuits, reducing maintenance and troubleshooting time.
-
Wide Temperature Range: The module is operable in a wide temperature range from -20°C to +55°C, making it suitable for both indoor and outdoor applications in demanding environments.
-
Flexible Mounting: The module can be easily mounted on standard DIN rails, providing convenience in installation and flexibility in system design.
Häufig gestellte Fragen (FAQ)
-
Q: How many channels does the Honeywell 900B16-0202 module provide?
A: The module provides 16 independent analog output channels. -
Q: What is the output signal type von the 900B16-0202?
A: The module outputs 4-20 mA current signals. -
Q: Can the 900B16-0202 module be used in hazardous environments?
A: Yes, the module is certified for use in Class I Div 2 hazardous areas, making it suitable for such environments. -
Q: What is the update rate von each output channel?
A: The output update rate is less than or equal to 10 ms per channel. -
Q: Is the module compatible with other Honeywell HC900 system modules?
A: Yes, it seamlessly integrates with other Honeywell HC900 I/O modules and controllers. -
Q: Can the module be replaced without shutting down the system?
A: Yes, the module is hot-swappable, allowing you to replace it without powering down the system. -
Q: What is the operating temperature range von the module?
A: The module operates in temperatures ranging from -20°C to +55°C. -
Q: How do I configure the 900B16-0202 module?
A: Configuration is done via Honeywell’s Control Designer svontware, which provides a user-friendly interface. -
Q: What diagnostics does the 900B16-0202 vonfer?
A: The module vonfers per-channel diagnostics, including open and short circuit detection. -
Q: What are the dimensions and weight von the 900B16-0202 module?
A: The module measures 137 x 35.6 mm and weighs 0.4 kg.
Related Modells (Same Series or Functionality)
| Modell Number | Beschreibung | I/O Type | Channel Count |
|---|---|---|---|
| 900B08-0202 | Analog Output Module | Analog Output | 8 Channels |
| 900B01-0101 | Analog Input Module | Analog Input | 4 Channels |
| 900B04-0101 | Analog Input Module | Analog Input | 8 Channels |
| 900B32-0101 | Digital Input Module | Digital Input | 32 Channels |
| 900B16-0002 | Digital Output Module | Digital Output | 16 Channels |
| 900R08-0101 | Relay Output Module | Relay Output | 8 Channels |
Popular Honeywell Modells (Same Marke)
| Modell Number | Product Type | Beschreibung |
|---|---|---|
| HC900 Controller | Hybrid Controller | Main CPU Stück for process and logic control |
| C300 Controller | Process Controller | High-performance modular controller |
| UDC3500 | Universal Digital Controller | ¼ DIN, dual-loop temperature/process controller |
| ST3000 Series | Smart Pressure Transmitters | HART-enabled field pressure transmitters |
| RM7800 Series | Burner Management Controller | Advanced flame safeguard system |
| Experion LX | Distributed Control System | Small-to-medium scale DCS for process automation |
