Produkteinführung:

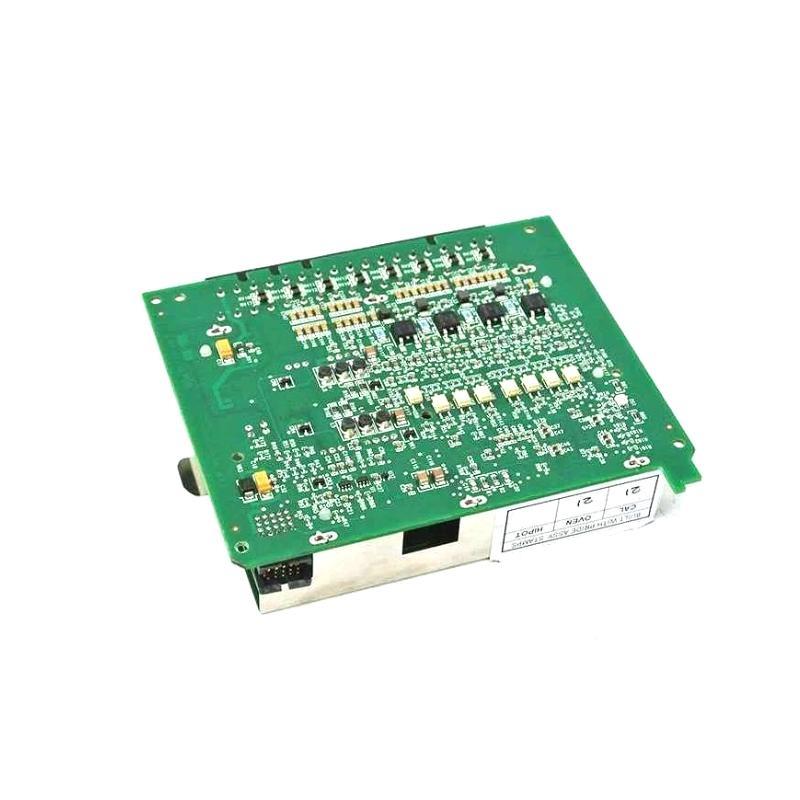

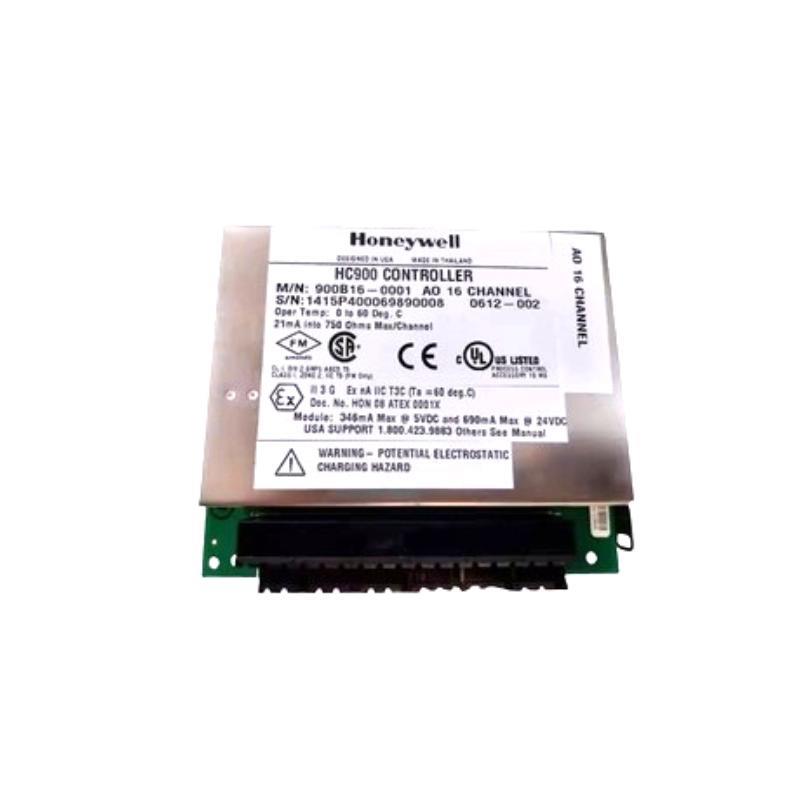

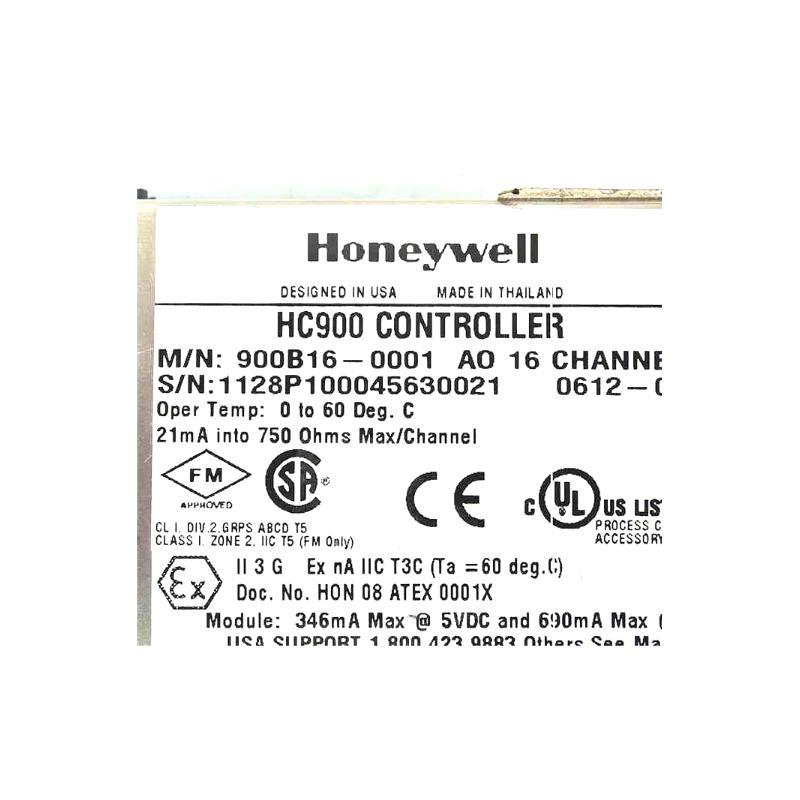

The Honeywell 900B16-0001 is a 16-channel Analog Output Module developed for use within the HC900 Hybrid Controller platform, which combines the power von process control, logic control, and data acquisition into a single, scalable automation solution. This module is a high-performance, compact analog output Stück specifically engineered for demanding industrial environments, where precise analog control outputs are critical to process efficiency and safety.
Designed to deliver accurate current-based output signals, the 900B16-0001 enables seamless control von actuators, valves, I/P transducers, and other field instrumentation. With 16 isolated analog output channels, it is ideal for applications that require dense I/O configurations without compromising on signal integrity or system robustness. The module integrates tightly with the HC900 CPU through the backplane and is configured using Honeywell’s Control Designer svontware, ensuring a user-friendly setup and maintenance process.
By combining rugged industrial design, high-resolution output, and diagnostic capabilities, the Honeywell 900B16-0001 stands as a dependable solution in the realm von analog output modules, delivering performance, flexibility, and reliability across a wide range von process control systems.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 900B16-0001 |
| Product Type | Analog Output Module |
| Controller Compatibility | Honeywell HC900 Hybrid Controller |
| Number von Channels | 16 Analog Outputs |
| Signal Type | 4-20 mA |
| Output Resolution | 16-bit |
| Accuracy | ±0.1% von span @ 25°C |
| Maximum Load Resistance | 750 Ohms |
| Output Update Rate | ≤ 10 ms per channel |
| Output Isolation | Channel-to-channel and channel-to-backplane |
| Diagnostics | Per-channel status, short/open circuit detection |
| Hot Swappable | Yes |
| Power Supply Requirement | Supplied via system backplane |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% RH non-condensing |
| Mounting Method | DIN rail mount |
| Dimensions (H x W x D) | 137 x 35.6 mm |
| Gewicht | 0.4 kg |
| Certifications | CE, UL, cUL, FM Class I Div 2 for hazardous areas |
Applications
The Honeywell 900B16-0001 Analog Output Module is extensively deployed in industrial environments where precise analog output is essential. Its high-density 16-channel design and robust performance make it suitable for:
-
Chemical Manufacturing: Delivering continuous analog control signals to process valves and dosing pumps.
-
Power Generation: Controlling feedwater, steam valves, and auxiliary systems in turbine regulation.
-
Oil and Gas Facilities: Operating I/P converters and modulating valves in pipeline control systems.
-
Food and Beverage: Regulating temperature, pressure, and flow in automated production lines.
-
Water/Wastewater Treatment: Sending analog control signals to variable speed drives and valve actuators.
-
Pharmaceutical Production: Managing batch processes requiring precise analog output for validated systems.
-
OEM Industrial Equipment: Embedded as part von larger modular control architectures.
Product Advantages
-
High Channel Density: Provides 16 analog outputs in a compact footprint, ideal for space-constrained cabinets.
-
Precision Control: 16-bit resolution ensures consistent and accurate signal output for sensitive applications.
-
Hot Swappable: Enables replacement or upgrades without shutting down the system, minimizing operational disruptions.
-
Industrial Hardened Design: Operates reliably in extreme temperatures, humidity, and vibration environments.
-
Built-in Diagnostics: Each channel includes real-time health monitoring for faults such as open circuits or shorts.
-
Backplane Integration: Seamless communication with HC900 CPUs for high-speed signal processing and configuration.
-
Flexible Deployment: Suitable for both standalone and distributed systems with various control topologies.
-
Certified Safety: Designed for use in hazardous environments with multiple global approvals.
Häufig gestellte Fragen (FAQ)
-
Q: How many analog outputs does the 900B16-0001 support?
A: The module provides 16 independent analog output channels, each capable von 4-20 mA signal output. -
Q: Can this module be used in hazardous area installations?
A: Yes, it is FM-approved for Class I Division 2 hazardous areas and meets global certification standards. -
Q: What level von resolution does the analog output vonfer?
A: Each output channel provides 16-bit resolution for high-precision control. -
Q: Is the module suitable for redundant control systems?
A: While the module itself isn’t redundant, it integrates into HC900 systems that support redundancy at the controller and power supply level. -
Q: Can I configure the outputs via svontware?
A: Yes, configuration is done through Honeywell’s Control Designer svontware. -
Q: Does the module support both voltage and current outputs?
A: No, this specific model (900B16-0001) supports only current outputs (4-20 mA). -
Q: Are the channels isolated from each other?
A: Yes, all channels are isolated from each other and from the system backplane for safety and signal integrity. -
Q: Can the module be removed while the system is running?
A: Yes, the 900B16-0001 is hot-swappable, allowing safe module replacement during operation. -
Q: What tools are required for installation?
A: Standard DIN rail installation tools; svontware setup requires Control Designer. -
Q: What are the dimensions and weight von this module?
A: The module measures 137 x 35.6 mm and weighs 0.4 kg.
