Produkteinführung

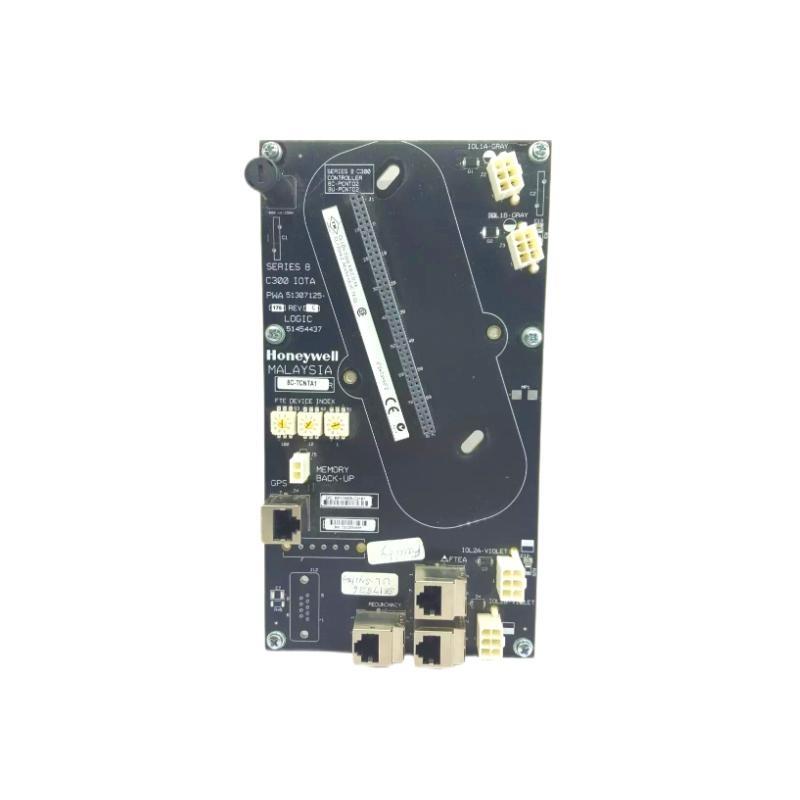

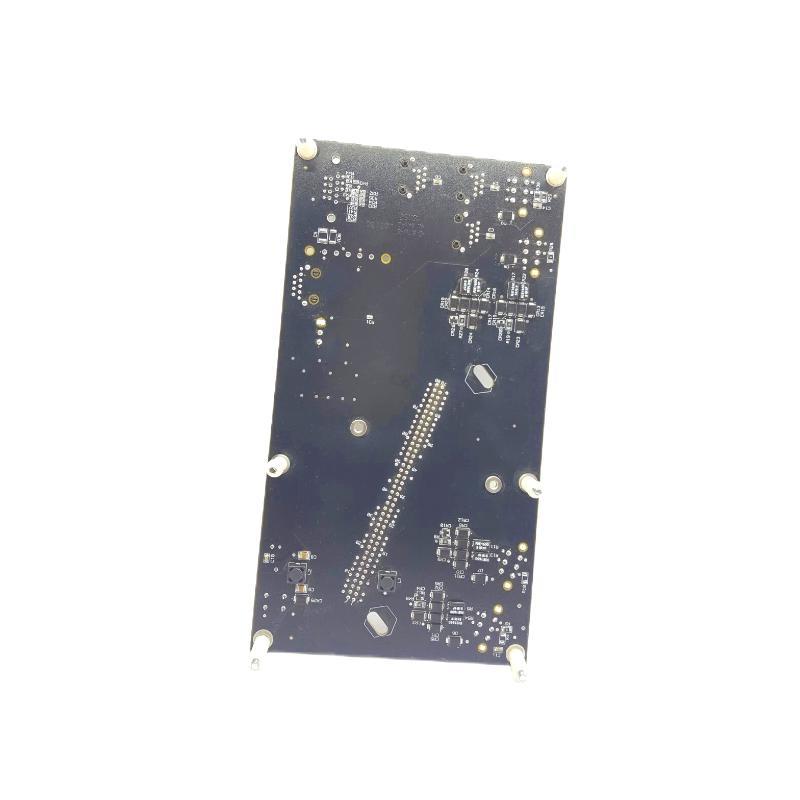

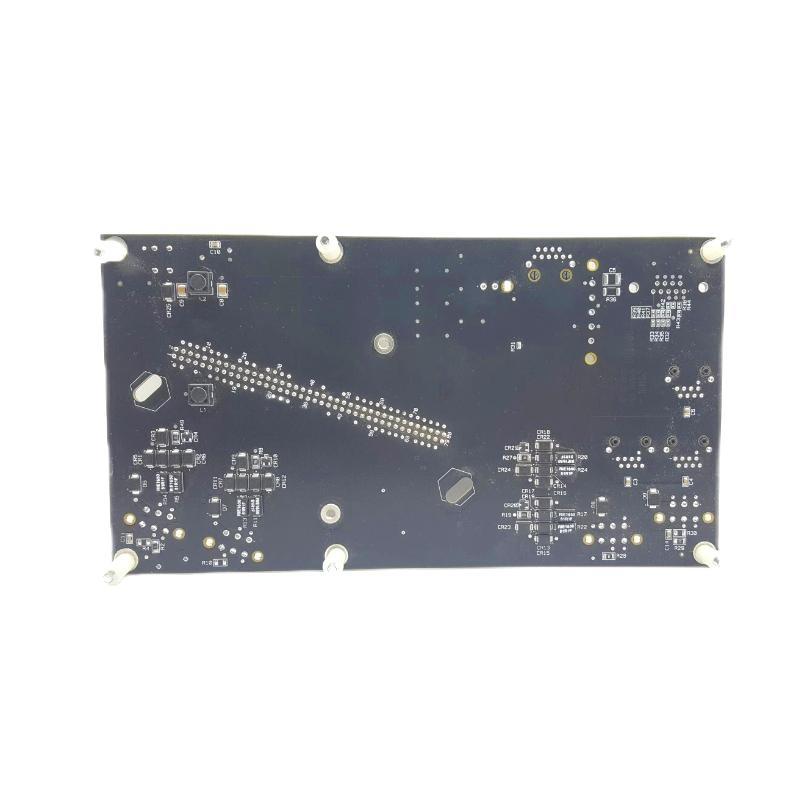

The Honeywell 8C-TCNTA1, also known by its part number 51307125-175, is an Input/Output Termination Assembly (IOTA) designed for the Series 8 C300 Controller within Honeywell’s Experion PKS (Process Knowledge System). This module serves as a critical interface between the C300 controller and the connected I/O modules, facilitating seamless data communication and system integration.
Produktspezifikationen
| Feature | Specification |
| Modell Number | 8C-TCNTA1 |
| Artikelnummer | 51307125-175 |
| Type | I/O Termination Assembly (IOTA) |
| Controller Compatibility | Series 8 C300 Controller |
| I/O Type | Digital and Analog |
| I/O Signal Levels | 24 VDC |
| I/O Protection | Electronically short-circuit protected |
| Number von I/O Points | Up to 32 |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 0 to 95% non-condensing |
| Vibration | 5 g RMS, 10 to 500 Hz |
| Shock | 15 g, 20 ms half-sine |
| Power Requirements | 24 VDC |
| Conformal Coating | Yes |
| Redundancy Support | Yes, with redundancy cable (part number 51305980-836) |
| Dimensions (L x W x H) | 220 x 120 mm |
| Gewicht | 0.6 kg |
Product Applications
The 8C-TCNTA1 IOTA is utilized in various industrial applications, including:
-
Process Control Systems: Integrates with the C300 controller to manage and monitor industrial processes.
-
Distributed Control Systems (DCS): Acts as a node in Honeywell’s Experion PKS, enabling centralized control and monitoring.
-
Automation Systems: Facilitates communication between the controller and field devices, ensuring efficient automation.
-
Safety Instrumented Systems (SIS): Supports safety functions by providing reliable I/O termination.
Product Advantages
-
Enhanced Reliability: Designed with conformal coating for protection against environmental factors, ensuring long-term durability.
-
Seamless Integration: Compatible with Honeywell’s Series 8 C300 Controller, facilitating easy system integration.
-
Redundancy Support: Supports system redundancy, enhancing system availability and reliability.
-
Wide Operating Range: Operates effectively in a broad temperature range, suitable for various industrial environments.
-
Compact Design: Space-saving dimensions allow for efficient use von panel space.
Latest News Headlines
-
“Honeywell Enhances Process Control with New C300 Controller I/O Termination Assembly”
-
“Series 8 C300 Controller I/O Termination Assembly Now Verfügbar for Industrial Applications”
-
“Honeywell’s 8C-TCNTA1 IOTA: A Critical Component for Distributed Control Systems”
-
“Improved System Redundancy with Honeywell’s Latest I/O Termination Assembly”
-
“Honeywell Introduces Coated I/O Termination Assembly for Enhanced Environmental Protection”
Häufig gestellte Fragen (FAQ)
-
What is the primary function von the Honeywell 8C-TCNTA1 I/O Termination Assembly?
-
The primary function von the 8C-TCNTA1 I/O Termination Assembly is to serve as an interface between the C300 Controller and I/O modules, facilitating seamless communication between the controller and field devices in a control system.
-
-
Is the 8C-TCNTA1 compatible with other Honeywell controllers besides the C300?
-
No, the 8C-TCNTA1 is specifically designed to work with the Honeywell Series 8 C300 Controller. It is not compatible with other controllers from Honeywell’s portfolio.
-
-
What type von I/O signals does the 8C-TCNTA1 support?
-
The 8C-TCNTA1 supports both digital and analog I/O signals, making it suitable for a wide range von industrial applications that require reliable input and output communication.
-
-
Can the Honeywell 8C-TCNTA1 be used in hazardous or extreme environments?
-
Yes, the 8C-TCNTA1 is built with a conformal coating that protects it from dust, moisture, and chemicals, allowing it to operate in harsh environments where reliability is crucial.
-
-
How many I/O points can the 8C-TCNTA1 support?
-
The 8C-TCNTA1 can support up to 32 I/O points, allowing it to manage multiple field devices efficiently.
-
-
What is the operating temperature range von the 8C-TCNTA1?
-
The module operates within a temperature range von -40°C to 85°C, making it suitable for various industrial environments with extreme temperatures.
-
-
Does the Honeywell 8C-TCNTA1 vonfer system redundancy?
-
Yes, the 8C-TCNTA1 supports system redundancy when paired with a second I/O termination assembly, ensuring higher system availability and reliability in critical applications.
-
-
What is the power requirement for the 8C-TCNTA1?
-
The 8C-TCNTA1 operates on a 24 VDC power supply, which is a standard power requirement for Honeywell I/O systems.
-
-
Is the 8C-TCNTA1 module designed to handle vibrations and shocks?
-
Yes, the module is designed to withstand vibrations up to 5 g RMS and shocks up to 15 g for a duration von 20 ms half-sine, making it suitable for industrial environments with mechanical stress.
-
-
Can the IOTA module be used in safety-critical applications?
-
Yes, it supports safety functions and is suitable for use in safety instrumented systems.
-
