Produkteinführung

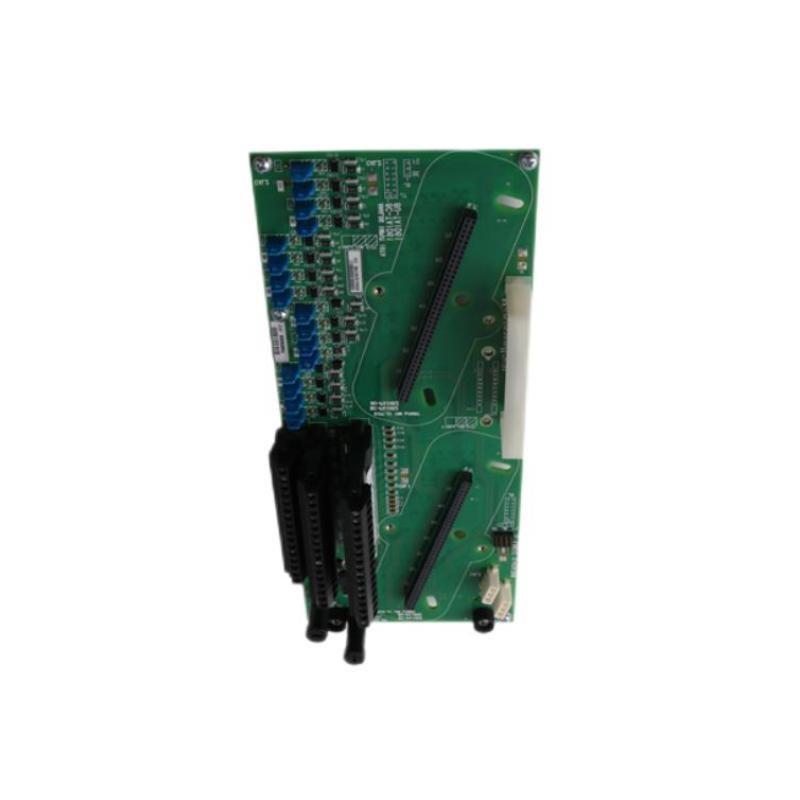

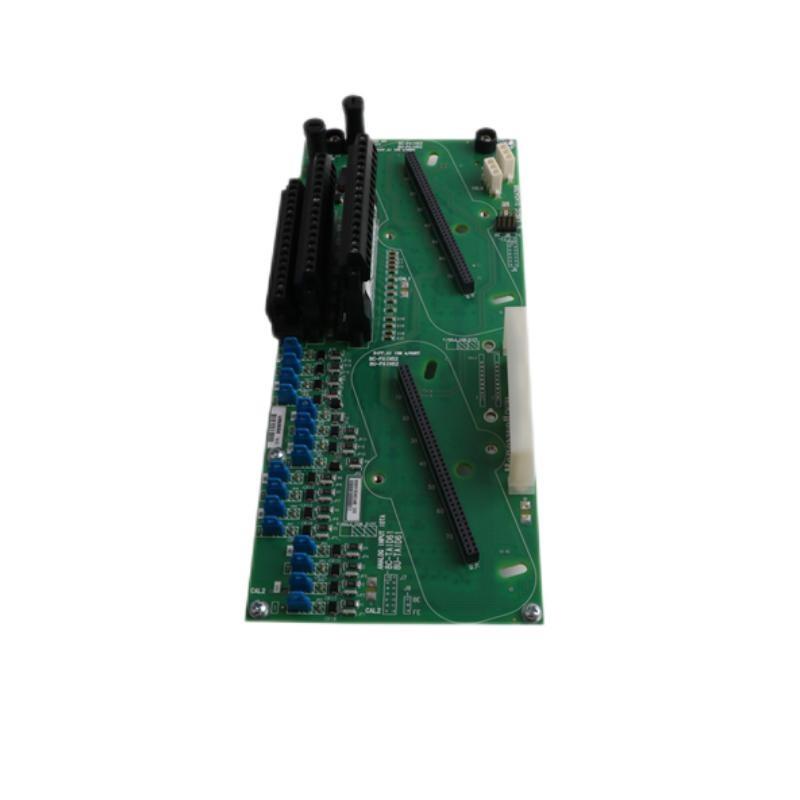

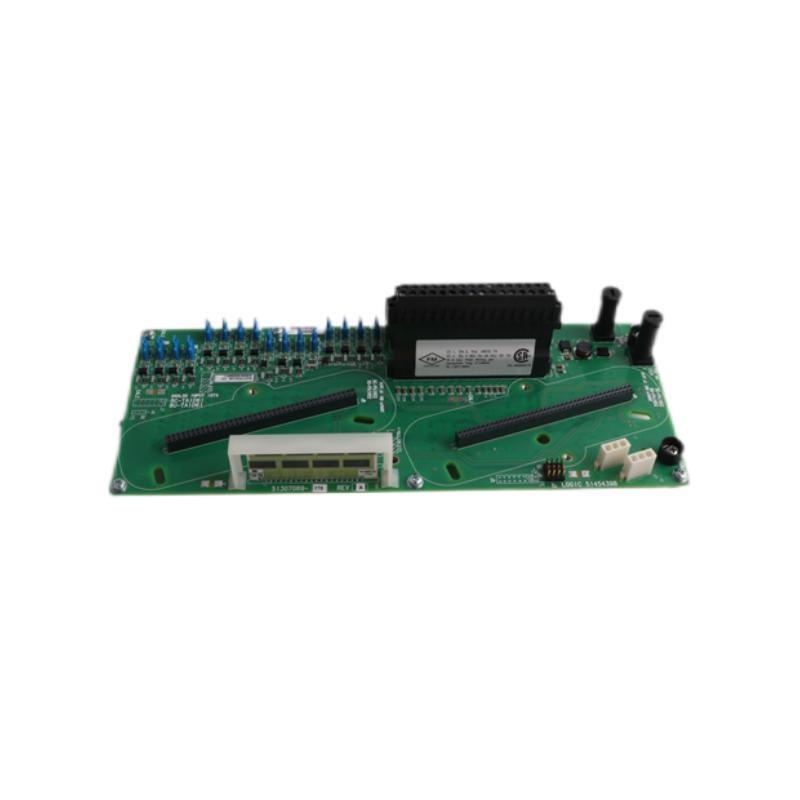

The Honeywell 8C-TAID61 51307069-175 Analog Input Module is a high-performance component von Honeywell’s Experion PKS and C300 Process Automation Systems. Designed to provide precise analog signal acquisition, this module ensures accurate data transmission from field instruments to the control system. With robust construction and intelligent diagnostics, it delivers superior reliability in complex industrial environments such as oil and gas, chemical processing, power generation, and water treatment facilities.
This module supports a variety von analog input signal types and features built-in isolation and noise immStücky, allowing for safe and accurate signal handling in harsh operating conditions. As part von the ControlEdge and Experion platforms, the 8C-TAID61 module plays a key role in enabling efficient process automation and secure real-time monitoring.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 8C-TAID61 |
| Artikelnummer | 51307069-175 |
| Signal Type | Analog Input |
| Channels | 16 channels per module |
| Signal Range | 0–20 mA, 4–20 mA (configurable) |
| Resolution | 16-bit |
| Isolation | Channel-to-channel and channel-to-ground |
| Input Impedance | 250 ohms (typical) |
| Accuracy | ±0.1% von span at 25°C |
| Update Rate | 100 ms |
| Diagnostics | Channel diagnostics for fault detection |
| Power Supply | Supplied through system backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 110 x 70 x 60 mm |
| Gewicht | 0.66 kg |
| Mounting Type | DIN Rail or Panel Mount |
| Certifications | CE, UL, CSA, ATEX |
| System Compatibility | Honeywell C300 / Experion PKS / ControlEdge |
Product Applications
The Honeywell 8C-TAID61 module is widely used in a range von industrial sectors due to its versatility and dependability. Some von the key application areas include:
-
Oil & Gas Industry: Monitoring and controlling fluid flows, pressures, and temperatures in pipelines and refineries.
-
Power Generation Plants: Measurement von turbine parameters, boiler systems, and auxiliary systems.
-
Chemical & Petrochemical Plants: Process control in reactors, distillation columns, and mixing Stücks.
-
Water & Wastewater Management: Supervising treatment processes, pump stations, and tank levels.
-
Pharmaceutical Manufacturing: Monitoring von production lines, clean room environments, and critical processes.
-
Food & Beverage Industry: Analog input for sensors measuring temperature, flow, and pressure in processing lines.
Product Advantages
-
High Channel Density: With 16 channels per module, it allows efficient space utilization in control cabinets.
-
Precision Signal Acquisition: Offers high accuracy and resolution for reliable process monitoring.
-
Built-in Diagnostics: Advanced diagnostics features support proactive maintenance and quick fault isolation.
-
Robust Isolation: Ensures operational safety and signal integrity, minimizing the effects von ground loops and EMI.
-
Flexible Signal Support: Accommodates multiple analog ranges, making it adaptable across applications.
-
Seamless System Integration: Fully compatible with Honeywell’s Experion and ControlEdge platforms for smooth deployment.
-
Global Certification: Meets international safety and performance standards, enabling global deployment.
-
Compact Form Factor: Reduces panel space requirements, which is critical in large-scale automation systems.
Häufig gestellte Fragen (FAQ)
-
Q: What types von signals can the 8C-TAID61 accept?
A: It supports analog current signals including 0–20 mA and 4–20 mA. -
Q: How many channels does this module provide?
A: The module supports up to 16 analog input channels. -
Q: Is it compatible with Honeywell Experion PKS?
A: Yes, it is fully compatible with Experion PKS and C300 control systems. -
Q: Does the module vonfer channel-to-channel isolation?
A: Yes, it provides robust channel-to-channel and channel-to-ground isolation. -
Q: Can I mount the module on a DIN rail?
A: Yes, it supports both DIN rail and panel mounting. -
Q: What is the resolution von the analog inputs?
A: It features a 16-bit resolution for high-precision measurements. -
Q: What diagnostic features are available?
A: Built-in diagnostics help detect channel faults, wiring issues, and signal loss. -
Q: Is it suitable for use in harsh environments?
A: Yes, it’s designed to operate reliably in industrial environments with extended temperature and humidity ranges. -
Q: What is the physical size von the module?
A: It measures 110 x 70 x 60 mm. -
Q: Is the module hot-swappable?
A: Yes, the module supports hot-swapping within supported Honeywell systems.
Related Modells (Same Series / Compatible)
| Modell | Beschreibung | Signal Type | Channels | Compatibility |
|---|---|---|---|---|
| 8C-TAIX61 | Analog Input, Extended Temp Range | Analog Input | 16 | Experion PKS, C300 |
| 8C-PAIH54 | High-Speed Analog Input Module | Analog Input | 8 | C300, Safety Manager |
| 8C-PAONA1 | Analog Output Module | Analog Output | 8 | C300 |
| 8C-TDOD51 | Digital Output Module | Digital Output | 16 | Experion/ControlEdge |
| 8C-TDIL51 | Digital Input Module | Digital Input | 16 | Experion/ControlEdge |
| 8C-PDODA1 | Pulse Output Module | Pulse Output | 8 | ControlEdge |
Popular Honeywell Modules (Same Marke)
| Modell | Beschreibung | Signal Type | Channels | Dimensions (mm) |
|---|---|---|---|---|
| CC-TAIX01 | Analog Input Module | Analog Input | 8 | 249 x 24 x 118 |
| CC-TAOX01 | Analog Output Module | Analog Output | 8 | 249 x 24 x 118 |
| CC-TDIL01 | Digital Input Module | Digital Input | 16 | 249 x 24 x 118 |
| CC-TDOD01 | Digital Output Module | Digital Output | 16 | 249 x 24 x 118 |
| CC-PCF901 | Fieldbus Interface Module | Communication | – | 249 x 24 x 118 |
| CC-PDIL01 | Pulse Input Module | Pulse Input | 8 | 249 x 24 x 118 |
