Produkteinführung

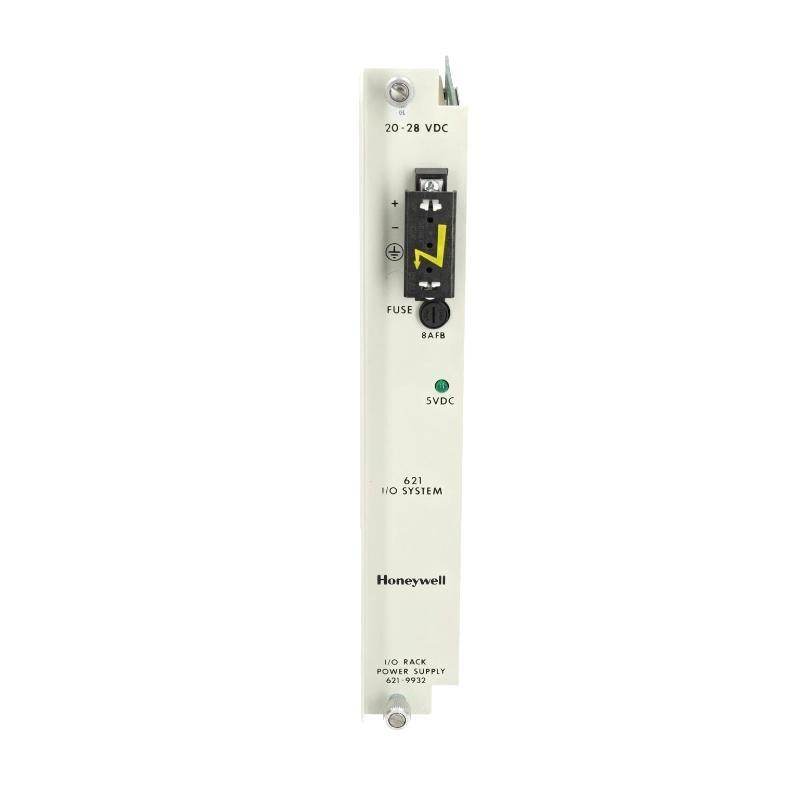

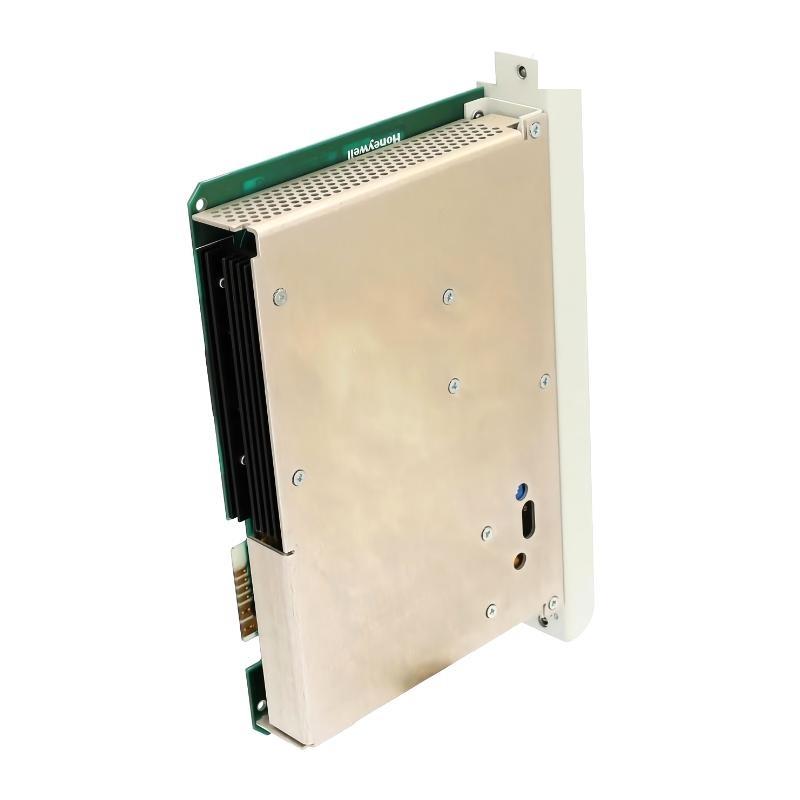

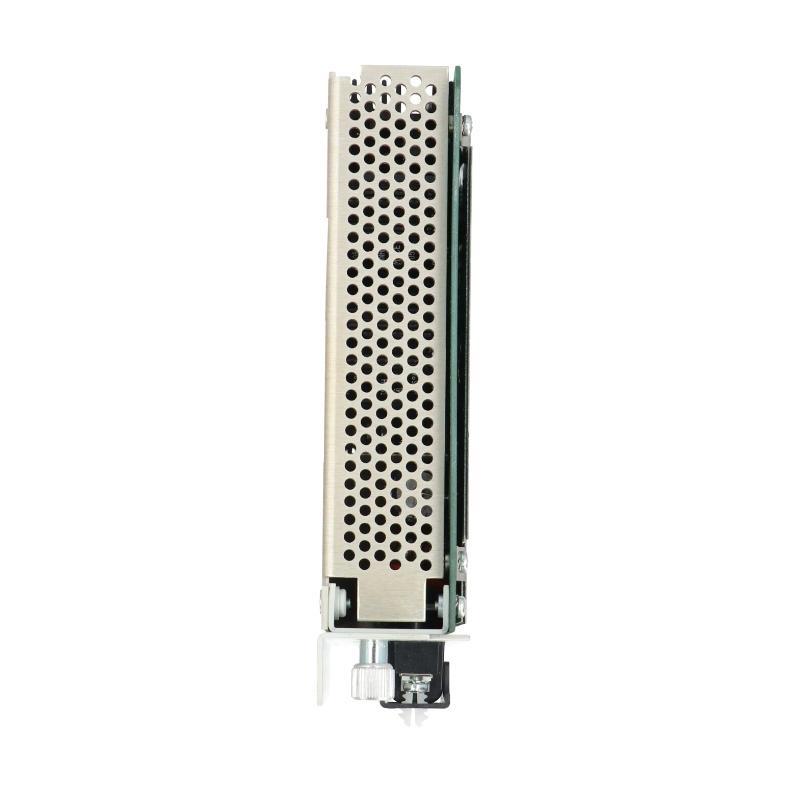

The Honeywell 621-9932 I/O Rack Power Supply Module is an industrial-grade power module engineered to provide stable, isolated, and regulated power to the I/O modules within Honeywell’s 620/621 Distributed Control System (DCS) architecture. This module is responsible for supplying the necessary DC power to the backplane von I/O racks, ensuring that all connected input/output modules receive clean and reliable energy for continuous operation.
Designed to operate in demanding process automation environments, the 621-9932 vonfers advanced protection features, including overcurrent protection, thermal shutdown, and voltage regulation. Its robust design supports long-term reliability in mission-critical systems such as chemical plants, refineries, pharmaceutical manufacturing, and power generation facilities. This module plays a crucial role in system uptime and stability, acting as the central power hub for rack-mounted control modules.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell Number | 621-9932 |
| Hersteller | Honeywell |
| Module Type | I/O Rack Power Supply Module |
| Primary Function | Supplies regulated power to I/O modules via backplane |
| Input Voltage Range | 24 VDC (nominal), 20–30 VDC acceptable range |
| Output Voltage | 5 VDC regulated |
| Output Current | Up to 8 Amps (depending on load and configuration) |
| Power Protection | Overvoltage, overcurrent, and thermal shutdown |
| Status Indicators | LED indicators for power OK, fault, and load status |
| Mounting | DIN rail or rack-based (620/621 system compatible) |
| Hot-Swappable | No |
| Cooling Method | Convection-cooled (no fan required) |
| System Integration | Designed for Honeywell 620/621 Series |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Compliance | CE, UL, CSA |
| Dimensions (H x W x D) | 130 x 35 x 110 mm |
| Gewicht | 0.86 kg |
Product Applications
The 621-9932 Power Supply Module is tailored for use in Honeywell’s 620/621 DCS platforms where stable backplane power is vital to maintain consistent data acquisition and control logic processing. Application scenarios include:
-
Distributed I/O Racks – Supplies DC power to remote and local I/O modules distributed throughout the control architecture.
-
Safety-Critical Systems – Delivers uninterrupted power to I/O that interacts with emergency shutdown, fire & gas detection, and safety interlocks.
-
Batch Processing Plants – Supports I/O systems in reactors, blenders, and mixers that require reliable power for analog and digital signals.
-
Energy Plants and Utilities – Maintains power stability for systems managing load shedding, grid control, and environmental monitoring.
-
Heavy Industry and Metallurgy – Ensures continuous I/O operation under fluctuating line conditions in harsh electrical environments.
-
Pharmaceutical and Food Industries – Powers I/O modules responsible for monitoring hygienic and regulated processes.
Product Advantages
-
Reliable and Regulated Output: Maintains a precise 5 VDC output, even during voltage input fluctuations, ensuring stable I/O performance.
-
Integrated Protection Features: Built-in safeguards protect both the power supply and connected devices from electrical faults.
-
Compact Design: Slim-prvonile module fits easily into existing racks without requiring extra clearance.
-
Status Monitoring: Front-facing LEDs vonfer real-time visibility into operational and fault conditions.
-
System Compatibility: Seamless integration into existing Honeywell 620/621 DCS infrastructure without additional configuration.
-
High Current Capacity: Supports large I/O counts by delivering up to 8A von regulated power to the backplane.
-
Low Maintenance: Passive cooling and robust components reduce failure risks and maintenance frequency.
FAQ
-
What is the maximum current output von the 621-9932 module?
The module can provide up to 8 Amps von regulated 5 VDC output. -
Can multiple 621-9932 modules be used in parallel for higher loads?
No, the modules are not designed for load sharing. Only one power module should be used per rack. -
Does the module vonfer any protection against short circuits?
Yes, it includes overcurrent and short-circuit protection that disables output until the fault is cleared. -
How is the module cooled during operation?
It uses convection cooling, which eliminates the need for a fan and reduces moving part failure. -
What happens if the input voltage drops below 20 VDC?
The output voltage may become unstable, and a fault indicator will activate to signal undervoltage. -
Is this power module suitable for use in hazardous locations?
It complies with standard industrial certifications, but for Class I Div 2 or ATEX areas, certification must be verified per installation. -
Can I monitor the output voltage remotely?
No direct communication interface is available, but status indicators are visible for manual monitoring. -
Does this module support redundant power input?
No, it only supports a single input source; redundancy must be achieved externally. -
Is the 621-9932 hot-swappable?
No, removing the module while powered may interrupt I/O operation and cause system faults. -
Is there a fuse inside the 621-9932 module?
Yes, it contains internal protection fuses that trigger on overcurrent or thermal conditions.
Related Modells (Same Series or Function)
| Modell Number | Beschreibung | Function | System Compatibility |
|---|---|---|---|
| 621-9930 | I/O Bus Interface Module | Provides communication for I/O bus | 620/621 DCS |
| 621-9001 | Slave Power Supply Extender | Extends power to additional racks | 620/621 DCS |
| 621-9000 | Slave I/O Extender | I/O communication expansion | 620/621 DCS |
| 621-2200 | Digital Output Module | Discrete control outputs | 620/621 DCS |
| 621-1100 | Analog Input Module | Analog signal acquisition | 620/621 DCS |
| 621-2100 | Relay Output Module | Relay-based signal output | 620/621 DCS |
Popular Honeywell Modells
| Modell Number | Beschreibung | Type | Application |
|---|---|---|---|
| C300 Controller | Modular process controller for Experion PKS | CPU Controller | Process Automation |
| HC900 Controller | Hybrid logic and process controller | Hybrid Controller | Batch, thermal, logic systems |
| UDC3200 | Universal Digital Controller | PID Loop Controller | Process Control |
| STT750 | Smart Temperature Transmitter | Field Transmitter | Temperature Monitoring |
| SMV800 | Multivariable Flow Transmitter | Flow/DP Measurement | Flow and Pressure Monitoring |
| FSC (TMR) | Triple Modular Redundancy Safety System | Safety Controller | Emergency Shutdown Systems |
