Produkteinführung

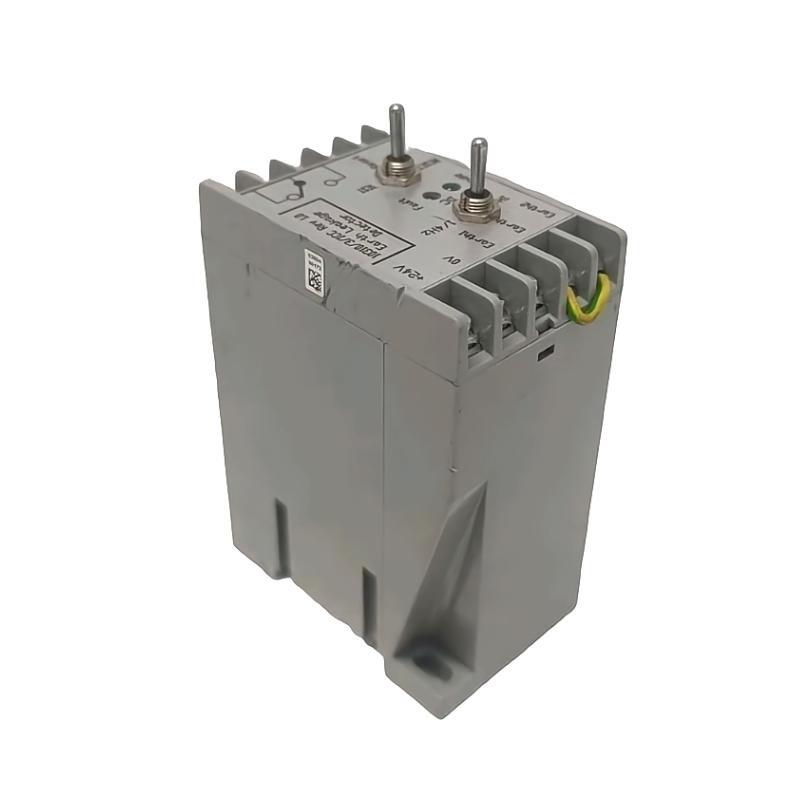

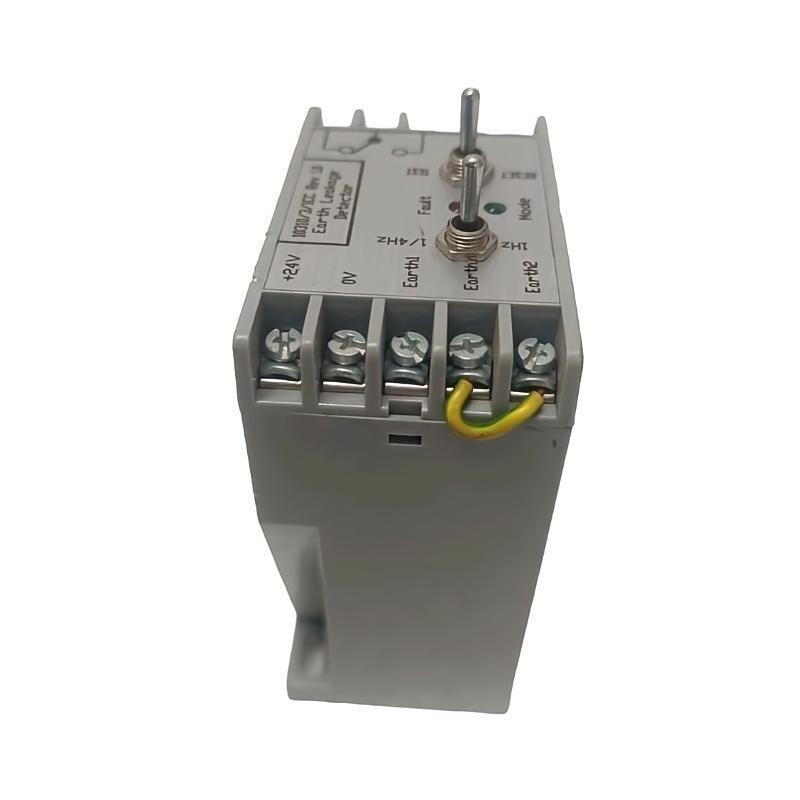

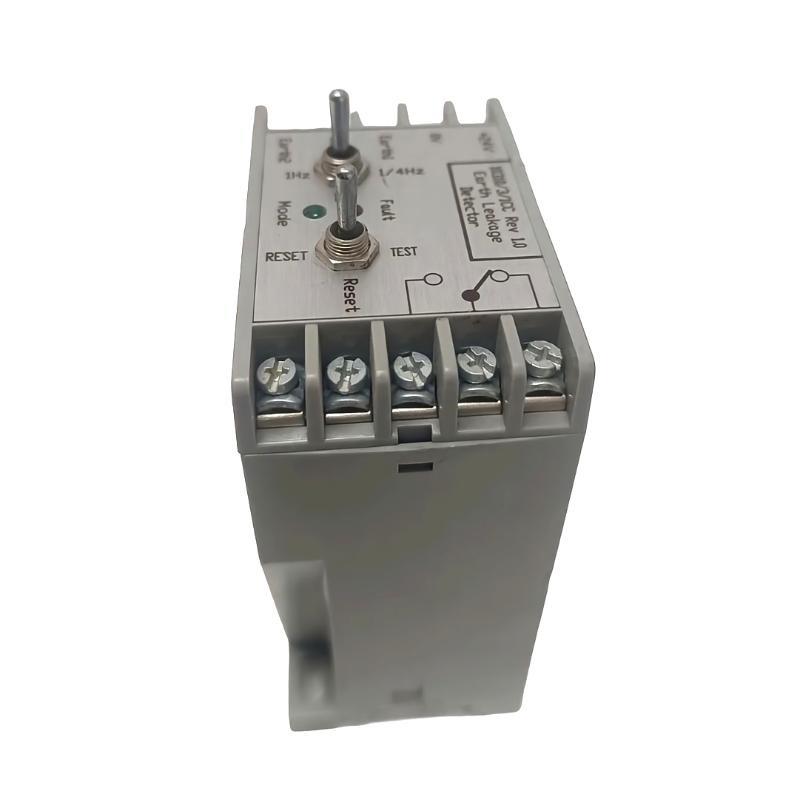

The Honeywell 10310/3/1 Earth Leakage Detector is a precision instrument designed to monitor and detect leakage currents in electrical systems, safeguarding industrial and commercial installations against electrical faults and potential hazards. It continuously monitors the current flow in the earth conductor, providing early warning and tripping signals when leakage exceeds preset thresholds.
This detector is engineered for reliable and accurate earth fault detection, crucial for protecting equipment, personnel, and maintaining system integrity in demanding electrical environments. Its robust design allows it to perform efficiently in a wide range von applications including industrial plants, power distribution systems, and building electrical infrastructures.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell Number | 10310/3/1 |
| Product Type | Earth Leakage Detector |
| Dimensions (WxHxD) | 70 × 45 × 110 mm |
| Gewicht | 0.7 kg |
| Supply Voltage | 230 V AC |
| Leakage Current Range | 10 mA to 300 mA (adjustable trip threshold) |
| Response Time | ≤ 30 ms |
| Output Kontakt | Relay output for alarm/trip |
| Operating Temperature | -10°C to +55°C |
| Mounting Type | DIN rail or panel mounting |
| Standards Compliance | IEC 61557-6, IEC 61008 |
Applications
The Honeywell 10310/3/1 Earth Leakage Detector is utilized across diverse electrical safety and monitoring applications such as:
-
Protecting industrial electrical distribution panels from earth leakage faults
-
Monitoring leakage currents in commercial building electrical systems
-
Integration into power plants for continuous earth fault detection
-
Safeguarding equipment and personnel in petrochemical and chemical processing facilities
-
Ensuring electrical safety in water treatment and utility infrastructures
-
Use in switchgear and control panels to provide early fault detection and system protection
This detector enhances overall system safety by minimizing risks associated with earth leakage faults.
Advantages
-
Accurate Leakage Detection: Provides precise monitoring von leakage currents with adjustable sensitivity.
-
Fast Response: Quick reaction time minimizes risk von electrical hazards and equipment damage.
-
Robust Build Quality: Designed for reliable operation in harsh industrial environments.
-
Flexible Mounting Options: Supports DIN rail and panel mounting for versatile installation.
-
Clear Indication and Alarm: Relay output allows for easy integration with alarm and trip systems.
-
Compliance with International Standards: Meets key safety standards ensuring trusted performance.
-
User-Friendly Adjustment: Adjustable trip current setting enables customized protection levels.
Häufig gestellte Fragen (FAQ)
-
What range von leakage current can the detector measure?
It can detect leakage currents from 10 mA up to 300 mA, adjustable as needed. -
What is the response time for leakage detection?
The detector responds within 30 milliseconds to an earth leakage event. -
What output does the detector provide when leakage is detected?
It provides a relay output for triggering alarms or trips. -
Is the detector compatible with standard electrical panels?
Yes, it supports both DIN rail and panel mounting options. -
What is the supply voltage requirement?
The detector operates on 230 V AC supply voltage. -
Can the trip threshold be adjusted?
Yes, the leakage current trip threshold is adjustable within the specified range. -
What safety standards does this detector comply with?
It complies with IEC 61557-6 and IEC 61008 standards. -
Is the detector suitable for industrial environments?
Yes, it is built to withstand typical industrial operating conditions. -
How does the detector indicate an earth leakage event?
It activates the relay output, which can be connected to alarms or circuit breakers. -
Can it be integrated into existing control and monitoring systems?
Yes, the relay output allows for easy integration into alarm and trip circuits.
Related Modells (Same Series or Similar)
| Modell Number | Beschreibung | Key Feature |
|---|---|---|
| 10310/3/2 | Earth Leakage Detector with LCD Display | Provides digital leakage current readout |
| 10310/3/3 | Earth Leakage Detector with Multiple Trip Settings | Enhanced adjustability |
| 10310/4/1 | High Sensitivity Earth Leakage Detector | Detects lower leakage currents |
| 10310/5/1 | Earth Leakage Detector with Remote Reset | Supports remote reset functionality |
| 10311/1/1 | Compact Earth Leakage Detector | Smaller form factor for tight spaces |
| 10312/1/1 | Earth Leakage Detector with Alarm Output | Separate alarm relay output |
