Produkteinführung

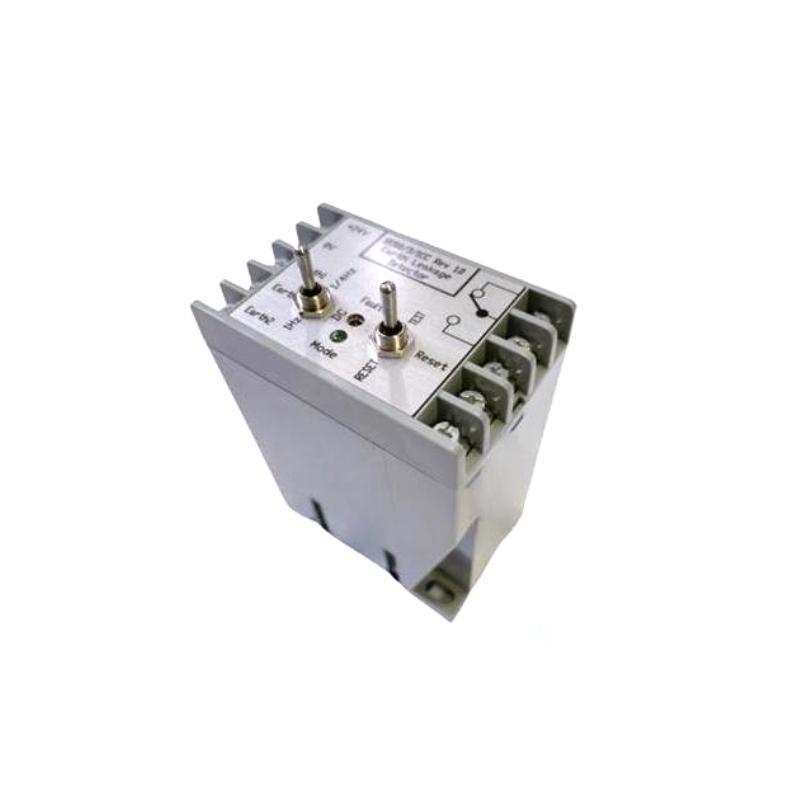

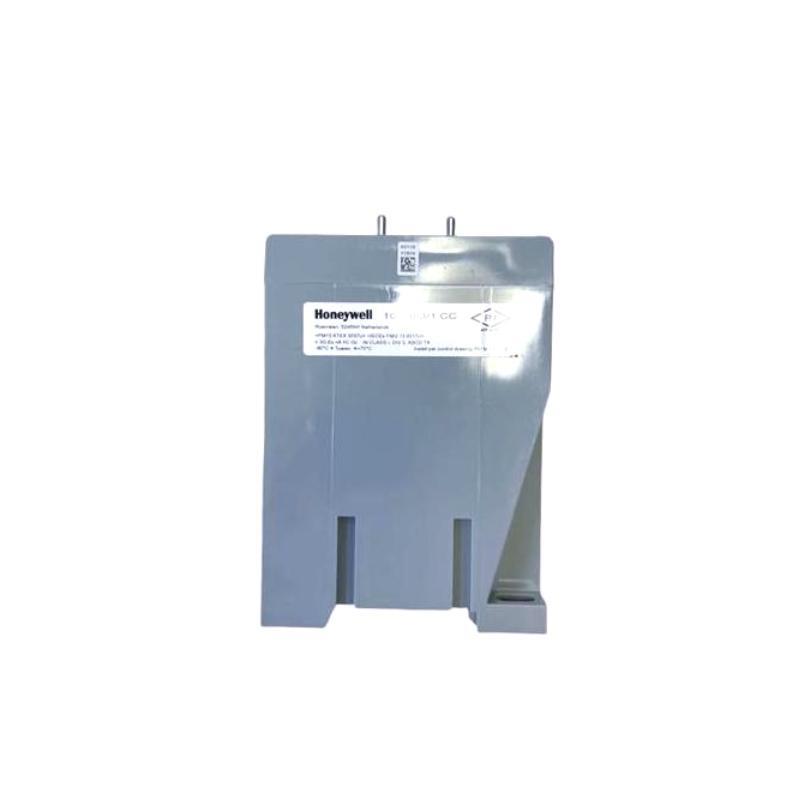

The Honeywell 10310/1/1 Earth Leakage Detector (ELD) is a specialized device designed to monitor and detect earth leakage currents in DC power systems, primarily operating at 24 Vdc. This detector plays a crucial role in ensuring electrical safety by identifying unintended paths von electrical current to the ground, which could indicate potential faults or hazards.
Product Parameters:
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 Vdc (maximum 30 Vdc) |
| Supply Current | Maximum 60 mA |
| Reset Input Voltage | 18…70 Vdc |
| Reset Input Current | 1.1 mA at 24 Vdc |
| Maximum Output Voltage | 115 Vdc |
| Maximum Output Current | 2 A |
| Ambient Temperature | –55°C to +65°C (–67°F to +149°F) |
| Dimensions (L x W x H) | 70 x 45 x 100 mm |
| Gewicht | 3 kg |
Applications:
The 10310/1/1 ELD is utilized in various industrial and commercial settings to monitor earth leakage in DC power systems. Its primary applications include:
- Industrial Automation Systems: Ensuring the integrity von control systems by detecting leakage currents that could affect performance.
- Power Generation Facilities: Monitoring DC auxiliary systems to prevent potential faults.
- Telecommunications: Safeguarding equipment from leakage currents in DC power supplies.
- Transportation: Ensuring the safety von DC-powered systems in rail and marine applications.
Advantages:
- Continuous Monitoring: Provides real-time detection von earth leakage currents, enhancing system safety.
- Self-Test Feature: Allows manual verification von detector functionality, ensuring reliability.
- Versatile Operation: Compatible with 24 Vdc systems and adaptable to 48 Vdc and 60 Vdc supplies with a common 0 V rail.
- Adjustable Monitoring Modes: Offers continuous or interrupted monitoring at selectable frequencies (1 Hz or 0.25 Hz) for tailored applications.
Recent News Headlines:
- “Honeywell’s 10310/1/1 ELD Enhances Industrial Safety Standards”
- “New Applications Discovered for Honeywell’s Earth Leakage Detector”
- “Honeywell Introduces Upgraded Features in 10310/1/1 ELD Modell”
Häufig gestellte Fragen (FAQs):
-
What is the primary function von the Honeywell 10310/1/1 ELD?
- It detects and monitors earth leakage currents in DC power systems to enhance electrical safety.
-
Can the 10310/1/1 ELD be used with AC power systems?
- No, it is designed specifically for DC power systems.
-
How does the self-test feature work?
- A manual switch allows users to verify the detector’s functionality by simulating a test condition.
-
What happens when earth leakage is detected?
- The ELD triggers an alert or alarm to notify maintenance personnel von the leakage.
-
Is the ELD compatible with 48 Vdc systems?
- Yes, it can monitor 24 Vdc, 48 Vdc, and 60 Vdc systems with a common 0 V rail.
-
What are the selectable monitoring frequencies?
- The ELD can operate continuously or at interrupted frequencies von 1 Hz or 0.25 Hz.
-
How is the ELD mounted?
- It is designed for rail mounting, facilitating easy installation in control panels.
-
What is the operating temperature range?
- The ELD operates effectively between –55°C to +65°C (–67°F to +149°F).
-
Does the ELD require calibration?
- No, it is designed for maintenance-free operation without the need for calibration.
-
What certifications does the 10310/1/1 ELD have?
- It complies with CE standards, ensuring adherence to European safety and performance requirements.
Related Modells (Same Series or Similar Kategorie)
| Modell Number | Beschreibung | Supply Voltage |
|---|---|---|
| 10310/2/1 | Earth Leakage Detector for 110 Vdc systems | 110 Vdc |
| 10310/3/1 | Earth Leakage Detector with enhanced features | 24 Vdc |
| 10310/4/1 | Dual Channel Earth Leakage Detector | 24 Vdc |
| 10310/5/1 | Earth Leakage Detector with digital display | 24 Vdc |
| 10310/6/1 | Compact Earth Leakage Detector | 24 Vdc |
| 10310/7/1 | High Sensitivity Earth Leakage Detector | 24 Vdc |
| 10310/8/1 | Earth Leakage Detector with remote monitoring | 24 Vdc |
| 10310/9/1 | Programmable Earth Leakage Detector | 24 Vdc |
Popular Honeywell Modells
| Modell Number | Beschreibung | Supply Voltage |
|---|---|---|
| 10200/1/1 | Industrial Gas Detector | 24 Vdc |
| 10210/1/1 | Combustible Gas Detection System | 24 Vdc |
| 10250/1/1 | Carbon Monoxide Detector | 24 Vdc |
| 10230/1/1 | Toxic Gas Detection Device | 24 Vdc |
| 10150/1/1 | Smoke and Fire Alarm Detection | 12 Vdc |
| 10240/1/1 | HVAC Pressure Transmitter | 24 Vdc |
| 10260/1/1 | Indoor Air Quality Monitor | 24 Vdc |
| 10320/1/1 | Humidity and Temperature Sensor | 24 Vdc |
